TRN245L-CRMDKA (2008)
Toyota Tacoma

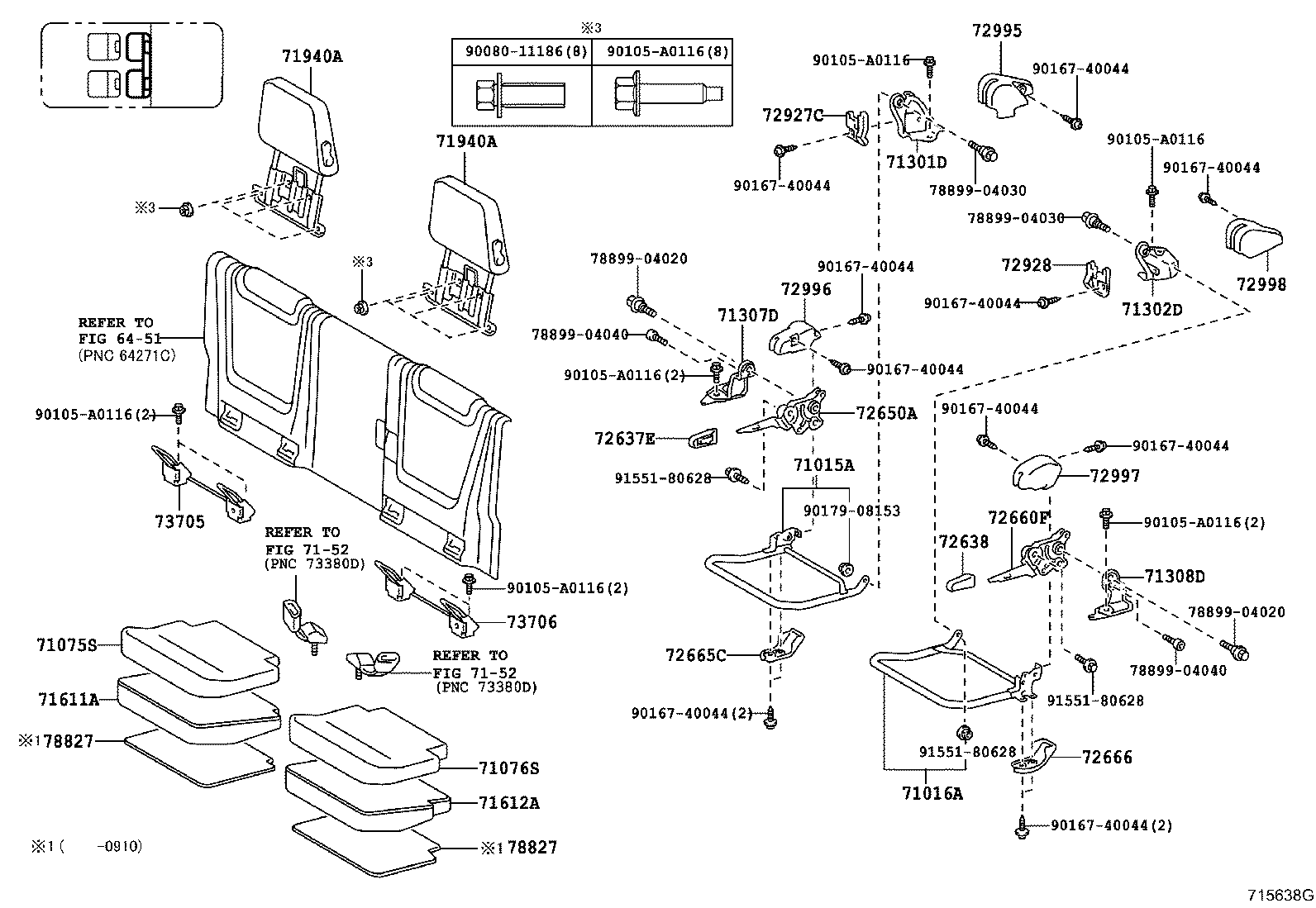

ILLUST NO. 3 OF 3(0805- )LCB
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-04070 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-04030 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-04200E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 71075-04200B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71075-04200E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 71075-04200B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-04070B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71076-04070E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 71076-04070B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71076-04070E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-04030 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-04010 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH | ||||
| 71307-04010 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71308D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH | ||||
| 71308-04020 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-04030 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-04020 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-04050B0 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71940-04050E0 |
GRN245,265,TRN225,245,265..LCB SAND BEIGE,TRIM4# |
1 | ||
| 71940-04051B0 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71940-04051E0 |
GRN245,265,TRN225,245,265..LCB SAND BEIGE,TRIM4# |
1 | ||
| 71940-04053B2 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71940-04053E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-04050B0 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71940-04050E0 |
GRN245,265,TRN225,245,265..LCB SAND BEIGE,TRIM4# |
1 | ||
| 71940-04051B0 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71940-04051E0 |
GRN245,265,TRN225,245,265..LCB SAND BEIGE,TRIM4# |
1 | ||
| 71940-04053B2 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71940-04053E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72637E - HANDLE, REAR SEAT LOCK, RH | ||||
| 72637-04050E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72637-04050B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72638-04020E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72638-04020B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72650A - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-04020 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-04020 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-04020B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72665-04020E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-04020E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72666-04020B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72927C - COVER, REAR SEAT CUSHION UNDER RH | ||||
| 72927-04010B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72927-04010E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-04010E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72928-04010B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-04030B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72995-04030E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-04020E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72996-04020B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-04020B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 72997-04020E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-04030E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 72998-04030B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-04020 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
1 | ||
| 78827 - BOARD, SUB SEAT COVER | ||||
| 78827-04010 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 78827 - BOARD, SUB SEAT COVER | ||||
| 78827-04010 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| Common parts | ||||
| 78899-04020 | ||||
| 78899-04030 | ||||
| 78899-04040 | ||||
| 90080-11186 | ||||
| 90105-A0116 | ||||
| 90167-40044 | ||||
| 90179-08153 | ||||
| 91551-80628 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 7152 | ||||

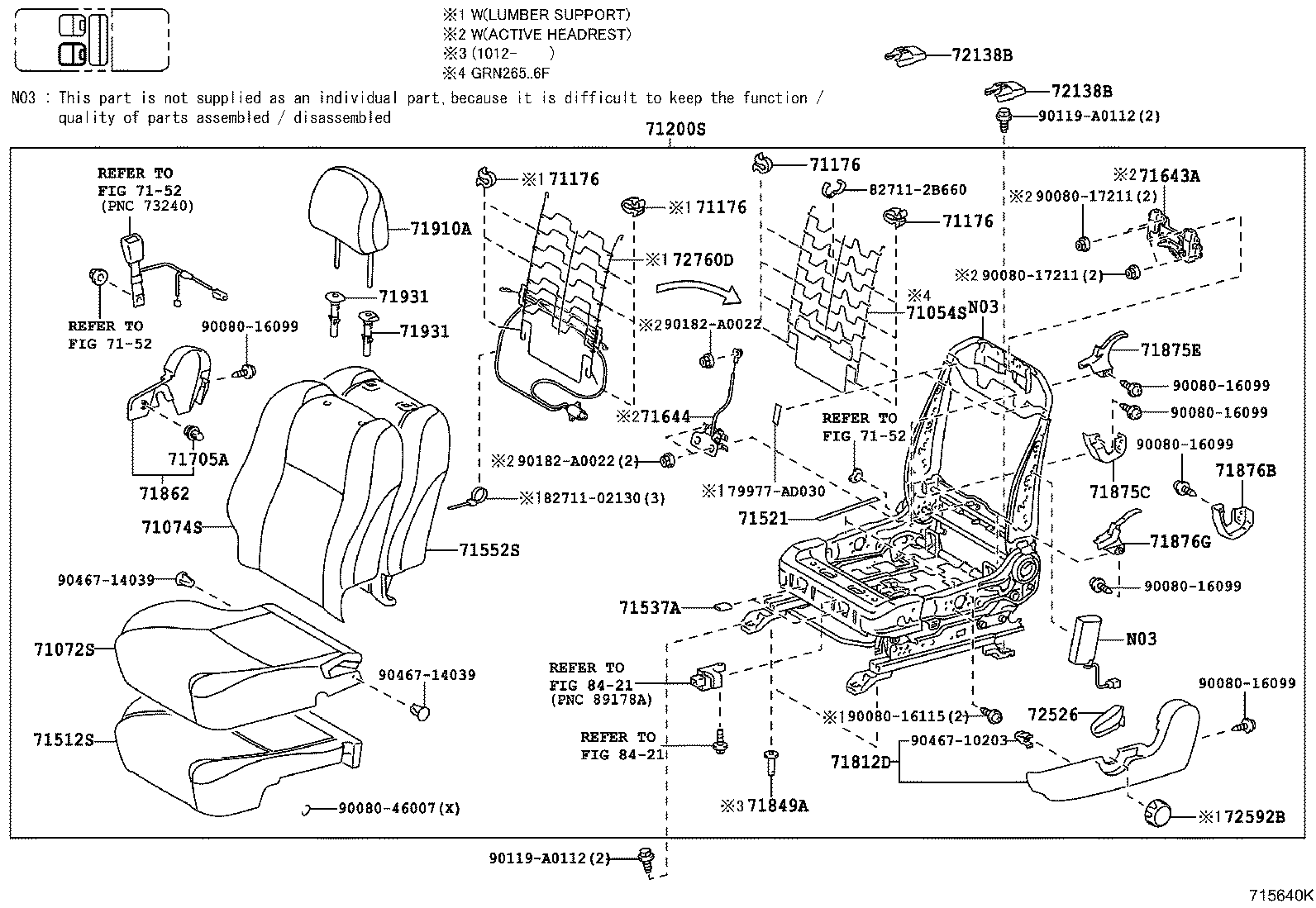

ILLUST NO. 1 OF 3(0805-1109)TRN240..4FC ; (0805-1109)GRN225,245,250,265,270,TRN225,245,265
DRIVER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-04150E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71072-AD011B5 |
GRN245,TRN225,245..LCB;GRN265,TRN240,265..(LCB,RCB)..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71072-04150B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-04200B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71074-04220B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71074-04220E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
14 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
8 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
6 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
14 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
8 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
6 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
14 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
8 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
6 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
14 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
8 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
6 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-04140B2 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71200-04310E2 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71200-04310B2 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-AD010 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-04050 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71643-04010 |
GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12050 |
GRN245,250,265,270,TRN225,245,265 RH |
1 | ||
| 71644-12030 |
GRN225,245,250,265,270,TRN225,245,265 LH |
1 | ||
| 71644-04010 |
GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245 LH |
1 | ||
| 71644-04020 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 RH |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AD010B0 |
GRN245,TRN225,245..LCB;GRN265,TRN240,265..(LCB,RCB)..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-AD020E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-02010 |
TRN240..4FC;GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AD010E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71862-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71875-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AD020B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04330B1 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
2 | ||
| 71910-04340B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-04340E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B7 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P2 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B7 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P2 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
2 | ||
| 72138-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
2 | ||
| 72138-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 72526-AD010E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-AD010B0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 72592-AD010E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-04030 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
1 | ||
| Common parts | ||||
| 79977-AD030 | ||||
| 82711-02130 | ||||
| 82711-2B660 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-17211 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90182-A0022 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||

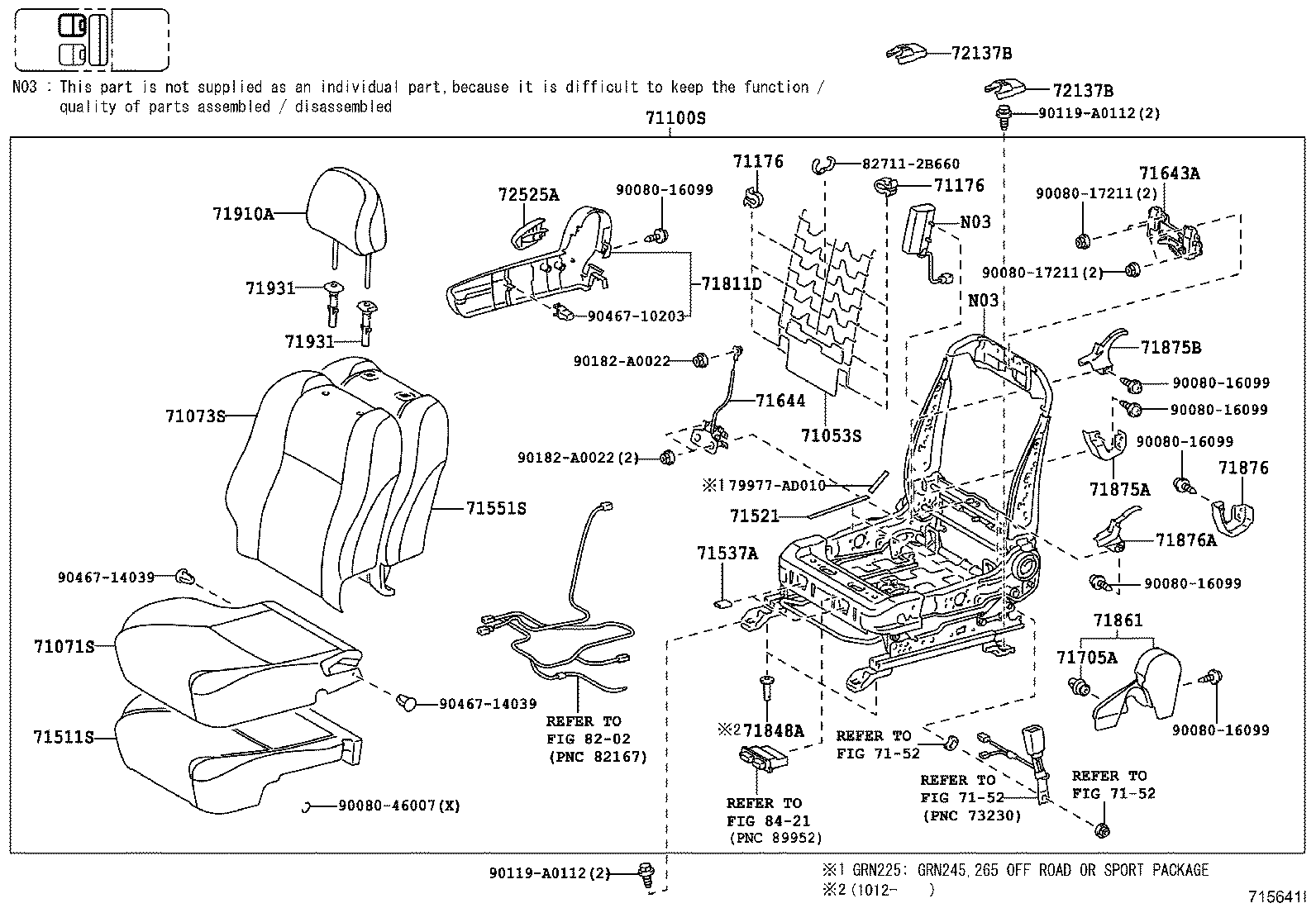

ILLUST NO. 2 OF 3(0805-1109)GRN225,245,250,265,270
PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0Y070E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0Y060B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71071-0Y070B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-04530B0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71073-04540B0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-04540E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-04840E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-04840B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-04830B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
14 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
8 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
6 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
14 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
8 | ||
| 71173-0E010 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE |
6 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AD010 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-04170 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71643-04010 |
GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12050 |
GRN245,250,265,270,TRN225,245,265 RH |
1 | ||
| 71644-12030 |
GRN225,245,250,265,270,TRN225,245,265 LH |
1 | ||
| 71644-04010 |
GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245 LH |
1 | ||
| 71644-04020 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 RH |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AD020B0 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71811-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-02010 |
TRN240..4FC;GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AD020B0 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71861-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-02140B1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71875-02140E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-02140B1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876-02140E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD020B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04330B1 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
2 | ||
| 71910-04340B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-04340E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B7 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P2 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B7 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P2 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
2 | ||
| 72137-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
2 | ||
| 72137-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 72525-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 79977-AD010 | ||||
| 82711-2B660 | ||||
| 90080-16099 | ||||
| 90080-17211 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90182-A0022 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 3(0805-1109)TRN240..4FC ; (0805-1109)GRN225,245,250,265,270,TRN225,245,265
*PAS W(SRS SIDE AIR BAG,BACK BOARD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0Y070E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0Y060B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71071-0Y070B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-04530B0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71073-04540B0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-04540E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-04840E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
1 | ||
| 71100-04840B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71100-04830B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AD010 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-04170 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-02010 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71643-04010 |
GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12050 |
GRN245,250,265,270,TRN225,245,265 RH |
1 | ||
| 71644-12030 |
GRN225,245,250,265,270,TRN225,245,265 LH |
1 | ||
| 71644-04010 |
GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245 LH |
1 | ||
| 71644-04020 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 RH |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 |
2 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-02020E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71771-02020B1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AD020B0 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71811-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-02010B1 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71813-02010E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-02020B1 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71814-02020E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-02020E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71831-02020B1 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-02020E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71832-02020B1 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-02010 |
TRN240..4FC;GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AD020B0 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 71861-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-02140B1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71875-02140E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71875-AD020B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-02140B1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876-02140E0 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD020B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 71876-AD020E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04330B1 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
2 | ||
| 71910-04340B1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-04340E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SR5 PACKAGE,SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B7 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P2 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B7 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010P2 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
2 | ||
| 72137-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
2 | ||
| 72137-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
2 | ||
| 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 72505-02160 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
1 | ||
| 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 72506-02160 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AD010B0 |
GRN265,TRN240,265..4FC,5FC;GRN225,245,250,270,TRN225,245 GRAY,TRIM1# |
1 | ||
| 72525-AD010E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-01030B1 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 72525-01030E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-01040E1 |
GRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245 SAND BEIGE,TRIM4# |
1 | ||
| 72525-01040B1 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 72529 - ROD, FRONT SEAT BACK LOCK HANDLE | ||||
| 72529-02050 |
GRN245,250,270,TRN225,245;GRN265,TRN240,265..4FC,5FC |
1 | ||
| Common parts | ||||
| 71769-33020 | ||||
| 82711-2B660 | ||||
| 90080-10248 | ||||
| 90080-16099 | ||||
| 90080-17211 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90182-A0022 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
