TRN245L-CRMDKA (2008)
Toyota Tacoma

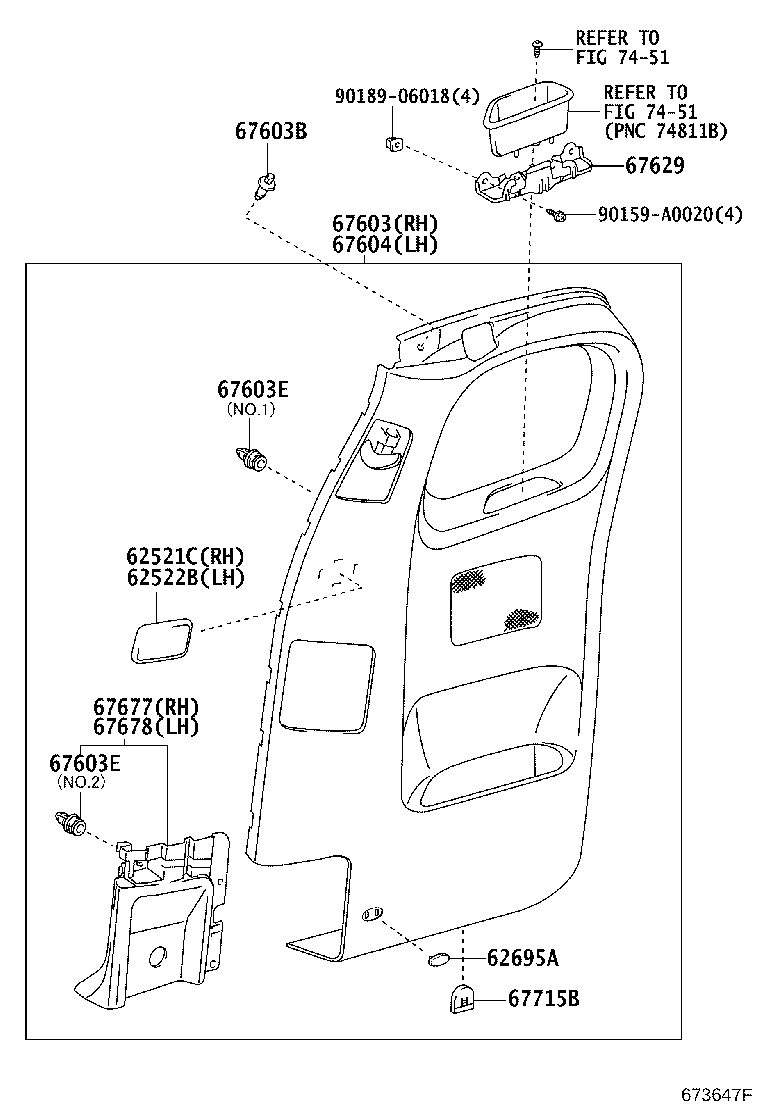

ILLUST NO. 2 OF 2(0409-1508)LCB
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62521C - COVER, QUARTER TRIM RH | ||||
| 62521-04060E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 62521-04060B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 62522B - COVER, QUARTER TRIM LH | ||||
| 62522-04060E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 62522-04060B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 62695A - STOPPER, SIDE TRIM COVER | ||||
| 62695-34010E2 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
2 | ||
| 62695-34010B4 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
2 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 62510-04031B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 62510-04030B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 62510-04031E0 |
GRN245,265,TRN225,245,265..LCB SAND BEIGE,TRIM4# |
1 | ||
| 62510-04030E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07076P6 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
2 | ||
| 90467-07076L2 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
2 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) NO.1 & NO.2 |
20 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) NO.1 & NO.2 |
20 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 62520-04030E0 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 62520-04030B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 67629 - BRACKET, REAR DOOR TRIM BOARD | ||||
| 67625-04010 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
2 | ||
| 67677 - COVER, SIDE TRIM BOARD, REAR RH | ||||
| 62521-04051B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 62521-04051E1 |
GRN245,265,TRN225,245,265..LCB SAND BEIGE,TRIM4# |
1 | ||
| 62521-04050E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 62521-04050B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 67678 - COVER, SIDE TRIM BOARD, REAR LH | ||||
| 62522-04050B0 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) GRAY,TRIM1# |
1 | ||
| 62522-04050E1 |
GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) SAND BEIGE,TRIM4# |
1 | ||
| 67715B - PAD, REAR DOOR TRIM | ||||
| 62527-04050 |
GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC) |
2 | ||
| Common parts | ||||
| 90159-A0020 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
