TRN240L-TRPDKA (2011)
Toyota Tacoma
Production
Sep 2011
-
Aug 2014
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1208)TRN22#,24#,265

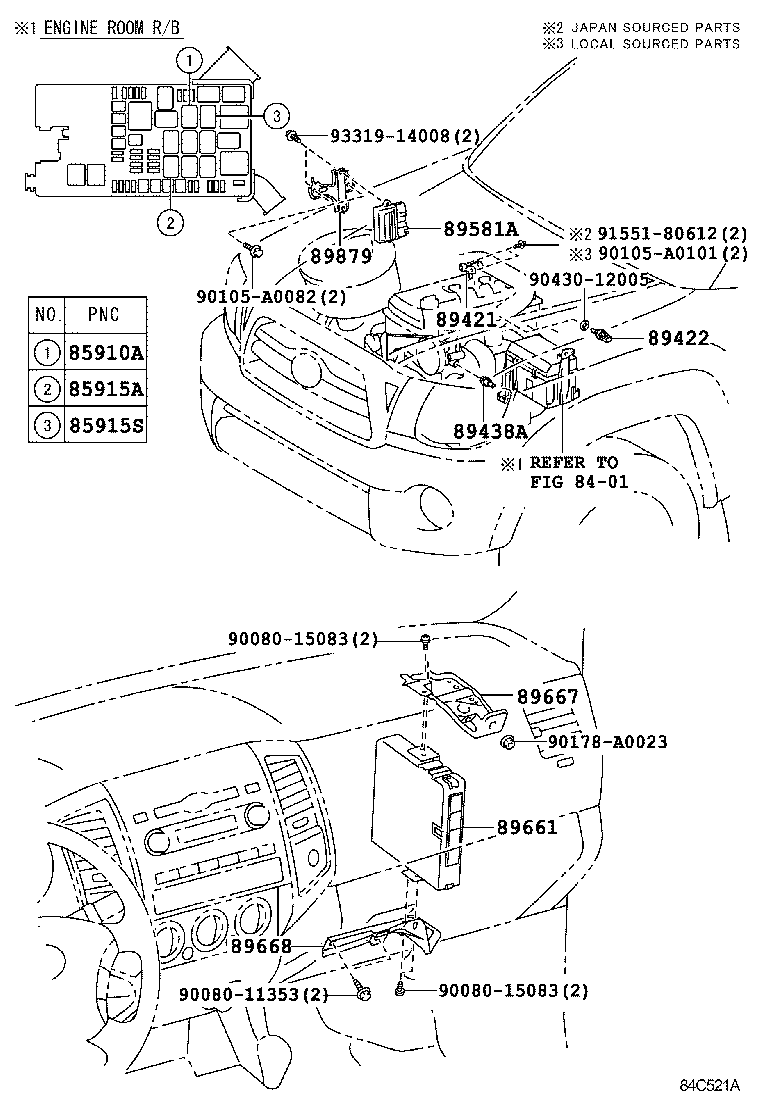

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90080-87026 |
TRN220,240 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90080-87026 |
TRN220,240 |
1 | ||
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90080-87026 |
TRN220,240 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-71010 |
TRN220,240 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
TRN220,240 |
1 | ||
| 89438A - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
TRN220,240 |
1 | ||
| 89581A - DRIVER, AIR INJECTION CONTROL | ||||
| 89581-60010 |
TRN220,240 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-04F90 |
TRN24#,265..4FC |
1 | ||
| 89661-04J20 |
TRN24#,265..4FC |
1 | ||
| 89661-04J21 |
TRN24#,265..4FC |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-04030 |
TRN22#,24#,265 |
1 | ||
| 89667-04040 |
TRN220,240 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-04010 |
TRN22#,24#,265 |
1 | ||
| 89668-04020 |
TRN220,240 |
1 | ||
| 89879 - BRACKET, INJECTOR DRIVER | ||||
| 89589-35020 |
TRN220,240 |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15083 | ||||
| 90105-A0082 | ||||
| 90105-A0101 | ||||
| 90178-A0023 | ||||
| 90430-12005 | ||||
| 91551-80612 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
