TRN240L-TRMDKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

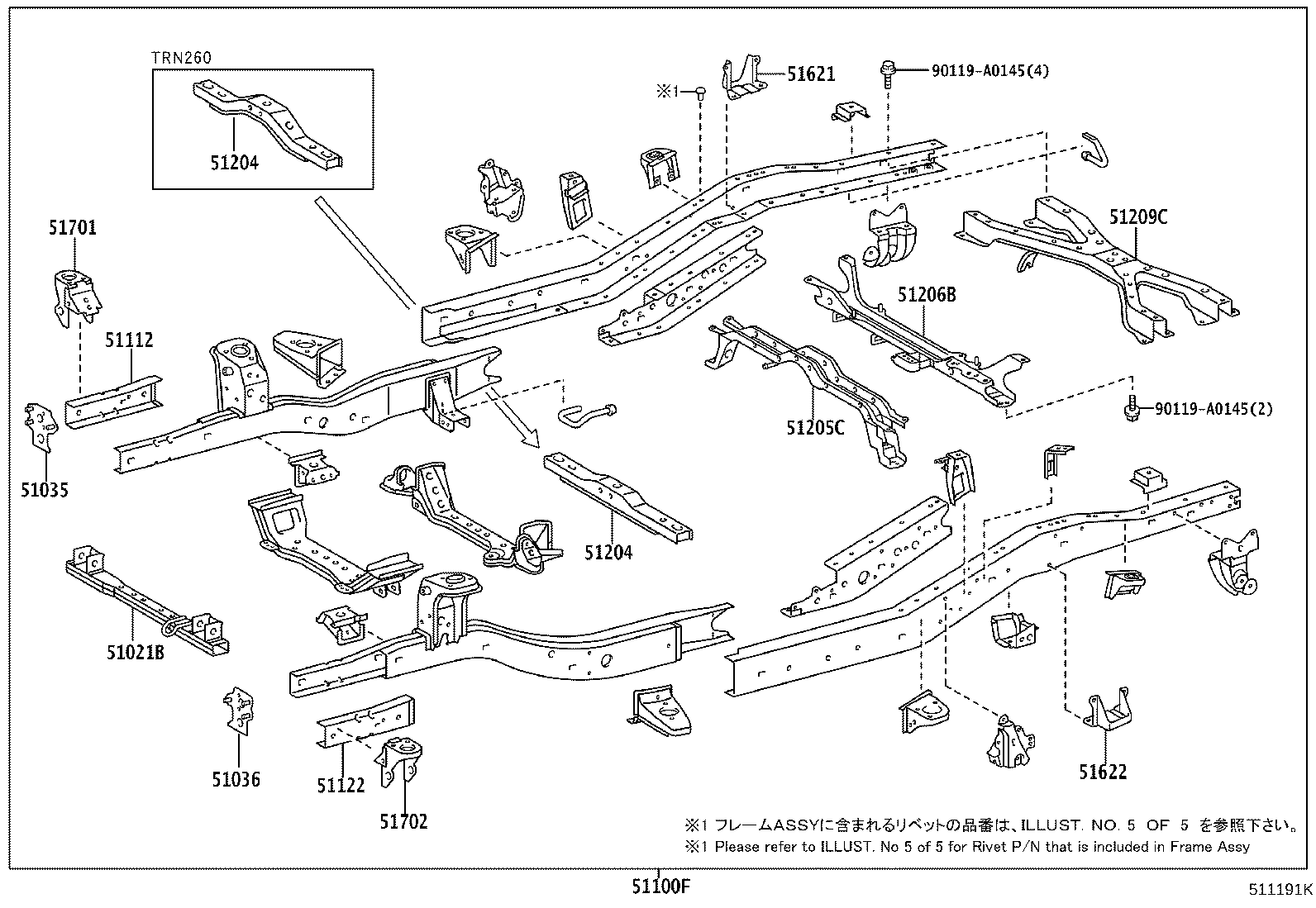

ILLUST NO. 1 OF 5(0409-1408)TRN240,260

Click highlighted areas on diagram

diagram 51021B 51035 51036 51100F 51112 51122 51204 51204 51205C 51206B 51209C 51621 51622 51701 51702 90119A0145 90119A0145
Part # Description Qty Price
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-04020

GRN245,250,265,270,TRN24#,26#

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 1
51100F - FRAME SUB-ASSY
51001-04610

TRN240

 1
51112 - EXTENSION, SIDE RAIL, RH
51112-04020

GRN245,250,265,270,TRN24#,26#

 1
51122 - EXTENSION, SIDE RAIL, LH
51122-04020

GRN245,250,265,270,TRN24#,26#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-04020

GRN245,250,TRN24#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-04020

GRN245,250,TRN24#

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-04040

GRN225,245,250,265,270,TRN22#,24#,26#

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-04040

GRN245,250,265,270,TRN24#,26#

 1
51621 - BRACKET, REAR BOUND STOPPER, RH
51621-04020

GRN245,250,265,270,TRN24#,26#

 1
51622 - BRACKET, REAR BOUND STOPPER, LH
51622-04020

GRN245,250,265,270,TRN24#,26#

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 1
Common parts
90119-A0145

ILLUST NO. 2 OF 5(0409- )

Click highlighted areas on diagram

diagram 51193 51193 51225B 51226A 51403A 51403A 51404A 51404A 90119A0173 90119A0173 90119A0173 90119A0173 9167480830
Part # Description Qty Price
51193 - EXTENSION, FRAME AUXILIARY CROSSMEMBER
51193-04010

GRN245,250,265,270,TRN24#,26#

 2
51193 - EXTENSION, FRAME AUXILIARY CROSSMEMBER
51193-04010

GRN245,250,265,270,TRN24#,26#

 2
51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51403-04020

GRN245,250,265,270,TRN24#,26#

 1
51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51403-04020

GRN245,250,265,270,TRN24#,26#

 1
51404A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51404-04020

GRN245,250,265,270,TRN24#,26#

 1
51404A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51404-04020

GRN245,250,265,270,TRN24#,26#

 1
Common parts
90119-A0173
91674-80830

ILLUST NO. 5 OF 5(0409- )

Click highlighted areas on diagram

RIVET

diagram 9512101026 9512101032
Part # Description Qty Price
Common parts
95121-01026
95121-01032
