TRN225L-PRPDKA (2011)
Toyota Tacoma
Production
Sep 2011
-
Aug 2015
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1508)GRN225,TRN22#

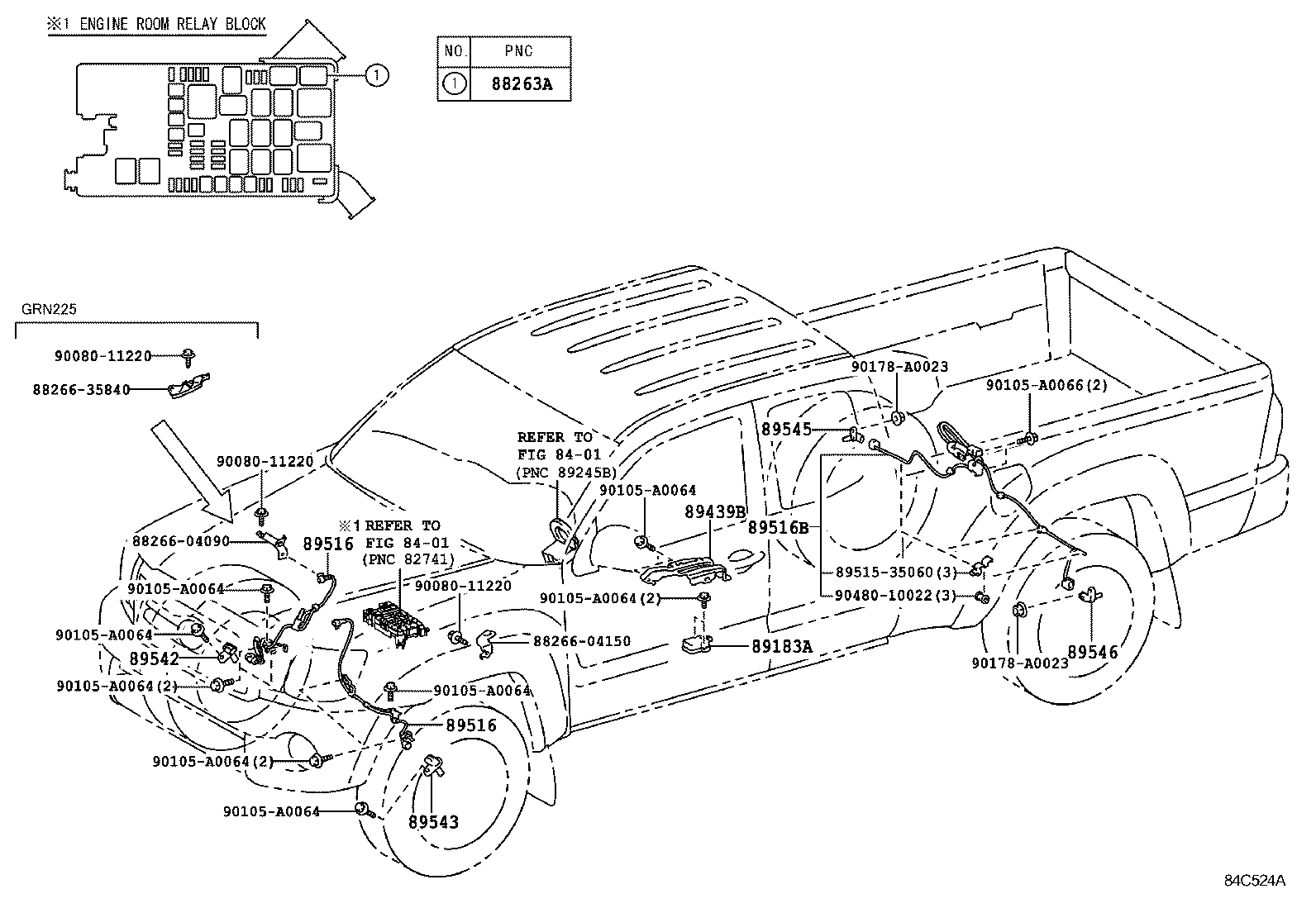

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-48030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89439B - BRACKET, SENSOR | ||||
| 89439-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-04080 |
GRN225,TRN225 RH |
1 | ||
| 89516-04020 |
GRN225,TRN225 LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-04080 |
GRN225,TRN225 RH |
1 | ||
| 89516-04020 |
GRN225,TRN225 LH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-04050 |
GRN225,TRN225 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89542-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89543-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 88266-04090 | ||||
| 88266-04150 | ||||
| 88266-35840 | ||||
| 89515-35060 | ||||
| 90080-11220 | ||||
| 90105-A0064 | ||||
| 90105-A0066 | ||||
| 90178-A0023 | ||||
| 90480-10022 | ||||
| Linked diagrams | ||||
| 8401 | ||||
