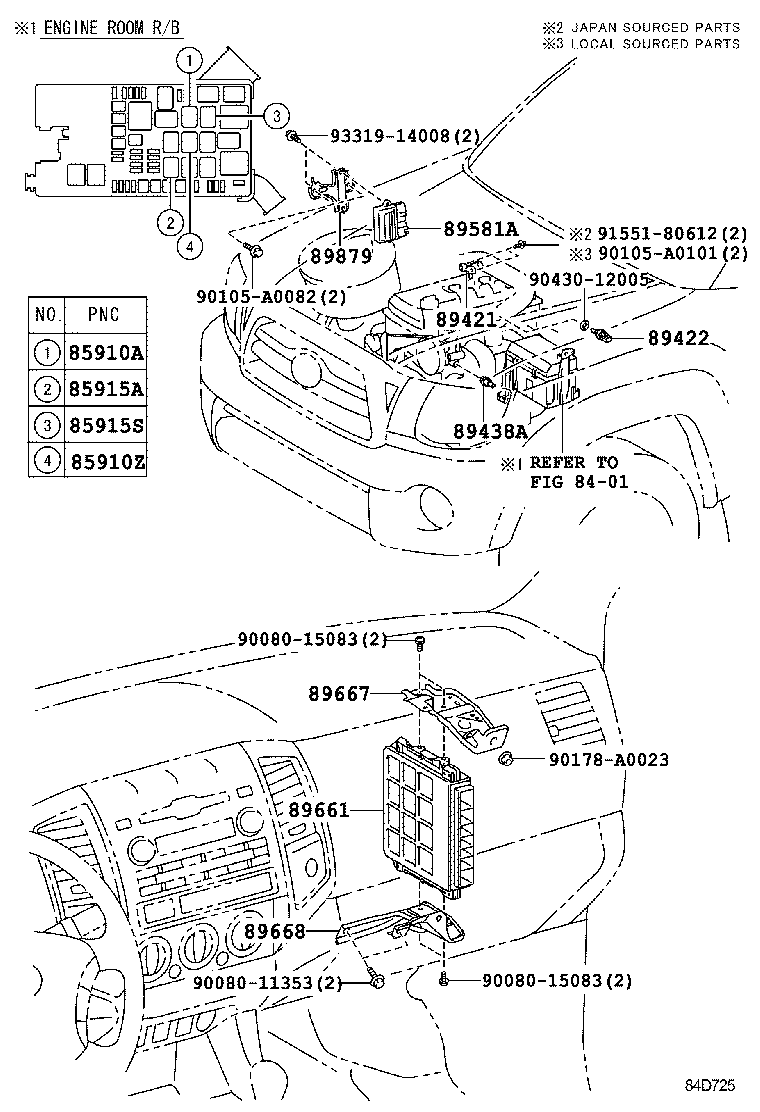

TRN225L-CRMDKA (2011)
Toyota Tacoma
(1109-1208)TRN22#,24#,265
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-71010 |
TRN225,245,265 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89438A - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89581A - DRIVER, AIR INJECTION CONTROL | ||||
| 89581-60010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-04F60 |
TRN22#..5F |
1 | ||
| 89661-04J30 |
TRN225..5F |
1 | ||
| 89661-04G90 |
TRN22#..5F |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-04030 |
TRN22#,24#,265 |
1 | ||
| 89667-04040 |
TRN225,245,265 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-04010 |
TRN22#,24#,265 |
1 | ||
| 89668-04020 |
TRN225,245,265 |
1 | ||
| 89879 - BRACKET, INJECTOR DRIVER | ||||
| 89589-35020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15083 | ||||
| 90105-A0082 | ||||
| 90105-A0101 | ||||
| 90178-A0023 | ||||
| 90430-12005 | ||||
| 91551-80612 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1208-1508)TRN22#,24#,265
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-71010 |
TRN225,245,265 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89438A - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89581A - DRIVER, AIR INJECTION CONTROL | ||||
| 89581-60010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-04F60 |
TRN22#..5F |
1 | ||
| 89661-04J30 |
TRN225..5F |
1 | ||
| 89661-04G90 |
TRN22#..5F |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-04030 |
TRN22#,24#,265 |
1 | ||
| 89667-04040 |
TRN225,245,265 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-04010 |
TRN22#,24#,265 |
1 | ||
| 89668-04020 |
TRN225,245,265 |
1 | ||
| 89879 - BRACKET, INJECTOR DRIVER | ||||
| 89589-35020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15083 | ||||
| 90105-A0082 | ||||
| 90105-A0101 | ||||
| 90178-A0023 | ||||
| 90430-12005 | ||||
| 91551-80612 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
