TRN225L-CRMDKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1508)GRN225,TRN22#

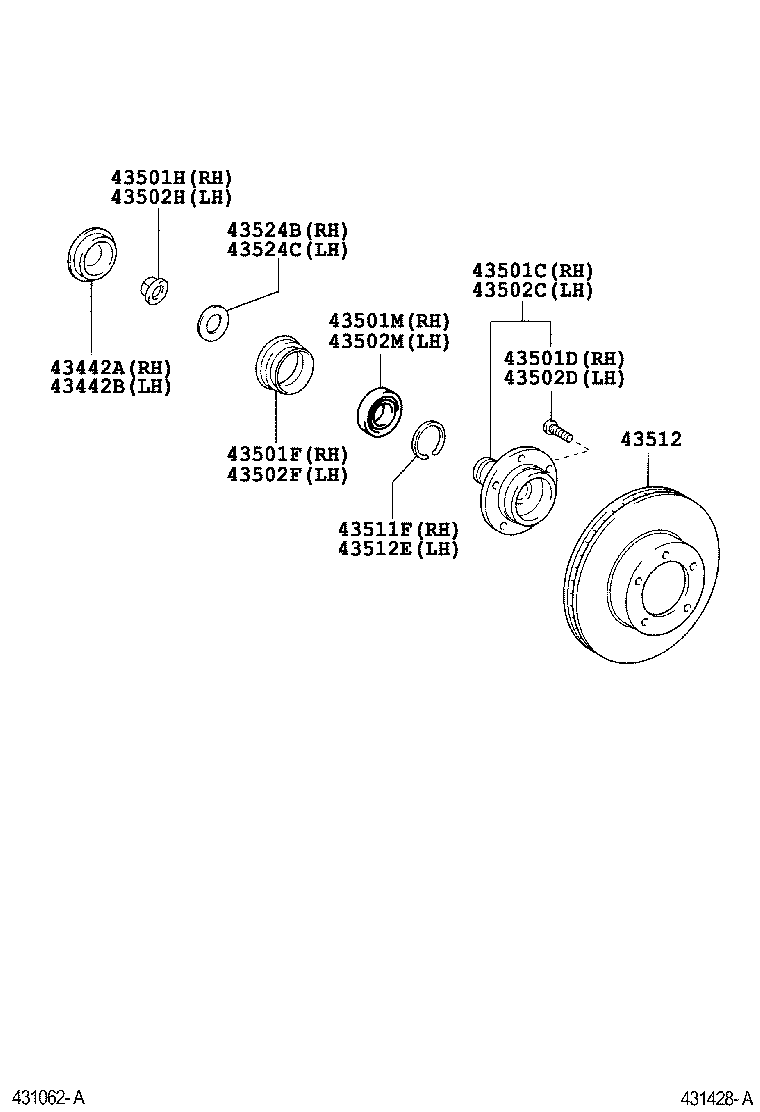

Click highlighted areas on diagram

diagram 43442A 43442B 43501C 43501D 43501F 43501H 43501M 43502C 43502D 43502F 43502H 43502M 43511F 43512 43512E 43524B 43524C
Part # Description Qty Price
43442A - CAP, KNUCKLE GREASE RETAINER, INNER, RH
43442-04010

GRN225,265,270,TRN22#,26#

 1
43442B - CAP, KNUCKLE GREASE RETAINER, INNER, LH
43442-04010

GRN225,265,270,TRN22#,26#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-04112

GRN225,TRN22#

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

GRN225,TRN22#

 5
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-A0003

GRN225,TRN22#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-A0013

GRN225,TRN22#

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-A0001

GRN225,TRN22#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-04112

GRN225,TRN22#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

GRN225,TRN22#

 5
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-A0003

GRN225,TRN22#

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-A0013

GRN225,TRN22#

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-A0001

GRN225,TRN22#

 1
43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-A0001

GRN225,TRN22#

 1
43512 - DISC, FRONT
43512-04040

GRN225,TRN22#

 2
43512-04041

GRN225,TRN22#

 2
43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-A0001

GRN225,TRN22#

 1
43524B - SPACER, FRONT WHEEL INNER BEARING, RH
43524-35020

GRN225,TRN22#

 1
43524C - SPACER, FRONT WHEEL INNER BEARING, LH
43524-35020

GRN225,TRN22#

 1
