TRN220L-TRPDKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-0805)GRN225,TRN22#

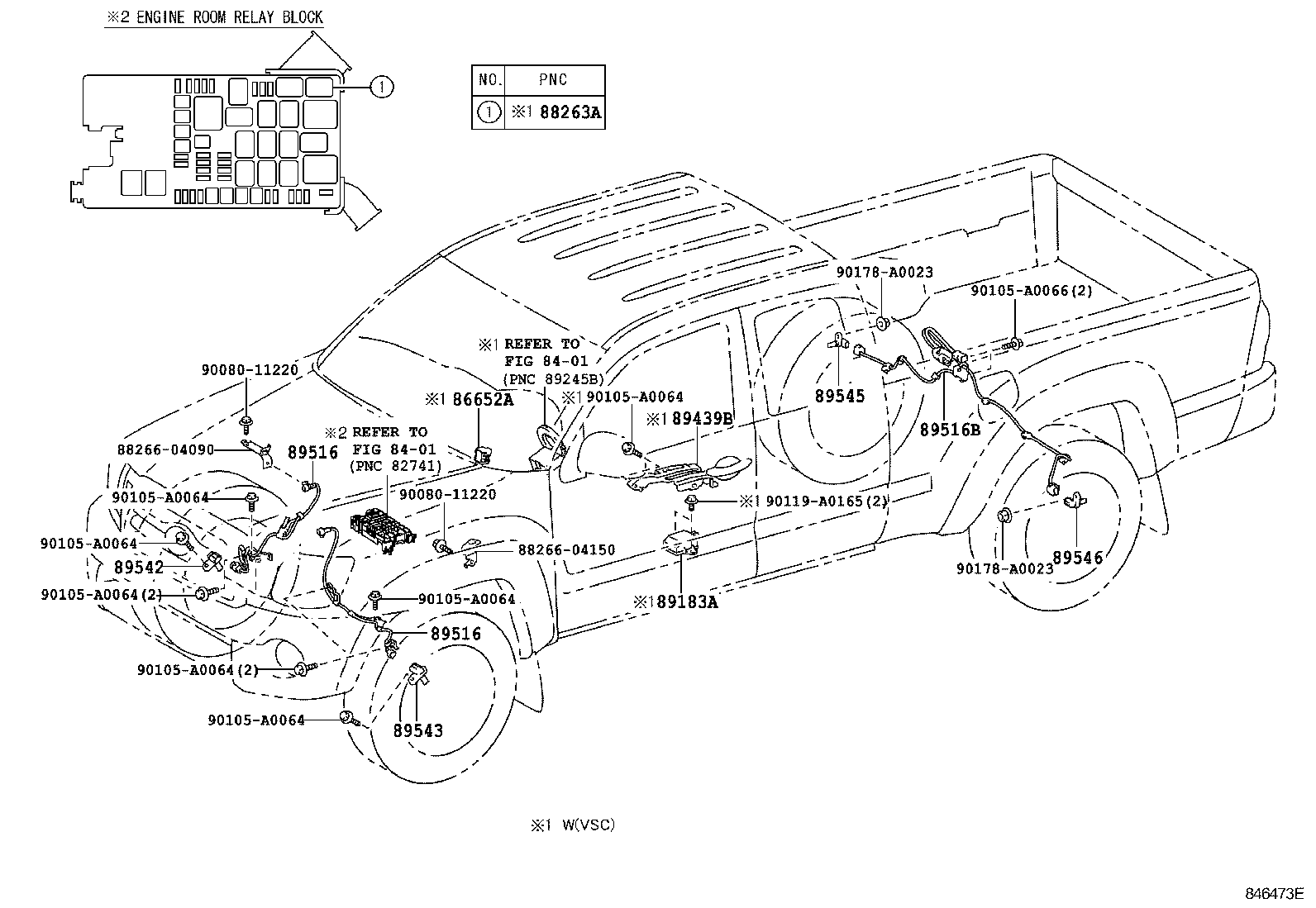

Click highlighted areas on diagram

diagram 8401 8401 86652A 88263A 8826604090 8826604150 89183A 89439B 89516 89516 89516B 89542 89543 89545 89546 9008011220 9008011220 90105A0064 90105A0064 90105A0064 90105A0064 90105A0064 90105A0064 90105A0064 90105A0066 90119A0165 90178A0023 90178A0023
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-04010

GRN245,250,265,270,TRN22#,24#,26#

VSC-WITH(W/AUTO LSD & OFF SW)

 1
86652-04010

GRN245,250,265,270,TRN22#,24#,26#

VSC-WITH(W/AUTO LSD)

 1
88263A - RELAY, SKID CONTROL
90084-98032

GRN245,250,265,270,TRN22#,24#,26#

VSC-WITH(W/AUTO LSD & OFF SW)

 1
90084-98032

GRN245,250,265,270,TRN22#,24#,26#

VSC-WITH(W/AUTO LSD)

 1
89183A - SENSOR, YAWRATE
89183-60020

GRN245,250,265,270,TRN22#,24#,26#

VSC-WITH(W/AUTO LSD)

 1
89183-60020

GRN245,250,265,270,TRN22#,24#,26#

VSC-WITH(W/AUTO LSD & OFF SW)

 1
89439B - BRACKET, SENSOR
89439-04020

TRN22#

VSC-WITH(W/AUTO LSD)

 1
89439-04020

TRN22#

VSC-WITH(W/AUTO LSD & OFF SW)

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-04010

GRN225,TRN22#

RH

 1
89516-04020

GRN225,TRN22#

LH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-04010

GRN225,TRN22#

RH

 1
89516-04020

GRN225,TRN22#

LH

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-04050

GRN225,TRN22#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-04020

GRN225,245,250,265,270,TRN22#,24#,26#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-04020

GRN225,245,250,265,270,TRN22#,24#,26#

 1
89545 - SENSOR, SPEED, REAR RH
89542-04020

GRN225,245,250,265,270,TRN22#,24#,26#

 1
89546 - SENSOR, SPEED, REAR LH
89543-04020

GRN225,245,250,265,270,TRN22#,24#,26#

 1
Common parts
88266-04090
88266-04150
90080-11220
90105-A0064
90105-A0066
90119-A0165
90178-A0023
Linked diagrams
8401
