Toyota Tacoma RZN191 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
TACOMA
RZN191L-TRPDKAB (1998)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

RZN191L-TRPDKAB (1998)

Toyota Tacoma

Production Aug 1998 - Sep 2004

Engine 3RZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

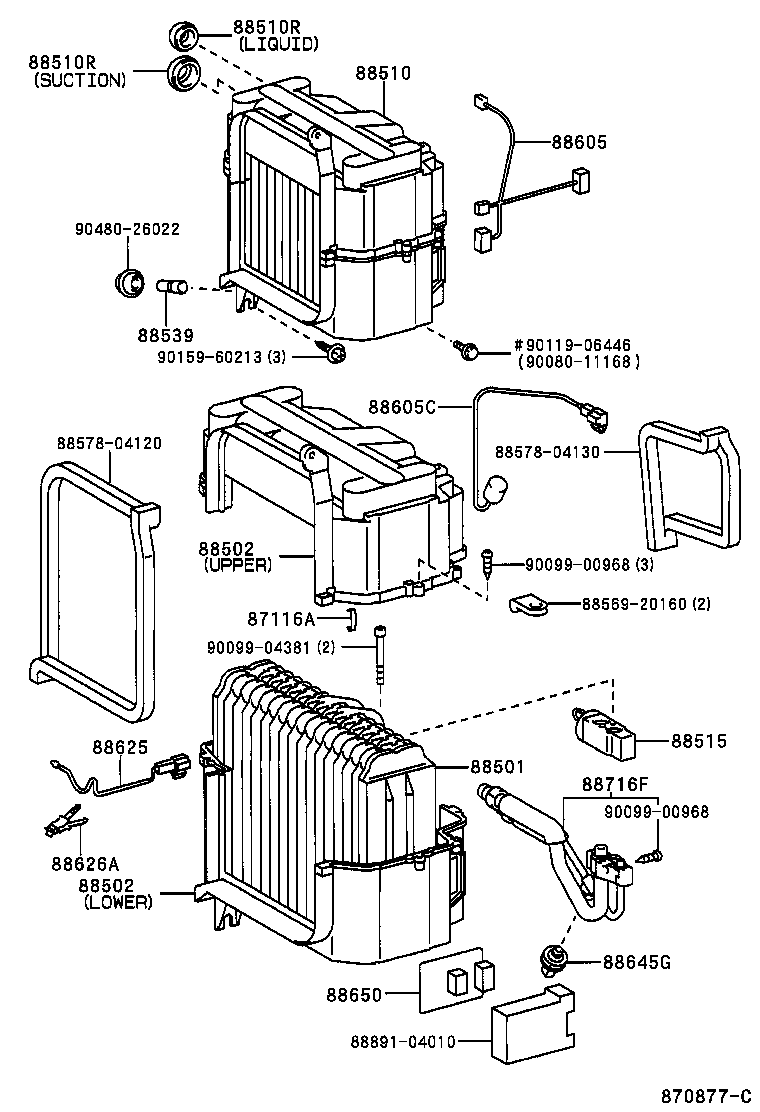

ILLUST NO. 1 OF 2(9501-0009)

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-04020	RZN140,150,19#,VZN150,195 MAKER OPTION	01/1995 - 09/2000	1
87116-04020	RZN140,150,19#,VZN150,195 MAKER OPTION	09/2000 - 09/2004	4
87116-04020	RZN140,150,19# DEALER OPTION	09/2001 - 09/2004	3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-04030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88501-04030	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-04010	RZN140,150,19#,VZN150,195 UPPER	09/2000 - 09/2004	1
88502-04021	RZN140,150,19#,VZN150,195 LOWER	09/2000 - 09/2004	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-04010	RZN140,150,19#,VZN150,195 UPPER	09/2000 - 09/2004	1
88502-04021	RZN140,150,19#,VZN150,195 LOWER	09/2000 - 09/2004	1
88510 - UNIT ASSY, COOLER
88510-04190	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88510R - GROMMET (FOR COOLER UNIT)
90480-15033	RZN140,150,19#,VZN195..4FC MAKER OPTION,LIQUID SIDE	09/2000 - 09/2004	1
90480-21007	RZN140,150,19#,VZN195..4FC MAKER OPTION,SUCTION SIDE	09/2000 - 09/2004	1
88510R - GROMMET (FOR COOLER UNIT)
90480-15033	RZN140,150,19#,VZN195..4FC MAKER OPTION,LIQUID SIDE	09/2000 - 09/2004	1
90480-21007	RZN140,150,19#,VZN195..4FC MAKER OPTION,SUCTION SIDE	09/2000 - 09/2004	1
88515 - VALVE, COOLER EXPANSION
88515-04030	RZN140,150,19# MAKER OPTION	09/2001 - 09/2004	1
88515-04030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-04020	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88539-04020	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-04040	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-04050	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88605-04050	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88625 - THERMISTOR, COOLER, NO.1
88625-35030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88625-35030	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88626A - HOLDER, THERMISTOR
88626-28010	RZN140,150,19#,VZN150	01/1995 - 09/2000	1
88645G - SWITCH, PRESSURE
88645-04040	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88645-04040	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-04010	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88710-04060	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88710-04120	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
Common parts
88569-20160
88578-04120
88578-04130
88891-04010
90080-11168
90099-00968
90099-04381
90119-06446
90159-60213
90480-26022

ILLUST NO. 1 OF 2(9501-0009)

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-04020	RZN140,150,19#,VZN150,195 MAKER OPTION	01/1995 - 09/2000	1
87116-04020	RZN140,150,19#,VZN150,195 MAKER OPTION	09/2000 - 09/2004	4
87116-04020	RZN140,150,19# DEALER OPTION	09/2001 - 09/2004	3
87138C - RESISTOR, BLOWER
87138-35040	RZN140,150,19#,VZN150,195	09/2000 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-04030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88501-04030	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-04010	RZN140,150,19#,VZN150,195 UPPER	09/2000 - 09/2004	1
88502-04021	RZN140,150,19#,VZN150,195 LOWER	09/2000 - 09/2004	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-04010	RZN140,150,19#,VZN150,195 UPPER	09/2000 - 09/2004	1
88502-04021	RZN140,150,19#,VZN150,195 LOWER	09/2000 - 09/2004	1
88510 - UNIT ASSY, COOLER
88510-04190	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88510 - UNIT ASSY, COOLER
88510-04190	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88510R - GROMMET (FOR COOLER UNIT)
90480-15033	RZN140,150,19#,VZN195..4FC MAKER OPTION,LIQUID SIDE	09/2000 - 09/2004	1
90480-21007	RZN140,150,19#,VZN195..4FC MAKER OPTION,SUCTION SIDE	09/2000 - 09/2004	1
88510R - GROMMET (FOR COOLER UNIT)
90480-15033	RZN140,150,19#,VZN195..4FC MAKER OPTION,LIQUID SIDE	09/2000 - 09/2004	1
90480-21007	RZN140,150,19#,VZN195..4FC MAKER OPTION,SUCTION SIDE	09/2000 - 09/2004	1
88515 - VALVE, COOLER EXPANSION
88515-04030	RZN140,150,19# MAKER OPTION	09/2001 - 09/2004	1
88515-04030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-04020	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88539-04020	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-04040	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-04050	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88605-04050	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88625 - THERMISTOR, COOLER, NO.1
88625-35030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88625-35030	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88626A - HOLDER, THERMISTOR
88626-28010	RZN140,150,19#,VZN150	01/1995 - 09/2000	1
88645G - SWITCH, PRESSURE
88645-04040	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88645-04040	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-04010	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88710-04060	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88710-04120	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
Common parts
88569-02020
88569-20160
88578-04120
88578-04130
88891-04010
90080-11168
90099-00968
90099-04381
90119-06446
90159-60213
90480-26022

ILLUST NO. 1 OF 2(0009-0409)

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-04020	RZN140,150,19#,VZN150,195 MAKER OPTION	01/1995 - 09/2000	1
87116-04020	RZN140,150,19#,VZN150,195 MAKER OPTION	09/2000 - 09/2004	4
87116-04020	RZN140,150,19# DEALER OPTION	09/2001 - 09/2004	3
87138C - RESISTOR, BLOWER
87138-35040	RZN140,150,19#,VZN150,195	09/2000 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-04030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88501-04030	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-04010	RZN140,150,19#,VZN150,195 UPPER	09/2000 - 09/2004	1
88502-04021	RZN140,150,19#,VZN150,195 LOWER	09/2000 - 09/2004	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-04010	RZN140,150,19#,VZN150,195 UPPER	09/2000 - 09/2004	1
88502-04021	RZN140,150,19#,VZN150,195 LOWER	09/2000 - 09/2004	1
88510 - UNIT ASSY, COOLER
88510-04190	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88510 - UNIT ASSY, COOLER
88510-04190	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88510R - GROMMET (FOR COOLER UNIT)
90480-15033	RZN140,150,19#,VZN195..4FC MAKER OPTION,LIQUID SIDE	09/2000 - 09/2004	1
90480-21007	RZN140,150,19#,VZN195..4FC MAKER OPTION,SUCTION SIDE	09/2000 - 09/2004	1
88510R - GROMMET (FOR COOLER UNIT)
90480-15033	RZN140,150,19#,VZN195..4FC MAKER OPTION,LIQUID SIDE	09/2000 - 09/2004	1
90480-21007	RZN140,150,19#,VZN195..4FC MAKER OPTION,SUCTION SIDE	09/2000 - 09/2004	1
88515 - VALVE, COOLER EXPANSION
88515-04030	RZN140,150,19# MAKER OPTION	09/2001 - 09/2004	1
88515-04030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-04020	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88539-04020	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-04050	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88605-04050	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88625 - THERMISTOR, COOLER, NO.1
88625-35030	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88625-35030	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88645G - SWITCH, PRESSURE
88645-04040	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88645-04040	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88710-04060	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
88710-04120	RZN140,150,19#,VZN150,195	09/2000 - 09/2004	1
Common parts
88569-02020
88578-04220
88578-04230
88891-04010
90080-11168
90099-00968
90099-04381
90119-06446
90159-60213
90480-26022

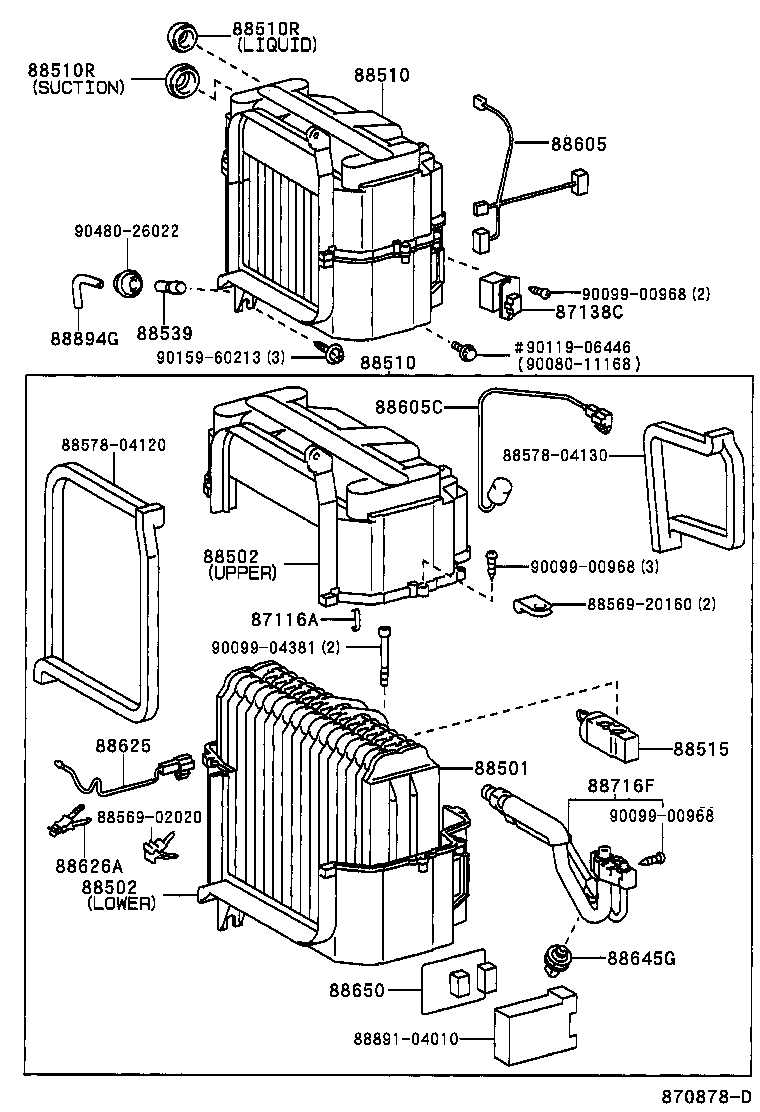

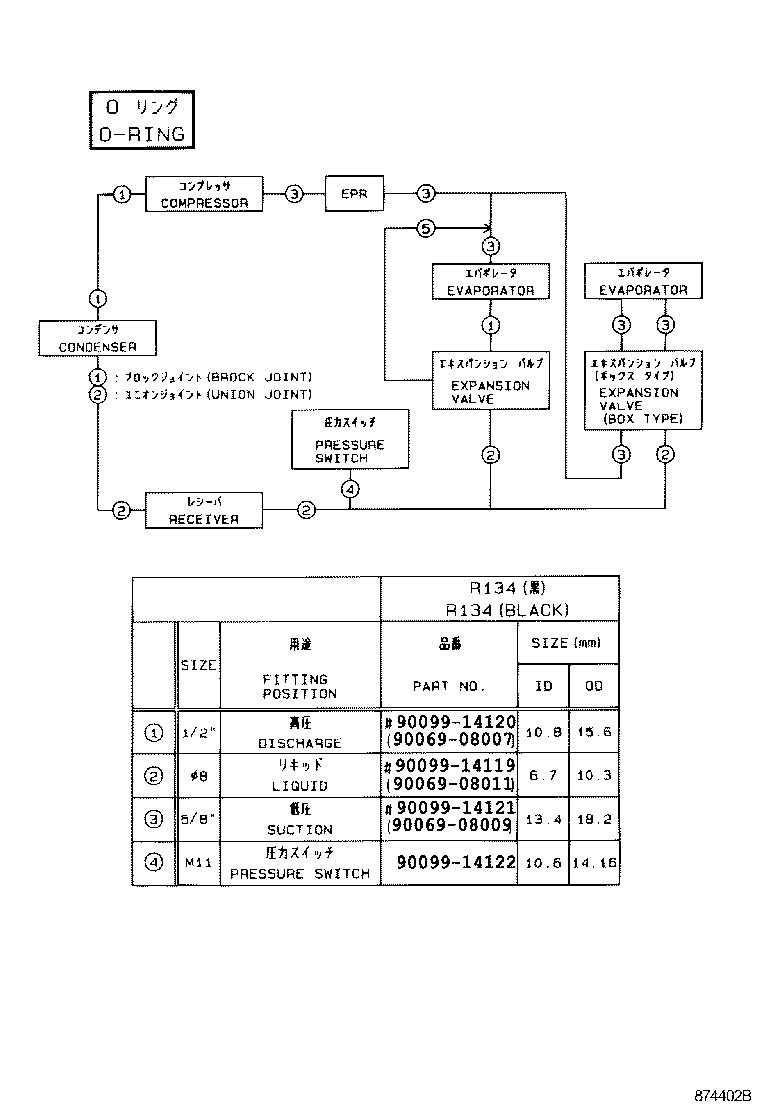

ILLUST NO. 2 OF 2(9501- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90069-08007
90069-08009
90069-08011
90099-14119
90099-14120
90099-14121
90099-14122

RZN191L-TRPDKAB (1998)

ILLUST NO. 1 OF 2(9501-0009)

ILLUST NO. 1 OF 2(9501-0009)

ILLUST NO. 1 OF 2(0009-0409)

ILLUST NO. 2 OF 2(9501- )

Part Price Details
