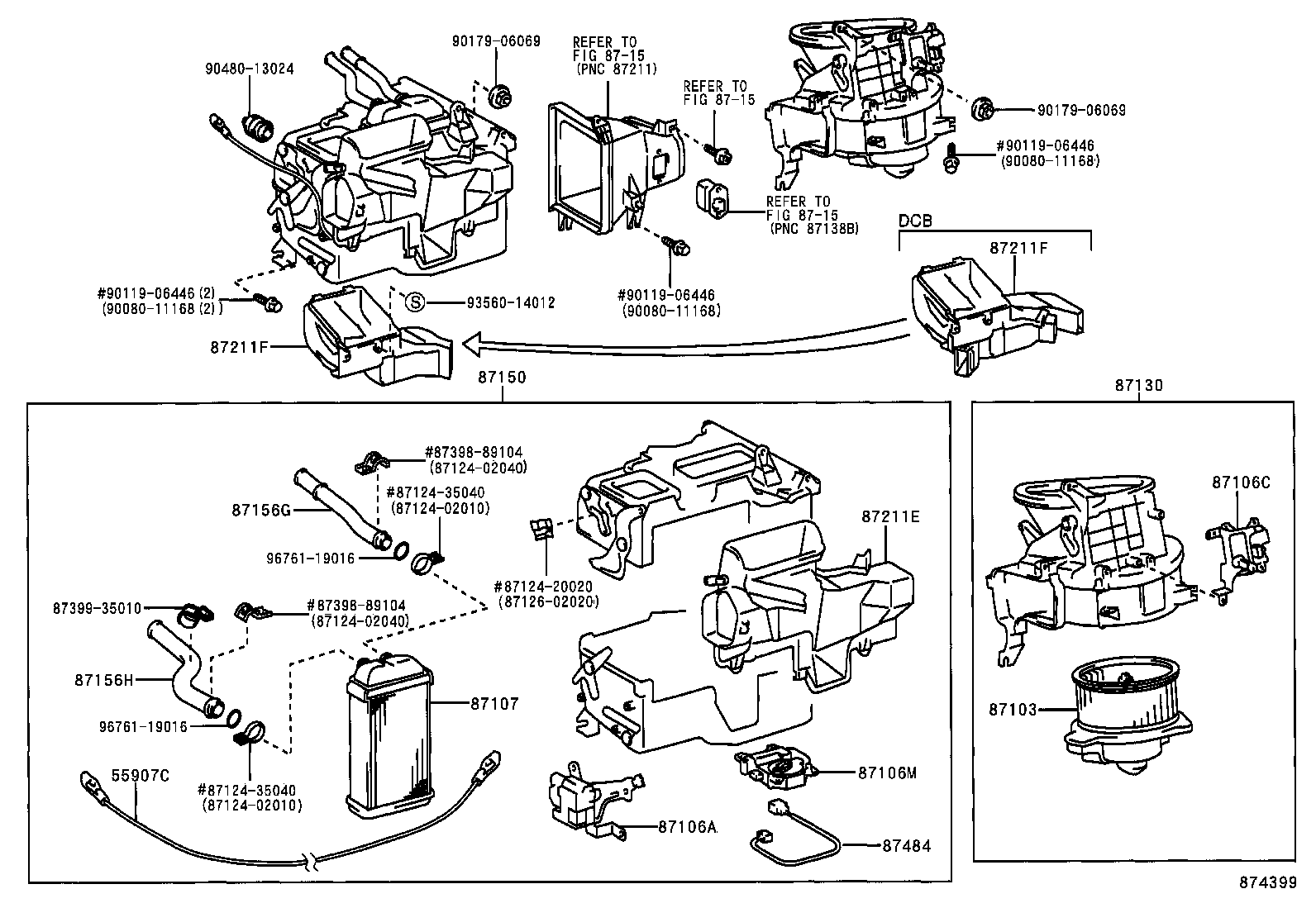

RZN191L-TRPDKAB (1998)
Toyota Tacoma
(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-04010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87103-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-04010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87106M - SERVO SUB-ASSY, DAMPER, NO.2 | ||||
| 87106-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87107-0C010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-04050 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-04052 |
RZN191 |
1 | ||
| 87150-04060 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87150-04052 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87156G - PIPE, HEATER WATER, NO.1 | ||||
| 87156-04010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87156H - PIPE, HEATER WATER, NO.2 | ||||
| 87156-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-04040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211-04040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-04080 |
RZN140,150,19#,VZN150,195..RCB,XTR |
1 | ||
| 87211-04051 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211-04051 |
RZN191 |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-04080 |
RZN140,150,19#,VZN150,195..RCB,XTR |
1 | ||
| 87211-04051 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211-04051 |
RZN191 |
1 | ||
| 87484 - WIRE, HEATER | ||||
| 87484-04010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 87124-02010 | ||||
| 87124-02040 | ||||
| 87124-20020 | ||||
| 87124-35040 | ||||
| 87126-02020 | ||||
| 87398-89104 | ||||
| 87399-35010 | ||||
| 90080-11168 | ||||
| 90119-06446 | ||||
| 90179-06069 | ||||
| 90480-13024 | ||||
| 93560-14012 | ||||
| 96761-19016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(9501-0009)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87103-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87107-0C010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-04040 |
RZN140,150,19#,VZN150,195 LOWER |
1 | ||
| 87111-04030 |
RZN140,150,19#,VZN150,195 UPPER |
1 | ||
| 87111 - CASE, HEATER | ||||
| 87111-04040 |
RZN140,150,19#,VZN150,195 LOWER |
1 | ||
| 87111-04030 |
RZN140,150,19#,VZN150,195 UPPER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-04050 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-04050 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-04052 |
RZN191 |
1 | ||
| 87150-04060 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87150-04052 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-04052 |
RZN191 |
1 | ||
| 87150-04060 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87150-04052 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-04040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211-04040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-04080 |
RZN140,150,19#,VZN150,195..RCB,XTR |
1 | ||
| 87211-04051 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211-04051 |
RZN191 |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 87126-02020 | ||||
| 90080-11168 | ||||
| 90119-06446 | ||||
| 90179-06069 | ||||
| Linked diagrams | ||||
| 8715 | ||||
