RZN191L-TRPDKAB (1998)

Toyota Tacoma

Production Aug 1998 - Sep 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

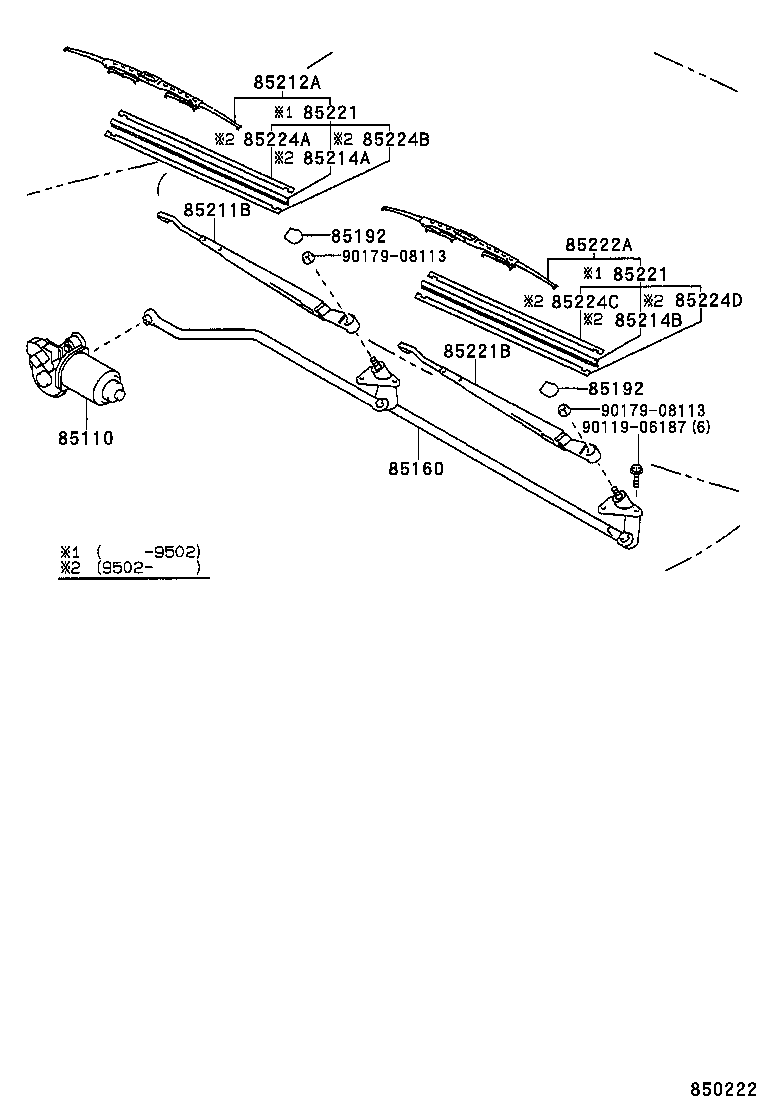

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221 85221 85221B 85222A 85224A 85224B 85224C 85224D 9011906187 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-04010

RZN140,150,19#,VZN150,195

MARK 90

 1
85110-04020

RZN140,150,19#,VZN150,195

MARK 91

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-04010

RZN140,150,19#,VZN150,195

MARK 577

 1
85150-04020

RZN140,150,19#,VZN150,195

MARK 592

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-01020

RZN140,150,19#,VZN150,195

 2
85292-01020

RZN140,150,19#,VZN150,195

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-01020

RZN140,150,19#,VZN150,195

 2
85292-01020

RZN140,150,19#,VZN150,195

 2
85211B - ARM, FRONT WIPER, RH
85211-04010

RZN140,150,19#,VZN150,195

 1
85212A - BLADE, FR WIPER, RH
85212-04011

RZN140,150,19#,VZN150,195

 1
85212-04010

RZN140,150,19#,VZN150,195

 1
85214A - RUBBER, WIPER, RH
85214-04010

RZN140,150,19#,VZN150,195

 1
85214-04011

RZN140,150,19#,VZN150,195

 1
85214B - RUBBER, WIPER, LH
85214-04011

RZN140,150,19#,VZN150,195

 1
85214-04010

RZN140,150,19#,VZN150,195

 1
85221B - ARM, FRONT WIPER, LH
85221-04010

RZN140,150,19#,VZN150,195

 1
85222A - BLADE, FR WIPER, LH
85222-04010

RZN140,150,19#,VZN150,195

 1
85222-04011

RZN140,150,19#,VZN150,195

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-08030

RZN140,150,19#,VZN150,195

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-08030

RZN140,150,19#,VZN150,195

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-04020

RZN140,150,19#,VZN150,195

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-04020

RZN140,150,19#,VZN150,195

 1
Common parts
90119-06187
90179-08113
