RZN191L-TRPDKAB (1998)

Toyota Tacoma

Production Aug 1998 - Sep 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )RZN19#,VZN195

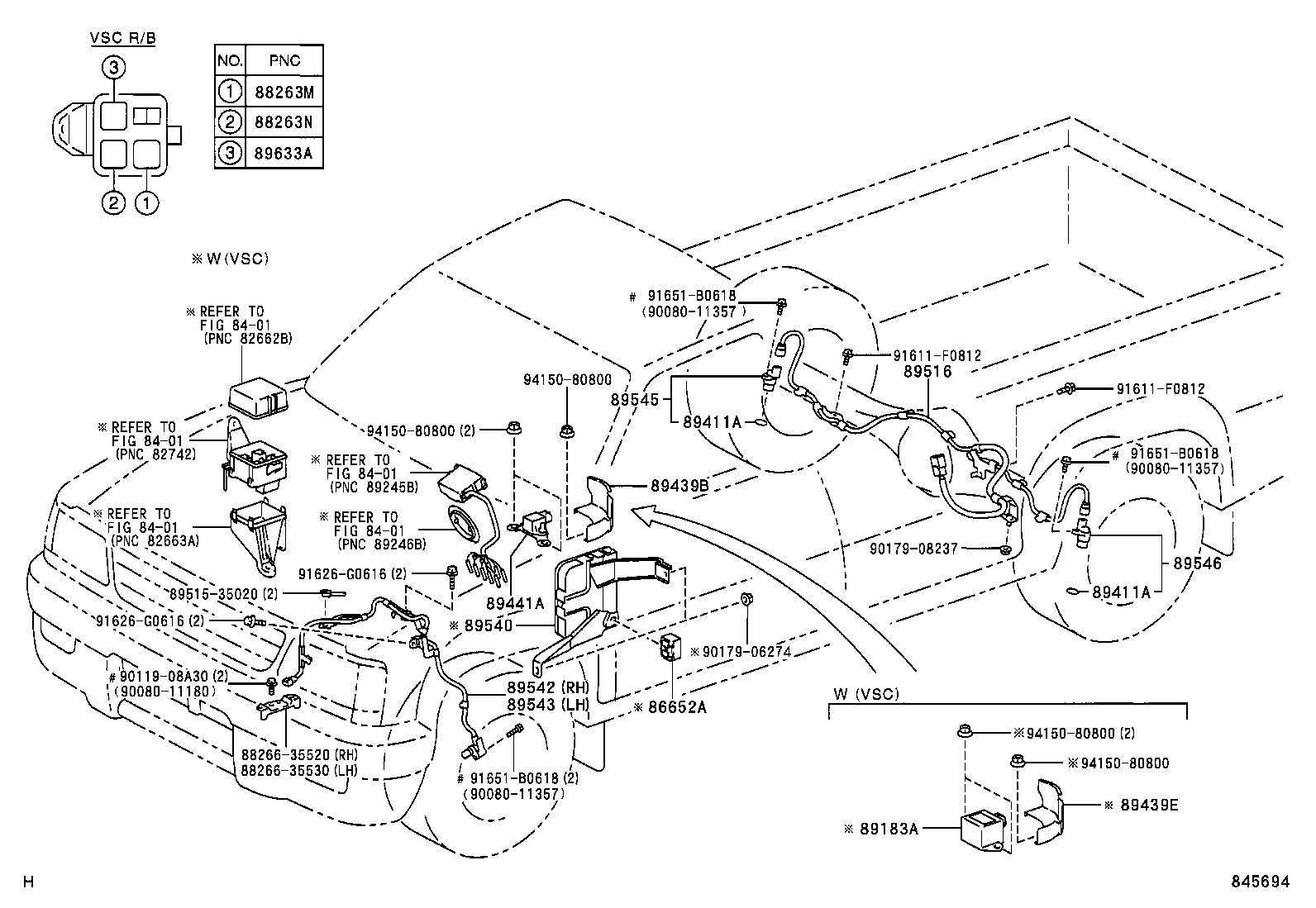

Click highlighted areas on diagram

diagram 8401 8401 8401 8401 8401 86652A 88263M 88263N 8826635520 8826635530 89183A 89411A 89411A 89439B 89439E 89441A 8951535020 89516 89540 89542 89543 89545 89546 89633A 9008011180 9008011357 9008011357 9008011357 9011908A30 9017906274 9017908237 91611F0812 91611F0812 91626G0616 91626G0616 91651B0618 91651B0618 91651B0618 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
89411A - RING, O (FOR SPEED SENSOR)
96723-19021

RZN140,150,19#,VZN150,195

 2
89411A - RING, O (FOR SPEED SENSOR)
96723-19021

RZN140,150,19#,VZN150,195

 2
89439B - BRACKET, SENSOR
89439-04010

RZN19#,VZN195

 1
89439-35040

RZN19#,VZN195

 1
89441A - SENSOR, DECELERATION
89440-04020

RZN19#,VZN195

 1
89440-35070

RZN19#,VZN195

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-35100

RZN19#,VZN195

 1
89516-35010

RZN19#,VZN195

 1
89516-35080

RZN19#,VZN195

 1
89542 - SENSOR, SPEED, FRONT RH
89542-04010

RZN19#,VZN195

 1
89543 - SENSOR, SPEED, FRONT LH
89543-04010

RZN19#,VZN195

 1
89545 - SENSOR, SPEED, REAR RH
89545-35020

RZN140,150,19#,VZN150,195

 1
89546 - SENSOR, SPEED, REAR LH
89546-35020

RZN140,150,19#,VZN150,195

 1
Common parts
88266-35520
88266-35530
89515-35020
90080-11180
90080-11357
90119-08A30
90179-06274
90179-08237
91611-F0812
91626-G0616
91651-B0618
94150-80800
Linked diagrams
8401
