RZN191L-TRPDKAB (1998)
Toyota Tacoma

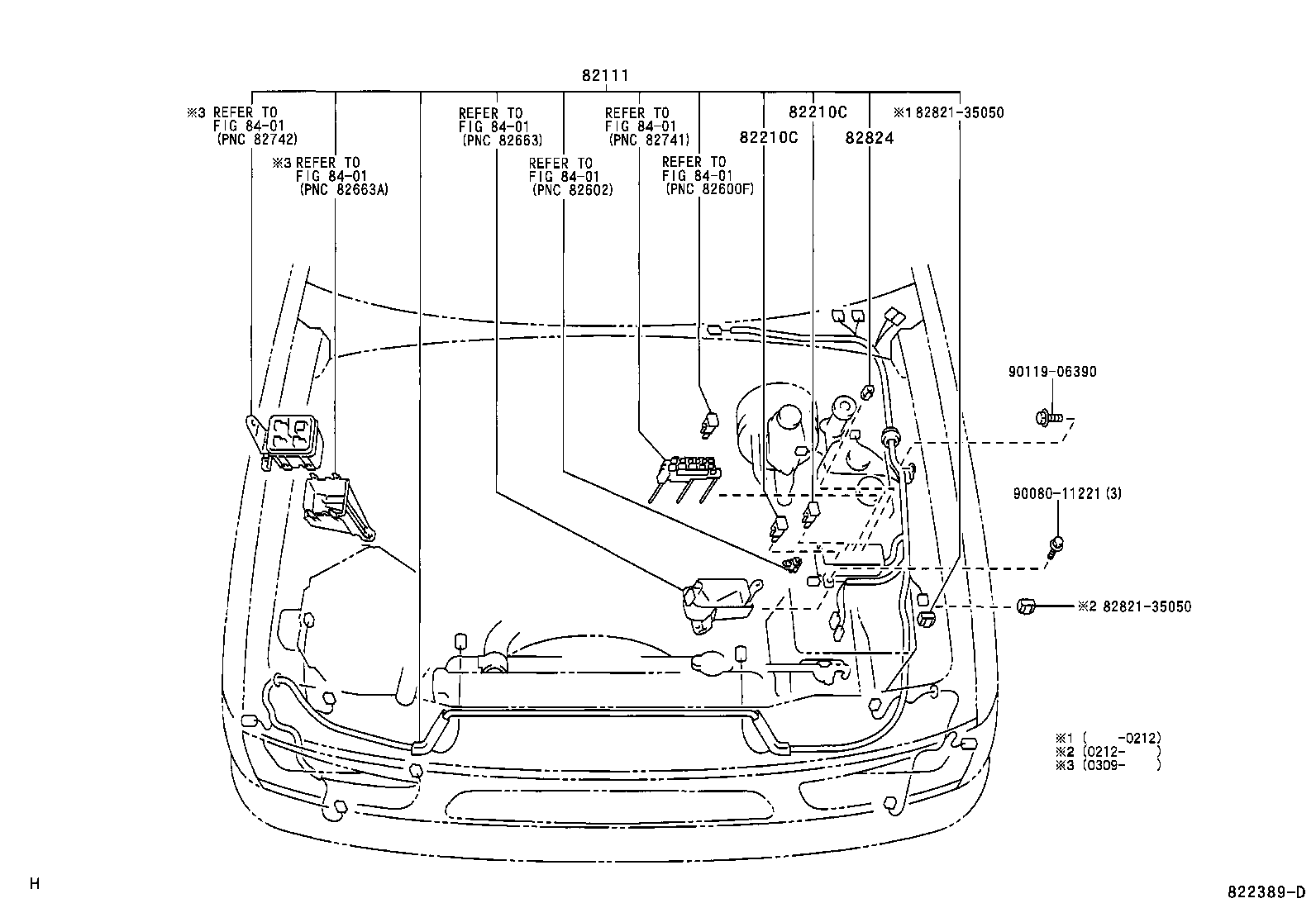

ILLUST NO. 1 OF 7(9501-0009)
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-04791 |
RZN140,150,19#,VZN150,195 W(ABS) |
1 | ||
| 82115-04030 |
RZN140,150,19#,VZN150,195 W(ABS) |
1 | ||
| 82111-04812 |
RZN140,150,19#,VZN195 W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-04802 |
RZN140,150,19#,VZN195 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-04781 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82115-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82111-04782 |
RZN140,150,19#,VZN195 |
1 | ||
| 82111-04792 |
RZN140,150,19#,VZN195 W(ABS) |
1 | ||
| 82111-0Y031 |
RZN140,150,19#,VZN150 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82115-04120 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82115-04130 |
RZN140,150,19#,VZN150,195 W(ABS) |
1 | ||
| 82111-0Y032 |
RZN140,150,19#,VZN150 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0Y030 |
RZN140,150,19#,VZN150 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0Y011 |
RZN140,150,19#,VZN150 |
1 | ||
| 82115-04140 |
RZN140,150,19#,VZN150,195 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82115-04150 |
RZN140,150,19#,VZN150,195 W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0Y012 |
RZN140,150,19#,VZN150 |
1 | ||
| 82111-0Y010 |
RZN140,150,19#,VZN150 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08254 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,TAIHEIYO |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN150,195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN150,195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
RZN19#,VZN195 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
RZN19#,VZN195 120A,TERM.:MALE,WHT |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08254 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,TAIHEIYO |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN150,195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN150,195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
RZN19#,VZN195 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
RZN19#,VZN195 120A,TERM.:MALE,WHT |
1 | ||
| Common parts | ||||
| 90080-11221 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 7(9501- )RZN140,150,19#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3G490 |
RZN19# CALIFORNIA(LEV) SPEC |
1 | ||
| 82121-3G101 |
RZN19# |
1 | ||
| 82121-3M210 |
RZN19# |
1 | ||
| 82121-3M310 |
RZN19# |
1 | ||
| 82121-3G690 |
RZN19# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-04042 |
RZN140,150,19# |
1 | ||
| 82122-04042 |
RZN140,150,19# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35040 |
RZN140,150,19# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82823-22050 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 91612-61016 | ||||
| 91641-C0612 | ||||
| 91642-C0612 | ||||
| 91651-B0612 | ||||
ILLUST NO. 3 OF 7(9501- )
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-04531 |
RZN19# W(POWER WINDOW) OR W(*CRC) |
1 | ||
| 82135-04541 |
RZN19# W(*66 & POWER WINDOW) OR W(*66 & *CRC) |
1 | ||
| 82135-04521 |
RZN19# |
1 | ||
| 82135-04522 |
RZN19# |
1 | ||
| 82135-04543 |
RZN19# W(*66 & POWER WINDOW) OR W(*66 & *CRC) |
1 | ||
| 82135-04533 |
RZN19# W(POWER WINDOW) OR W(*CRC) |
1 | ||
| 82129-04122 |
RZN19# W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-04112 |
RZN19# W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-04230 |
RZN19# CALIFORNIA(LEV) SPEC |
1 | ||
| 82129-04240 |
RZN19# CALIFORNIA(LEV) SPEC & W(ABS) |
1 | ||
| 82129-04410 |
RZN19# CALIFORNIA(LEV) SPEC & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82135-04542 |
RZN19# W(*66 & POWER WINDOW) OR W(*66 & *CRC) |
1 | ||
| 82129-04420 |
RZN19# CALIFORNIA(LEV) SPEC & W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82148-04360 |
RZN140,150,19#..(RCB,XTR)..4FC W(ABS & POWER WINDOW) |
1 | ||
| 82135-04532 |
RZN19# W(POWER WINDOW) OR W(*CRC) |
1 | ||
| 82148-04470 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82148-04480 |
RZN140,150,19#..(RCB,XTR)..4FC W(ABS & DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82148-04350 |
RZN140,150,19#..(RCB,XTR)..4FC W(POWER WINDOW) |
1 | ||
| 82148-04330 |
RZN140,150,19#..(RCB,XTR)..4FC |
1 | ||
| 82148-04450 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82131-0Y040 |
VZN150;RZN140,150,19#..(RCB,XTR)..4FC W(ABS & POWER WINDOW) |
1 | ||
| 82131-0Y100 |
RZN140,150,19#..(RCB,XTR)..4FC W(ABS & DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82131-0Y090 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82131-0Y030 |
RZN140,150,19#..(RCB,XTR)..4FC W(POWER WINDOW) |
1 | ||
| 82148-04361 |
RZN140,150,19#..(RCB,XTR)..4FC W(ABS & POWER WINDOW) |
1 | ||
| 82148-04331 |
RZN140,150,19#..(RCB,XTR)..4FC |
1 | ||
| 82148-04351 |
RZN140,150,19#..(RCB,XTR)..4FC W(POWER WINDOW) |
1 | ||
| 82148-04451 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82148-04471 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82148-04481 |
RZN140,150,19#..(RCB,XTR)..4FC W(ABS & DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82131-0Y400 |
RZN140,150,19#..(RCB,XTR)..4FC |
1 | ||
| 82131-0Y500 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82131-0Y420 |
RZN140,150,19#..(RCB,XTR)..4FC W(POWER WINDOW) |
1 | ||
| 82131-0Y520 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82131-0Y401 |
RZN140,150,19#..(RCB,XTR)..4FC |
1 | ||
| 82131-0Y521 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82131-0Y421 |
RZN140,150,19#..(RCB,XTR)..4FC W(POWER WINDOW) |
1 | ||
| 82131-0Y501 |
RZN140,150,19#..(RCB,XTR)..4FC W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150;RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS) |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82345-22051 |
VZN150..R;RZN140,150,19#,VZN195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150..R;RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150;RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS) |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82345-22051 |
VZN150..R;RZN140,150,19#,VZN195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150..R;RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150;RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS) |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82345-22051 |
VZN150..R;RZN140,150,19#,VZN195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150..R;RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
3 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150;RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS) |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN150,195 TYPE A:REFER TO ILLUSTRATION & W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82345-22051 |
VZN150..R;RZN140,150,19#,VZN195 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
VZN150..R;RZN140,150,19#,VZN195 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
RZN140,150,19#,VZN195..4FC TYPE A:REFER TO ILLUSTRATION & W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
3 | ||
| 82561 - WIRE, REAR SPEAKER | ||||
| 82561-04010 |
RZN140,191 |
2 | ||
| 82561 - WIRE, REAR SPEAKER | ||||
| 82561-04010 |
RZN140,191 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-35420 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35420 |
VZN150..R;RZN140,150,19#,VZN195 |
1 | ||
| 82817-35420 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35420 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35420 |
RZN140,150,19#,VZN195 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-35430 |
RZN140,150,19#,VZN195 |
1 | ||
| 82817-35430 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35430 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35430 |
VZN150..R;RZN140,150,19#,VZN195 |
1 | ||
| 82817-35430 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-35450 |
VZN150..R;RZN140,150,19#,VZN195 |
1 | ||
| 82817-35450 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35450 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35630 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35450 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82817-35630 |
RZN140,150,19#,VZN195 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-33150 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82821-33150 |
RZN140,150,19#,VZN195 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
RZN140,150,19# NO.1 |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
RZN140,150,19# NO.1 |
2 | ||
| Common parts | ||||
| 82631-35010 | ||||
| 82821-35050 | ||||
| 82890-35010 | ||||
| 90080-11221 | ||||
| 90119-06390 | ||||
| 90168-50041 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 7(9501- )
CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22300 | ||||
| 82711-35420 | ||||
| 82715-22220 | ||||
| 82715-22560 | ||||
| 82715-34100 | ||||
| 82715-34120 | ||||
| 82715-34130 | ||||
| 82715-34140 | ||||
| 82715-34150 | ||||
| 82715-34160 | ||||
| 82715-34190 | ||||
| 82715-34210 | ||||
| 82715-34220 | ||||
| 82715-34240 | ||||
| 82715-34250 | ||||
| 82715-34260 | ||||
| 82715-34270 | ||||
| 82715-34280 | ||||
| 90080-11195 | ||||
| 91511-A0612 | ||||
| 91512-B0614 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91621-60610 | ||||
| 91621-60614 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91642-C0814 | ||||
| 91651-41016 | ||||
ILLUST NO. 5 OF 7(9501- )
CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24420 | ||||
| 82715-34290 | ||||
| 82715-34300 | ||||
| 82715-34310 | ||||
| 82715-34340 | ||||
| 82715-35182 | ||||
| 82715-35230 | ||||
| 82715-35290 | ||||
| 82715-35300 | ||||
| 82715-35310 | ||||
| 82715-35320 | ||||
| 82715-35350 | ||||
| 82715-35360 | ||||
| 82715-35370 | ||||
| 82715-35380 | ||||
| 82715-35410 | ||||
| 82715-35430 | ||||
| 82715-35480 | ||||
| 82715-35490 | ||||
| 82715-35770 | ||||
| 90080-11180 | ||||
| 90080-11195 | ||||
| 90080-11196 | ||||
| 90080-11221 | ||||
| 90080-11399 | ||||
| 90105-08268 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 91611-F0812 | ||||
| 91651-40625 | ||||
ILLUST NO. 5 OF 7(9501- )
CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-06070 | ||||
| 82711-34310 | ||||
| 82711-3F230 | ||||
| 82715-04010 | ||||
| 82715-04020 | ||||
| 82715-34390 | ||||
| 82715-35500 | ||||
| 82715-35510 | ||||
| 82715-35520 | ||||
| 82715-35530 | ||||
| 82715-35540 | ||||
| 82715-35600 | ||||
| 82715-35710 | ||||
| 82715-35830 | ||||
| 82715-3D270 | ||||
| 82715-50020 | ||||
| 82715-50160 | ||||
| 82715-89119 | ||||
| 82729-35040 | ||||
| 90080-11180 | ||||
| 90080-11203 | ||||
| 90080-11221 | ||||
| 90119-08A73 | ||||
| 91511-A0612 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-61014 | ||||
| 91641-C0612 | ||||
| 91642-C0612 | ||||
ILLUST NO. 6 OF 7(9501- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07380 |
RZN140,150,19# |
1 | ||
| 90980-07380 |
RZN140,150,19# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07380 |
RZN140,150,19# |
1 | ||
| 90980-07380 |
RZN140,150,19# |
1 | ||
| Common parts | ||||
| 90080-11187 | ||||
| 90119-06390 | ||||
ILLUST NO. 4 OF 7(9501- )
ROOF,DOOR,FLOOR & FRAME WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-04021 |
RZN140,150,19#,VZN150,195 W(POWER WINDOW) |
1 | ||
| 82151-04130 |
RZN140,150,19#,VZN195 |
1 | ||
| 82151-04020 |
RZN140,150,19#,VZN150,195 W(POWER WINDOW) |
1 | ||
| 82151-04010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82151-04160 |
RZN19#,VZN195 W(POWER WINDOW) & W(POWER MIROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-04011 |
RZN140,150,19#,VZN150,195 W(POWER WINDOW) |
1 | ||
| 82152-04010 |
RZN140,150,19#,VZN150,195 W(POWER WINDOW) |
1 | ||
| 82152-04140 |
RZN19#,VZN195..RCB,XTR W(POWER WINDOW) |
1 | ||
| 82151-04130 |
RZN140,150,19#,VZN195 |
1 | ||
| 82163C - WIRE, FLOOR NO.3 RH | ||||
| 82163-04020 |
RZN140,191 |
1 | ||
| 82163D - WIRE, FLOOR NO.3 LH | ||||
| 82163-04030 |
RZN140,191 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-04320 |
RZN191 W(ABS) |
1 | ||
| 82164-04321 |
RZN140,191 W(*66) |
1 | ||
| 82164-04570 |
RZN140,191 |
1 | ||
| 82164-04571 |
RZN140,191 |
1 | ||
| 82164-04580 |
RZN140,191 W(ABS) |
1 | ||
| 82164-04581 |
RZN140,191 W(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-04140 |
RZN140,191 |
1 | ||
| Common parts | ||||
| 90179-08237 | ||||
| 91611-F0812 | ||||
ILLUST NO. 1 OF 7(0009- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-04791 |
RZN140,150,19#,VZN150,195 W(ABS) |
1 | ||
| 82115-04030 |
RZN140,150,19#,VZN150,195 W(ABS) |
1 | ||
| 82111-04812 |
RZN140,150,19#,VZN195 W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-04802 |
RZN140,150,19#,VZN195 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-04781 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82115-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82111-04782 |
RZN140,150,19#,VZN195 |
1 | ||
| 82111-04792 |
RZN140,150,19#,VZN195 W(ABS) |
1 | ||
| 82111-0Y031 |
RZN140,150,19#,VZN150 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82115-04120 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 82115-04130 |
RZN140,150,19#,VZN150,195 W(ABS) |
1 | ||
| 82111-0Y032 |
RZN140,150,19#,VZN150 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0Y030 |
RZN140,150,19#,VZN150 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0Y011 |
RZN140,150,19#,VZN150 |
1 | ||
| 82115-04140 |
RZN140,150,19#,VZN150,195 W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82115-04150 |
RZN140,150,19#,VZN150,195 W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-0Y012 |
RZN140,150,19#,VZN150 |
1 | ||
| 82111-0Y010 |
RZN140,150,19#,VZN150 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08254 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,TAIHEIYO |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN150,195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN150,195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
RZN19#,VZN195 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
RZN19#,VZN195 120A,TERM.:MALE,WHT |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08254 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,TAIHEIYO |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN150,195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08257 |
RZN140,150,19#,VZN150,195 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN150,195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
RZN19#,VZN195 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
RZN140,150,19#,VZN150,195 120A,TERM.:MALE,WHT,YAZAKI |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08280 |
RZN140,150,19#,VZN150,195 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08203 |
RZN140,150,19#,VZN195 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08283 |
RZN140,150,19#,VZN195 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08202 |
RZN140,150,19#,VZN150,195 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
RZN140,150,19#,VZN195 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08254 |
RZN19#,VZN195 120A,TERM.:MALE,WHT |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
RZN140,150,19#,VZN150,195 |
2 | ||
| Common parts | ||||
| 82821-35050 | ||||
| 90080-11221 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 7(9501- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10173 | ||||
| 90980-10619 | ||||
| 90980-11020 | ||||
| 90980-11149 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
