RZN191L-TRPDKAB (1998)

Toyota Tacoma

Production Aug 1998 - Sep 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

Click highlighted areas on diagram

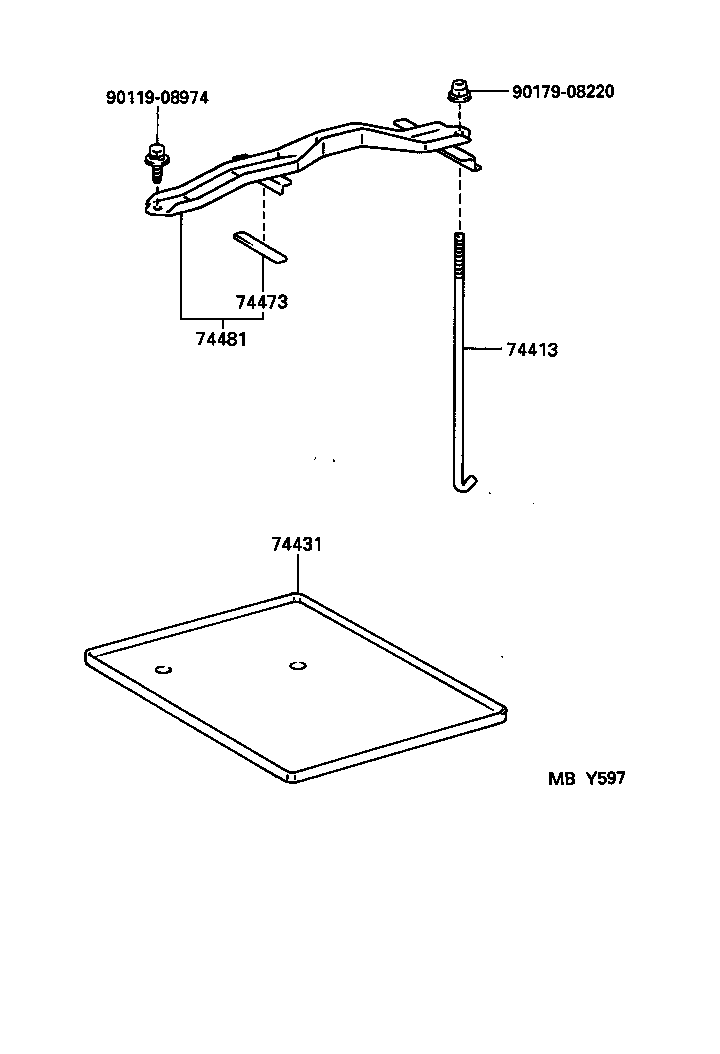

diagram 74413 74431 74473 74481 9011908974 9017908220
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-AD010

RZN140,150,19#,VZN150,195

 1
74451-AD010

RZN140,150,19#,VZN150,195

 1
74431 - TRAY, BATTERY
74431-03010

RZN140,150,19#,VZN150,195

W(80D26L BATTERY)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-04030

RZN140,150,19#,VZN150,195

 1
74404-35140

RZN140,150,19#,VZN150,195

(J)

 1
Common parts
90119-08974
90179-08220
