RZN191L-TRPDKAB (1998)
Toyota Tacoma
(9501-0009)

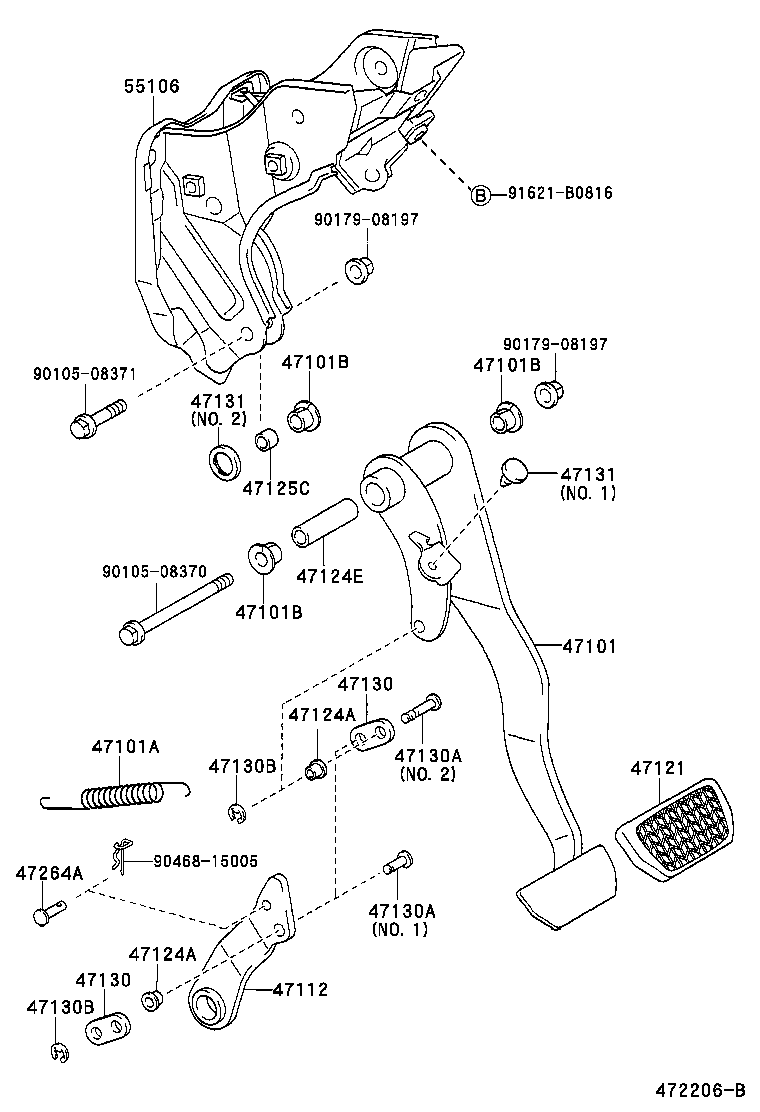

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-35320 |
RZN140,150,19#,VZN150,195..ATM |
1 | ||
| 47101-35390 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90905-07028 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
RZN140,150,19#,VZN150,195 |
3 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
RZN140,150,19#,VZN150,195 |
3 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-52010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 47121-12011 |
RZN140,150,19#,VZN150,195..ATM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10480 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90080-10101 |
RZN140,150,19#,VZN150,195 (L) |
1 | ||
| 90101-10480 |
RZN140,150,19#,VZN150,195 (J) |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-35030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47144-60010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 47131-34010 |
RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90541-06036 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90240-06023 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-35140 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55106-35090 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 91621-B0816 | ||||
| 94512-01000 | ||||
(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-35320 |
RZN140,150,19#,VZN150,195..ATM |
1 | ||
| 47101-35390 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90905-07028 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
RZN140,150,19#,VZN150,195 |
3 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
RZN140,150,19#,VZN150,195 |
3 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
RZN140,150,19#,VZN150,195 |
3 | ||
| 47112 - LEVER, BRAKE PEDAL | ||||
| 47112-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-52010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 47121-12011 |
RZN140,150,19#,VZN150,195..ATM |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-35030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47144-60010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-35030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47144-60010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 | ||||
| 90387-08156 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47125C - COLLAR(FOR BRAKE PEDAL BRACKET) | ||||
| 90387-08157 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 47130-60010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47130A - PIN, BRAKE PEDAL LINK | ||||
| 90249-06183 |
RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90249-06167 |
RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 47130A - PIN, BRAKE PEDAL LINK | ||||
| 90249-06183 |
RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90249-06167 |
RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 47131-34010 |
RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90541-06036 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 47131-34010 |
RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90541-06036 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90240-06023 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-35140 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55106-35090 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 90105-08370 | ||||
| 90105-08371 | ||||
| 90179-08197 | ||||
| 90468-15005 | ||||
| 91621-B0816 | ||||
