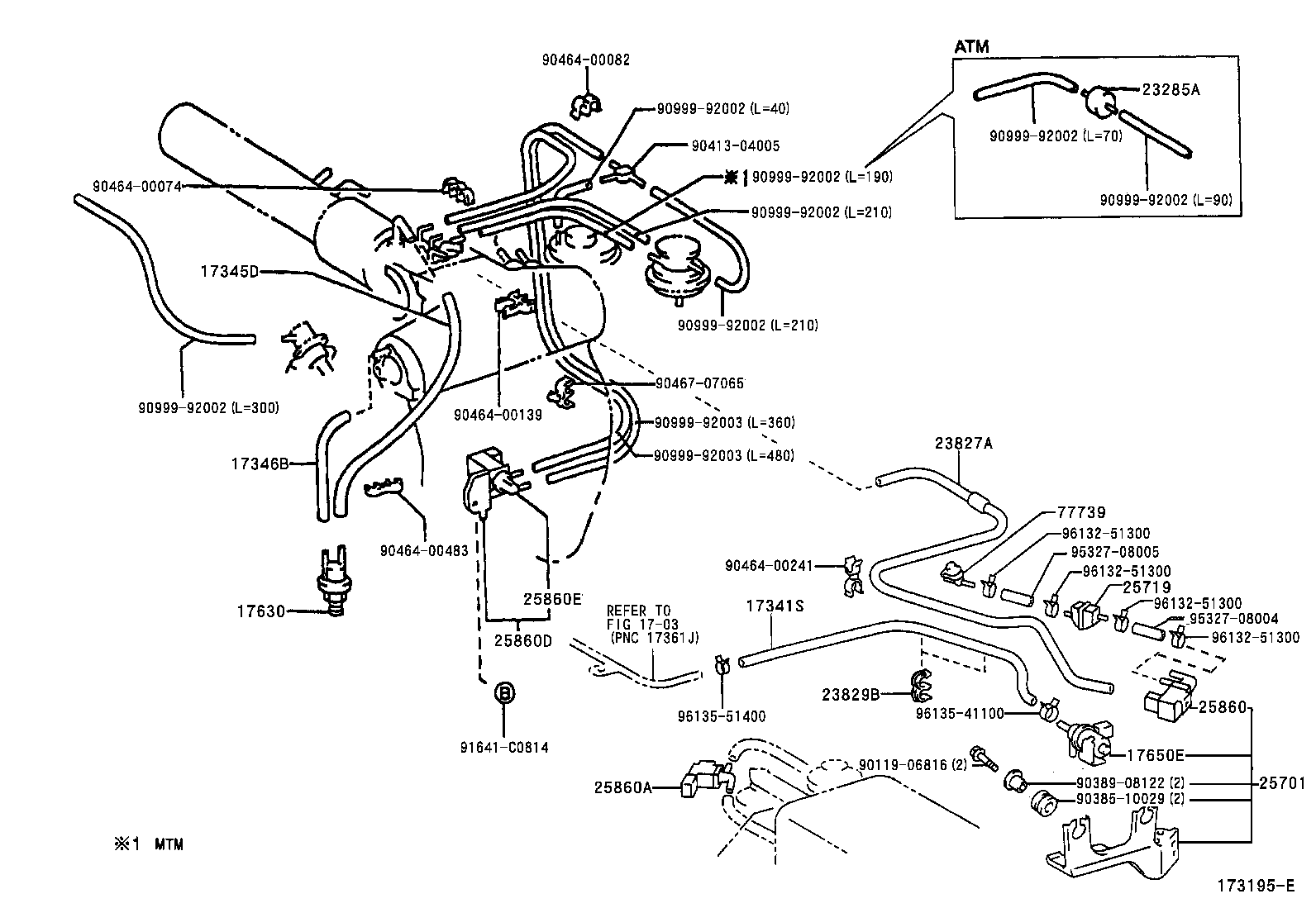

Toyota Tacoma RZN191 VACUUM PIPING

Part #	Description	Period	Qty
17341S - HOSE, AIR
17341-75140	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	1
17345D - HOSE, AIR, NO.5
17345-75010	2RZFE,3RZFE..RZN140,150,19#	01/1995 - 09/2000	1
17346B - HOSE, AIR, NO.6
17346-75010	2RZFE,3RZFE..RZN140,150,19#	01/1995 - 09/2000	1
17650E - VALVE, VACUUM SWITCHING
90910-12245	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	1
23285A - VALVE, CHECK, NO.1
90917-10049	2RZFE,3RZFE..RZN140,150,19#..ATM	01/1995 - 09/2000	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75190	3RZFE..RZN19#	09/2000 - 09/2001	1
23827-75250	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90464-00558	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	2
25701 - VALVE SET, EMISSION CONTROL
25701-62040	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	1
25719 - TANK, VACUUM SURGE
25719-50030	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75230	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 12/2999	1
25860-75140	2RZFE,3RZFE..RZN140,150,19#	09/2000 - 09/2001	1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12250	2RZFE,3RZFE..RZN140,150,19#	09/2001 - 09/2004	1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-75060	2RZFE,3RZFE..RZN140,150,19#	01/1995 - 09/2000	1
25860-75060	3RZFE..RZN19#	09/2000 - 09/2004	1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12065	3RZFE..RZN19#	09/2000 - 09/2004	1
90910-12065	2RZFE,3RZFE..RZN140,150,19#	01/1995 - 09/2000	1
77739 - VALVE, EVAP SERVICE PORT
77739-06010	RZN140,150,19#	08/1998 - 09/2000	1
77739-06010	RZN140,150,19#	09/2000 - 12/2999	1
Common parts
90119-06816
90385-10029
90389-08122
90413-04005
90464-00074
90464-00082
90464-00139
90464-00241
90464-00483
90467-07065
90999-92002
90999-92003
91641-C0814
95327-08004
95327-08005
96132-51300
96135-41100
96135-51400
Linked diagrams
1703

RZN191L-TRPDKAB (1998)

(9501- )2RZFE,3RZFE

(0109- )2RZFE,3RZFE
