RZN191L-TRPDKAB (1998)

Toyota Tacoma

Production Aug 1998 - Sep 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-0009)2RZFE,3RZFE

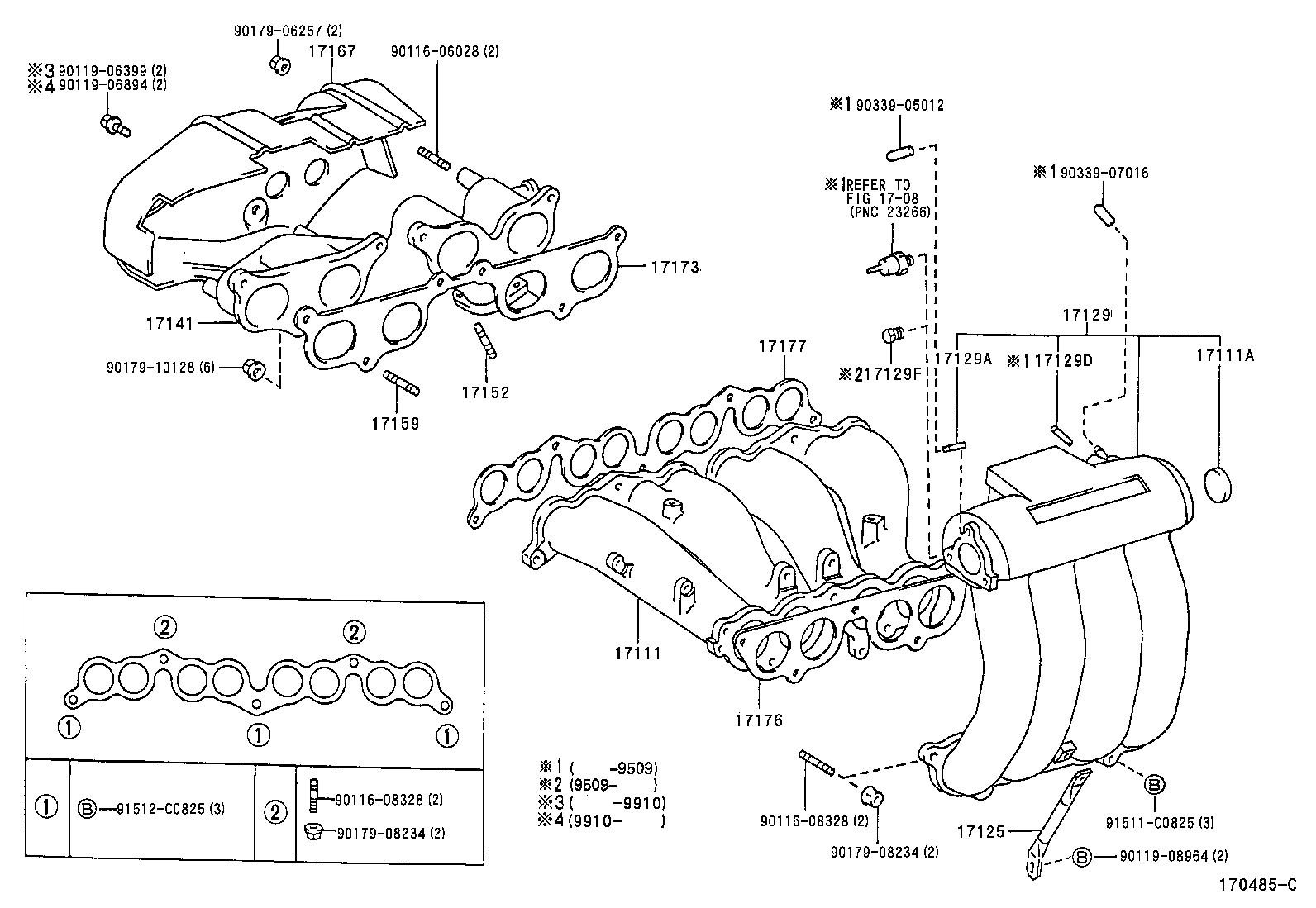

Click highlighted areas on diagram

diagram 1708 17111 17111A 17125 17129 17129A 17129D 17129F 17141 17152 17159 17167 17173 17176 17177 9011606028 9011608328 9011608328 9011906399 9011906894 9011908964 9017906257 9017908234 9017908234 9017910128 9033905012 9033907016 91511C0825 91512C0825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-75070

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17111-75070

2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
17111A - PLUG, NO.1
96411-43500

2RZFE,3RZFE..RZN140,150,19#

 2
96411-43500

2RZFE,3RZFE..RZN140,150,19#

 2
17125 - STAY, SURGE TANK, NO.1
17125-75030

3RZFE..RZN19#

 1
17129 - TANK, INTAKE AIR SURGE
17109-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17109-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17109-75020

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17129A - UNION, NO.1
90406-06002

2RZFE,3RZFE..RZN140,150,19#

 1
90406-06001

2RZFE,3RZFE..RZN140,150,19#

 1
90406-06002

2RZFE,3RZFE..RZN140,150,19#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

2RZFE,3RZFE..RZN140,150,19#

 2
90345-51025

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17141 - MANIFOLD, EXHAUST
17141-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17141-75080

3RZFE..RZN19#

CALIFORNIA(LEV) SPEC

 1
17141-75080

3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2RZFE,3RZFE..RZN140,150,19#

 3
90116-10149

2RZFE,3RZFE..RZN140,150,19#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

2RZFE,3RZFE..RZN140,150,19#

 6
90116-10163

2RZFE,3RZFE..RZN140,150,19#

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75011

2RZFE,3RZFE..RZN140,150,19#

 1
17167-75100

3RZFE..RZN19#..RCB,XTR

 1
17167-75100

3RZFE..RZN19#

CALIFORNIA(LEV) SPEC

 1
17167-75012

2RZFE,3RZFE..RZN140,150,19#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17173-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-75010

2RZFE,3RZFE..RZN140,150,19#

 1
17176-75010

2RZFE,3RZFE..RZN140,150,19#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17177-75030

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17177-75030

2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
Common parts
90116-06028
90116-08328
90119-06399
90119-06894
90119-08964
90179-06257
90179-08234
90179-10128
90339-05012
90339-07016
91511-C0825
91512-C0825
Linked diagrams
1708

(9908-0009)2RZFE,3RZFE

Click highlighted areas on diagram

CALIFORNIA(LEV) SPEC

diagram 17111 17111A 17111B 17111S 17125 17129 17129A 17129D 17129F 17141 17152 17159 17167 17173 17176 17177 25617C 25628B 9010508084 9011608328 9011608328 9011908964 9017908040 9017908234 9017908234 9017908234 9017910175 9033905012 9033907016 91511C0825 91512C0825 92112B0818
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-75070

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17111-75070

2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
17111A - PLUG, NO.1
96411-43500

2RZFE,3RZFE..RZN140,150,19#

 2
96411-43500

2RZFE,3RZFE..RZN140,150,19#

 2
17125 - STAY, SURGE TANK, NO.1
17125-75030

3RZFE..RZN19#

 1
17129 - TANK, INTAKE AIR SURGE
17109-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17109-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17109-75020

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17129A - UNION, NO.1
90406-06002

2RZFE,3RZFE..RZN140,150,19#

 1
90406-06001

2RZFE,3RZFE..RZN140,150,19#

 1
90406-06002

2RZFE,3RZFE..RZN140,150,19#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

2RZFE,3RZFE..RZN140,150,19#

 2
90345-51025

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17141 - MANIFOLD, EXHAUST
17141-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17141-75080

3RZFE..RZN19#

CALIFORNIA(LEV) SPEC

 1
17141-75080

3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2RZFE,3RZFE..RZN140,150,19#

 3
90116-10149

2RZFE,3RZFE..RZN140,150,19#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

2RZFE,3RZFE..RZN140,150,19#

 6
90116-10163

2RZFE,3RZFE..RZN140,150,19#

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75011

2RZFE,3RZFE..RZN140,150,19#

 1
17167-75100

3RZFE..RZN19#..RCB,XTR

 1
17167-75100

3RZFE..RZN19#

CALIFORNIA(LEV) SPEC

 1
17167-75012

2RZFE,3RZFE..RZN140,150,19#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17173-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-75010

2RZFE,3RZFE..RZN140,150,19#

 1
17176-75010

2RZFE,3RZFE..RZN140,150,19#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17177-75030

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17177-75030

2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
Common parts
90105-08084
90116-08328
90119-08964
90179-08040
90179-08234
90179-10175
90339-05012
90339-07016
91511-C0825
91512-C0825
92112-B0818

(0009- )2RZFE,3RZFE

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17111S 17125 17129 17129A 17129D 17129F 17141 17152 17159 17167 17173 17176 17177 25617C 25628B 9010508084 9011608328 9011608328 9011908964 9017908040 9017908234 9017908234 9017908234 9017910175 9033905012 9033907016 91511C0825 91512C0825 92112B0818
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-75070

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17111-75070

2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
17111A - PLUG, NO.1
96411-43500

2RZFE,3RZFE..RZN140,150,19#

 2
96411-43500

2RZFE,3RZFE..RZN140,150,19#

 2
17125 - STAY, SURGE TANK, NO.1
17125-75030

3RZFE..RZN19#

 1
17129 - TANK, INTAKE AIR SURGE
17109-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17109-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17109-75020

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17129A - UNION, NO.1
90406-06002

2RZFE,3RZFE..RZN140,150,19#

 1
90406-06001

2RZFE,3RZFE..RZN140,150,19#

 1
90406-06002

2RZFE,3RZFE..RZN140,150,19#

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

2RZFE,3RZFE..RZN140,150,19#

 2
90345-51025

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17141 - MANIFOLD, EXHAUST
17141-75030

2RZFE,3RZFE..RZN140,150,19#

 1
17141-75080

3RZFE..RZN19#

CALIFORNIA(LEV) SPEC

 1
17141-75080

3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2RZFE,3RZFE..RZN140,150,19#

 3
90116-10149

2RZFE,3RZFE..RZN140,150,19#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

2RZFE,3RZFE..RZN140,150,19#

 6
90116-10163

2RZFE,3RZFE..RZN140,150,19#

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75011

2RZFE,3RZFE..RZN140,150,19#

 1
17167-75100

3RZFE..RZN19#..RCB,XTR

 1
17167-75100

3RZFE..RZN19#

CALIFORNIA(LEV) SPEC

 1
17167-75012

2RZFE,3RZFE..RZN140,150,19#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17173-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-75010

2RZFE,3RZFE..RZN140,150,19#

 1
17176-75010

2RZFE,3RZFE..RZN140,150,19#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75020

2RZFE,3RZFE..RZN140,150,19#

 1
17177-75030

2RZFE,3RZFE..RZN140,150,19#

CALIFORNIA(LEV) SPEC

 1
17177-75030

2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR

CALIFORNIA(LEV) SPEC

 1
Common parts
90105-08084
90116-08328
90119-08964
90179-08040
90179-08234
90179-10175
90339-05012
90339-07016
91511-C0825
91512-C0825
92112-B0818
