RZN191L-TRPDKAB (1998)

Toyota Tacoma

Production Aug 1998 - Sep 2004
Engine 3RZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )2RZFE,3RZFE

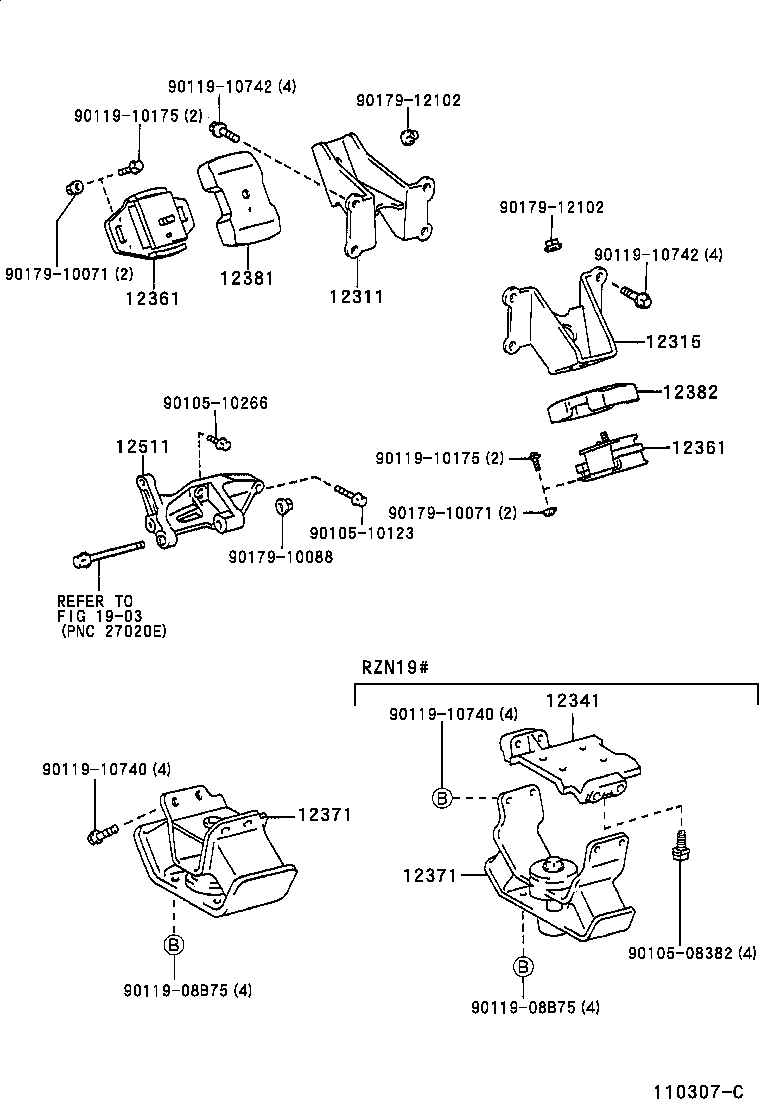

Click highlighted areas on diagram

diagram 12311 12315 12341 12361 12361 12371 12371 12381 12382 12511 1903 9010508382 9010510123 9010510266 9011908B75 9011908B75 9011910175 9011910175 9011910740 9011910740 9011910742 9011910742 9017910071 9017910071 9017910088 9017912102 9017912102
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75050

2RZFE,3RZFE..RZN140,150,19#

 1
12311-75050

2RZFE,3RZFE..RZN140,150,19#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75050

2RZFE,3RZFE..RZN140,150,19#

 1
12315-75050

2RZFE,3RZFE..RZN140,150,19#

 1
12341 - SPACER, ENGINE MOUNTING
12341-75020

3RZFE..RZN19#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35090

2RZFE,3RZFE..RZN140,150,19#

 2
12361-35090

2RZFE,3RZFE..RZN140,150,19#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35090

2RZFE,3RZFE..RZN140,150,19#

 2
12361-35090

2RZFE,3RZFE..RZN140,150,19#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-75090

3RZFE..RZN19#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-75090

3RZFE..RZN19#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-75020

2RZFE,3RZFE..RZN140,150,19#

 1
12381-75020

2RZFE,3RZFE..RZN140,150,19#

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-75010

2RZFE,3RZFE..RZN140,150,19#

 1
12382-75010

2RZFE,3RZFE..RZN140,150,19#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-75041

2RZFE,3RZFE..RZN140,150,19#

 1
Common parts
90105-08382
90105-10123
90105-10266
90119-08B75
90119-10175
90119-10740
90119-10742
90179-10071
90179-10088
90179-12102
Linked diagrams
1903
