RZN171L-CRPDKAB (1995)
Toyota Tacoma

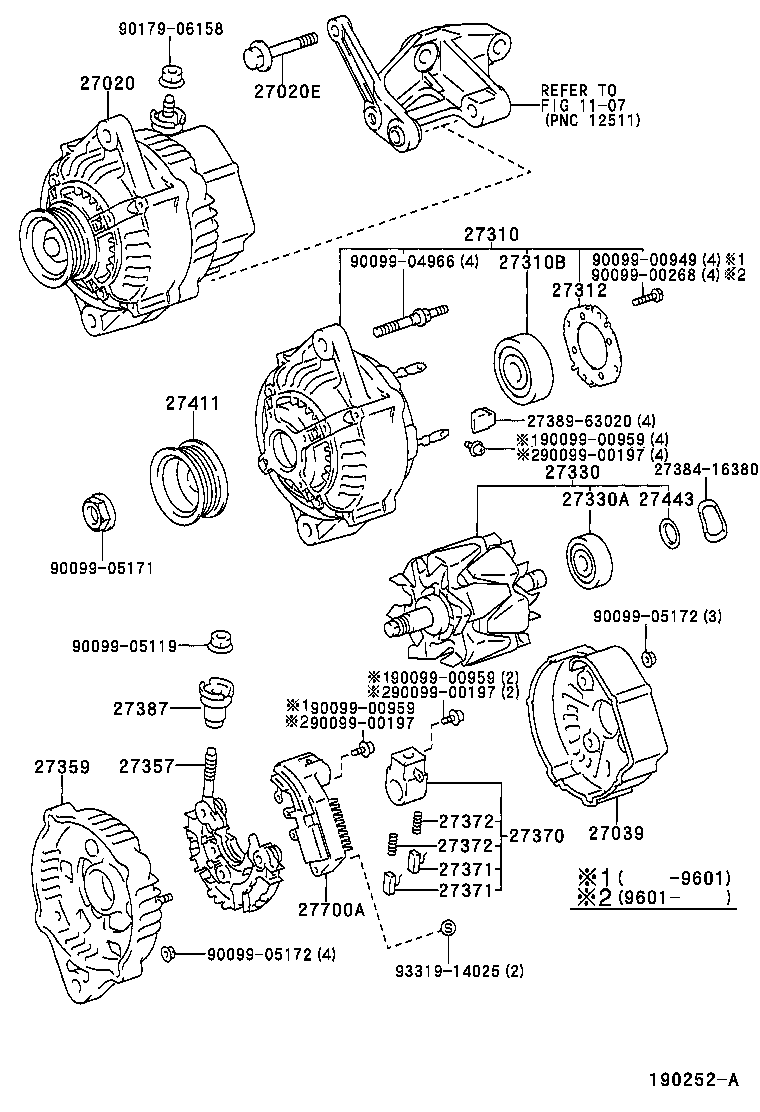

(9501-9704)3RZFE
12V 60A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75040 |
3RZFE..RZN161,171 12V 60A |
1 | ||
| 27060-75170 |
3RZFE..RZN161,171 12V 70A |
1 | ||
| 27060-75160 |
3RZFE..RZN161,171 12V 80A |
1 | ||
| 27060-75160 |
3RZFE..RZN161,171 12V 80A |
1 | ||
| 27060-75150 |
3RZFE..RZN161,171 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZFE..RZN161,171 |
1 | ||
| 90105-10221 |
3RZFE..RZN161,171 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27039-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-16380 |
3RZFE..RZN161,171 |
1 | ||
| 27039-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27039-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-70470 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-75160 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75110 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75040 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75110 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75150 |
3RZFE..RZN161,171 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10199 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10178 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 90099-10159 |
3RZFE..RZN161,171 |
1 | ||
| 90099-10192 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10199 |
3RZFE..RZN161,171 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-72100 |
3RZFE..RZN161,171 |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-70200 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27330-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27330-64570 |
3RZFE..RZN161,171 |
1 | ||
| 27330-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27330-16390 |
3RZFE..RZN161,171 |
1 | ||
| 27330-76030 |
3RZFE..RZN161,171 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 90099-10216 |
3RZFE..RZN161,171 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
3RZFE..RZN161,171 |
1 | ||
| 27357-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27357-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27357-13360 |
3RZFE..RZN161,171 |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
3RZFE..RZN161,171 |
1 | ||
| 27359-16181 |
3RZFE..RZN161,171 |
1 | ||
| 27359-72280 |
3RZFE..RZN161,171 |
1 | ||
| 27359-75160 |
3RZFE..RZN161,171 |
1 | ||
| 27359-72280 |
3RZFE..RZN161,171 |
1 | ||
| 27359-16182 |
3RZFE..RZN161,171 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370-75060 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370-35060 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27387-70170 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27387-42021 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27387-70171 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3RZFE..RZN161,171 |
1 | ||
| 27411-42030 |
3RZFE..RZN161,171 |
1 | ||
| 27411-16180 |
3RZFE..RZN161,171 |
1 | ||
| 27411-16150 |
3RZFE..RZN161,171 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27443-63020 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27700-66040 |
3RZFE..RZN161,171 |
1 | ||
| 27700-75020 |
3RZFE..RZN161,171 |
1 | ||
| 27700-50030 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1107 | ||||

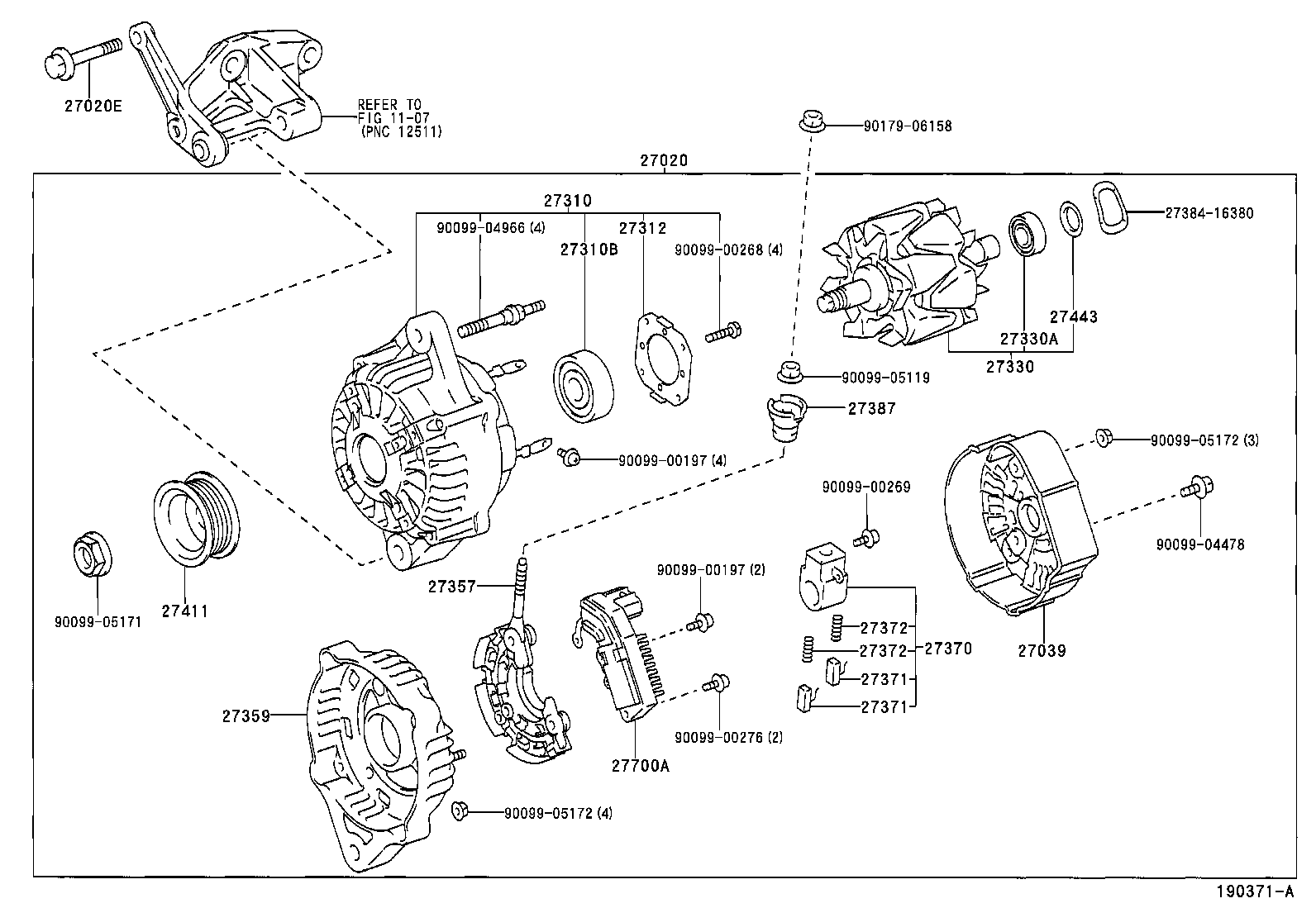

(9704-9909)3RZFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75040 |
3RZFE..RZN161,171 12V 60A |
1 | ||
| 27060-75170 |
3RZFE..RZN161,171 12V 70A |
1 | ||
| 27060-75160 |
3RZFE..RZN161,171 12V 80A |
1 | ||
| 27060-75160 |
3RZFE..RZN161,171 12V 80A |
1 | ||
| 27060-75150 |
3RZFE..RZN161,171 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZFE..RZN161,171 |
1 | ||
| 90105-10221 |
3RZFE..RZN161,171 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27039-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-16380 |
3RZFE..RZN161,171 |
1 | ||
| 27039-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27039-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-70470 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-75160 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75110 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75150 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75040 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75110 |
3RZFE..RZN161,171 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10199 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10178 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 90099-10159 |
3RZFE..RZN161,171 |
1 | ||
| 90099-10192 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10199 |
3RZFE..RZN161,171 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-72100 |
3RZFE..RZN161,171 |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-70200 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27330-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27330-64570 |
3RZFE..RZN161,171 |
1 | ||
| 27330-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27330-16390 |
3RZFE..RZN161,171 |
1 | ||
| 27330-76030 |
3RZFE..RZN161,171 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 90099-10216 |
3RZFE..RZN161,171 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
3RZFE..RZN161,171 |
1 | ||
| 27357-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27357-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27357-13360 |
3RZFE..RZN161,171 |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
3RZFE..RZN161,171 |
1 | ||
| 27359-16181 |
3RZFE..RZN161,171 |
1 | ||
| 27359-72280 |
3RZFE..RZN161,171 |
1 | ||
| 27359-75160 |
3RZFE..RZN161,171 |
1 | ||
| 27359-72280 |
3RZFE..RZN161,171 |
1 | ||
| 27359-16182 |
3RZFE..RZN161,171 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370-75060 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370-35060 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27387-70170 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27387-42021 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27387-70171 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3RZFE..RZN161,171 |
1 | ||
| 27411-42030 |
3RZFE..RZN161,171 |
1 | ||
| 27411-16180 |
3RZFE..RZN161,171 |
1 | ||
| 27411-16150 |
3RZFE..RZN161,171 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27443-63020 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27700-66040 |
3RZFE..RZN161,171 |
1 | ||
| 27700-75020 |
3RZFE..RZN161,171 |
1 | ||
| 27700-50030 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(9909- )3RZFE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75040 |
3RZFE..RZN161,171 12V 60A |
1 | ||
| 27060-75170 |
3RZFE..RZN161,171 12V 70A |
1 | ||
| 27060-75160 |
3RZFE..RZN161,171 12V 80A |
1 | ||
| 27060-75160 |
3RZFE..RZN161,171 12V 80A |
1 | ||
| 27060-75150 |
3RZFE..RZN161,171 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10221 |
3RZFE..RZN161,171 |
1 | ||
| 90105-10221 |
3RZFE..RZN161,171 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27039-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-16380 |
3RZFE..RZN161,171 |
1 | ||
| 27039-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27039-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27039-70470 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27064-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-75160 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75110 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75150 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75040 |
3RZFE..RZN161,171 |
1 | ||
| 27310-75110 |
3RZFE..RZN161,171 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10199 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10178 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 90099-10159 |
3RZFE..RZN161,171 |
1 | ||
| 90099-10192 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10199 |
3RZFE..RZN161,171 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-72100 |
3RZFE..RZN161,171 |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27312-70200 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27330-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27330-64570 |
3RZFE..RZN161,171 |
1 | ||
| 27330-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27330-16390 |
3RZFE..RZN161,171 |
1 | ||
| 27330-76030 |
3RZFE..RZN161,171 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 90099-10216 |
3RZFE..RZN161,171 |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
3RZFE..RZN161,171 |
1 | ||
| 27357-67100 |
3RZFE..RZN161,171 |
1 | ||
| 27357-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27357-13360 |
3RZFE..RZN161,171 |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357-67100 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
3RZFE..RZN161,171 |
1 | ||
| 27359-16181 |
3RZFE..RZN161,171 |
1 | ||
| 27359-72280 |
3RZFE..RZN161,171 |
1 | ||
| 27359-75160 |
3RZFE..RZN161,171 |
1 | ||
| 27359-72280 |
3RZFE..RZN161,171 |
1 | ||
| 27359-16182 |
3RZFE..RZN161,171 |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27365-55080 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370-75060 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27370-35060 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27387-70170 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27387-42021 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27387-70171 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27388-42010 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3RZFE..RZN161,171 |
1 | ||
| 27411-42030 |
3RZFE..RZN161,171 |
1 | ||
| 27411-16180 |
3RZFE..RZN161,171 |
1 | ||
| 27411-16150 |
3RZFE..RZN161,171 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 27443-63020 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| 27700-66040 |
3RZFE..RZN161,171 |
1 | ||
| 27700-75020 |
3RZFE..RZN161,171 |
1 | ||
| 27700-50030 |
3RZFE,5VZFE..RZN161,171,VZN170 |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
