RZN171L-CRMDKAB (1995)
Toyota Tacoma
Production
Jan 1995
-
Sep 2004
Engine
3RZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9501- )RZN161,171

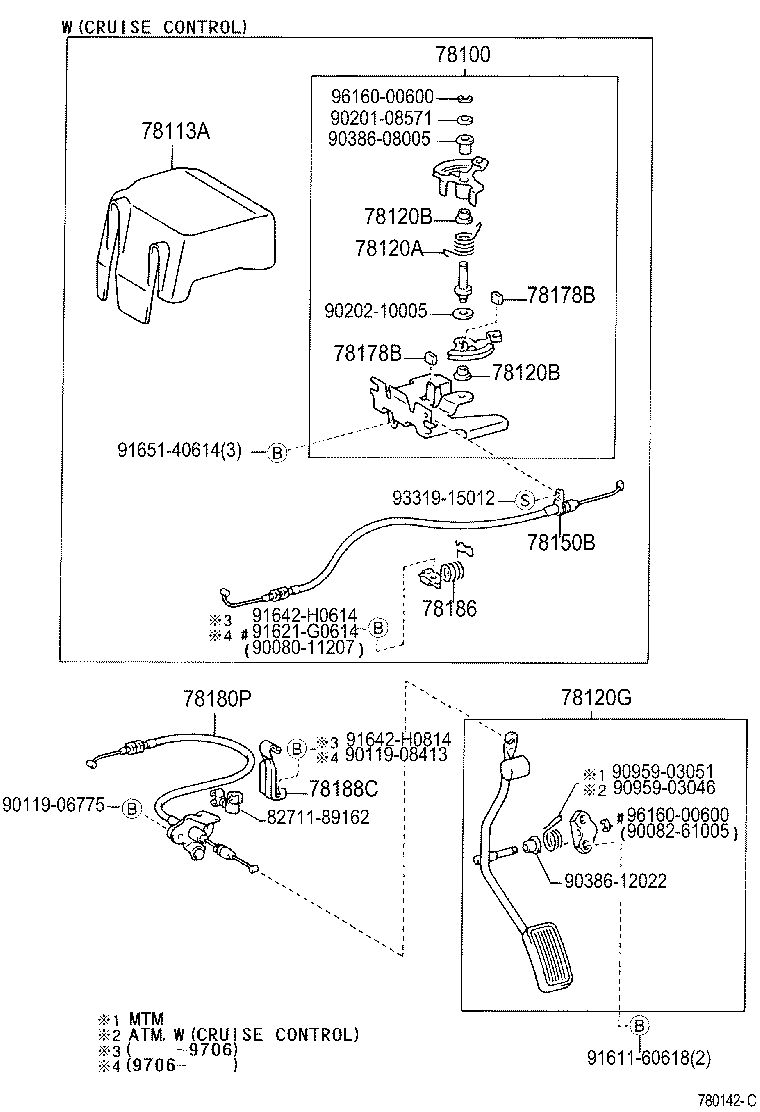

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-34010 |
RZN161,171 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-35010 |
RZN161,171 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90959-03037 |
RZN161,171 |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08077 |
RZN161,171 |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08077 |
RZN161,171 |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-35080 |
RZN161,171,VZN160,170..5F |
1 | ||
| 78120-35090 |
RZN161,171..W W(CRUISE CONTROL) |
1 | ||
| 78120-35080 |
RZN161,171..W |
1 | ||
| 78120-35090 |
RZN161,171..W W(CRUISE CONTROL) |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-35030 |
RZN161,171 |
1 | ||
| 78150-35010 |
RZN161,171 |
1 | ||
| 78150-35030 |
RZN161,171 |
1 | ||
| 78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET | ||||
| 78178-14010 |
RZN161,171 |
2 | ||
| 78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET | ||||
| 78178-14010 |
RZN161,171 |
2 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-04060 |
RZN161,171 W(CRUISE CONTROL) |
1 | ||
| 78180-04090 |
RZN161,171 W(CRUISE CONTROL) |
1 | ||
| 78180-04050 |
RZN161,171 |
1 | ||
| 78180-04090 |
RZN161,171 W(CRUISE CONTROL) |
1 | ||
| 78180-04050 |
RZN161,171 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-35050 |
RZN161,171 |
1 | ||
| 78186-35050 |
RZN161,171 |
1 | ||
| 78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5 | ||||
| 78188-35010 |
RZN161,171 |
1 | ||
| 78188-35010 |
RZN161,171 |
1 | ||
| Common parts | ||||
| 82711-89162 | ||||
| 90080-11207 | ||||
| 90082-61005 | ||||
| 90119-06775 | ||||
| 90119-08413 | ||||
| 90201-08571 | ||||
| 90202-10005 | ||||
| 90386-08005 | ||||
| 90386-12022 | ||||
| 90959-03046 | ||||
| 90959-03051 | ||||
| 91611-60618 | ||||
| 91621-G0614 | ||||
| 91642-H0614 | ||||
| 91642-H0814 | ||||
| 91651-40614 | ||||
| 93319-15012 | ||||
| 96160-00600 | ||||
