Toyota Tacoma RZN150 FRONT TURN SIGNAL LAMP

Manufacturers Home
Toyota
US
TACOMA
RZN150L-CRSDKAB (1995)
8103 - FRONT TURN SIGNAL LAMP

RZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000

Engine 2RZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9802-0009)RZN19#,VZN195 ; (9912-0009)RZN140,150,VZN150

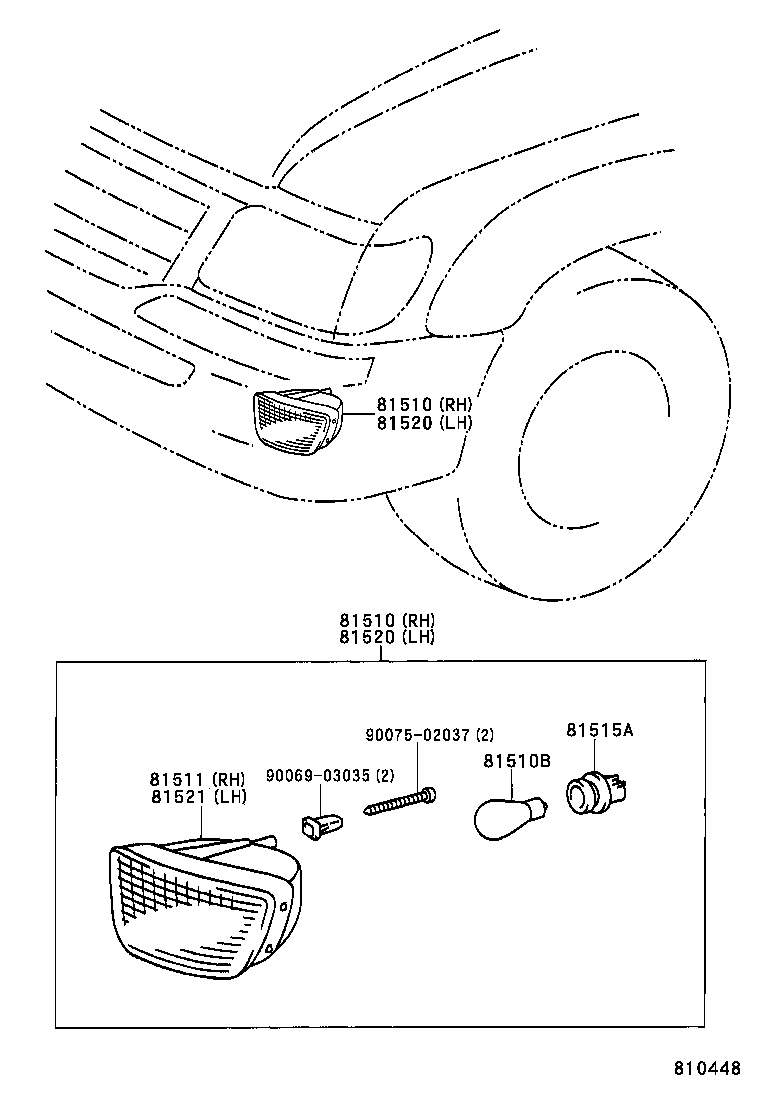

Click highlighted areas on diagram

TYPE B

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81510-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81510-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81510-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81510-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270	RZN140,150,19#,VZN150,195 12V 27W	01/1995 - 09/2000	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	1
81511-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99092	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	2
90075-99078	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81520-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81520-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81520-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81520-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	1
81521-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
Common parts
90069-03035
90075-02037

(9501-0009)RZN140,150,VZN150

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81510-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81510-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81510-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81510-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270	RZN140,150,19#,VZN150,195 12V 27W	01/1995 - 09/2000	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	1
81511-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99092	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	2
90075-99078	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81520-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81520-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 06/1997	1
81520-35110	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	06/1997 - 02/2000	1
81520-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	1
81521-04010	RZN140,150,19#,VZN150,195 TYPE B:REFER TO ILLUSTRATION	12/1999 - 09/2000	1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-35100	RZN140,150,VZN150 TYPE A:REFER TO ILLUSTRATION	01/1995 - 02/2000	1
Common parts
81739-87003
90075-10012
90075-10016

RZN150L-CRSDKAB (1995)

(9802-0009)RZN19#,VZN195 ; (9912-0009)RZN140,150,VZN150

(9501-0009)RZN140,150,VZN150
