Toyota Tacoma RZN140 VALVE BODY & OIL STRAINER (ATM)

Manufacturers Home
Toyota
US
TACOMA
RZN140L-TRSDKAB (1995)
3512 - VALVE BODY & OIL STRAINER (ATM)

RZN140L-TRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000

Engine 2RZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

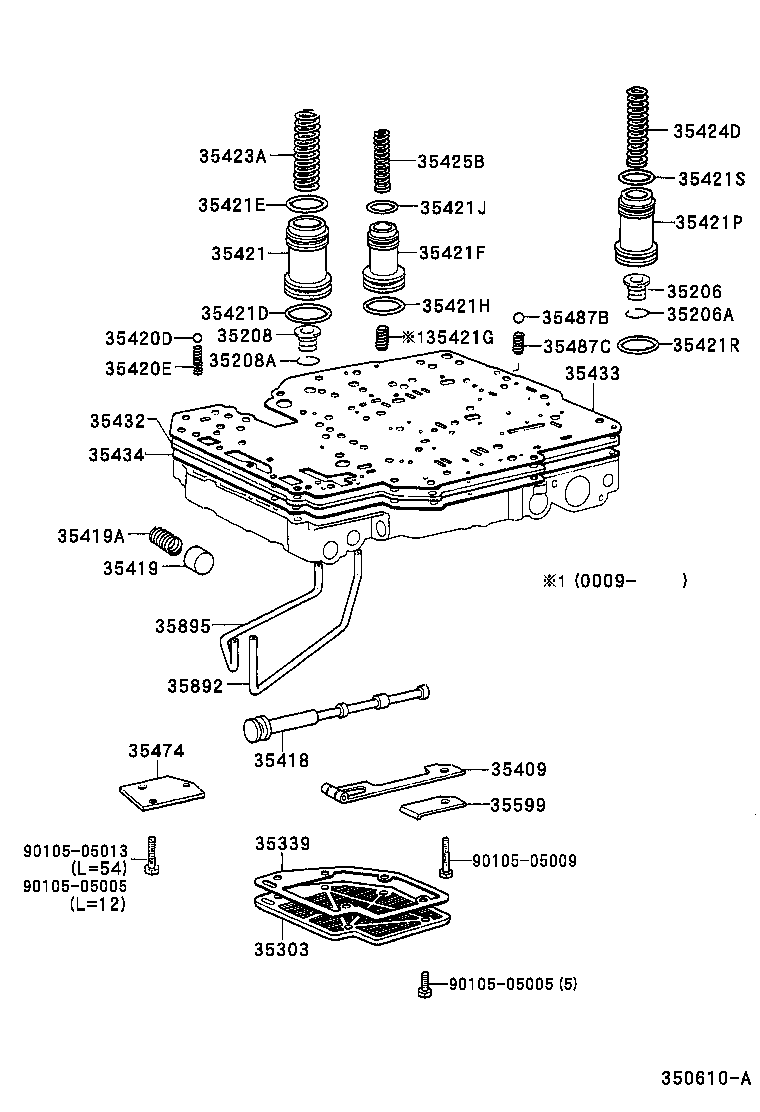

ILLUST NO. 1 OF 3(9501- )RZN140,150..ATM

Click highlighted areas on diagram

A43D,A44D

Part #	Description	Period	Qty
35206 - SPRING SUB-ASSY, C-1 ACCUMULATOR
35206-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35206A - RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
90521-22004	RZN140,150..4HC	01/1995 - 09/2000	1
35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR
35208-28010	RZN140,150..4HC	01/1995 - 09/2000	1
35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
90521-22004	RZN140,150,19#,VZN150,195..ATM	01/1995 - 09/2000	1
35303 - STRAINER SUB-ASSY, OIL
35303-30050	RZN140,150..4HC	01/1995 - 09/2000	1
35339 - GASKET, OIL STRAINER
35339-28010	RZN140,150..4HC	01/1995 - 09/2000	1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-28010	RZN140,150..4HC	01/1995 - 09/2000	1
35418 - VALVE, MANUAL
35418-30050	RZN140,150..4HC	01/1995 - 09/2000	1
35419 - VALVE, CHECK, NO.1
35419-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35419A - SPRING, COMPRESSION (FOR CHECK VALVE)
90501-16083	RZN140,150..4HC	01/1995 - 09/2000	1
35420D - BALL (FOR LOWER VALVE BODY)
35496-22030	RZN140,150..4HC OD=6.35,RUBBER	01/1995 - 09/2000	1
35420E - SPRING (FOR LOWER VALVE BODY)
90501-04727	RZN140,150..4HC	01/1995 - 09/2000	1
35421 - PISTON, ACCUMULATOR, NO.1
35421-26010	RZN140,150..4HC	01/1995 - 09/2000	1
35421D - RING (FOR ACCUMULATOR PISTON NO.1)
90301-29187	RZN140,150..4HC	01/1995 - 08/1998	1
90301-29011	RZN140,150..4HC	08/1998 - 09/2000	1
35421E - RING (FOR ACCUMULATOR PISTON NO.1)
90301-23194	RZN140,150..4HC	01/1995 - 08/1998	1
90301-23010	RZN140,150..4HC	08/1998 - 09/2000	1
35421F - PISTON, ACCUMULATOR, NO.2
35441-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35421H - RING (FOR ACCUMULATOR PISTON NO.2)
90301-26012	RZN140,150..4HC	08/1998 - 09/2000	1
90301-26190	RZN140,150..4HC	01/1995 - 08/1998	1
35421J - RING (FOR ACCUMULATOR PISTON NO.2)
90301-18010	RZN140,150..4HC	08/1998 - 09/2000	1
90301-18186	RZN140,150..4HC	01/1995 - 08/1998	1
35421P - PISTON, ACCUMULATOR, NO.3
35424-26010	RZN140,150..4HC	01/1995 - 09/2000	1
35421R - RING (FOR ACCUMULATOR PISTON NO.3)
90301-26190	RZN140,150..4HC	01/1995 - 08/1998	1
90301-26012	RZN140,150..4HC	08/1998 - 09/2000	1
35421S - RING (FOR ACCUMULATOR PISTON NO.3)
90301-22185	RZN140,150..4HC	01/1995 - 08/1998	1
90301-21012	RZN140,150..4HC	08/1998 - 09/2000	1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-25033	RZN140,150..4HC	01/1995 - 09/2000	1
35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-19017	RZN140,150..4HC	01/1995 - 09/2000	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-27010	RZN140,150..4HC	01/1995 - 09/2000	1
35432 - PLATE, VALVE BODY, NO.1
35432-35170	RZN140,150..4HC	01/1995 - 09/2000	1
35433 - GASKET, VALVE BODY, NO.1
35433-30052	RZN140,150..4HC	01/1995 - 09/2000	1
35434 - GASKET, VALVE BODY, NO.2
35434-30052	RZN140,150..4HC	01/1995 - 09/2000	1
35474 - COVER, VALVE BODY, NO.4
35474-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35487B - BALL, CHECK, NO.4
35487-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35487C - SPRING, COMPRESSION (FOR CHECK BALL)
90504-05006	RZN140,150..4HC	01/1995 - 09/2000	1
35599 - COVER, MANUAL DETENT SPRING
35599-28010	RZN140,150..4HC	01/1995 - 09/2000	1
35892 - TUBE, OVERDRIVE BRAKE
35892-30020	RZN140,150..4HC	01/1995 - 10/1996	1
35892-30020	RZN140,150..4HC	06/1997 - 09/2000	1
35892-28010	RZN140,150..4HC	10/1996 - 06/1997	1
35895 - TUBE, FRONT CLUTCH APPLY
35895-30021	RZN140,150..4HC	01/1995 - 09/2000	1
Common parts
90105-05005
90105-05009
90105-05013

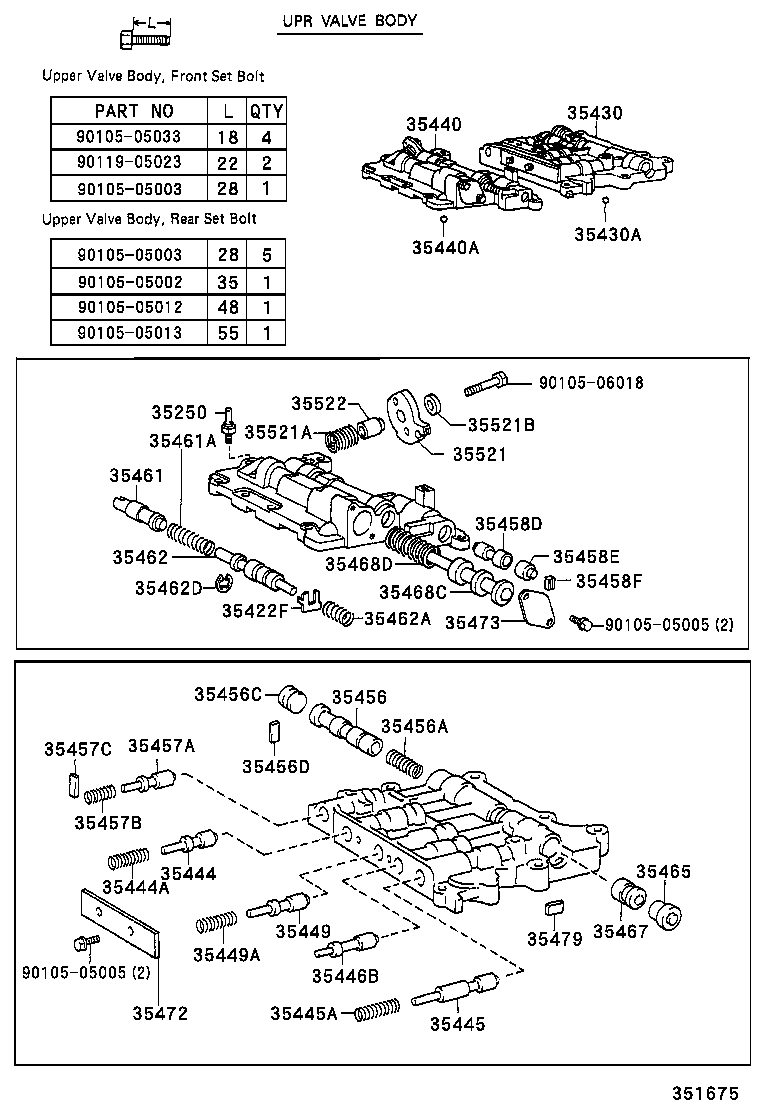

ILLUST NO. 2 OF 3(9501-0009)RZN140,150..4HC

Click highlighted areas on diagram

A43D

Part #	Description	Period	Qty
35250 - BODY ASSY, CHECK BALL
35250-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35422F - STOPPER, VALVE VIBRATING
35422-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35430 - BODY ASSY, REAR UPPER VALVE
35430-28041	RZN140,150..4HC	01/1995 - 09/2000	1
35430A - BALL (FOR REAR UPPER VALVE BODY)
90360-06023	RZN140,150..4HC 0D=5.56	01/1995 - 09/2000	1
35440 - BODY ASSY, FRONT UPPER VALVE
35440-22170	RZN140,150..4HC	01/1995 - 09/2000	1
35440A - BALL (FOR FRONT UPPER VALVE BODY)
35495-22020	RZN140,150..4HC OD=5.535,RUBBER	01/1995 - 09/2000	5
35444 - VALVE, INTERMEDIATE MODULATOR
35444-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
90501-11009	RZN140,150..4HC	01/1995 - 09/2000	1
35445 - VALVE, LOW MODULATOR
35445-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
90501-08725	RZN140,150..4HC	01/1995 - 09/2000	1
35446B - PLUG, GOVERNOR MODULATOR VALVE
35446-20010	RZN140,150..4HC	01/1995 - 09/2000	1
35449 - VALVE, SEQUENCE
35447-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE)
90501-12055	RZN140,150..4HC	01/1995 - 09/2000	1
35456 - VALVE, 2-3 SHIFT
35456-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
90501-08724	RZN140,150..4HC	01/1995 - 09/2000	1
35456C - PLUG (FOR 2-3 SHIFT VALVE)
35452-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35456D - SEAT (FOR 2-3 SHIFT VALVE)
35493-22020	RZN140,150..4HC	01/1995 - 09/2000	1
35457A - VALVE, DETENT REGULATOR
35457-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
90501-09022	RZN140,150..4HC	01/1995 - 09/2000	1
35457C - SEAT (FOR DETENT REGULATOR VALVE)
35438-22020	RZN140,150..4HC	01/1995 - 09/2000	1
35458D - VALVE, CUT BACK
35458-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35458E - PLUG (FOR CUT BACK VALVE)
35459-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35458F - SEAT (FOR CUT BACK VALVE)
35493-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35461 - PLUG, DOWN SHIFT
35408-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
90501-12077	RZN140,150..4HC	01/1995 - 09/2000	1
35462 - VALVE, THROTTLE
35462-22011	RZN140,150..4HC	01/1995 - 09/2000	1
35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE)
90501-07680	RZN140,150..4HC L=19.24	01/1995 - 09/2000	1
35462D - RING, E (FOR THROTTLE VALVE)
90523-06023	RZN140,150,VZN150..4HC	08/1999 - 09/2000	1
90523-06023	RZN140,150,VZN150,195..ATM	01/1995 - 08/1999	1
35465 - PLUG, INTERMEDIATE SHIFT VALVE
35465-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35467 - VALVE, INTERMEDIATE SHIFT
35467-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35468C - VALVE, SECONDARY REGULATOR
35468-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
90501-19001	RZN140,150..4HC	01/1995 - 09/2000	1
35472 - COVER, VALVE BODY, NO.2
35472-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35473 - COVER, TRANSMISSION VALVE BODY
35473-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35479 - SEAT, INTERMEDIATE SHIFT VALVE
35479-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35521 - CAM, THROTTLE VALVE
35521-24010	RZN140,150..4HC	01/1995 - 09/2000	1
35521A - SPRING (FOR THROTTLE VALVE CAM RETURN)
90508-12331	RZN140,150..4HC	01/1995 - 09/2000	1
35521B - WASHER (FOR THROTTLE VALVE CAM SET)
90201-06472	RZN140,150,19#,VZN150,195..ATM	08/1999 - 09/2000	1
90201-06472	RZN140,150,VZN150,195..ATM	01/1995 - 08/1999	1
35522 - PIN, THROTTLE VALVE CAM
35522-22010	RZN140,150,VZN150,195..ATM	01/1995 - 08/1999	1
35522-22010	RZN140,150..4HC	08/1999 - 09/2000	1
Common parts
90105-05002
90105-05003
90105-05005
90105-05012
90105-05013
90105-05033
90105-06018
90119-05023

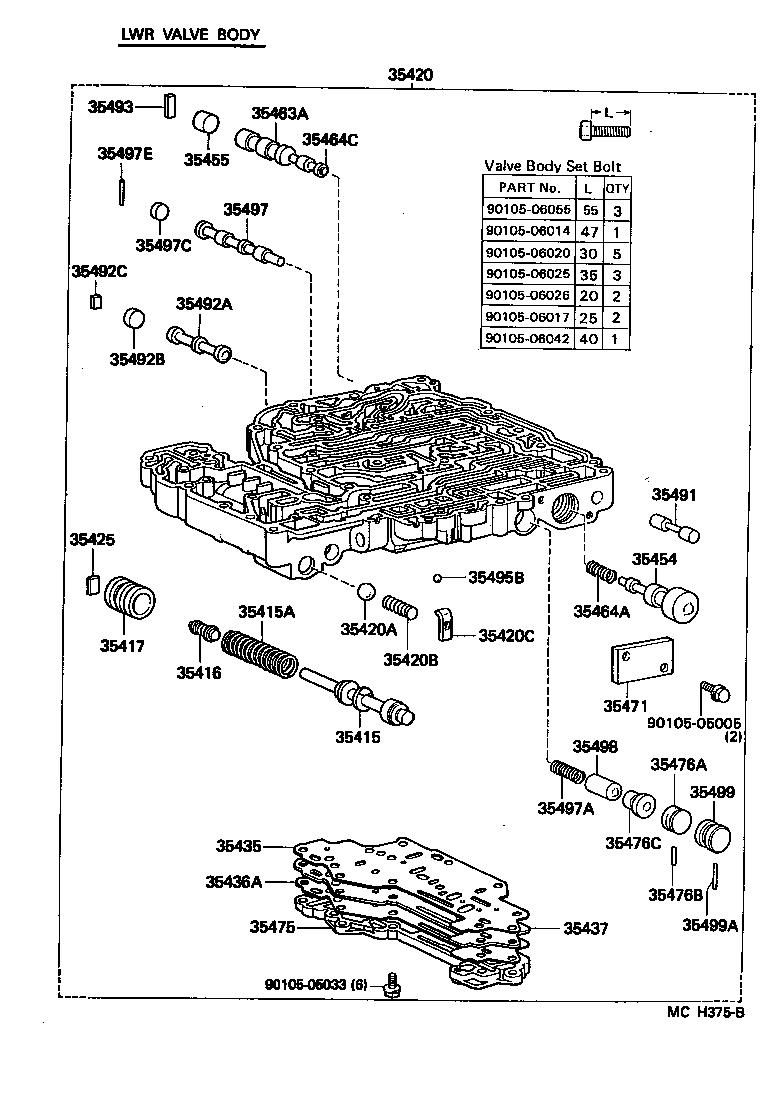

ILLUST NO. 3 OF 3(9501-0009)RZN140,150..4HC

Click highlighted areas on diagram

A43D

Part #	Description	Period	Qty
35415 - VALVE, PRESSURE REGULATOR
35415-22021	RZN140,150..4HC	01/1995 - 09/2000	1
35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
90501-17020	RZN140,150..4HC	01/1995 - 09/2000	1
35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35416-30020	RZN140,150..4HC	01/1995 - 09/2000	1
35417 - SLEEVE, PRESSURE REGULATOR VALVE
35417-30030	RZN140,150..4HC	01/1995 - 09/2000	1
35420 - BODY ASSY, LOWER VALVE
35420-35070	RZN140,150..4HC	01/1995 - 09/2000	1
35420A - BALL (FOR PRESSURE RELIEF)
90360-13024	RZN140,150..4HC	01/1995 - 09/2000	1
35420B - SPRING (FOR PRESSURE RELIEF)
90501-18677	RZN140,150..4HC	01/1995 - 09/2000	1
35420C - SEAT (FOR PRESSURE RELIEF)
35427-22011	RZN140,150..4HC	01/1995 - 09/2000	1
35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE
35425-14010	RZN140,150..4HC	01/1995 - 09/2000	1
35435 - GASKET, VALVE BODY PLATE, NO.3
35435-30030	RZN140,150..4HC	01/1995 - 09/2000	1
35436A - GASKET, VALVE BODY PLATE, NO.4
35436-30040	RZN140,150..4HC	01/1995 - 09/2000	1
35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR
35437-30020	RZN140,150..4HC	01/1995 - 09/2000	1
35454 - VALVE, LOW COAST SHIFT
35454-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35455 - PLUG, 1-2 SHIFT VALVE LOW
35455-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35463A - VALVE, 1-2 SHIFT, LOWER
35463-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
90501-06684	RZN140,150..4HC	01/1995 - 09/2000	1
35464C - VALVE, 1-2 SHIFT, UPPER
35464-22020	RZN140,150..4HC	01/1995 - 09/2000	1
35471 - COVER, VALVE BODY, NO.1
35471-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35475 - COVER, VALVE BODY, NO.5
35475-30020	RZN140,150..4HC	01/1995 - 09/2000	1
35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT)
90334-12001	RZN140,150..4HC	01/1995 - 09/2000	1
35476B - PIN, LOCATING (FOR 3RD COAST SHIFT)
90250-02012	RZN140,150..4HC	01/1995 - 09/2000	1
35476C - VALVE, 3RD COAST
35476-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35491 - PLUG, REVERSE BRAKE
35491-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35492A - VALVE, MANUAL DOWN TIMING
35492-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35492B - PLUG (FOR MANUAL DOWN TIMING VALVE)
35494-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE)
35493-30040	RZN140,150..4HC	01/1995 - 09/2000	1
35493 - SEAT, SHIFT VALVE SPRING
35493-22010	RZN140,150..4HC	01/1995 - 09/2000	1
35495B - BALL, CHECK, NO.1
35495-22020	RZN140,150..4HC	01/1995 - 09/2000	4
35497 - VALVE, 3-4 SHIFT
35497-30020	RZN140,150..4HC	01/1995 - 09/2000	1
35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
90501-11006	RZN140,150..4HC	01/1995 - 09/2000	1
35497C - PLUG (FOR 3-4 SHIFT VALVE)
90334-13001	RZN140,150..4HC	01/1995 - 09/2000	1
35497E - ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE)
90361-02051	RZN140,150..4HC	01/1995 - 09/2000	1
35498 - VALVE, 3-4 COAST SHIFT
35498-30010	RZN140,150..4HC	01/1995 - 09/2000	1
35499 - PLUG, 3-4 SHIFT VALVE
35499-30030	RZN140,150..4HC	01/1995 - 09/2000	1
35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE)
90250-02012	RZN140,150..4HC	01/1995 - 09/2000	1
Common parts
90105-05005
90105-05033
90105-06014
90105-06017
90105-06020
90105-06025
90105-06026
90105-06042
90105-06055

RZN140L-TRSDKAB (1995)

ILLUST NO. 1 OF 3(9501- )RZN140,150..ATM

ILLUST NO. 2 OF 3(9501-0009)RZN140,150..4HC

ILLUST NO. 3 OF 3(9501-0009)RZN140,150..4HC

Part Price Details
