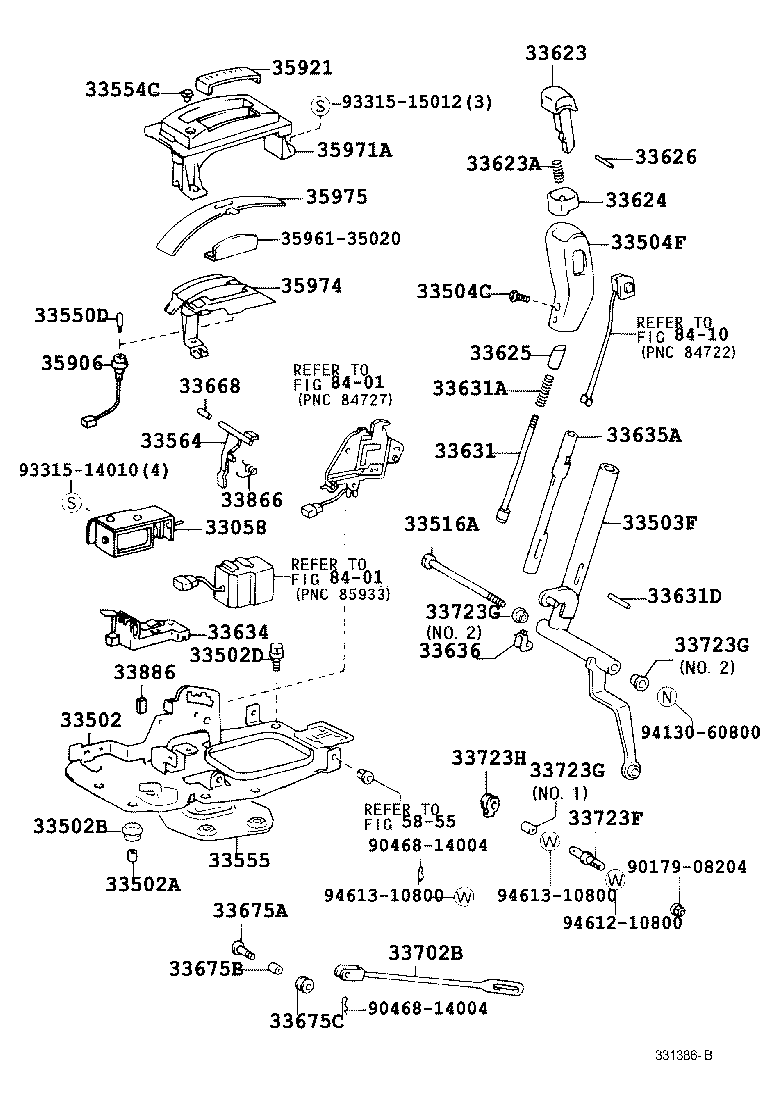

RZN140L-TRPDKAB (2000)
Toyota Tacoma
(0009- )RZN140,150..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-35070 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-35470 |
RZN140,150..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
RZN140,150,19#,VZN195..4FC OD=8.8 |
8 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
RZN140,150..4FC |
4 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90119-06144 |
RZN140,150,19#,VZN195..4FC (J) |
8 | ||
| 90080-11158 |
RZN140,150,19#,VZN195..4FC (L) |
8 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-35220 |
RZN140,150..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
RZN140,150,19#,VZN195..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-35140B2 |
RZN140,150,19#,VZN195..4FC DK.CHARCOAL,TRIM1# |
1 | ||
| 33542-35140E0 |
RZN140,150,19#,VZN195..4FC OAK,TRIM4# |
1 | ||
| 33516A - SHAFT, CONTROL, NO.3 | ||||
| 33516-35010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
RZN140,150,19#,VZN195..4FC 12V 1.2W W/O SOCKET |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-35050 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-35220 |
RZN140,150..4FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-35100 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-35041E0 |
RZN140,150,19#,VZN195..4FC OAK,TRIM4# |
1 | ||
| 33623-35041B2 |
RZN140,150,19#,VZN195..4FC DK.CHARCOAL,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06074 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33624 - HOLDER, KNOB COVER | ||||
| 33624-35010E0 |
RZN140,150,19#,VZN195..4FC OAK,TRIM4# |
1 | ||
| 33624-35010B2 |
RZN140,150,19#,VZN195..4FC DK.CHARCOAL,TRIM1# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-35050 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 90256-02002 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-35050 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33634 - PROTECTOR, WIRE | ||||
| 33634-35040 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-35050 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33668 - PIN, CONTROL LEVER LOCK | ||||
| 33668-35010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-35300 |
RZN140,150..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
RZN140,150..4FC NO.1 |
1 | ||
| 90386-11019 |
RZN140,150..4FC NO.2 |
2 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
RZN140,150..4FC NO.1 |
1 | ||
| 90386-11019 |
RZN140,150..4FC NO.2 |
2 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
RZN140,150..4FC NO.1 |
1 | ||
| 90386-11019 |
RZN140,150..4FC NO.2 |
2 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-35010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35100 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-35210 |
RZN140,150..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-35130 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-35130 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-35121 |
RZN140,150,19#,VZN195..4FC |
1 | ||
| Common parts | ||||
| 35961-35020 | ||||
| 90179-08204 | ||||
| 90468-14004 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 8401 | ||||
| 8410 | ||||
