RZN140L-TRMDKAB (1995)
Toyota Tacoma
ILLUST NO. 1 OF 2(9501- )RZN140,150,VZN150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-04030 |
RZN140,150,VZN150 |
1 | ||
| 04483-04050 |
RZN140,150,VZN150 |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-04030 |
RZN140,150,VZN150 |
1 | ||
| 04483-04050 |
RZN140,150,VZN150 |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35220 |
RZN140,150,VZN150 |
1 | ||
| 48046-35220 |
RZN140,150,VZN150 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14039 |
RZN140,150,VZN150 L=139 |
4 | ||
| 90117-14039 |
RZN140,150,VZN150 L=139 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35220 |
RZN140,150,VZN150 |
1 | ||
| 48046-35220 |
RZN140,150,VZN150 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90080-38024 |
RZN140,150,19#,VZN150,195 |
4 | ||
| 90385-18017 |
RZN140,150,VZN150 |
4 | ||
| 90080-38024 |
RZN140,150,19#,VZN150,195 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90080-38024 |
RZN140,150,19#,VZN150,195 |
4 | ||
| 90385-18017 |
RZN140,150,VZN150 |
4 | ||
| 90080-38024 |
RZN140,150,19#,VZN150,195 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18016 |
RZN140,150,VZN150 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18016 |
RZN140,150,VZN150 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-04050 |
RZN140,150,VZN150 |
2 | ||
| 48341-04020 |
RZN140,150,VZN150 |
2 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48405-35030 |
RZN140,150,VZN150 |
1 | ||
| 48405-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48405-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48404-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48404-35030 |
RZN140,150,VZN150 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48405-35030 |
RZN140,150,VZN150 |
1 | ||
| 48406-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48406-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-35030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48407-35030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 48407-35020 |
RZN140,150,VZN150 |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35060 |
RZN140,150,VZN150 |
1 | ||
| 48505-35060 |
RZN140,150,VZN150 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35050 |
RZN140,150,VZN150 |
1 | ||
| 48506-35050 |
RZN140,150,VZN150 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-09031 |
RZN140,150,VZN150 MARK 48531-04031 |
1 | ||
| 48531-09090 |
RZN140,150,VZN150 MARK 48531-04090 |
1 | ||
| 48531-80694 |
RZN140 MARK 48531-3D040 |
1 | ||
| 48531-09030 |
RZN140,150,VZN150 MARK 48531-04030 |
1 | ||
| 48531-09032 |
RZN140,150,VZN150 MARK 48531-04031 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 90385-16012 |
RZN140,150,VZN150 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
RZN140,150,VZN150 |
4 | ||
| 90948-03004 |
RZN140,150,VZN150 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
RZN140,150,VZN150 |
4 | ||
| 90948-03004 |
RZN140,150,VZN150 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
RZN140,150,VZN150 |
4 | ||
| 90948-03012 |
RZN140,150,VZN150 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
RZN140,150,VZN150 |
4 | ||
| 90948-03012 |
RZN140,150,VZN150 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-09090 |
RZN140,150,VZN150 MARK 48531-04090 |
1 | ||
| 48531-09030 |
RZN140,150,VZN150 MARK 48531-04030 |
1 | ||
| 48531-09032 |
RZN140,150,VZN150 MARK 48531-04031 |
1 | ||
| 48531-09031 |
RZN140,150,VZN150 MARK 48531-04031 |
1 | ||
| 48531-80694 |
RZN140 MARK 48531-3D040 |
1 | ||
| Common parts | ||||
| 90080-11180 | ||||
| 90105-14025 | ||||
| 90119-08686 | ||||
| 90179-14019 | ||||
| 90179-14039 | ||||
| 90201-14005 | ||||
| 90201-15012 | ||||
| 91611-61025 | ||||
| 91622-G1014 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

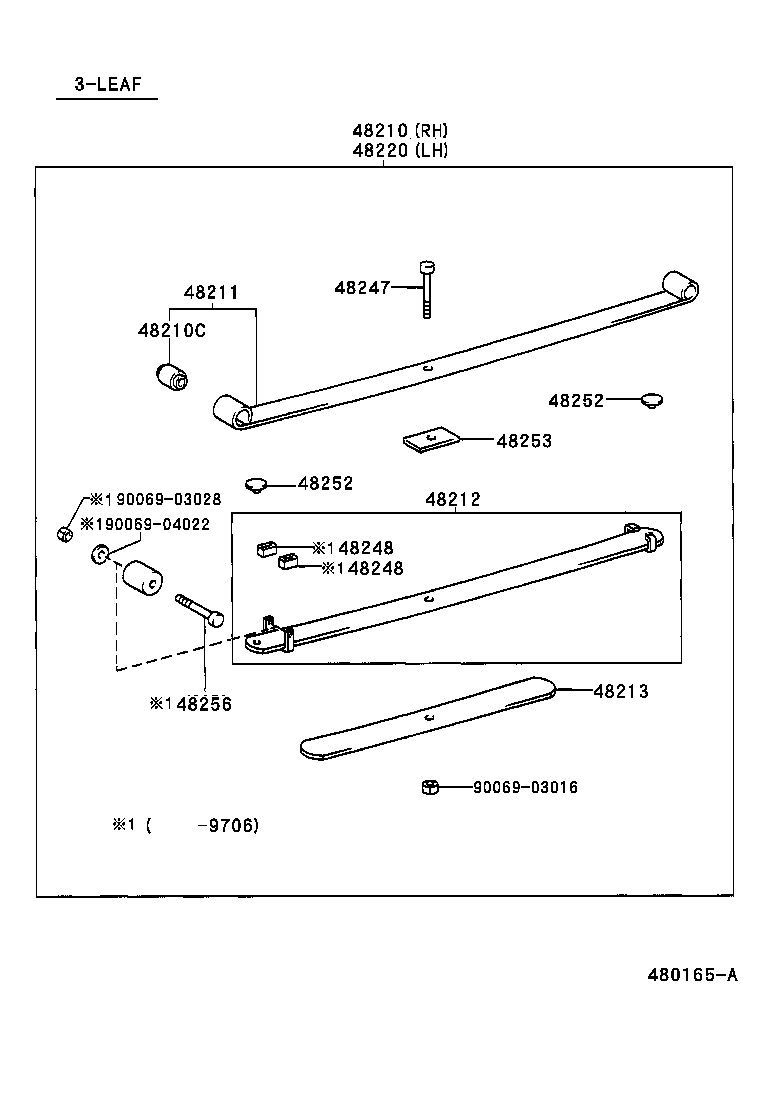

ILLUST NO. 2 OF 2(9501- )RZN140
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-04032 |
RZN140 2-LEAF |
1 | ||
| 48210-04031 |
RZN140 2-LEAF |
1 | ||
| 48210-04120 |
RZN140,150,VZN150 3-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48210-04090 |
RZN140 3-LEAF |
1 | ||
| 48210-04210 |
RZN140 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14037 |
RZN140,150,VZN150 |
2 | ||
| 90389-14051 |
RZN140,150,19#,VZN150,195 REAR |
4 | ||
| 90389-14058 |
RZN140,150,19#,VZN150,195 FRONT |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-04031 |
RZN140 DRIVER SIDE |
1 | ||
| 48031-04040 |
RZN140 DRIVER SIDE |
1 | ||
| 48201-04061 |
RZN140 PASSENGER SIDE |
1 | ||
| 48201-04090 |
RZN140 PASSENGER SIDE |
1 | ||
| 48201-04030 |
RZN140 DRIVER SIDE |
1 | ||
| 48201-04060 |
RZN140 PASSENGER SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-04030 |
RZN140 DRIVER SIDE |
1 | ||
| 48202-04090 |
RZN140 PASSENGER SIDE |
1 | ||
| 48032-04040 |
RZN140 DRIVER SIDE |
1 | ||
| 48202-04031 |
RZN140 DRIVER SIDE |
1 | ||
| 48202-04061 |
RZN140 PASSENGER SIDE |
1 | ||
| 48202-04060 |
RZN140 PASSENGER SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-04021 |
RZN140 DRIVER SIDE |
1 | ||
| 48213-04020 |
RZN140 DRIVER SIDE |
1 | ||
| 48213-04050 |
RZN140 PASSENGER SIDE |
1 | ||
| 48213-04051 |
RZN140 PASSENGER SIDE |
1 | ||
| 48277-04040 |
RZN140 DRIVER SIDE |
1 | ||
| 48213-04090 |
RZN140 PASSENGER SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-04120 |
RZN140,150,VZN150 3-LEAF,HEAVY DUTY SUSPENSION |
1 | ||
| 48220-04010 |
RZN140 3-LEAF |
1 | ||
| 48220-04040 |
RZN140 3-LEAF |
1 | ||
| 48220-04011 |
RZN140 3-LEAF |
1 | ||
| 48220-04100 |
RZN140 3-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-04030 |
RZN140 |
1 | ||
| 48247-04090 |
RZN140,150,VZN150 |
2 | ||
| 48248 - SPACER, REAR SPRING CLIP | ||||
| 48248-04010 |
RZN140 |
1 | ||
| 48248 - SPACER, REAR SPRING CLIP | ||||
| 48248-04010 |
RZN140 |
1 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-04030 |
RZN140 |
2 | ||
| 48252-04030 |
RZN140,150,VZN150 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-04030 |
RZN140 |
2 | ||
| 48252-04030 |
RZN140,150,VZN150 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-04020 |
RZN140 |
1 | ||
| 48253-04020 |
RZN140 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-04020 |
RZN140 |
1 | ||
| Common parts | ||||
| 90069-03016 | ||||
| 90069-03028 | ||||
| 90069-04022 | ||||
