Toyota Tacoma GRN330 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
US
TACOMA
GRN330L-PRTLHA (2019)
6452 - ROOF HEADLINING & SILENCER PAD

GRN330L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999

Engine 2GRFKS

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1909- )DCB

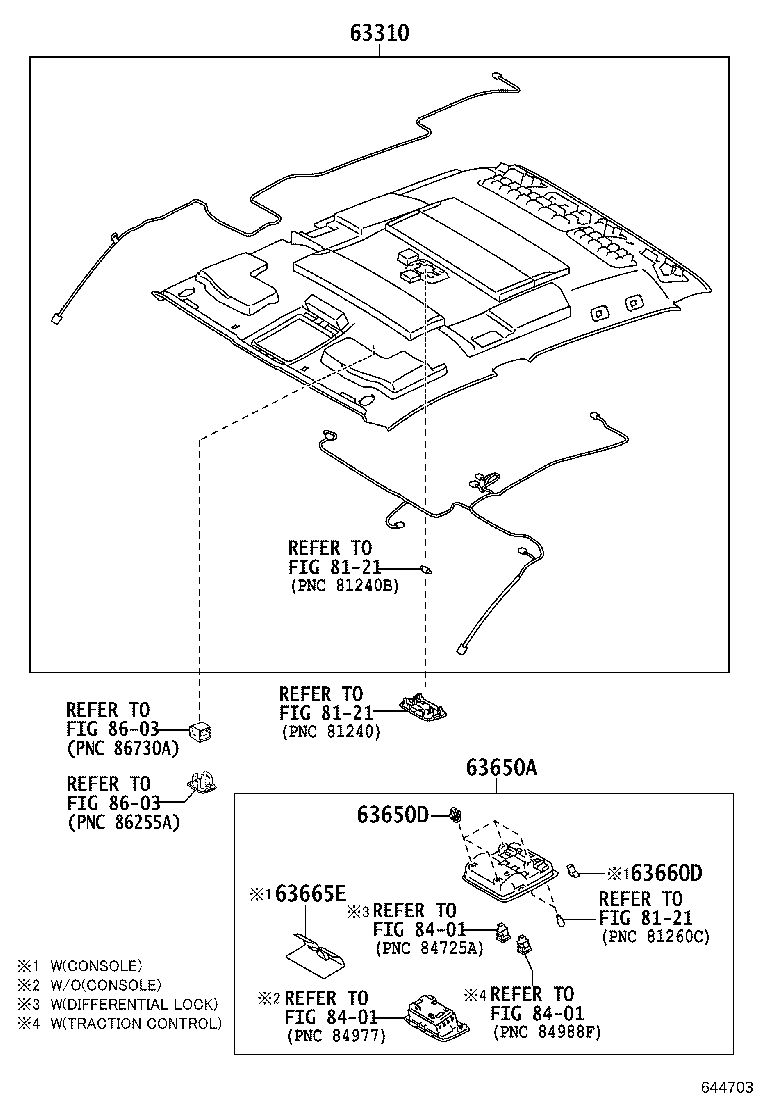

Click highlighted areas on diagram

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-04910C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04915C0	GRN305,310,325,330..LIMD GUAM SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04915C0	GRN305,310,325,330..LIMD SAIPAN SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04921C0	GRN305,310,325,330..LIMD CANADA SPEC,BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04934C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63310-04939C0	GRN305,310,325,330..LIMD SAIPAN SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63310-04939C0	GRN305,310,325,330..LIMD GUAM SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63310-04943C0	GRN305,310,325,330..LIMD CANADA SPEC,BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63650A - BOX ASSY, ROOF CONSOLE
63650-04140C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	09/2019 - 09/2021	1
63650-04250C0	GRN305,310,325,330..LIMD GUAM SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 12/2999	1
63650-04250C0	GRN305,310,325,330..LIMD SAIPAN SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 12/2999	1
63650D - CLIP(FOR ROOF CONSOLE BOX)
90467-09240	GRN305,310,325,330,TRN245,265	09/2019 - 12/2999	4
63660D - LOCK ASSY, ROOF CONSOLE
63660-06020	GRN305,310,325,330,TRN245,265	09/2019 - 12/2999	1
63665E - MAT, ROOF CONSOLE BOX
63665-04010	GRN305,310,325,330,TRN245,265	09/2019 - 12/2999	1
Linked diagrams
8121
8401
8603

(1909- )DCB

Click highlighted areas on diagram

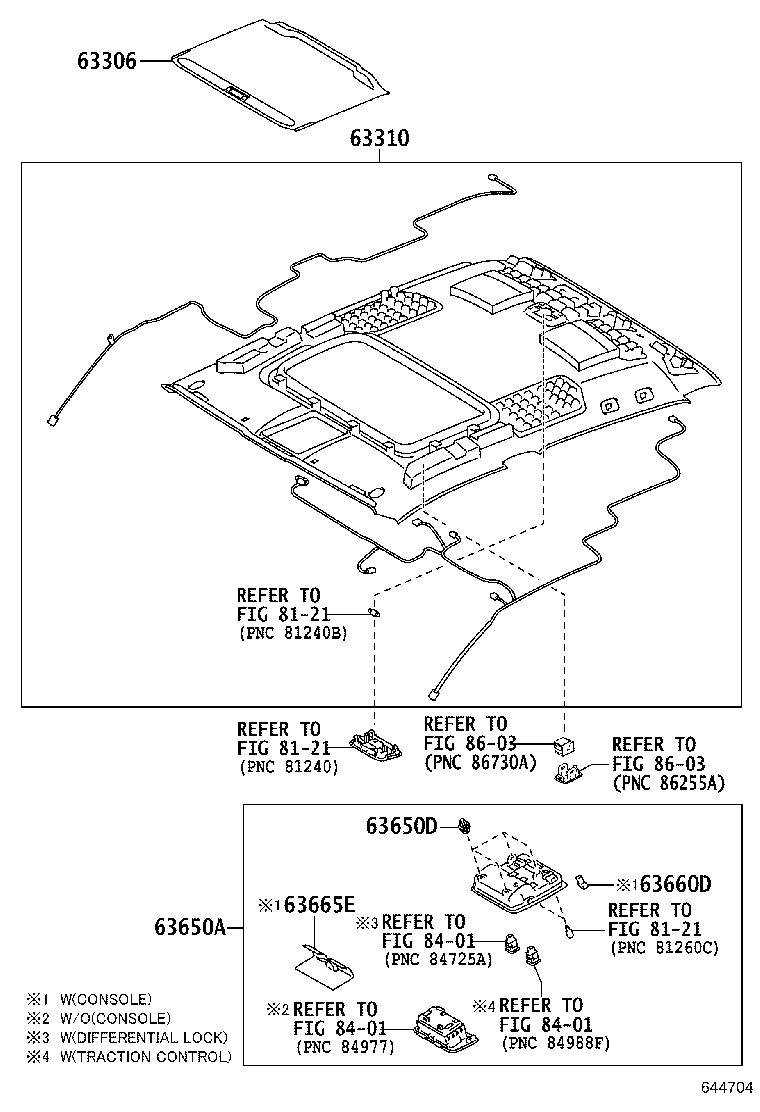

MOON ROOF

Part #	Description	Period	Qty
63306 - TRIM SUB-ASSY, SUNSHADE
63306-04010C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	09/2019 - 12/2999	1
63310 - HEADLINING ASSY, ROOF
63310-04910C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04915C0	GRN305,310,325,330..LIMD GUAM SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04915C0	GRN305,310,325,330..LIMD SAIPAN SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04921C0	GRN305,310,325,330..LIMD CANADA SPEC,BLACK,TRIM2#,4#	09/2019 - 02/2020	1
63310-04934C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63310-04939C0	GRN305,310,325,330..LIMD SAIPAN SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63310-04939C0	GRN305,310,325,330..LIMD GUAM SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63310-04943C0	GRN305,310,325,330..LIMD CANADA SPEC,BLACK,TRIM2#,4#	02/2020 - 12/2999	1
63650A - BOX ASSY, ROOF CONSOLE
63650-04140C0	GRN305,310,325,330..LIMD BLACK,TRIM2#,4#	09/2019 - 09/2021	1
63650-04250C0	GRN305,310,325,330..LIMD GUAM SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 12/2999	1
63650-04250C0	GRN305,310,325,330..LIMD SAIPAN SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,4#	09/2019 - 12/2999	1
63650D - CLIP(FOR ROOF CONSOLE BOX)
90467-09240	GRN305,310,325,330,TRN245,265	09/2019 - 12/2999	4
63660D - LOCK ASSY, ROOF CONSOLE
63660-06020	GRN305,310,325,330,TRN245,265	09/2019 - 12/2999	1
63665E - MAT, ROOF CONSOLE BOX
63665-04010	GRN305,310,325,330,TRN245,265	09/2019 - 12/2999	1
Linked diagrams
8121
8401
8603

GRN330L-PRTLHA (2019)

(1909- )DCB

(1909- )DCB
