GRN330L-PRTLHA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )DCB

Click highlighted areas on diagram

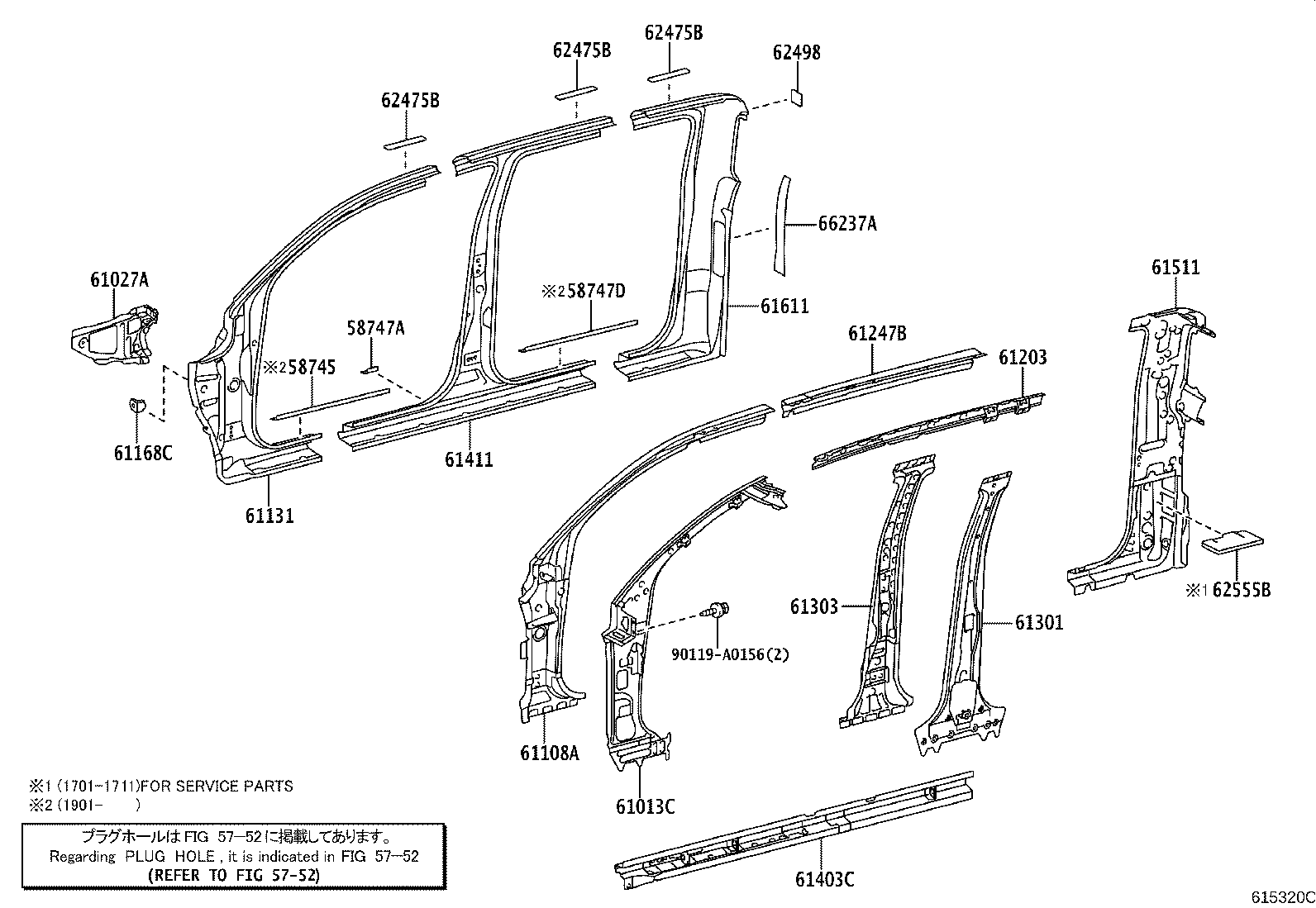

RH SIDE

diagram 5752 58745 58747A 58747D 61013C 61027A 61108A 61131 61168C 61203 61247B 61301 61303 61403C 61411 61511 61611 62475B 62475B 62475B 62498 62555B 66237A 90119A0156
Part # Description Qty Price
58747A - PROTECTOR, QUARTER PANEL, REAR RH
58748-04020

GRN305,310,325,330,TRN245,265

 1
61013C - PANEL SUB-ASSY, SIDE, INNER RH
61013-04030

GRN305,310,325,330,TRN245,265

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-04040

GRN305,310,325,330,TRN245,265

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-04030

GRN305,310,325,330,TRN245,265

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-04070

GRN305,310,325,330,TRN265..DCB

 1
61131-04071

GRN305,310,325,330,TRN265..DCB

 1
61168C - BRACKET, NO.6 PILLAR OUTER
61168-06010

GRN305,310,325,330,TRN245,265

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-04900

GRN305,310,325,330,TRN265..DCB

 1
61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH
61247-04050

GRN305,310,325,330,TRN265..DCB

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61330-04900

GRN305,310,325,330,TRN265..DCB

 1
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-04020

GRN305,310,325,330,TRN265..DCB

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61401-04900

GRN305,310,325,330,TRN265..DCB

 1
61411 - PANEL, ROCKER, OUTER RH
61411-04070

GRN305,310,325,330,TRN265..DCB

 1
61411-04071

GRN305,310,325,330,TRN265..DCB

 1
61511 - PILLAR, QUARTER LOCK, RH
61501-04906

GRN305,310,325,330,TRN265..DCB

 1
61501-04907

GRN305,310,325,330,TRN265..DCB

 1
61501-04909

GRN305,310,325,330,TRN265..DCB

 1
61611 - PANEL, QUARTER, RH
61611-04070

GRN305,310,325,330,TRN265..DCB

 1
61611-04071

GRN305,310,325,330,TRN265..DCB

 1
62475B - SEAL, ROOF SIDE, INNER
62475-04020

GRN305,310,325,330,TRN265..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04020

GRN305,310,325,330,TRN265..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04020

GRN305,310,325,330,TRN265..DCB

 6
62498 - SEAL, ROOF SIDE, INNER REAR
62498-04020

GRN305,310,325,330,TRN245,265

 2
62555B - PAD, PILLAR, NO.5
62555-04070

GRN305,310,325,330,TRN265..DCB

 1
66237A - PROTECTOR, QUARTER PANEL OUTER, RH
58743-04020

GRN305,310,325,330,TRN265..DCB

 1
Common parts
90119-A0156
Linked diagrams
5752

(1508- )DCB

Click highlighted areas on diagram

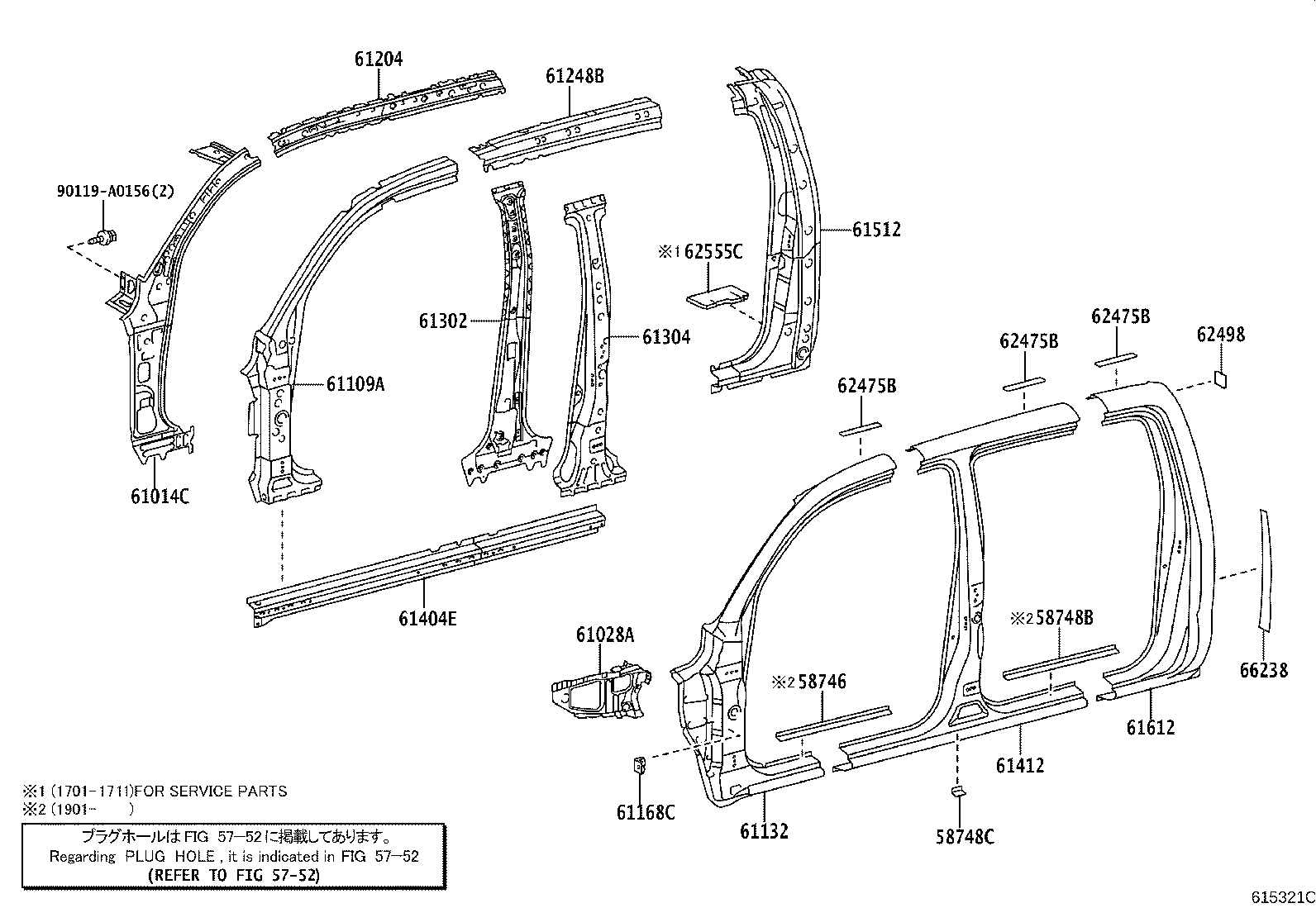

LH SIDE

diagram 5752 58746 58748B 58748C 61014C 61028A 61109A 61132 61168C 61204 61248B 61302 61304 61404E 61412 61512 61612 62475B 62475B 62475B 62498 62555C 66238 90119A0156
Part # Description Qty Price
58748C - PROTECTOR, QUARTER PANEL, REAR LH
58748-04020

GRN305,310,325,330,TRN245,265

 1
61014C - PANEL SUB-ASSY, SIDE, INNER LH
61014-04030

GRN305,310,325,330,TRN245,265

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-04040

GRN305,310,325,330,TRN245,265

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-04030

GRN305,310,325,330,TRN245,265

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-04071

GRN305,310,325,330,TRN265..DCB

 1
61132-04070

GRN305,310,325,330,TRN265..DCB

 1
61168C - BRACKET, NO.6 PILLAR OUTER
61168-06010

GRN305,310,325,330,TRN245,265

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-04900

GRN305,310,325,330,TRN265..DCB

 1
61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH
61248-04050

GRN305,310,325,330,TRN265..DCB

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61340-04900

GRN305,310,325,330,TRN265..DCB

 1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-04020

GRN305,310,325,330,TRN265..DCB

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61402-04900

GRN305,310,325,330,TRN265..DCB

 1
61412 - PANEL, ROCKER, OUTER LH
61412-04070

GRN305,310,325,330,TRN265..DCB

 1
61412-04071

GRN305,310,325,330,TRN265..DCB

 1
61512 - PILLAR, QUARTER LOCK, LH
61502-04906

GRN305,310,325,330,TRN265..DCB

 1
61502-04908

GRN305,310,325,330,TRN265..DCB

 1
61612 - PANEL, QUARTER, LH
61612-04071

GRN305,310,325,330,TRN265..DCB

 1
61612-04070

GRN305,310,325,330,TRN265..DCB

 1
62475B - SEAL, ROOF SIDE, INNER
62475-04020

GRN305,310,325,330,TRN265..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04020

GRN305,310,325,330,TRN265..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04020

GRN305,310,325,330,TRN265..DCB

 6
62498 - SEAL, ROOF SIDE, INNER REAR
62498-04020

GRN305,310,325,330,TRN245,265

 2
62555C - PAD, PILLAR, NO.5
62555-04070

GRN305,310,325,330,TRN265..DCB

 1
66238 - PROTECTOR, QUARTER PANEL OUTER, LH
58744-04020

GRN305,310,325,330,TRN265..DCB

 1
Common parts
90119-A0156
Linked diagrams
5752
