GRN325L-PRTSHA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )

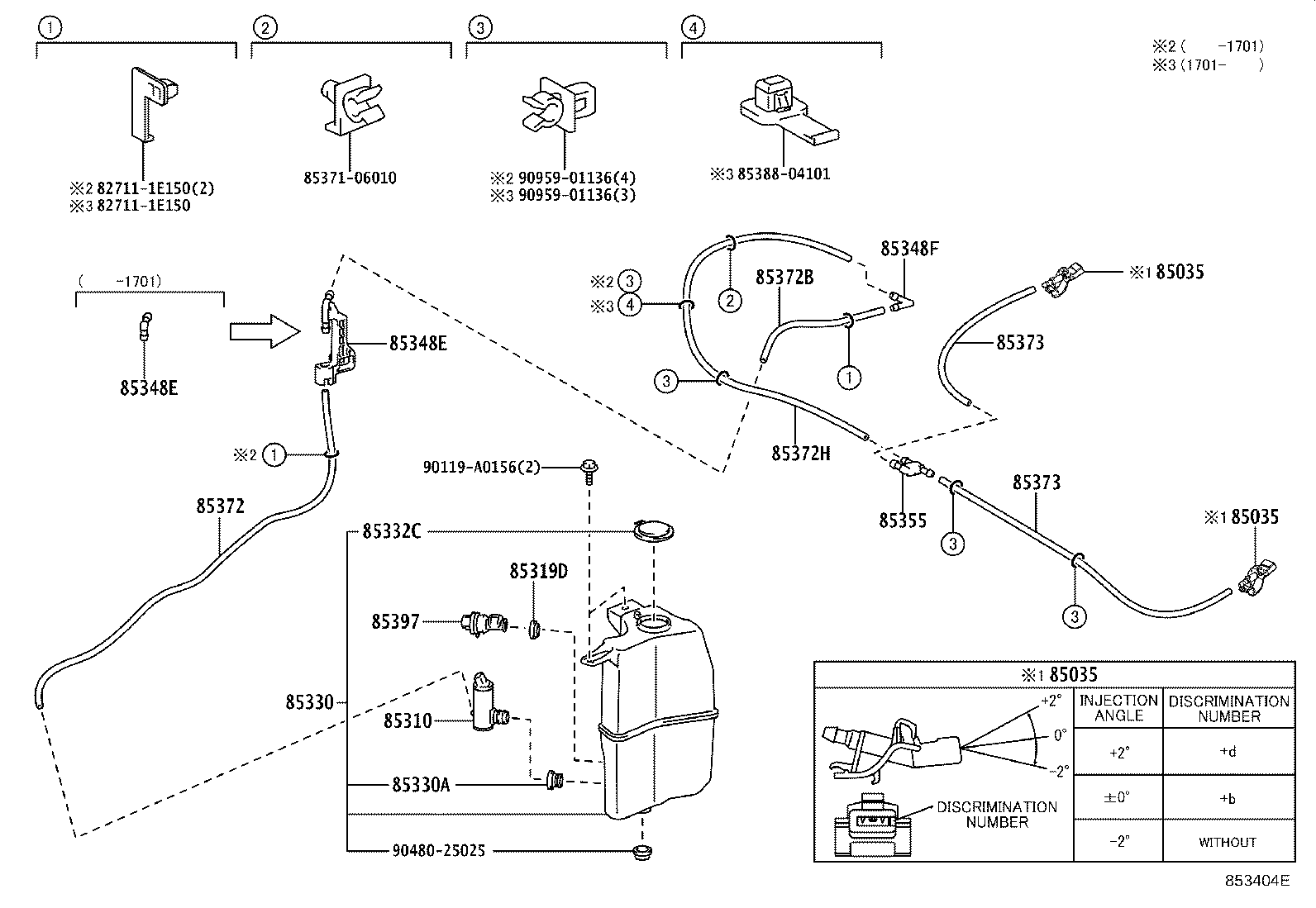

Click highlighted areas on diagram

diagram 827111E150 827111E150 85035 85035 85035 85310 85319D 85330 85330A 85332C 85348E 85348E 85348F 85355 8537106010 85372 85372B 85372H 85373 85373 8538804101 85397 90119A0156 9048025025 9095901136 9095901136
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

GRN305,310,325,330,TRN245,265

ANGLE 0

 2
85381-30230

GRN305,310,325,330,TRN245,265

ANGLE -2

 2
85381-30240

GRN305,310,325,330,TRN245,265

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

GRN305,310,325,330,TRN245,265

ANGLE 0

 2
85381-30230

GRN305,310,325,330,TRN245,265

ANGLE -2

 2
85381-30240

GRN305,310,325,330,TRN245,265

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

GRN305,310,325,330,TRN245,265

ANGLE 0

 2
85381-30230

GRN305,310,325,330,TRN245,265

ANGLE -2

 2
85381-30240

GRN305,310,325,330,TRN245,265

ANGLE +2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-04011

GRN305,310,325,330,TRN245,265

 1
85330-04010

GRN305,310,325,330,TRN245,265

 1
85319D - PACKING, FRONT WASHER
85319-AA020

GRN305,310,325,330,TRN245,265

CANADA SPEC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-04110

GRN305,310,325,330,TRN245,265

CANADA SPEC

 1
85315-04100

GRN305,310,325,330,TRN245,265

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GRN305,310,325,330,TRN245,265

 1
85332C - CAP, FRONT WASHER TANK
85316-0C060

GRN305,310,325,330,TRN245,265

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85375-02260

GRN305,310,325,330,TRN245,265

 1
85387-04101

GRN305,310,325,330,TRN245,265

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85375-02260

GRN305,310,325,330,TRN245,265

 1
85387-04101

GRN305,310,325,330,TRN245,265

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-12360

GRN305,310,325,330,TRN245,265

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

GRN305,310,325,330,TRN245,265

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33273

GRN305,310,325,330,TRN245,265

L=870

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33023

GRN305,310,325,330,TRN245,265

L=260

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-33274

GRN305,310,325,330,TRN245,265

L=790

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33023

GRN305,310,325,330,TRN245,265

L=260,RH

 1
90068-33056

GRN305,310,325,330,TRN245,265

L=660,LH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33023

GRN305,310,325,330,TRN245,265

L=260,RH

 1
90068-33056

GRN305,310,325,330,TRN245,265

L=660,LH

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-AA040

GRN305,310,325,330,TRN245,265

CANADA SPEC

 1
Common parts
82711-1E150
85371-06010
85388-04101
90119-A0156
90480-25025
90959-01136
