GRN305L-PRTSHA (2019)
Toyota Tacoma

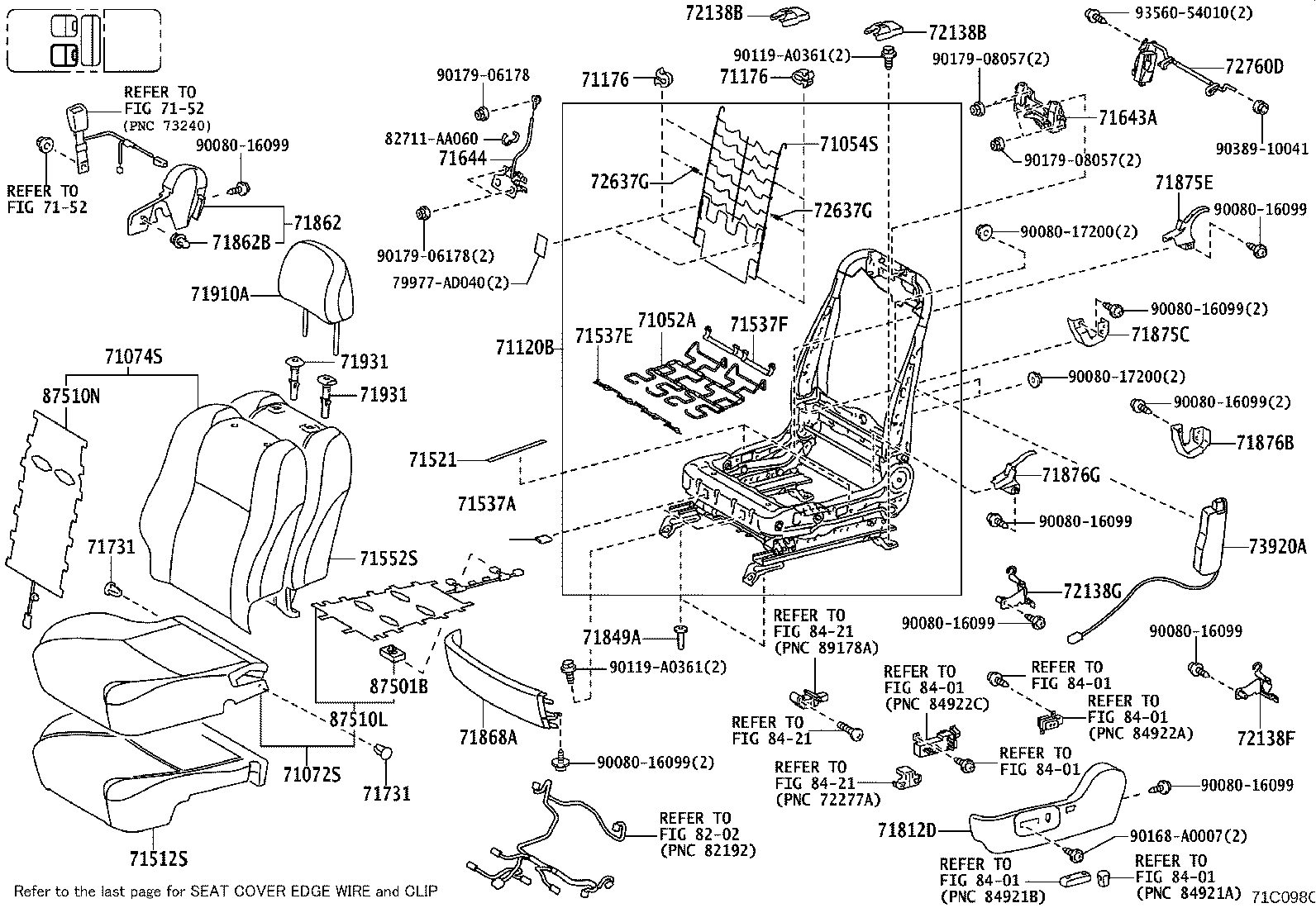

ILLUST NO. 1 OF 3(1909- )
DRIVER SEAT, W(MANUAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71051-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71051-0E010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-04400B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C3 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04400C3 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04400C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71072-04400C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71072-04400B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04350C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04350C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04380B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04350B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04380C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04380C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04380B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-04350B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04360C1 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK/RED,TRIM2# |
1 | ||
| 71072-04390C2 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK/RED,TRIM23 |
1 | ||
| 71072-04400B1 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04390B1 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C2 |
GRN305,310,325,330..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71072-04390C3 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-04400C3 |
GRN305,310,325,330..SR5 BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04350B2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04350B2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C5 |
GRN305,325..DCB..6FC..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71072-04360C1 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK/RED,TRIM2# |
1 | ||
| 71072-04400C5 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK/RED,TRIM2# |
1 | ||
| 71072-04380B2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-04420B0 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-04400B2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04420C1 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK,TRIM23 |
1 | ||
| 71072-04420C0 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71072-04420C1 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-04390B2 |
GRN305,310,325,330..SR5 SR PACKAGE,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C6 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71072-04380B2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-04520C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04520C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04520C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71074-04520C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71074-04480C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK, BLACK, RED,TRIM2# |
1 | ||
| 71074-04520C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04500C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK, ORANGE,TRIM2# |
1 | ||
| 71074-04500C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04470C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04520C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71074-04500C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04470C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04510C1 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK, CARAMEL,TRIM22 |
1 | ||
| 71074-04520C0 |
GRN305,310,325,330..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71074-04500C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK,ORANGE,TRIM2# |
1 | ||
| 71074-04471C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04510C2 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,CEMENT GRAY, CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04520C2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04520C1 |
GRN305,310,325,330..SR5 BLACK/CARAMEL,TRIM22 |
1 | ||
| 71074-04510C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK, RED,TRIM23 |
1 | ||
| 71074-04480C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK, BLACK, RED,TRIM2# |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04501C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04471C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04521C4 |
GRN305,325..DCB..6FC..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71074-04521C4 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK/RED,TRIM2# |
1 | ||
| 71074-04511C4 |
GRN305,310,325,330..SR5 SR PACKAGE,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04541C1 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK,TRIM23 |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04501C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04521C5 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71074-04521C6 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04541C1 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-04541C2 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04541C0 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-04090 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71120-04090 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71120-04100 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71120-04100 |
GRN305,310,325,330 |
1 | ||
| 71120-04100 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330 |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 SR PACKAGE |
16 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
16 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330 |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 SR PACKAGE |
16 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
16 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-04090 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71512-04080 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71512-04080 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71512-04090 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71512-04090 |
GRN305,310,325,330 |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71521-AD030 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71521-AD030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537-AA020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537-AA020 |
GRN305,310,325,330 |
4 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0E010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71537-AD010 |
GRN305,310,325,330,TRN245,265 FOR RH SEAT |
1 | ||
| 71537-AD010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,FOR RH SEAT |
1 | ||
| 71537-0E020 |
GRN305,310,325,330,TRN245,265 FOR LH SEAT |
1 | ||
| 71537-AD010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,FOR RH SEAT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-04120 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71552-04120 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71552-04120 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71643-04010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71643-04010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71644-04010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71644-04010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71769-33020 |
GRN305,310,325,330..SR5 SR PACKAGE |
2 | ||
| 71769-33020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71769-33020 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
2 | ||
| 71769-33020 |
GRN305,310,325,330 |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-04080C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71812-04080C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71812-04070C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71812-04080C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71812-04070C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-02010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71848-02010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71848-02010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R020C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71862-0R020C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71862-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71862-0R020C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71862-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71814-0E020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71814-0E020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875-AA060 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71814-0E020 |
GRN305,310,325,330 |
1 | ||
| 71875-AA060 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-AA090C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876-AA090C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875-AD020C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71876-AA090C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71875-AD020C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71813-0E020 |
GRN305,310,325,330 |
1 | ||
| 71813-0E020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71813-0E020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71876-AA060 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AD020C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71875-0E020C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875-0E020C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71875-0E020C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876-AD020C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04470B0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-04470B0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-04490C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK,TRIM2# |
2 | ||
| 71910-04471B2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..SR5 BLACK,TRIM17,2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-04471C3 |
GRN305,325..DCB..6FC..SR5 BLACK,TRIM17,23 |
2 | ||
| 71910-04471C3 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK,TRIM17,2# |
2 | ||
| 71910-04470B0 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04471C2 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
2 | ||
| 71910-04490C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..SR5 W(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..SR5 W(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71931-47010C8 |
GRN305,310,325,330..SR5 W/O(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71931-47010B8 |
GRN305,310,325,330..SR5 W/O(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..SR5 W(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..SR5 W(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71931-47010C8 |
GRN305,310,325,330..SR5 W/O(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71931-47010B8 |
GRN305,310,325,330..SR5 W/O(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
2 | ||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 72138-04030C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
2 | ||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 72138-04030C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-04040C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 72526-04040C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 72592-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-04030 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 72760-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 72760-0E010 |
GRN305,310,325,330 |
1 | ||
| 72760-04030 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 72760-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-04050 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73920-04040 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 73920-04050 |
GRN305,310,325,330 |
1 | ||
| 73920-04050 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73920-04040 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| Common parts | ||||
| 79977-AD030 | ||||
| 82711-02130 | ||||
| 82711-AA060 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-17200 | ||||
| 90119-A0361 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 3(1909- )
DRIVER SEAT, W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71051-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71051-0E010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02170 |
GRN305,310,325,330 |
1 | ||
| 71053-02170 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71053-02170 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-04400B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C3 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04400C3 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04400C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71072-04400C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71072-04400B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04350C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04350C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04380B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04350B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04380C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04380C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71072-04380B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-04350B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04360C1 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK/RED,TRIM2# |
1 | ||
| 71072-04390C2 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK/RED,TRIM23 |
1 | ||
| 71072-04400B1 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04390B1 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C2 |
GRN305,310,325,330..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71072-04390C3 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-04400C3 |
GRN305,310,325,330..SR5 BLACK/CARAMEL,TRIM22 |
1 | ||
| 71072-04350B2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04350B2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C5 |
GRN305,325..DCB..6FC..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71072-04360C1 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK/RED,TRIM2# |
1 | ||
| 71072-04400C5 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK/RED,TRIM2# |
1 | ||
| 71072-04380B2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-04420B0 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04370C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-04400B2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04420C1 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK,TRIM23 |
1 | ||
| 71072-04420C0 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71072-04420C1 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-04390B2 |
GRN305,310,325,330..SR5 SR PACKAGE,CEMENT GRAY,TRIM1# |
1 | ||
| 71072-04400C6 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71072-04380B2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-04520C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04520C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04520C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71074-04520C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71074-04480C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK, BLACK, RED,TRIM2# |
1 | ||
| 71074-04520C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04500C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK, ORANGE,TRIM2# |
1 | ||
| 71074-04500C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04470C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04520C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71074-04500C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04470C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71074-04510C1 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK, CARAMEL,TRIM22 |
1 | ||
| 71074-04520C0 |
GRN305,310,325,330..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71074-04500C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK,ORANGE,TRIM2# |
1 | ||
| 71074-04471C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04510C2 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,CEMENT GRAY, CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04520C2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04520C1 |
GRN305,310,325,330..SR5 BLACK/CARAMEL,TRIM22 |
1 | ||
| 71074-04510C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK, RED,TRIM23 |
1 | ||
| 71074-04480C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK, BLACK, RED,TRIM2# |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04501C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04471C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04521C4 |
GRN305,325..DCB..6FC..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71074-04521C4 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK/RED,TRIM2# |
1 | ||
| 71074-04511C4 |
GRN305,310,325,330..SR5 SR PACKAGE,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04541C1 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK,TRIM23 |
1 | ||
| 71074-04490C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK, BLACK, BLACK,TRIM2# |
1 | ||
| 71074-04501C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04521C5 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71074-04521C6 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04541C1 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-04541C2 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71074-04541C0 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-04090 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71120-04090 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71120-04100 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71120-04100 |
GRN305,310,325,330 |
1 | ||
| 71120-04100 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330 |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 SR PACKAGE |
16 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
16 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330 |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 SR PACKAGE |
16 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
16 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-04090 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71512-04080 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71512-04080 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71512-04090 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71512-04090 |
GRN305,310,325,330 |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71521-AD030 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71521-AD030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537-AA020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537-AA020 |
GRN305,310,325,330 |
4 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0E010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71537-AD010 |
GRN305,310,325,330,TRN245,265 FOR RH SEAT |
1 | ||
| 71537-AD010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,FOR RH SEAT |
1 | ||
| 71537-0E020 |
GRN305,310,325,330,TRN245,265 FOR LH SEAT |
1 | ||
| 71537-AD010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,FOR RH SEAT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-04120 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71552-04120 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71552-04120 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71643-04010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71643-04010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71644-04010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71644-04010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-04080C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71812-04080C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71812-04070C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71812-04080C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71812-04070C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-02010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71848-02010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71848-02010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R020C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71862-0R020C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71862-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71862-0R020C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71862-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 67921-50050B0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,LT.GRAY |
1 | ||
| 67921-50050B0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,LT.GRAY |
1 | ||
| 67921-50050B0 |
GRN305,310,325,330 LT.GRAY |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-04030C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71868-04030C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71868-04030C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71814-0E020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71814-0E020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875-AA060 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71814-0E020 |
GRN305,310,325,330 |
1 | ||
| 71875-AA060 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-AA090C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876-AA090C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875-AD020C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71876-AA090C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71875-AD020C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 71813-0E020 |
GRN305,310,325,330 |
1 | ||
| 71813-0E020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71813-0E020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71876-AA060 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AD020C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
1 | ||
| 71875-0E020C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875-0E020C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71875-0E020C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876-AD020C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04470B0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-04470B0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-04490C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK,TRIM2# |
2 | ||
| 71910-04471B2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..SR5 BLACK,TRIM17,2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-04471C3 |
GRN305,325..DCB..6FC..SR5 BLACK,TRIM17,23 |
2 | ||
| 71910-04471C3 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK,TRIM17,2# |
2 | ||
| 71910-04470B0 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04471C2 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
2 | ||
| 71910-04490C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..SR5 W(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..SR5 W(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71931-47010C8 |
GRN305,310,325,330..SR5 W/O(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71931-47010B8 |
GRN305,310,325,330..SR5 W/O(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..SR5 W(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..SR5 W(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71931-47010C8 |
GRN305,310,325,330..SR5 W/O(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71931-47010B8 |
GRN305,310,325,330..SR5 W/O(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
2 | ||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 72138-04030C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL,BLACK,TRIM1#,2# |
2 | ||
| 72138-AD010C0 |
GRN305,310,325,330..SR5 SR PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 72138-04030C0 |
GRN305,310,325,330..SR5 BLACK,TRIM1#,2# |
2 | ||
| 72138F - COVER, FRONT SEAT TRACK, LH FRONT OUTER | ||||
| 71874-06090 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71874-06090 |
GRN305,310,325,330 |
1 | ||
| 71874-06090 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 71873-06080 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71873-06080 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71873-06080 |
GRN305,310,325,330 |
1 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 71441-04060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71441-04060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71441-04060 |
GRN305,310,325,330 |
2 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 71441-04060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71441-04060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71441-04060 |
GRN305,310,325,330 |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-04030 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 72760-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 72760-0E010 |
GRN305,310,325,330 |
1 | ||
| 72760-04030 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 72760-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-04050 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73920-04040 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
1 | ||
| 73920-04050 |
GRN305,310,325,330 |
1 | ||
| 73920-04050 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73920-04040 |
GRN305,310,325,330..SR5 SR PACKAGE |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD) |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-04060 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH |
1 | ||
| 87510-04060 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD) |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-04060 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510-04060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87530-04030 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87530-04030 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD) |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| Common parts | ||||
| 79977-AD040 | ||||
| 82711-AA060 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90119-A0361 | ||||
| 90168-A0007 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 3(1909- )
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-AD011 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71051-AD011 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71051-AD011 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-02160 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71053-02160 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71053-02160 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0Y320B1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y320C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71071-0Y320B1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y320C3 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71071-0Y320C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/RED,TRIM23 |
1 | ||
| 71071-0Y320C3 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/CARAMEL,TRIM22 |
1 | ||
| 71071-0Y282B4 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y293B4 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y293B4 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y282C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71071-0Y293C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71071-0Y302C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-0Y293C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71071-0Y282C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK/ORANGE,TRIM2# |
1 | ||
| 71071-0Y302C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71071-0Y282B4 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y312C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK,TRIM2# |
1 | ||
| 71071-0Y320C3 |
GRN305,310,325,330,TRN245,265..SR5 BLACK/CARAMEL,TRIM22 |
1 | ||
| 71071-0Y312C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0Y320C2 |
GRN305,310,325,330,TRN245,265..SR5 BLACK/RED,TRIM23 |
1 | ||
| 71071-0Y320B1 |
GRN305,310,325,330,TRN245,265..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y320B2 |
TRN265..DCB;GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y320C5 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71071-0Y282B5 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y293B5 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y320C6 |
GRN305,325..DCB..6FC..SR5 BLACK,TRIM23 |
1 | ||
| 71071-0Y282B5 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y302C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0Y302C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0Y390C1 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0Y390C1 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK,TRIM23 |
1 | ||
| 71071-0Y320C6 |
GRN305..6F;GRN305,325..LCB..6FC;GRN310,330,TRN245,265..SR5 BLACK,TRIM2# |
1 | ||
| 71071-0Y390C0 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71071-0Y293B5 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71071-0Y390B0 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-04802C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK, ORANGE,TRIM2# |
1 | ||
| 71073-04840C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK, RED,TRIM23 |
1 | ||
| 71073-04840C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY, CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04840C1 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK, CARAMEL,TRIM22 |
1 | ||
| 71073-04840C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK, RED,TRIM23 |
1 | ||
| 71073-04840C1 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK, CARAMEL,TRIM22 |
1 | ||
| 71073-04802C4 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71073-04812C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK, ORANGE,TRIM2# |
1 | ||
| 71073-04840C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY, CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04802C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK,ORANGE,TRIM2# |
1 | ||
| 71073-04812C4 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71073-04832C2 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK,TRIM2# |
1 | ||
| 71073-04802C4 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71073-04822C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-04812C4 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY, BLACK, GRAY,TRIM1# |
1 | ||
| 71073-04840C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK, RED,TRIM23 |
1 | ||
| 71073-04840C2 |
GRN305,310,325,330,TRN245,265..SR5 CEMENT GRAY, CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04812C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),BLACK, BLACK, ORANGE,TRIM2# |
1 | ||
| 71073-04822C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71073-04803C5 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04813C5 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04840C1 |
GRN305,310,325,330,TRN245,265..SR5 BLACK, CARAMEL,TRIM22 |
1 | ||
| 71073-04832C2 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-04851C2 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04851C0 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71073-04841C5 |
GRN305,325..DCB..6FC..SR5 BLACK,TRIM23 |
1 | ||
| 71073-04803C5 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE),CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04851C1 |
GRN305,325..DCB..6FC..SR5 SEAT HEATER-WITH,BLACK,TRIM23 |
1 | ||
| 71073-04822C2 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-04822C2 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-04841C6 |
TRN265..DCB;GRN305,310,325,330..SR5 CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04841C4 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
1 | ||
| 71073-04851C1 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-04813C5 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH,CEMENT GRAY,TRIM1# |
1 | ||
| 71073-04841C5 |
GRN305..6F;GRN305,325..LCB..6FC;GRN310,330,TRN245,265..SR5 BLACK,TRIM2# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-04110 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 71110-04110 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71110-04110 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71110-04110 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71110-04110 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71110-04111 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330 |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 SR PACKAGE |
16 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
16 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330 |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
14 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 SR PACKAGE |
16 | ||
| 71173-0E010 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
16 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-04250 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71511-04250 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71511-04250 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71521-AD030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71521-AD030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537-AA020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71537-AA020 |
GRN305,310,325,330 |
4 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-0E010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0E010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0E010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71537-AD010 |
GRN305,310,325,330,TRN245,265 FOR RH SEAT |
1 | ||
| 71537-AD010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,FOR RH SEAT |
1 | ||
| 71537-0E020 |
GRN305,310,325,330,TRN245,265 FOR LH SEAT |
1 | ||
| 71537-AD010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,FOR RH SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-04240 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71551-04240 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-04240 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-04010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71643-04010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71643-04010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-04010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71644-04010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71644-04010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71769-33020 |
GRN305,310,325,330..SR5 SR PACKAGE |
2 | ||
| 71769-33020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71769-33020 |
GRN305,310,325,330..SR5 FRONT SEAT-DRIVER & PASSENGER:4WAY MANUAL |
2 | ||
| 71769-33020 |
GRN305,310,325,330 |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-0C010 |
GRN305,310,325,330,TRN245,265 |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71731-0C010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-04050C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71811-04050C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71811-04050C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-02010 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71848-02010 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 71848-02010 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AD010C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71861-AD010C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71861-AD010C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875-AA060 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71875-AA060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875-AD020C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71875-AD020C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 71876-AA060 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71876-AA060 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD020C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876-AD020C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71876-AD020C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04470B0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-04470B0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-04490C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD),BLACK,TRIM2# |
2 | ||
| 71910-04471B2 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04470C0 |
GRN305,310,325,330..SR5 BLACK,TRIM17,2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-04471C3 |
GRN305,325..DCB..6FC..SR5 BLACK,TRIM17,23 |
2 | ||
| 71910-04471C3 |
GRN305..6F;GRN310,330..SR5;GRN305,325..LCB..6FC BLACK,TRIM17,2# |
2 | ||
| 71910-04470B0 |
GRN305,310,325,330..SR5 CEMENT GRAY,TRIM14 |
2 | ||
| 71910-04471C2 |
GRN305,325..DCB..6FC..SR5 BLACK/SAND BEIGE,TRIM28 |
2 | ||
| 71910-04490C0 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-04480C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..SR5 W(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..SR5 W(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71931-47010C8 |
GRN305,310,325,330..SR5 W/O(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71931-47010B8 |
GRN305,310,325,330..SR5 W/O(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..SR5 W(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71930-4402021 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM17,2# |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..SR5 W(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 71930-44020B1 |
GRN305,310,325,330..DCB..SR5 W(LOCK),OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM14 |
1 | ||
| 71931-47010C8 |
GRN305,310,325,330..SR5 W/O(LOCK),BLACK,TRIM17,2# |
1 | ||
| 71931-47010B8 |
GRN305,310,325,330..SR5 W/O(LOCK),MD.GRAY,TRIM14 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-04070C0 |
GRN305,310,325,330,TRN245,265..SR5 BLACK,TRIM1#,2# |
1 | ||
| 72525-04070C0 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 72525-04070C0 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-04020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73910-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 73910-04020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87501-0C020 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD) |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-0C020 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH |
1 | ||
| 87501-0C020 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-04041 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD) |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510-04041 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87510-04041 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87510-04041 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87530-04030 |
GRN305,310,325,330..SR5 SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87530-04030 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-LEATHER(TRD) |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE) |
1 | ||
| 87530-04030 |
GRN305..DCB..SR5 TRD-PRO PACKAGE&SEAT COVER MATERIAL-LEATHER(TRD)&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 SPORT PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH |
1 | ||
| 87530-04030 |
GRN305,310,325,330..DCB..SR5 OFF ROAD PACKAGE&SEAT COVER MATERIAL-FABRIC(SPORT OR OFF-ROAD PACKAGE)&SEAT HEATER-WITH |
1 | ||
| Common parts | ||||
| 79977-AD040 | ||||
| 82711-02130 | ||||
| 82711-AA060 | ||||
| 90080-16099 | ||||
| 90080-17200 | ||||
| 90119-A0361 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90467-10203 | ||||
| 90980-10998 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
