GRN305L-PRTLHA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

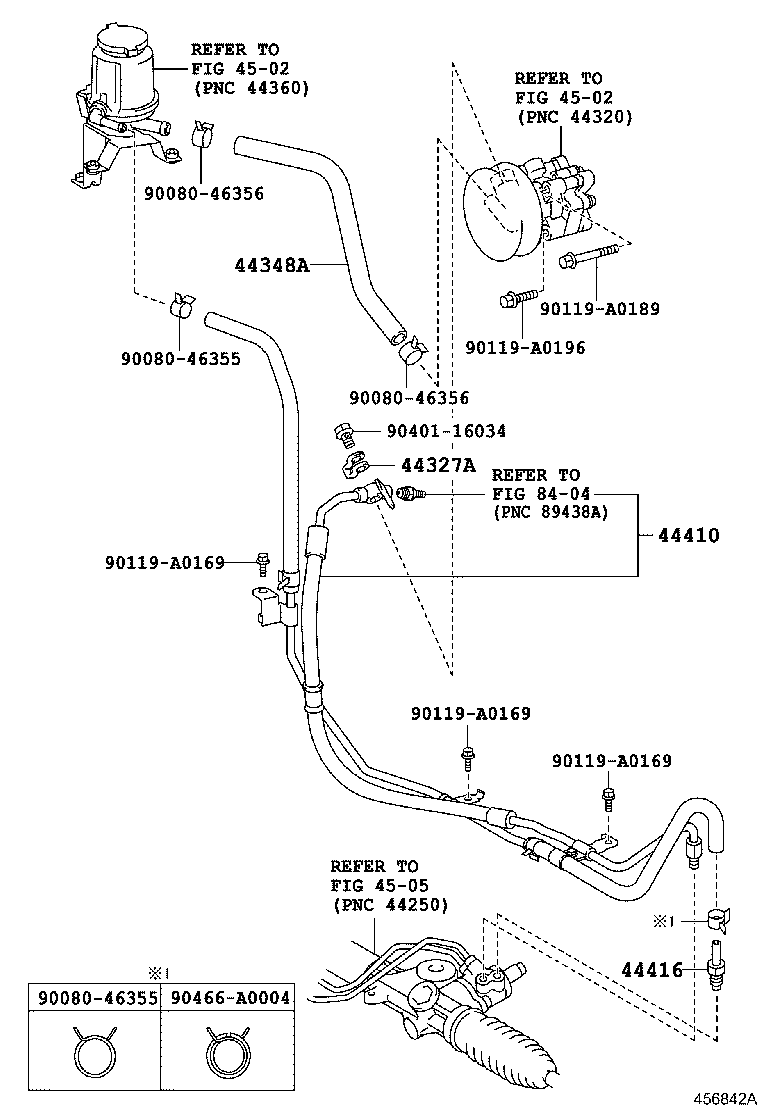

(1508- )GRN305,310,325,330

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44416 4502 4502 4505 8404 9008046355 9008046355 9008046356 9008046356 90119A0169 90119A0169 90119A0169 90119A0189 90119A0196 9040116034 90466A0004
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

GRN305,310,325,330

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-04030

GRN305,310,325,330

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-04270

GRN305,310,325,330

TOWING PACKAGE-WITH

 1
44410-04230

GRN305,310,325,330

 1
44410-04280

GRN305,310,325,330

TOWING PACKAGE-WITH

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-04060

GRN305,310,325,330,TRN245,265

 1
Common parts
90080-46355
90080-46356
90119-A0169
90119-A0189
90119-A0196
90401-16034
90466-A0004
Linked diagrams
4502
4505
8404

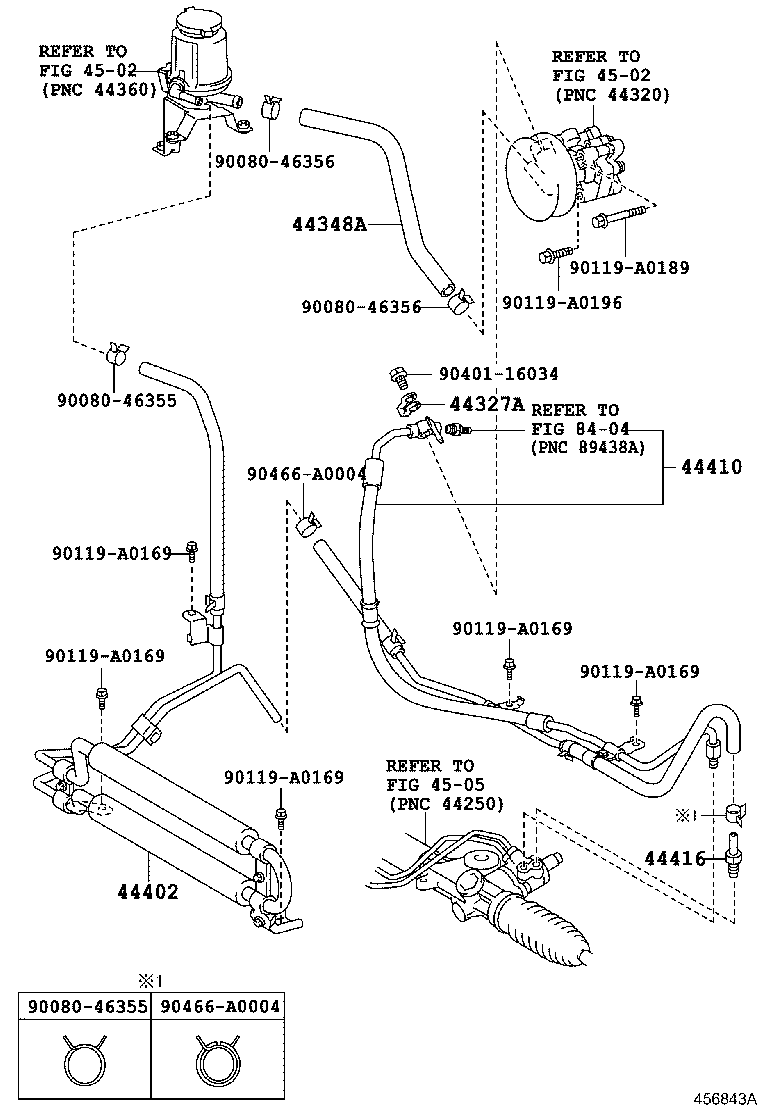

(1508- )GRN305,310,325,330

Click highlighted areas on diagram

WITH(POWER STEERING OIL COOLER)

diagram 44327A 44348A 44402 44410 44416 4502 4502 4505 8404 9008046355 9008046355 9008046356 9008046356 90119A0169 90119A0169 90119A0169 90119A0169 90119A0169 90119A0189 90119A0196 9040116034 90466A0004 90466A0004
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

GRN305,310,325,330

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-04030

GRN305,310,325,330

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-04010

GRN305,310,325,330

TOWING PACKAGE-WITH

 1
44402-04030

GRN305,310,325,330

TOWING PACKAGE-WITH

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-04270

GRN305,310,325,330

TOWING PACKAGE-WITH

 1
44410-04230

GRN305,310,325,330

 1
44410-04280

GRN305,310,325,330

TOWING PACKAGE-WITH

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-04060

GRN305,310,325,330,TRN245,265

 1
Common parts
90080-46355
90080-46356
90119-A0169
90119-A0189
90119-A0196
90401-16034
90466-A0004
Linked diagrams
4502
4505
8404
