GRN305L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

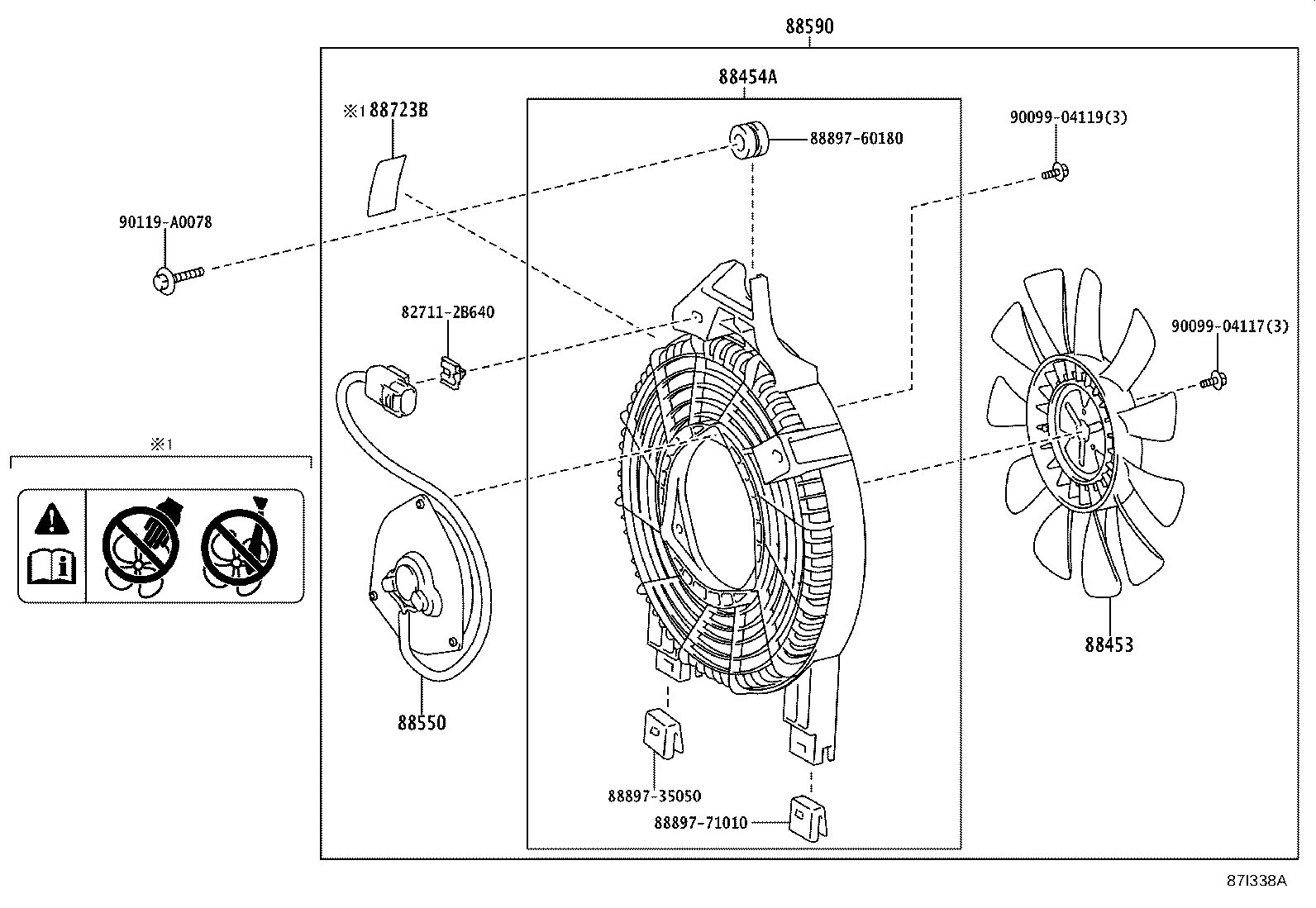

ILLUST NO. 1 OF 2(1909- )

Click highlighted areas on diagram

MEXICO,COSTARICA SPEC

diagram 827112B640 88453 88454A 88550 88590 88723B 8889735050 8889760180 8889771010 9009904117 9009904119 90119A0078
Part # Description Qty Price
Common parts
82711-2B640
88897-35050
88897-60180
88897-71010
90099-04117
90099-04119
90119-A0078

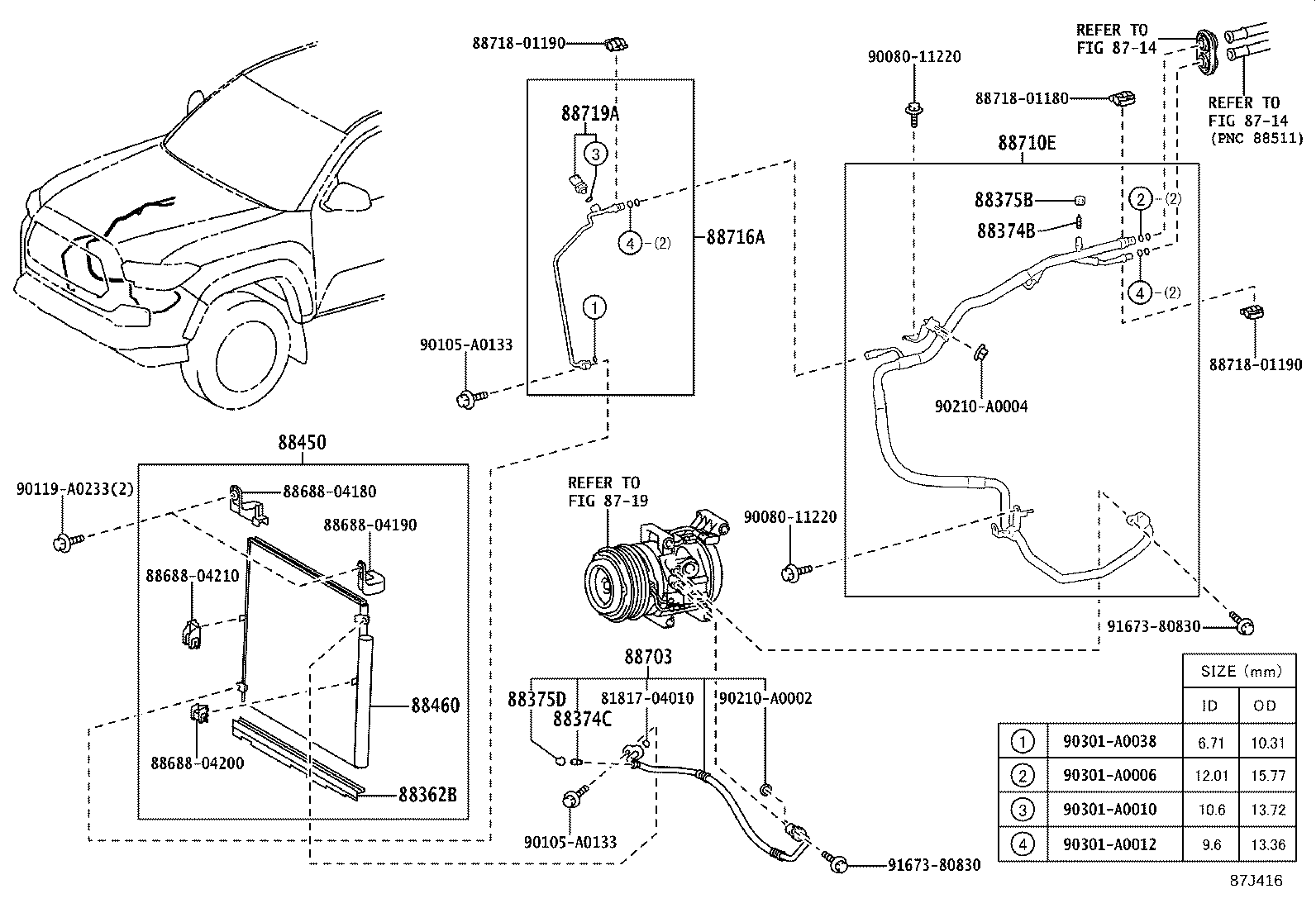

ILLUST NO. 2 OF 2(2009- )GRN305,310,325,330

Click highlighted areas on diagram

diagram 8181704010 8714 8714 8719 88362B 88374B 88374C 88375B 88375D 88450 88460 8868804180 8868804190 8868804200 8868804210 88703 88710E 88716A 8871801180 8871801190 8871801190 88719A 9008011220 9008011220 90105A0133 90105A0133 90119A0233 90210A0002 90210A0004 90301A0006 90301A0010 90301A0012 90301A0038 9167380830 9167380830
Part # Description Qty Price
88362B - PLATE, SEAL
88362-04020

GRN305,310,325,330,TRN245,265

 1
88374B - VALVE, SERVICE, NO.1
88374-04020

GRN305,310,325,330,TRN245,265

 1
88374C - VALVE, SERVICE, NO.2
88374-04020

GRN305,310,325,330,TRN245,265

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-04030

GRN305,310,325,330,TRN245,265

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-04020

GRN305,310,325,330,TRN245,265

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-04011

GRN305,310,325,330,TRN245,265

 1
88450-04012

GRN305,310,325,330,TRN245,265

 1
88460 - CONDENSER ASSY, COOLER
88460-04200

GRN305,310,325,330,TRN245,265

 1
88460-04201

GRN305,310,325,330,TRN245,265

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-04030

GRN305,310,325,330

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-04510

GRN305,310,325,330

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-04370

GRN305,310,325,330

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-04010

GRN305,310,325,330,TRN245,265

 1
Common parts
81817-04010
88688-04180
88688-04190
88688-04200
88688-04210
88718-01180
88718-01190
90080-11220
90105-A0133
90119-A0233
90210-A0002
90210-A0004
90301-A0006
90301-A0010
90301-A0012
90301-A0038
91673-80830
Linked diagrams
8714
8719
