GRN305L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )

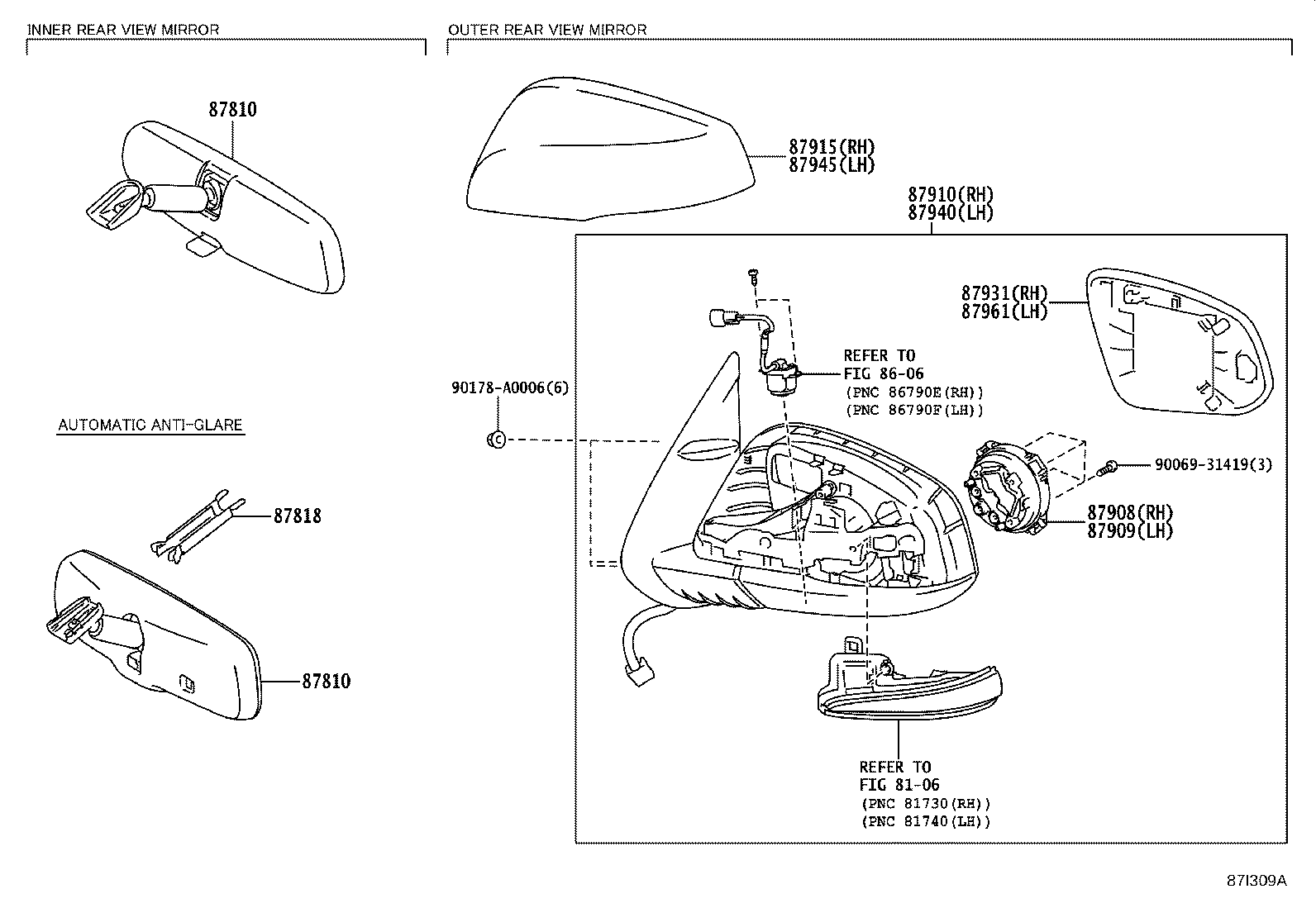

Click highlighted areas on diagram

diagram 8106 8606 87810 87810 87818 87908 87909 87910 87915 87931 87940 87945 87961 9006931419 90178A0006
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0C140

GRN305,310,325,330..LIMD

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0C140

GRN305,310,325,330..LIMD

 1
87818 - COVER, INNER RR VIEW MIRROR
87818-AC010

GRN305,310,325,330

 1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87925-04220

GRN305,310,325,330,TRN245,265

 1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87925-04220

GRN305,310,325,330,TRN245,265

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-04250

GRN305,310,325,330..LIMD

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-04080

GRN305,310,325,330..LIMD

PLATED,*CR

 1
87915-04070C2

GRN305,325..LIMD

NIGHTSHADE PACKAGE,ATTITUDE BLACK MC.,089 ,1G3 ,218

 1
87931 - OUTER MIRROR, RH
87902-04020

GRN305,310,325,330..LIMD

 1
87902-04021

GRN305,310,325,330..LIMD

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-04260

GRN305,310,325,330..LIMD

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-04070C2

GRN305,325..LIMD

NIGHTSHADE PACKAGE,ATTITUDE BLACK MC.,089 ,1G3 ,218

 1
87945-04080

GRN305,310,325,330..LIMD

PLATED,*CR

 1
87961 - MIRROR OUTER, LH
87907-04020

GRN305,310,325,330..LIMD

 1
87907-04021

GRN305,310,325,330..LIMD

 1
Common parts
90069-31419
90178-A0006
Linked diagrams
8106
8606
