GRN305L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 9 OF10(1909- )

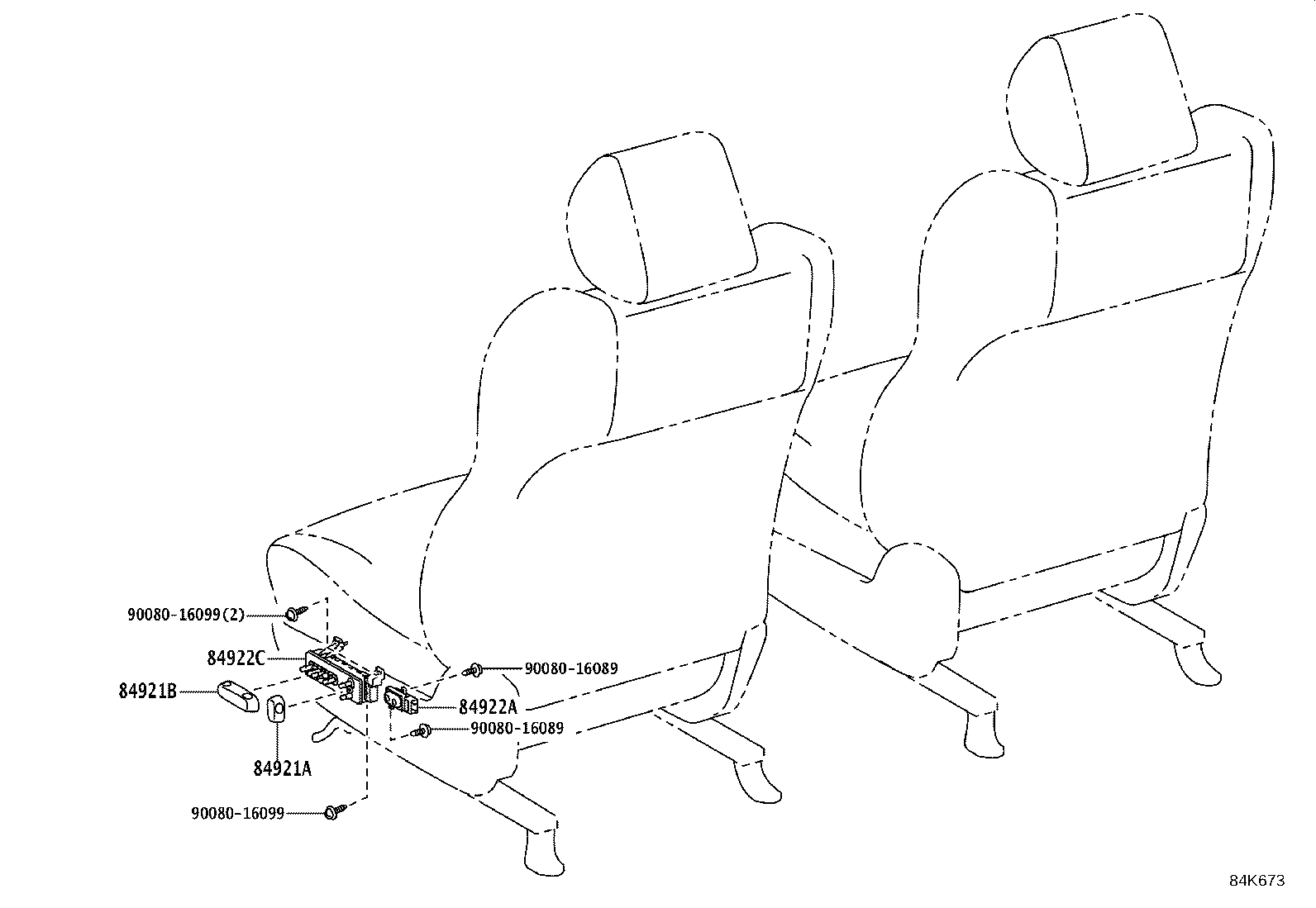

Click highlighted areas on diagram

SEAT

diagram 84921A 84921B 84922A 84922C 9008016089 9008016089 9008016099 9008016099
Part # Description Qty Price
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-AE011C1

GRN305,310,325,330..LIMD

BLACK,TRIM2#,4#

 1
84921-AE012C1

GRN305,310,325,330..LIMD

BLACK,TRIM2#,4#

 1
84921-AE010C1

GRN305,310,325,330..LIMD

BLACK,TRIM2#,4#

 1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-AE020C0

GRN305,310,325,330..LIMD

BLACK,TRIM2#,4#

 1
84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR)
84920-AE010C0

GRN305,310,325,330..LIMD

BLACK,TRIM2#,4#

 1
84922C - SWITCH, FRONT POWER SEAT, LH
84922-AE010

GRN305,310,325,330

 1
Common parts
90080-16089
90080-16099
