GRN305L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )

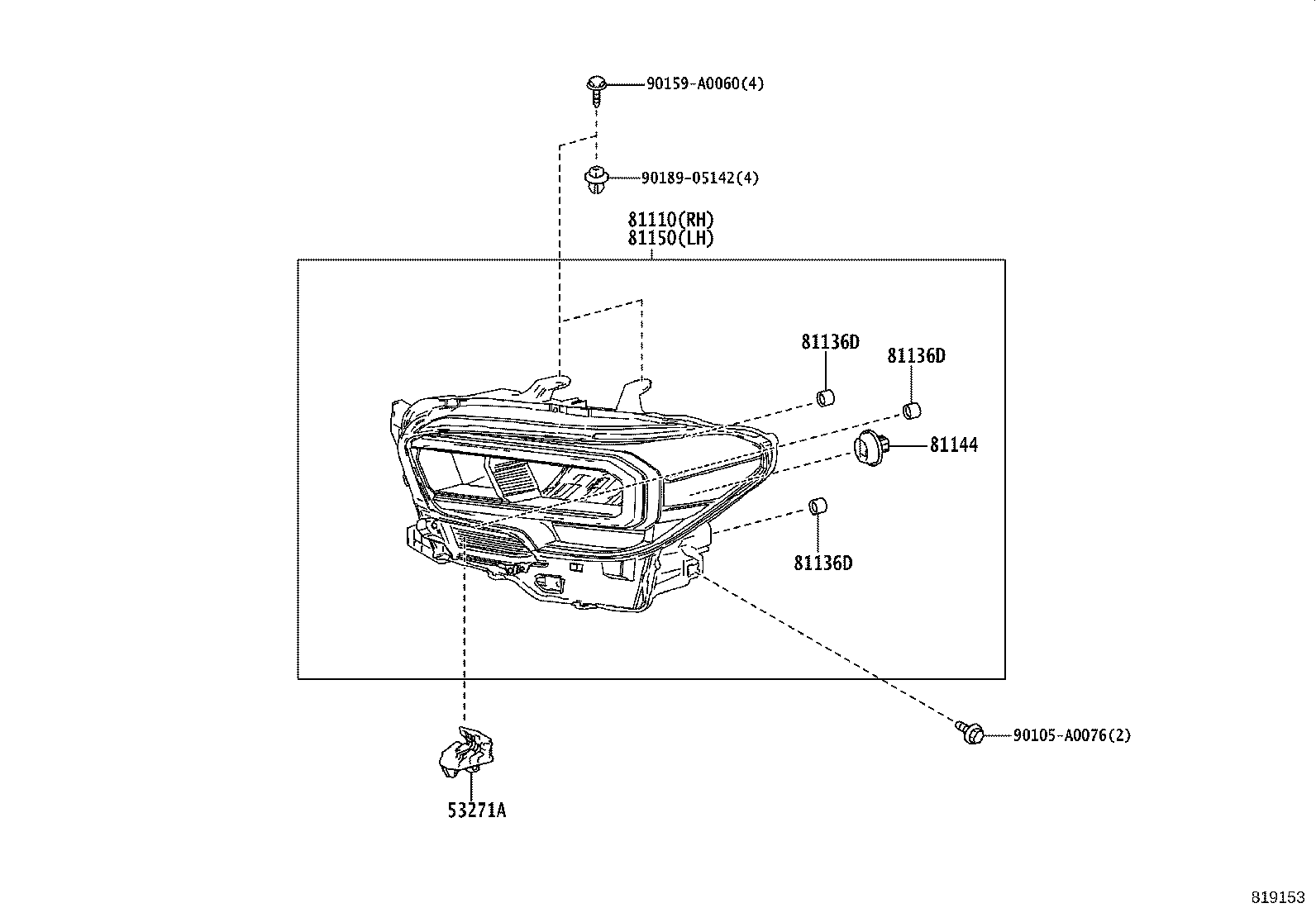

Click highlighted areas on diagram

LED HEADLAMP

diagram 53271A 81110 81136D 81136D 81136D 81144 81150 90105A0076 90159A0060 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-0B010

GRN305,310,325,330,TRN245,265

 2
81110 - HEADLAMP ASSY, RH
81110-04290

GRN305,310,325,330..LIMD

 1
81136D - COVER, HEADLAMP
90075-15505

GRN305,310,325,330..LIMD

 6
81136D - COVER, HEADLAMP
90075-15505

GRN305,310,325,330..LIMD

 6
81136D - COVER, HEADLAMP
90075-15505

GRN305,310,325,330..LIMD

 6
81144 - COVER, HEADLAMP, NO.1
90075-66016

GRN305,310,325,330..LIMD

 2
81150 - HEADLAMP ASSY, LH
81150-04290

GRN305,310,325,330..LIMD

 1
Common parts
90105-A0076
90159-A0060
90189-05142
