GRN305L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )2GRFKS

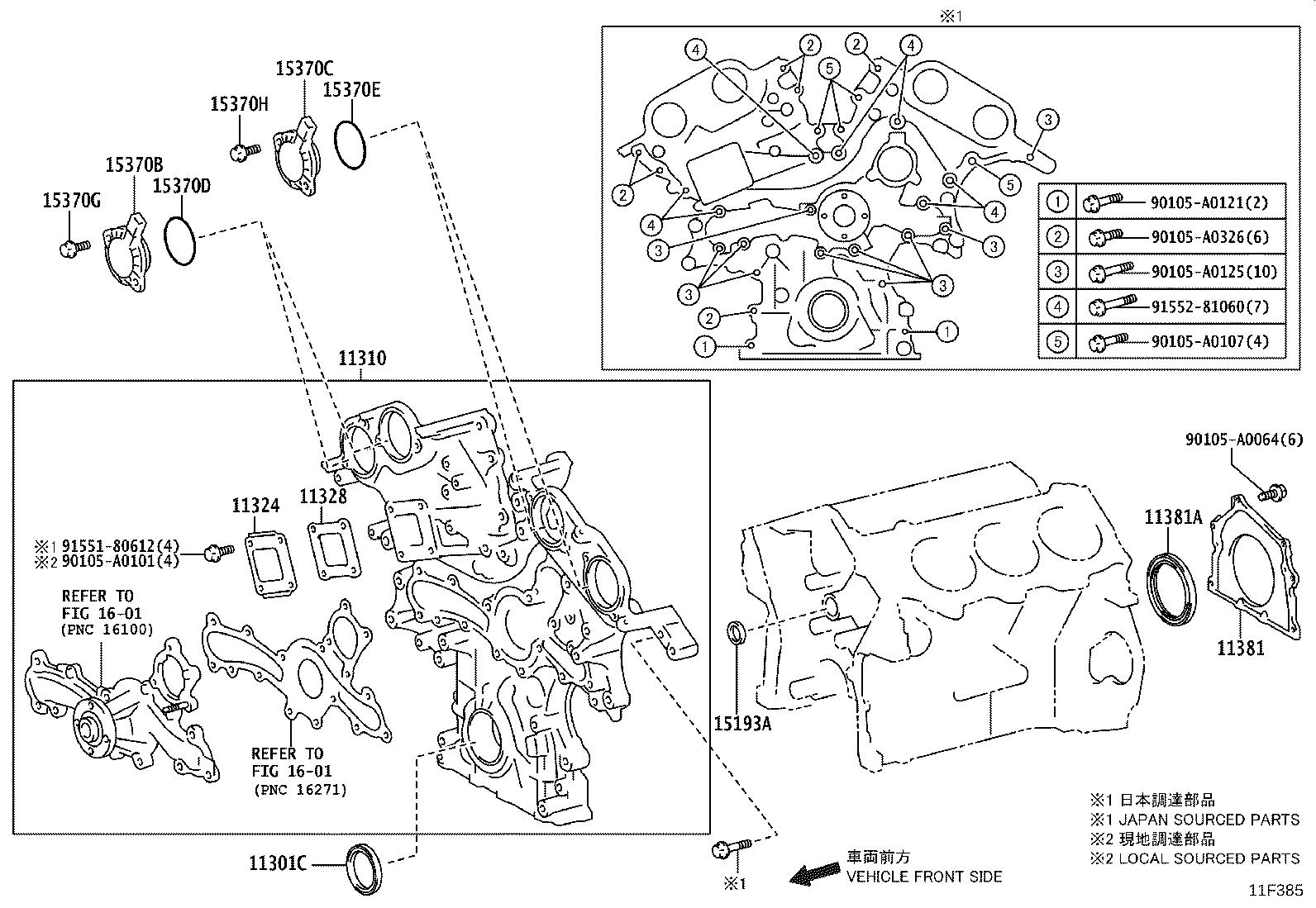

Click highlighted areas on diagram

diagram 11301C 11310 11324 11328 11381 11381A 15193A 15370B 15370C 15370D 15370E 15370G 15370H 1601 1601 90105A0064 90105A0101 90105A0107 90105A0121 90105A0125 90105A0326 9155180612 9155281060
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-A0028

2GRFKS..GRN305,310,325,330

 1
11310 - COVER ASSY, TIMING CHAIN
11310-0P061

2GRFKS..GRN305,310,325,330

 1
11324 - PLATE, TIMING CHAIN COVER
11324-0P010

2GRFKS..GRN305,310,325,330

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-0P010

2GRFKS..GRN305,310,325,330

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0P020

2GRFKS..GRN305,310,325,330

 1
11381A - SEAL, ENGINE REAR OIL
90311-A0027

2GRFKS..GRN305,310,325,330

 1
15193A - GASKET, OIL PUMP
15193-0P010

2GRFKS..GRN305,310,325,330

(L)

 1
15193-31020

2GRFKS..GRN305,310,325,330

(J)

 1
15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH
15370-0P020

2GRFKS..GRN305,310,325,330

 2
15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH
15370-0P020

2GRFKS..GRN305,310,325,330

 2
15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
90301-50003

2GRFKS..GRN305,310,325,330

 2
15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
90301-50003

2GRFKS..GRN305,310,325,330

 2
15370G - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH)
90105-A0064

2GRFKS..GRN305,310,325,330

 4
15370H - BOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH)
90105-A0064

2GRFKS..GRN305,310,325,330

 4
Common parts
90105-A0064
90105-A0101
90105-A0107
90105-A0121
90105-A0125
90105-A0326
91551-80612
91552-81060
Linked diagrams
1601
