GRN305L-PRTLHA (2019)

Toyota Tacoma

Production Sep 2019 - Sep 9999
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(1910- )2GRFKS

Click highlighted areas on diagram

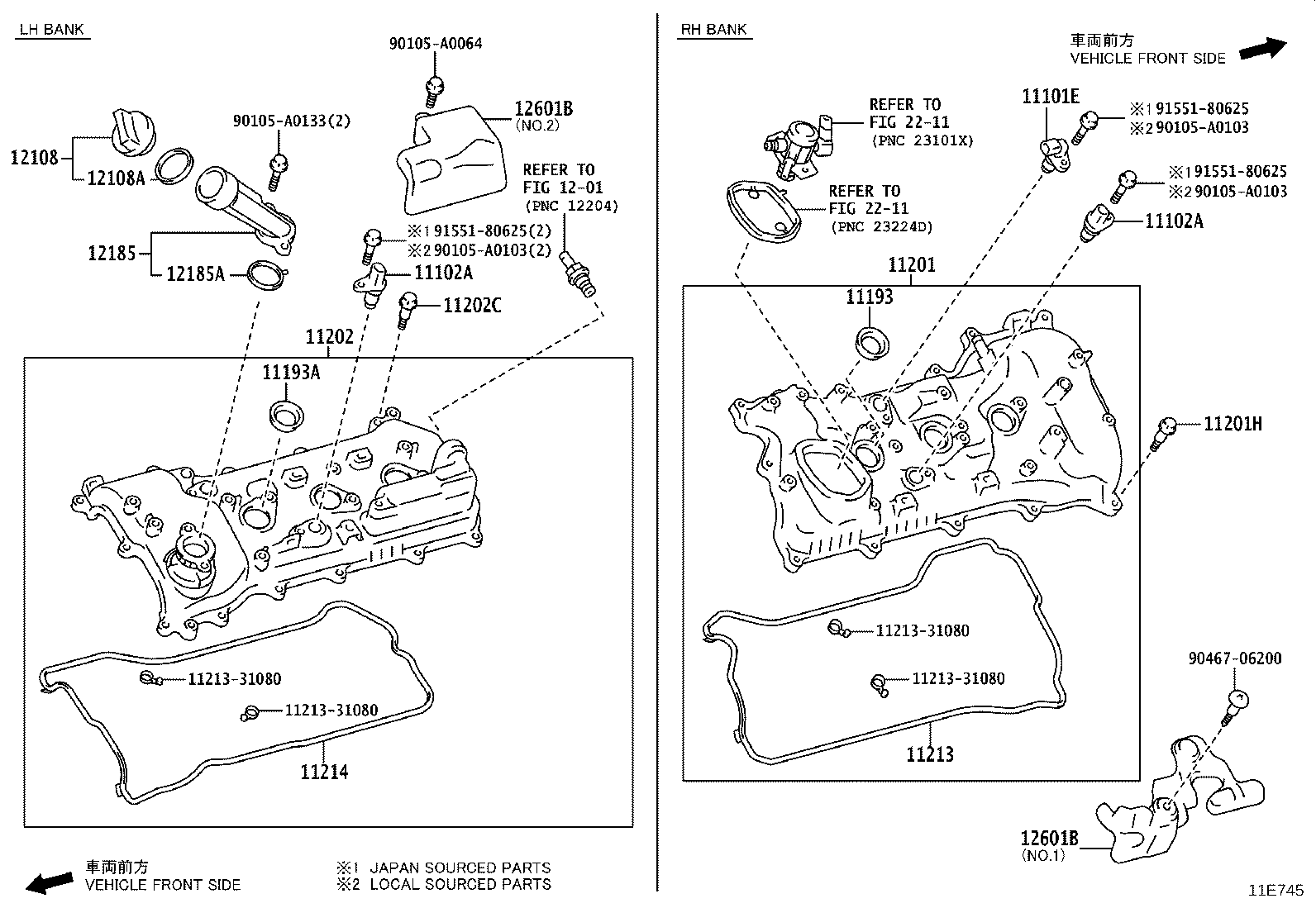

CYLINDER HEAD COVER

diagram 11101E 11102A 11102A 11193 11193A 11201 11201H 11202 11202C 11213 1121331080 1121331080 1121331080 1121331080 11214 1201 12108 12108A 12185 12185A 12601B 12601B 2211 2211 90105A0064 90105A0103 90105A0103 90105A0103 90105A0133 9046706200 9155180625 9155180625 9155180625
Part # Description Qty Price
11101E - SENSOR, CAM POSITION
90919-05061

2GRFKS..GRN305,310,325,330

 1
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2GRFKS..GRN305,310,325,330

 3
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2GRFKS..GRN305,310,325,330

 3
11193 - GASKET, SPARK PLUG TUBE
11193-0P010

2GRFKS..GRN305,310,325,330

 3
11193A - GASKET, SPARK PLUG TUBE, LH
11193-0P010

2GRFKS..GRN305,310,325,330

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0P012

2GRFKS..GRN305,310,325,330

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90109-A0050

2GRFKS..GRN305,310,325,330

(L)

 13
90109-06384

2GRFKS..GRN305,310,325,330

(J)

 13
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-0P032

2GRFKS..GRN305,310,325,330

 1
11202C - BOLT(FOR CYLINDER HEAD COVER LH)
90109-A0050

2GRFKS..GRN305,310,325,330

(L)

 12
90109-06384

2GRFKS..GRN305,310,325,330

(J)

 12
11213 - GASKET, CYLINDER HEAD COVER
11213-0P030

2GRFKS..GRN305,310,325,330

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-0P010

2GRFKS..GRN305,310,325,330

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-0P021

2GRFKS..GRN305,310,325,330

 1
12108A - GASKET(FOR OIL FILLER CAP)
90080-43025

2GRFKS..GRN305,310,325,330

(L)

 1
12185 - HOUSING, OIL FILLER CAP
12190-0P010

2GRFKS..GRN305,310,325,330

 1
12185A - GASKET, OIL FILLER CAP HOUSING
12196-38010

2GRFKS..GRN305,310,325,330

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-0P011

2GRFKS..GRN305,310,325,330

NO.1

 1
12601-0P020

2GRFKS..GRN305,310,325,330

NO.2

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-0P011

2GRFKS..GRN305,310,325,330

NO.1

 1
12601-0P020

2GRFKS..GRN305,310,325,330

NO.2

 1
Common parts
11213-31080
90105-A0064
90105-A0103
90105-A0133
90467-06200
91551-80625
Linked diagrams
1201
2211
