GRN305L-CRTSHA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

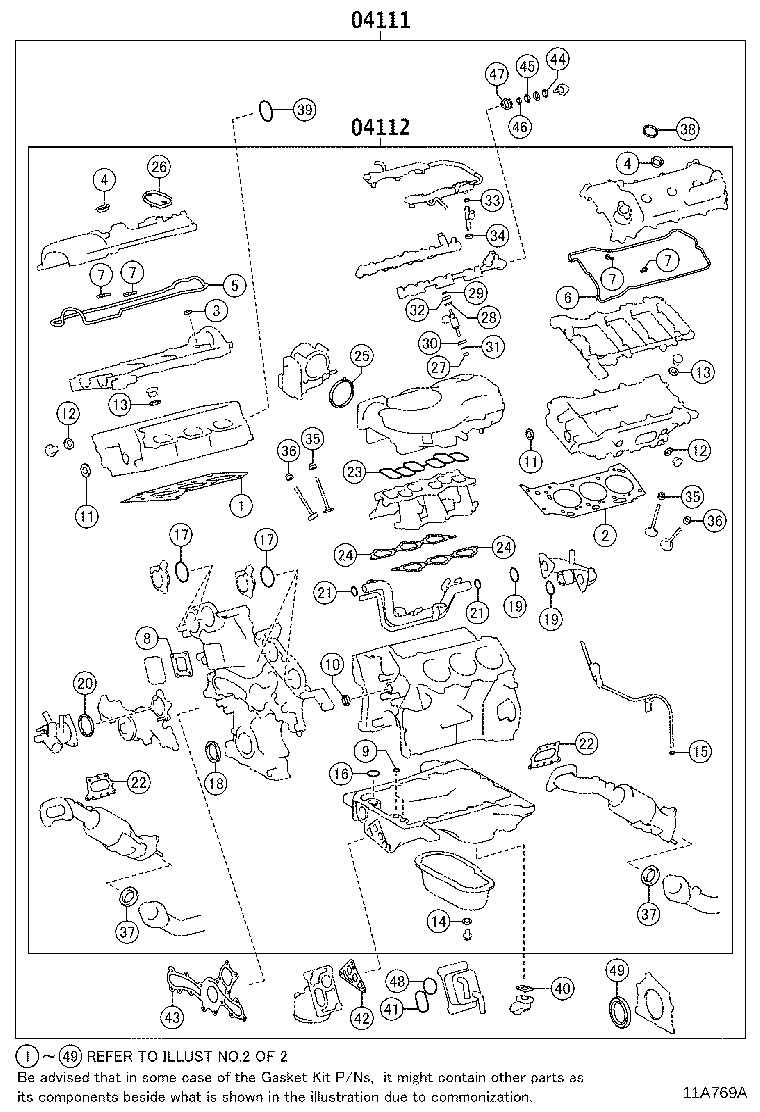

ILLUST NO. 1 OF 2(1508-1711)2GRFKS

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0P200

2GRFKS..GRN305,310..SR5

WITH(*FTP & *EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH

 1
04111-0P190

2GRFKS..GRN305,310,325,330

TOWING PACKAGE-WITH

 1
04111-0P220

2GRFKS..GRN305,310..SR5

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
04111-0P210

2GRFKS..GRN305,310,325,330

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0P180

2GRFKS..GRN305,310,325,330

 1

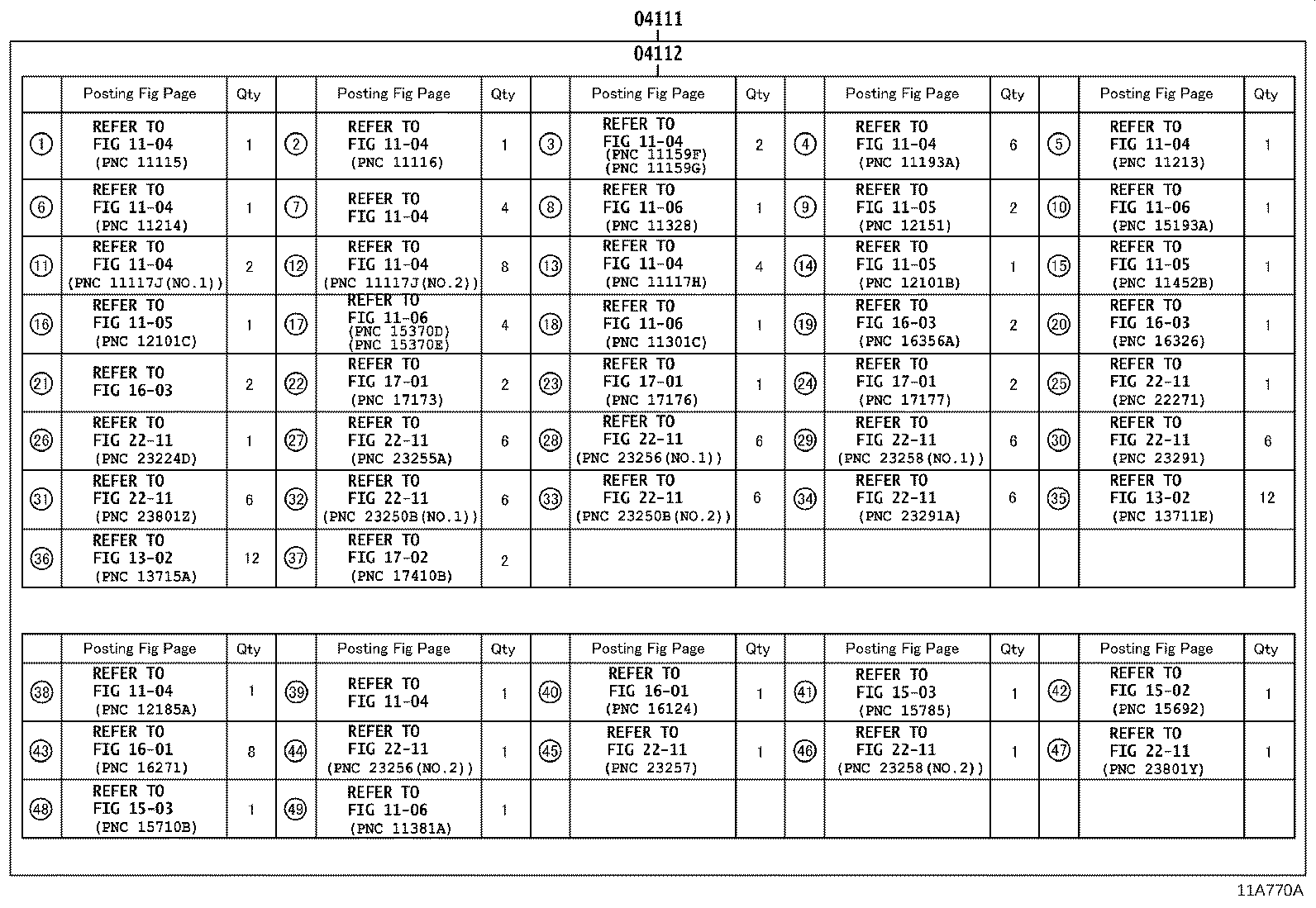

ILLUST NO. 2 OF 2(1508-1711)2GRFKS

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1106 1302 1302 1502 1503 1503 1601 1601 1603 1603 1603 1701 1701 1701 1702 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0P200

2GRFKS..GRN305,310..SR5

WITH(*FTP & *EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH

 1
04111-0P190

2GRFKS..GRN305,310,325,330

TOWING PACKAGE-WITH

 1
04111-0P220

2GRFKS..GRN305,310..SR5

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
04111-0P210

2GRFKS..GRN305,310,325,330

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0P180

2GRFKS..GRN305,310,325,330

 1
Linked diagrams
1104
1105
1106
1302
1502
1503
1601
1603
1701
1702
2211
