GRN265L-PRADKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1508)1GRFE

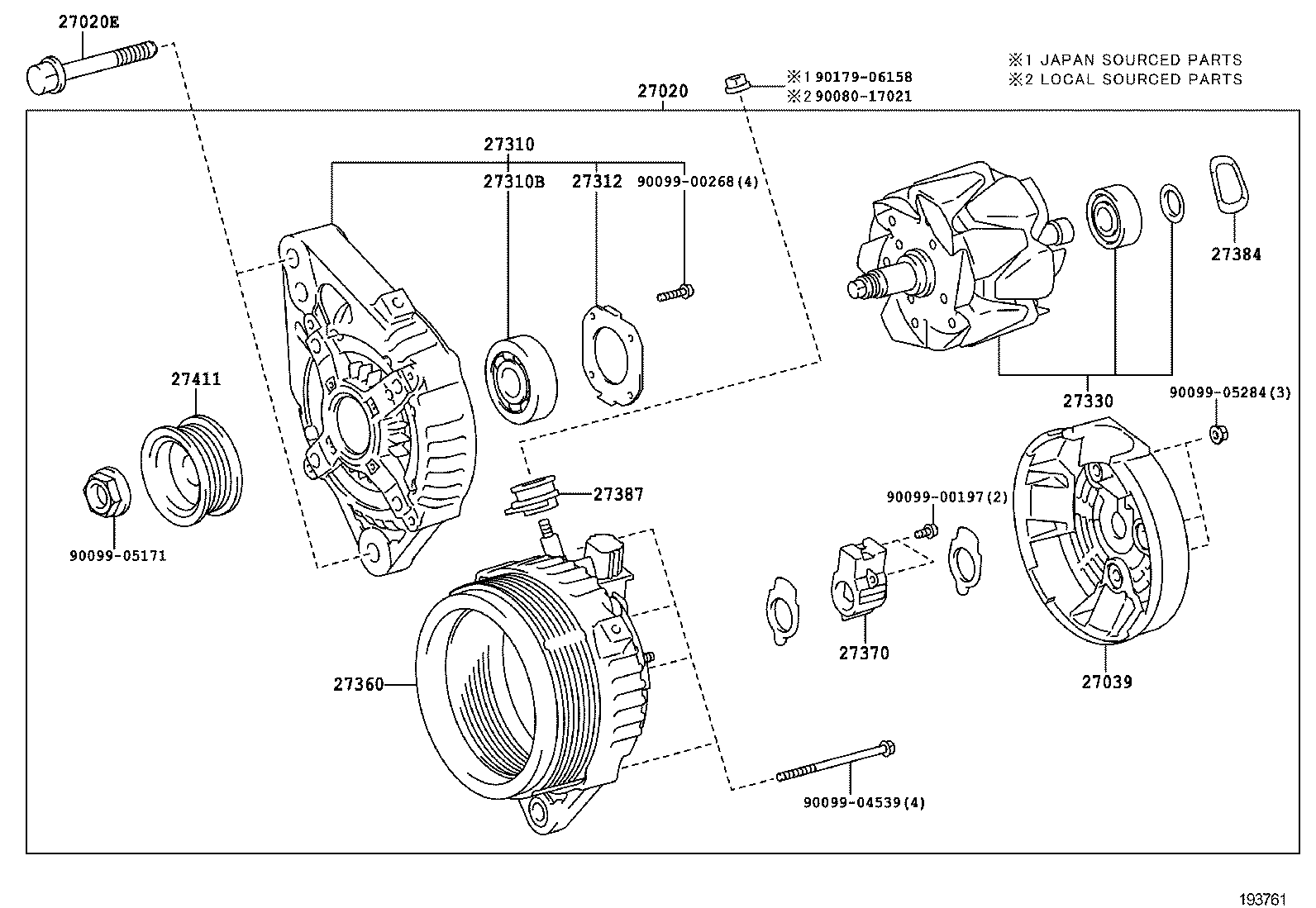

Click highlighted areas on diagram

12V 100A,12V 130A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27411 9008017021 9009900197 9009900268 9009904539 9009905171 9009905284 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0P020

1GRFE..GRN245,250,265,270

12V 130A,TOWING PACKAGE-WITH

 1
27060-0P030

1GRFE..GRN225,245,250,265,270

12V 100A

 1
27060-0P020

1GRFE..GRN245,265..DCB..5FC

12V 130A,MEXICO SPEC

 1
27020E - BOLT(FOR ALTERNATOR)
90119-A0146

1GRFE..GRN225,245,250,265,270

 2
27039 - COVER, ALTERNATOR REAR END
27039-0T040

1GRFE..GRN225,245,250,265,270

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P020

1GRFE..GRN225,245,250,265,270

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10033

1GRFE..GRN225,245,250,265,270

 1
27312 - PLATE, RETAINER
27312-72100

1GRFE..GRN225,245,250,265,270

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0A100

1GRFE..GRN245,265..DCB..5FC

MEXICO SPEC

 1
27330-0F060

1GRFE..GRN225,245,250,265,270

 1
27330-0A100

1GRFE..GRN245,250,265,270

TOWING PACKAGE-WITH

 1
27360 - COIL ASSY, ALTERNATOR
27360-0P020

1GRFE..GRN245,250,265,270

TOWING PACKAGE-WITH

 1
27360-0P030

1GRFE..GRN225,245,250,265,270

 1
27360-0P020

1GRFE..GRN245,265..DCB..5FC

MEXICO SPEC

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0P020

1GRFE..GRN225,245,250,265,270

 1
27384 - WASHER
27384-0A020

1GRFE..GRN225,245,250,265,270

 1
27387 - INSULATOR, TERMINAL
27387-20130

1GRFE..GRN225,245,250,265,270

 1
27387-0V060

1GRFE..GRN245,250,265,270

TOWING PACKAGE-WITH

 1
27387-0V060

1GRFE..GRN245,265..DCB..5FC

MEXICO SPEC

 1
27411 - PULLEY, ALTERNATOR
27411-0P020

1GRFE..GRN225,245,250,265,270

 1
Common parts
90080-17021
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90179-06158
