GRN265L-PRADKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )1GRFE

Click highlighted areas on diagram

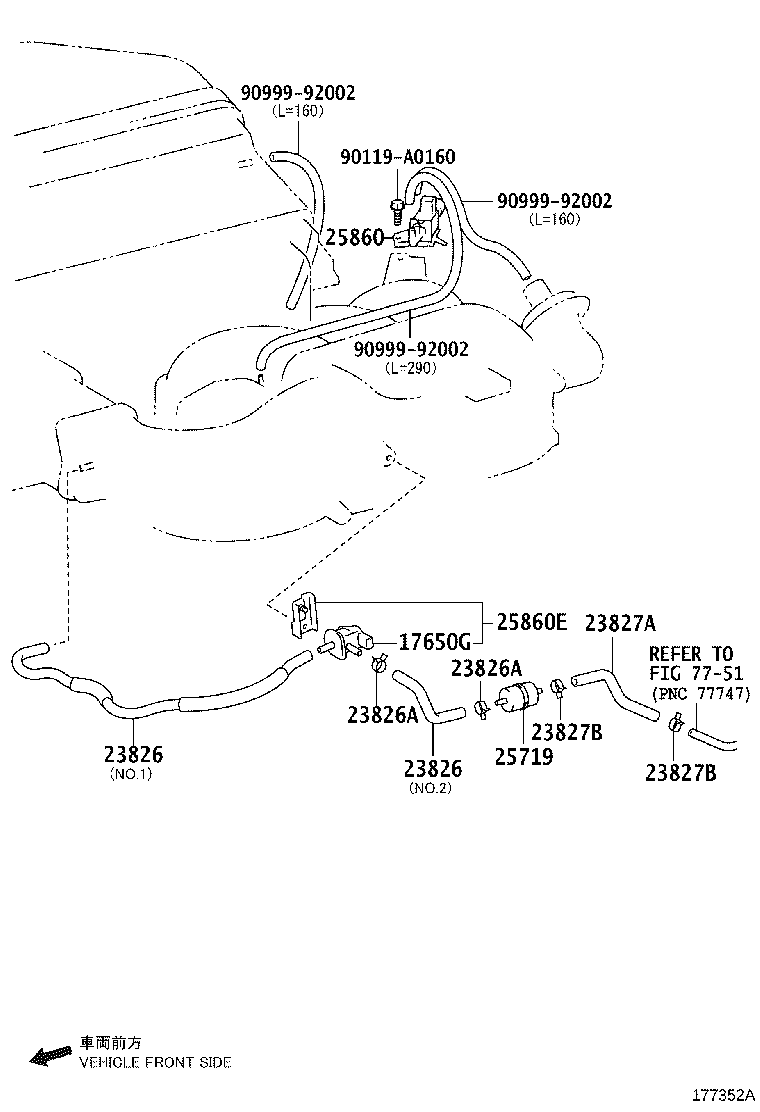

AIR INJECTION SYSTEM

diagram 17650G 23826 23826 23826A 23826A 23827A 23827B 23827B 25719 25860 25860E 7751 90119A0160 9099992002 9099992002 9099992002
Part # Description Qty Price
17650G - VALVE, DUTY VACUUM SWITCHING
90910-TC001

1GRFE..GRN225,245,250,265,270

MARK 90910-TC001

 1
90910-AC001

1GRFE..GRN245,265..DCB..5FC

MEXICO SPEC

 1
90910-12276

1GRFE..GRN225,245,250,265,270

MARK 90910-12276

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0P160

1GRFE..GRN225,245,250,265,270

NO.1

 1
23826-0P180

1GRFE..GRN225,245,250,265,270

NO.2

 1
23826-0P010

1GRFE..GRN245,265..DCB..5FC

MEXICO SPEC

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0P160

1GRFE..GRN225,245,250,265,270

NO.1

 1
23826-0P180

1GRFE..GRN225,245,250,265,270

NO.2

 1
23826-0P010

1GRFE..GRN245,265..DCB..5FC

MEXICO SPEC

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

1GRFE..GRN225,245,250,265,270

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

1GRFE..GRN225,245,250,265,270

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0P110

1GRFE..GRN225,245,250,265,270

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1GRFE..GRN225,245,250,265,270

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1GRFE..GRN225,245,250,265,270

 2
25719 - TANK, VACUUM SURGE
25719-50040

1GRFE..GRN225,245,250,265,270

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0P010

1GRFE..GRN225,245,250,265,270

 1
25860E - VALVE, VACUUM SWITCHING, NO.2
25860-0P020

1GRFE..GRN225,245,250,265,270

 1
Common parts
90119-A0160
90999-92002
Linked diagrams
7751
