GRN265L-CRFDKA (2004)
Toyota Tacoma

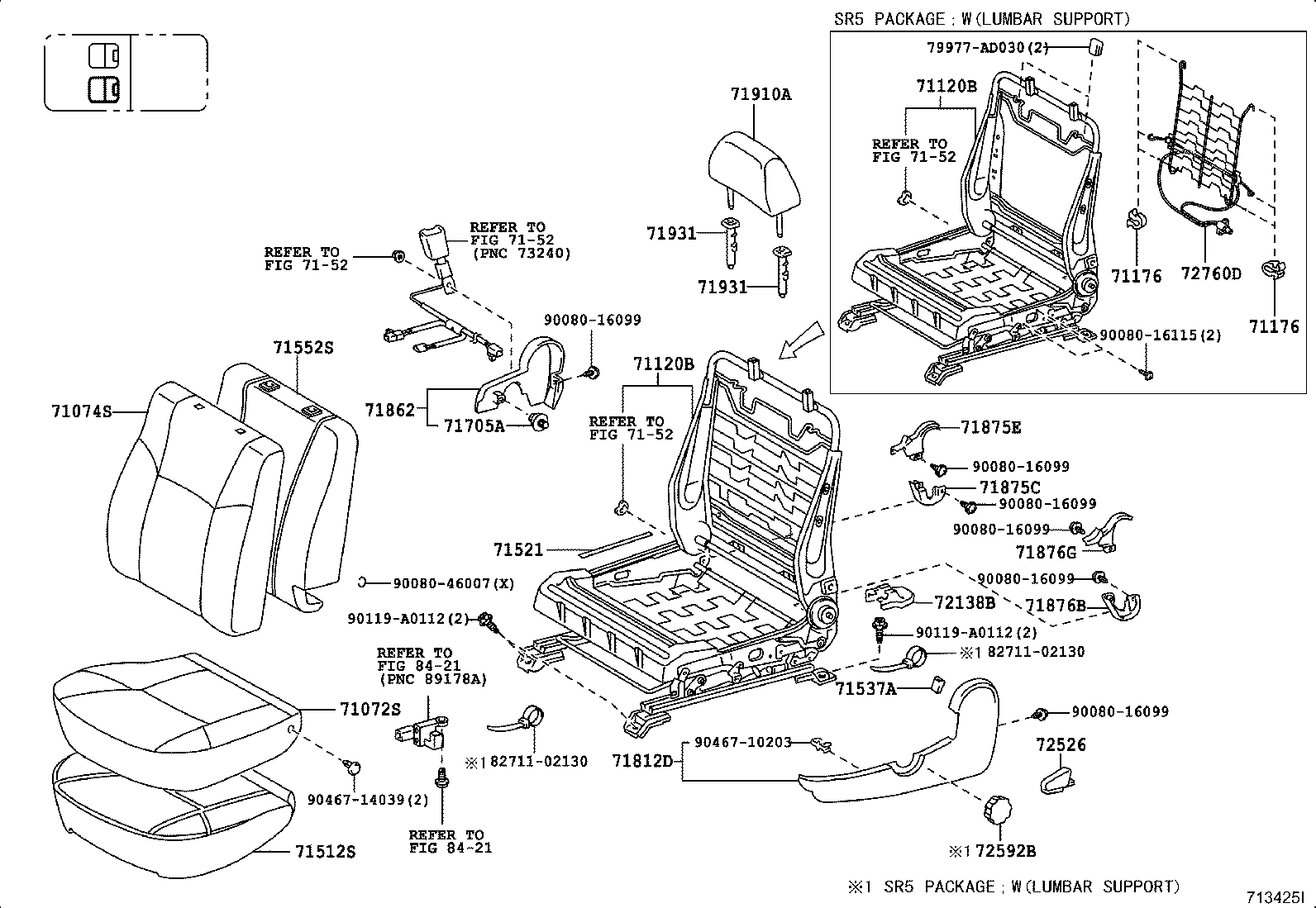

ILLUST NO. 1 OF 3(0409-0805)GRN245,265,TRN22#,24#,26#..LCB,RCB
DRIVER SEAT - SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71072-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71072-AD010B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71072-AD020E4 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71072-AD020B3 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71072-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71072-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71072-AD011B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71074-AD030B1 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71074-AD020B2 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71074-AD021B2 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71074-AD030E3 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71120-AD020 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71120-AD030 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71120-AD020 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71120-AD030 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
6 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
6 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-AD020 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71512-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71512-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71512-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
4 | ||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
4 | ||
| 71521-AD030 |
GRN245,250,265,270,TRN225,245,265 |
2 | ||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71552-AD020 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71552-AD020 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71552-AD060 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AD020B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-AD020E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71812-AD020E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 71812-AD010B0 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71812-AD020E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 71812-AD020E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71862-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 71862-AD010E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71862-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 71862-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71875-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71876-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AD030E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
2 | ||
| 71910-AD030B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-AD020B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
2 | ||
| 72138-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 72526-AD010E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 72526-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 72526-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 72526-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 72592-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 72592-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 72592-AD010B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 72592-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 72592-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 72592-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 72592-AD010E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AD010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 72760-AD010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 72760-AD010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 72760-AD010 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| Common parts | ||||
| 79977-AD030 | ||||
| 82711-02130 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 3(0409-0805)GRN225,250,270 ; (0409-0805)GRN245,265..DCB ; (0908-1109)GRN245,250,265,
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71072-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71072-AD010B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71072-AD020E4 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71072-AD020B3 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71072-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71072-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71072-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71072-AD011B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71074-AD030B1 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71074-AD020B2 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71074-AD021B2 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71074-AD030E3 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71120-AD020 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71120-AD030 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 71120-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
6 | ||
| 71176 - PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH | ||||
| 71173-0E010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
6 | ||
| 71173-0E010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
6 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-AD020 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71512-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71512-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71512-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
4 | ||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
4 | ||
| 71521-AD030 |
GRN245,250,265,270,TRN225,245,265 |
2 | ||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71552-AD020 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71552-AD020 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71552-AD060 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AD020B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71812-AD020E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71812-AD020E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 71812-AD010B0 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71812-AD020B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71812-AD020E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 71812-AD020E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71862-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 71862-AD010E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71862-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 71862-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71875-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA060 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71876-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AD030E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
2 | ||
| 71910-AD030B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-AD020B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
2 | ||
| 72138-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 72526-AD010E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 72526-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 72526-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 72526-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 72592-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,FAWN,TRIM4# |
1 | ||
| 72592-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 72592-AD010B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 72592-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),FAWN,TRIM4# |
1 | ||
| 72592-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 72592-AD010E0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),FAWN,TRIM4# |
1 | ||
| 72592-AD010E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-AD010 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE |
1 | ||
| 72760-AD010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 72760-AD010 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 72760-AD010 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| Common parts | ||||
| 79977-AD030 | ||||
| 82711-02130 | ||||
| 90080-16099 | ||||
| 90080-16115 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 3(0409-0805)GRN245,250,265,270,TRN22#,24#,26# ; (0908-1109)GRN245,250,265,270..DCB ;
PASSENGER SEAT W(SEAT BACK BORD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71071-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71071-AD020B3 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-AD010B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71071-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71071-AD020E4 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71071-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71071-AD011B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71071-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AD030B1 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71073-AD020B5 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71073-AD030E5 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71073-AD021B5 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71110-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71110-AD060 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71110-AD020 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71511-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71511-AD020 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71511-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71551-AD020 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71551-AD060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71551-AD060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71551-AD060 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-AD030 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-01010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71771-01010B1 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AD020B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71811-AD030B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71811-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71811-AD030B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71811-AD030B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71813-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71814-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71831-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71832-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71861-AD020B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71861-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71861-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71861-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71875-AA060 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71875-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71875-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71875-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71875-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71876-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71876-AA060 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71876-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AD030E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
2 | ||
| 71910-AD030B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-AD020B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
2 | ||
| 72137-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
2 | ||
| 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 72505-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 72506-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 72525-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-01030E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 72525-01030B1 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-01040B1 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 72525-01040E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 72529 - ROD, FRONT SEAT BACK LOCK HANDLE | ||||
| 72529-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 90080-10248 | ||||
| 90080-16099 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||

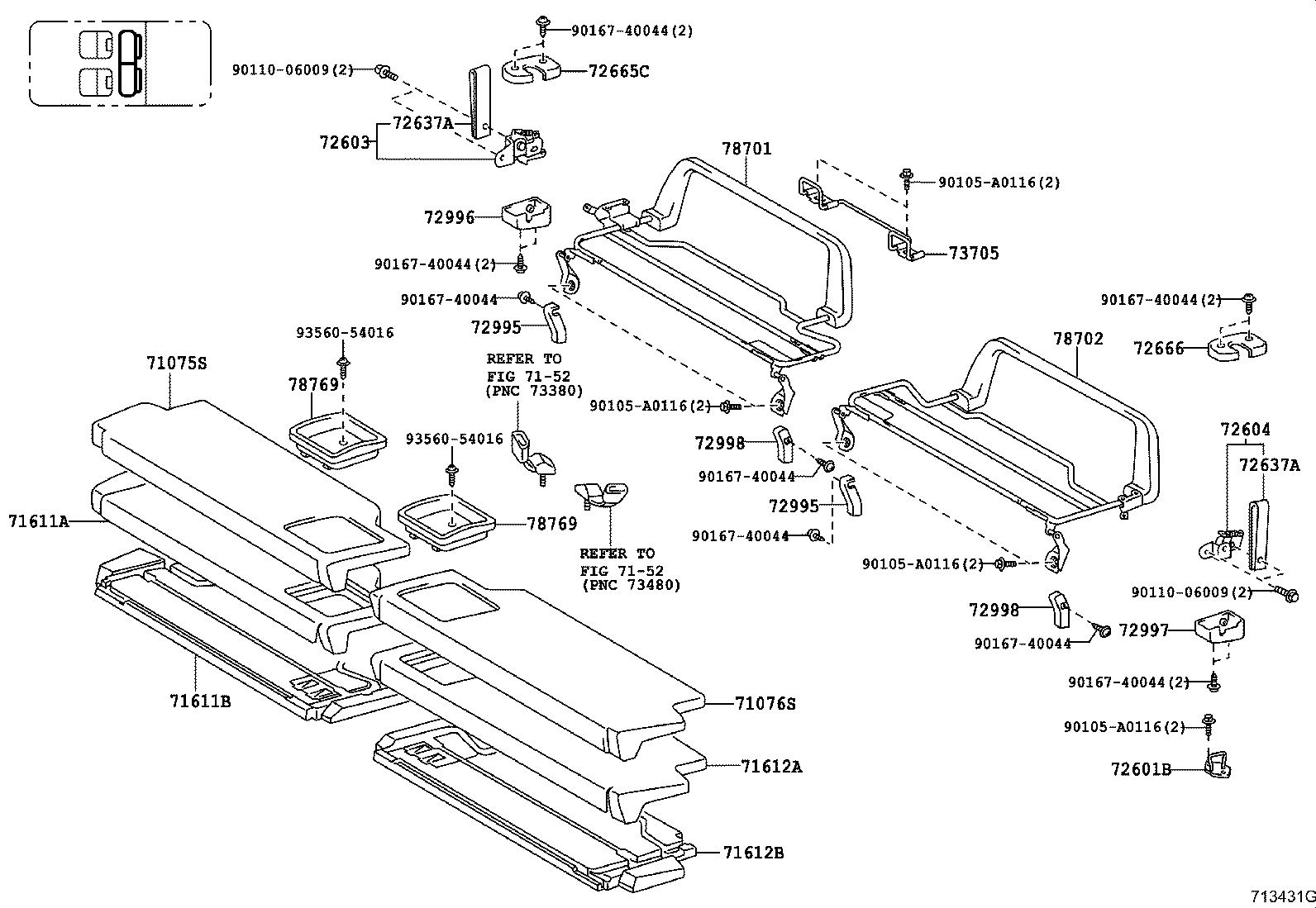

ILLUST NO. 3 OF 3(0409-0805)LCB
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-04180B2 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE C-*104 |
1 | ||
| 71075-04180B0 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE A-*104 |
1 | ||
| 71075-04180B3 |
GRN245,265..LCB GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71075-04180B1 |
GRN245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71075-04180B4 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71075-04180E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71075-04180E1 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71075-04180B0 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE A-*104 |
1 | ||
| 71075-04180B1 |
GRN245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71075-04180B2 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE C-*104 |
1 | ||
| 71075-04180E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71075-04180B3 |
GRN245,265..LCB GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71075-04180B4 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71075-04180E1 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-04050E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71076-04050B3 |
GRN245,265..LCB GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71076-04050B2 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE C-*104 |
1 | ||
| 71076-04050B1 |
GRN245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71076-04050B0 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE A-*104 |
1 | ||
| 71076-04050E1 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71076-04050B4 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71076-04050B0 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE A-*104 |
1 | ||
| 71076-04050B2 |
GRN245,265,TRN225,245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE C-*104 |
1 | ||
| 71076-04050B1 |
GRN245,265..LCB MED. GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71076-04050B3 |
GRN245,265..LCB GRAY,TRIM13,SEAT = TYPE B-*104 |
1 | ||
| 71076-04050E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71076-04050E1 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 71076-04050B4 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-04020 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 71611B - PAD, REAR NO.1 SEAT CUSHION | ||||
| 71611-04050 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-04010 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 71612B - PAD, REAR SEAT CUSHION, B | ||||
| 71612-04050 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-04020 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-04020E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 72603-04020B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 72604-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-04030B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 72637-04030E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-04030B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 72637-04030E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
2 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 72665-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 72666-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-04040 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-04040 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 72996-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 72997-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-04020 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-04020 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-04010 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 78701-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
1 | ||
| 78702-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 78769 - TRAY, SUB SEAT BACK | ||||
| 78769-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
2 | ||
| 78769-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 78769 - TRAY, SUB SEAT BACK | ||||
| 78769-04010E0 |
GRN245,265,TRN225,245,265..LCB FAWN,TRIM4# |
2 | ||
| 78769-04010B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-A0116 | ||||
| 90110-06009 | ||||
| 90167-40044 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 3(0409-0805)GRN225,245,250,265,270
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71071-AD030B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71071-AD020B3 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71071-AD010B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71071-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71071-AD020E4 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71071-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71071-AD011B4 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71071-AD031B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71073-AD030B1 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71073-AD020B5 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71073-AD080B1 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71073-AD030E5 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
1 | ||
| 71073-AD021B5 |
GRN245,265,TRN225,245,265..LCB GRAY,TRIM1# |
1 | ||
| 71073-AD081B2 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71110-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71110-AD060 |
GRN245,265,TRN225,245,265..LCB |
1 | ||
| 71110-AD020 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71511-AD010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71511-AD020 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71511-AD020 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
4 | ||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
4 | ||
| 71521-AD030 |
GRN245,250,265,270,TRN225,245,265 |
2 | ||
| 71521-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-AA020 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71551-AD030 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71551-AD020 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 71551-AD060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71551-AD060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71551-AD060 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71705A - CLIP(FOR FRONT SEAT BACK BOARD) | ||||
| 71769-33020 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AD020B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71811-AD030B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71811-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71811-AD030B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71811-AD030B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4,GRAY,TRIM1# |
1 | ||
| 71861-AD020B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71861-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A),GRAY,TRIM1# |
1 | ||
| 71861-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71861-AD010B0 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY),GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71875-AA060 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71875-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71875-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71875-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71875-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD010B0 |
GRN245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71876-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 71876-AA060 |
GRN245,265..LCB SR5 PACKAGE&STREET PACKAGE 4X4,2X4 |
1 | ||
| 71876-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876-AA060 |
GRN245,265..LCB SR5 PACKAGE&WITH(*FTP & *EUC:PNC51405A ONLY) |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AD020E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| 71876-AD020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AD030E0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,FAWN,TRIM4# |
2 | ||
| 71910-AD030B0 |
GRN245,265,TRN225,245,265..LCB SR5 PACKAGE,GRAY,TRIM1# |
2 | ||
| 71910-AD020B0 |
GRN225,245,265,TRN225,245,265..LCB GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B8 |
GRN225,245,250,265,270,TRN225,245,265 W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
GRN245,250,265,270,TRN225,245,265 W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
2 | ||
| 72138-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AD010B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 72525-AD010E0 |
GRN245,250,265,270,TRN225,245,265 FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 79977-AD010 | ||||
| 90080-16099 | ||||
| 90080-46007 | ||||
| 90119-A0112 | ||||
| 90467-10203 | ||||
| 90467-14039 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
