GRN265L-CRFDKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )GRN225,265..6F

Click highlighted areas on diagram

RA60

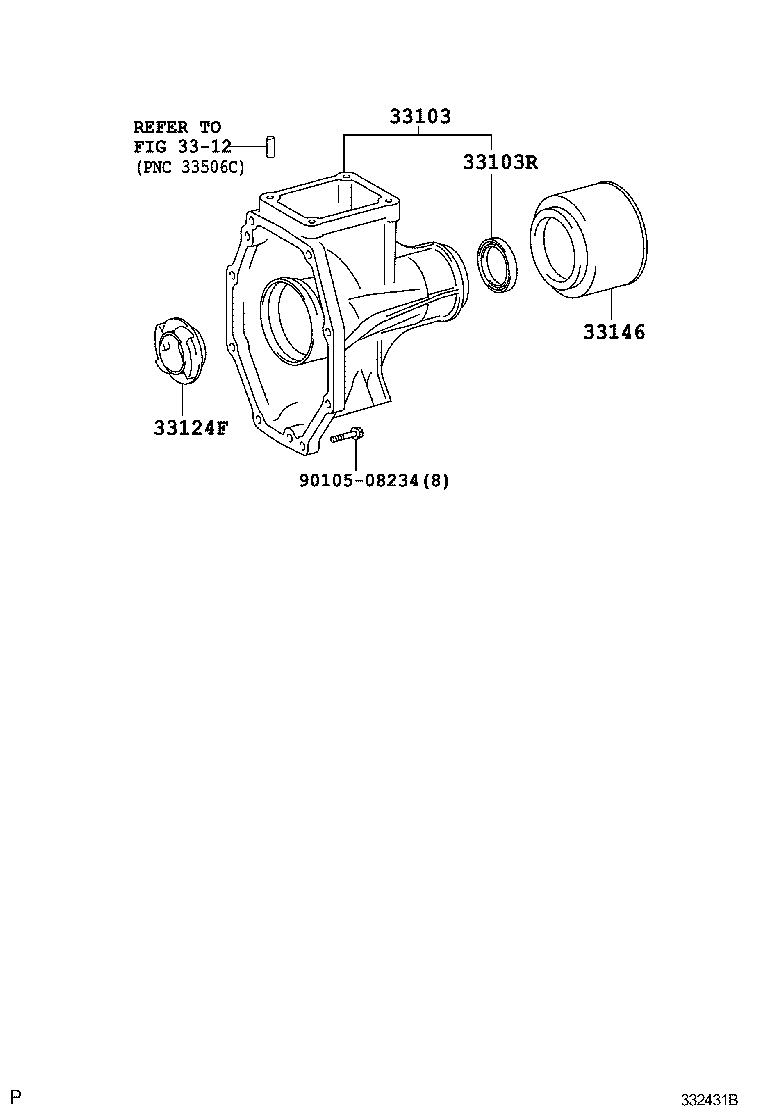

diagram 33103 33103R 3312 33124F 33146 9010508234
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35190

GRN225,265..6F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-45024

GRN225,265..6F

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35150

GRN225,265..6F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-35020

GRN225,265..6F

 1
Common parts
90105-08234
Linked diagrams
3312
