GRN265L-CRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )TRN22#,26#..5F

Click highlighted areas on diagram

R155

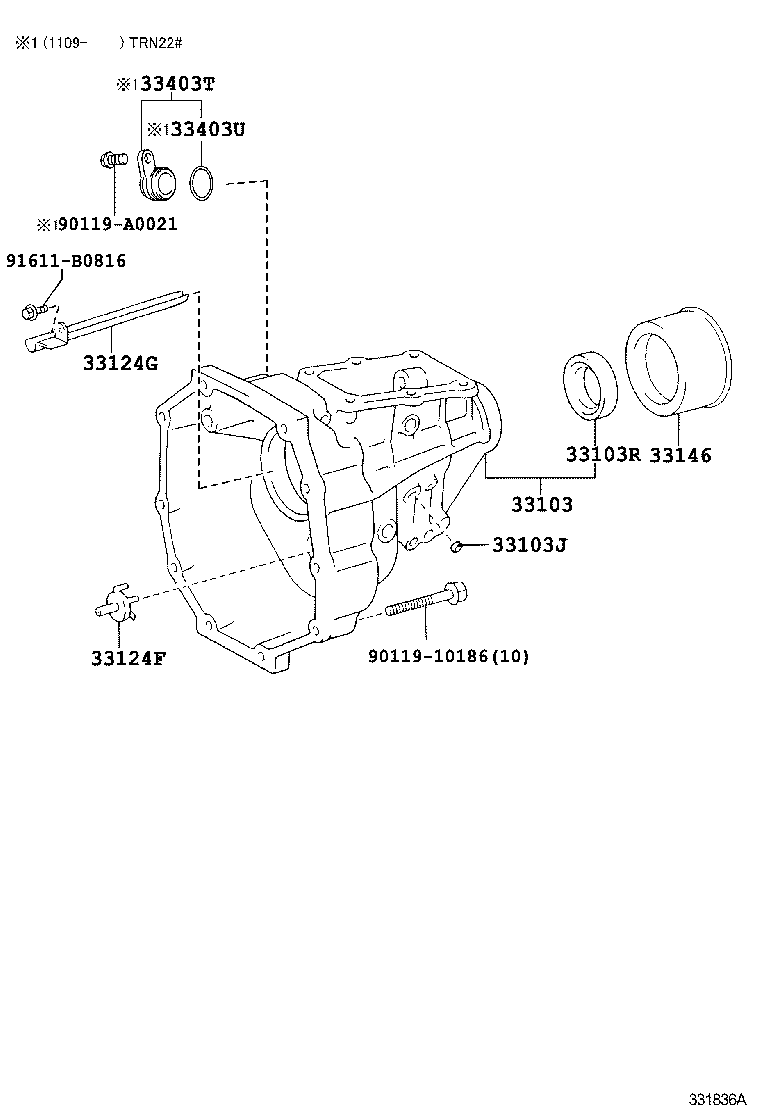

diagram 33103 33103J 33103R 33124F 33124G 33146 33403T 33403U 9011910186 90119A0021 91611B0816
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35180

TRN22#,26#..5F

 1
33103J - PLUG, TIGHT(FOR EXTENSION HOUSING)
90341-10065

TRN22#,26#..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-40032

TRN22#,26#..5F

 1
90311-40001

TRN22#,26#..5F

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

TRN22#,26#..5F

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-35090

TRN22#,26#..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-35030

TRN22#,26#..5F

 1
Common parts
90119-10186
90119-A0021
91611-B0816
