GRN250L-PRADKA (2011)
Toyota Tacoma

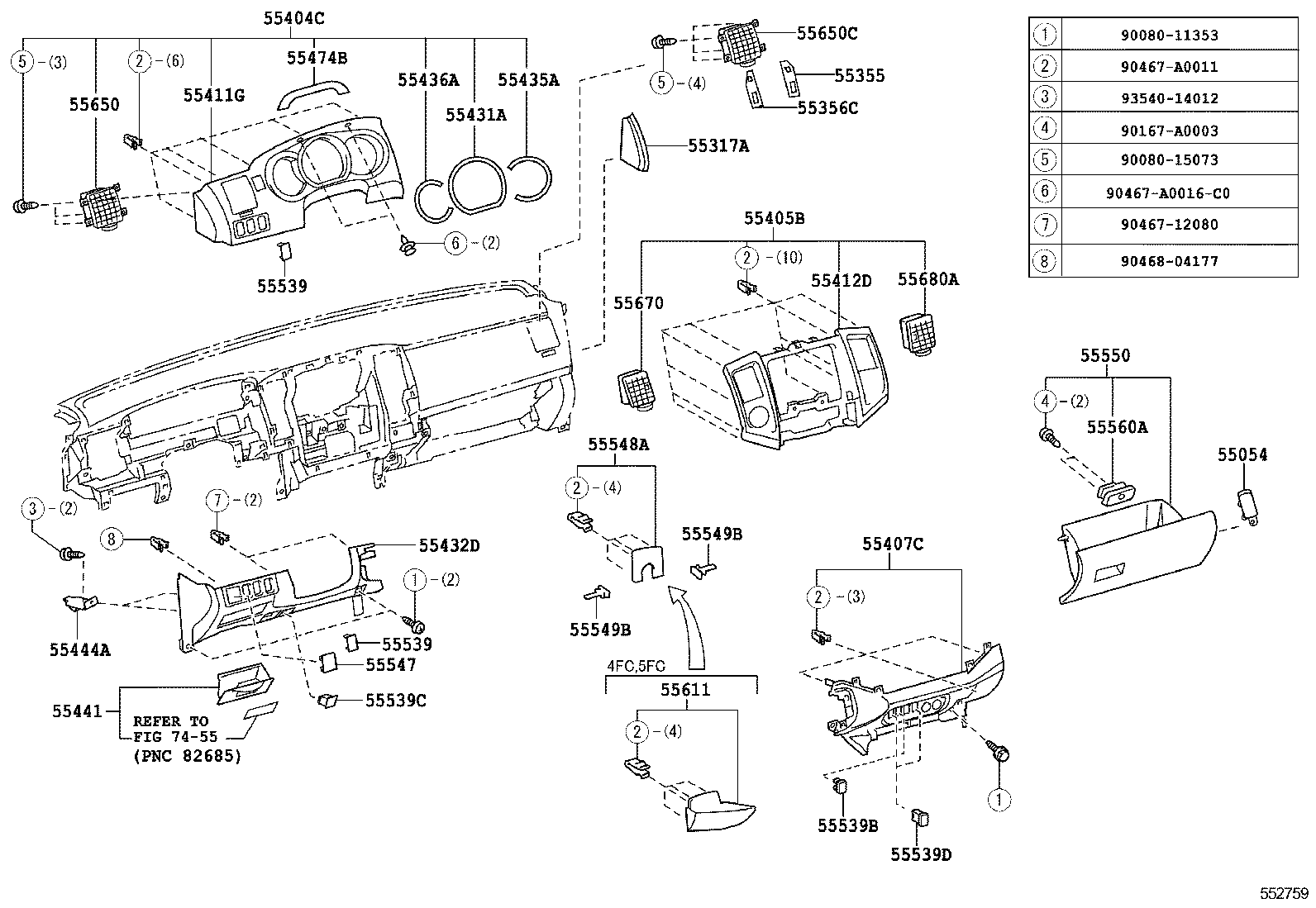

ILLUST NO. 1 OF 2(0409-1508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-04041 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-04061B3 |
GRN245,250,265,270,TRN225,245,265 SAND BEIGE,TRIM4# |
1 | ||
| 55301-04061B1 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-04030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55313 - PANEL, INSTRUMENT, LOWER LH | ||||
| 55313-35030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-04090 |
GRN225,245,250,265,270,TRN22#,24#,265 |
1 | ||
| 55330-04120 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 61183B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH | ||||
| 61183-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-04030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 55345-04020 | ||||
| 55345-04030 | ||||
| 90080-11353 | ||||
| 90080-11697 | ||||
| 90080-15073 | ||||
| 90080-17191 | ||||
| 90080-18013 | ||||
| 90105-A0071 | ||||
| 90119-A0006 | ||||
| 90119-A0059 | ||||
| 90119-A0157 | ||||
| 90178-A0016 | ||||
| 90178-A0024 | ||||
| 90183-A0002 | ||||
| 90467-A0011 | ||||
| 90541-05080 | ||||
ILLUST NO. 2 OF 2(1109-1508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-04040B0 |
GRN245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-04080B0 |
GRN245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-04070 |
GRN245,250 SPORT PACKAGE |
1 | ||
| 55405-04090 |
GRN245,250,TRN245 |
1 | ||
| 55405-04070 |
GRN245,250,TRN245 SR5 PACKAGE |
1 | ||
| 55405-04070 |
GRN245,250..DCB..5FC LIMITED PACKAGE |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-04050E0 |
GRN245,250,265,270,TRN225,245,265 SAND BEIGE,TRIM4# |
1 | ||
| 55407-04050B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-04080B0 |
GRN245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-04070 |
GRN245,250 SPORT PACKAGE |
1 | ||
| 55412-04090 |
GRN245,250,TRN245 |
1 | ||
| 55412-04070 |
GRN245,250,TRN245 SR5 PACKAGE |
1 | ||
| 55412-04070 |
GRN245,250..DCB..5FC LIMITED PACKAGE |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-04073E1 |
GRN245,250,265,270,TRN225,245,265 SAND BEIGE,TRIM4# |
1 | ||
| 55432-04073B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-04020B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 55441-04020E0 |
GRN245,250,265,270,TRN225,245,265 SAND BEIGE,TRIM4# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-AE010C0 |
GRN245,250,265,270 SPORT PACKAGE,BLACK |
1 | ||
| 55539-AE010C0 |
GRN225,245,250,265,270,TRN225,245,265 BLACK |
1 | ||
| 55539-AE010C0 |
GRN245,250,265,270..DCB LIMITED PACKAGE,BLACK |
1 | ||
| 55539-AE010C0 |
GRN245,250,265,270 FRONT FOG LAMP-WITH,BLACK |
1 | ||
| 55539-AE010C0 |
GRN245,250,265,270..DCB FRONT FOG LAMP-WITH(CHROME PLATED BEZEL),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-AE010C0 |
GRN245,250,265,270 SPORT PACKAGE,BLACK |
1 | ||
| 55539-AE010C0 |
GRN225,245,250,265,270,TRN225,245,265 BLACK |
1 | ||
| 55539-AE010C0 |
GRN245,250,265,270..DCB LIMITED PACKAGE,BLACK |
1 | ||
| 55539-AE010C0 |
GRN245,250,265,270 FRONT FOG LAMP-WITH,BLACK |
1 | ||
| 55539-AE010C0 |
GRN245,250,265,270..DCB FRONT FOG LAMP-WITH(CHROME PLATED BEZEL),BLACK |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060C0 |
GRN225,245,250,265,270,TRN225,245,265 BLACK |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C090 |
GRN245,250,265,270..DCB SPORT PACKAGE&HI-GRADE PACKAGE |
2 | ||
| 55539-0C090 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 55539-0C090 |
GRN245,250,265,270 FRONT SEAT-SPORT,WITH(SEAT HEATER) |
2 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-04061B0 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 55550-04061E1 |
GRN245,250,265,270,TRN225,245,265 SAND BEIGE,TRIM4# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-60020B1 |
GRN225,245,250,265,270,TRN225,245,265 GRAY,TRIM1# |
1 | ||
| 55506-60020E1 |
GRN245,250,265,270,TRN225,245,265 SAND BEIGE,TRIM4# |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-04010B0 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC GRAY,TRIM1# |
1 | ||
| 55611-04010E1 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC SAND BEIGE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-04040B0 |
GRN245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-04040B0 |
GRN245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15073 | ||||
| 90167-A0003 | ||||
| 90467-12080 | ||||
| 90467-A0011 | ||||
| 90467-A0016C0 | ||||
| 90468-04177 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
