GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

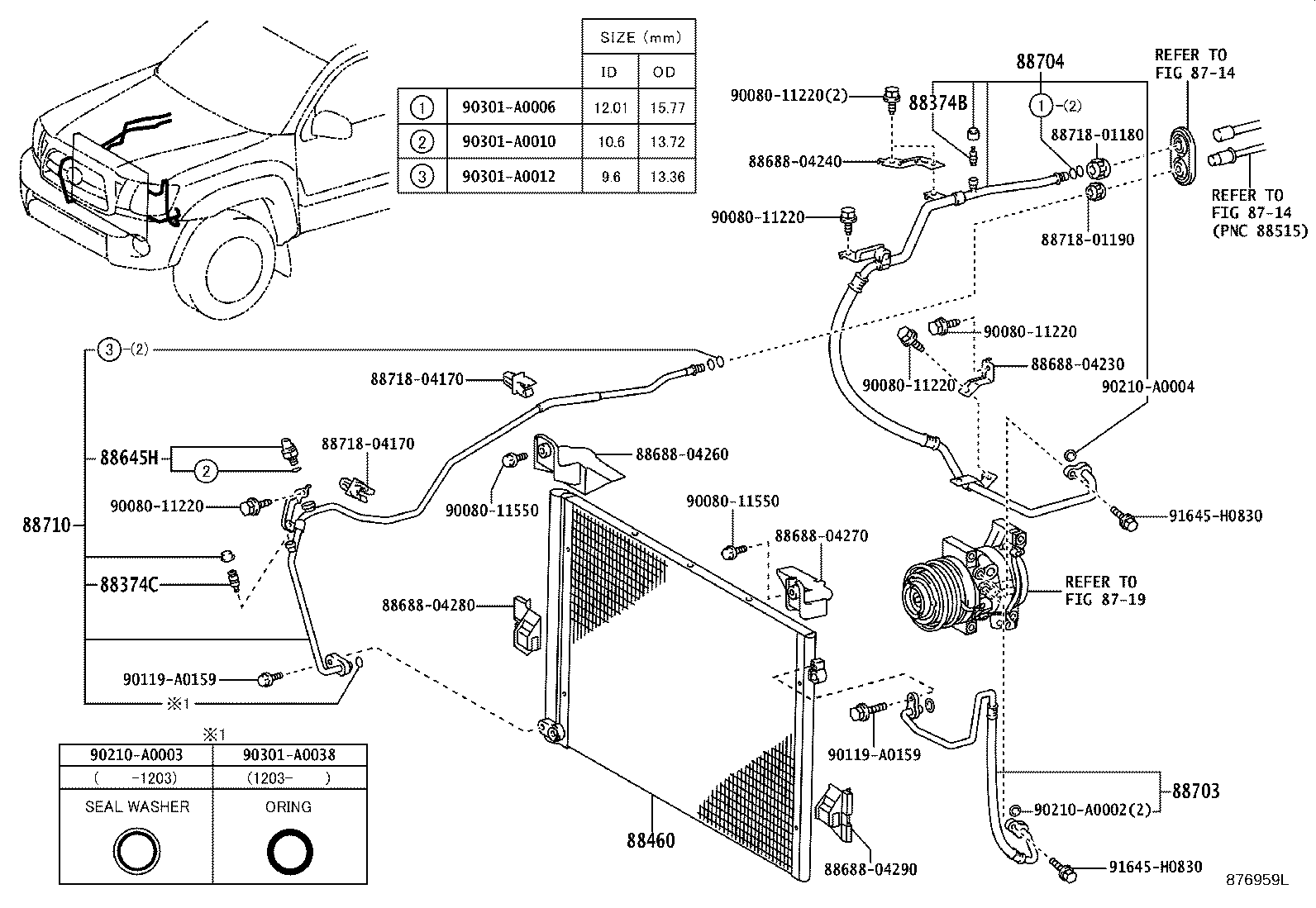

ILLUST NO. 2 OF 2(0409-1508)GRN225,245,250,265,270

Click highlighted areas on diagram

diagram 8714 8714 8719 88374B 88374C 88460 88645H 8868804260 8868804270 8868804280 8868804290 88703 88704 88710 8871801180 8871801190 8871804170 8871804170 9008011220 9008011220 9008011220 9008011550 9008011550 90119A0159 90119A0159 90119A0198 90210A0002 90210A0003 90210A0004 90301A0006 90301A0010 90301A0012 90301A0038 91645H0830 91645H0830
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-04210

GRN225,245,250,265,270

 1
88460-04210

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88645H - SWITCH, PRESSURE NO.1
88645-04060

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88645-04060

GRN225,245,250,265,270

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-04020

GRN225,245,250,265,270

 1
88703-04010

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-04020

GRN225,245,250,265,270

 1
88704-04010

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-04171

GRN225,245,250,265,270

 1
88710-04171

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
Common parts
88688-04260
88688-04270
88688-04280
88688-04290
88718-01180
88718-01190
88718-04170
90080-11220
90080-11550
90119-A0159
90119-A0198
90210-A0002
90210-A0003
90210-A0004
90301-A0006
90301-A0010
90301-A0012
90301-A0038
91645-H0830
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(0409-1508)TRN22#,24#,26#

Click highlighted areas on diagram

diagram 8714 8714 8719 88374B 88374C 88460 88645H 8868804230 8868804240 8868804260 8868804270 8868804280 8868804290 88703 88704 88710 8871801180 8871801190 8871804170 8871804170 9008011220 9008011220 9008011220 9008011220 9008011220 9008011550 9008011550 90119A0159 90119A0159 90210A0002 90210A0003 90210A0004 90301A0006 90301A0010 90301A0012 90301A0038 91645H0830 91645H0830
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-04210

GRN225,245,250,265,270

 1
88460-04210

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88645H - SWITCH, PRESSURE NO.1
88645-04060

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88645-04060

GRN225,245,250,265,270

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-04020

GRN225,245,250,265,270

 1
88703-04010

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-04020

GRN225,245,250,265,270

 1
88704-04010

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-04171

GRN225,245,250,265,270

 1
88710-04171

TRN22#,24#,26#

AIR CONDITIONER-WITH

 1
Common parts
88688-04230
88688-04240
88688-04260
88688-04270
88688-04280
88688-04290
88718-01180
88718-01190
88718-04170
90080-11220
90080-11550
90119-A0159
90210-A0002
90210-A0003
90210-A0004
90301-A0006
90301-A0010
90301-A0012
90301-A0038
91645-H0830
Linked diagrams
8714
8719
