GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1109)

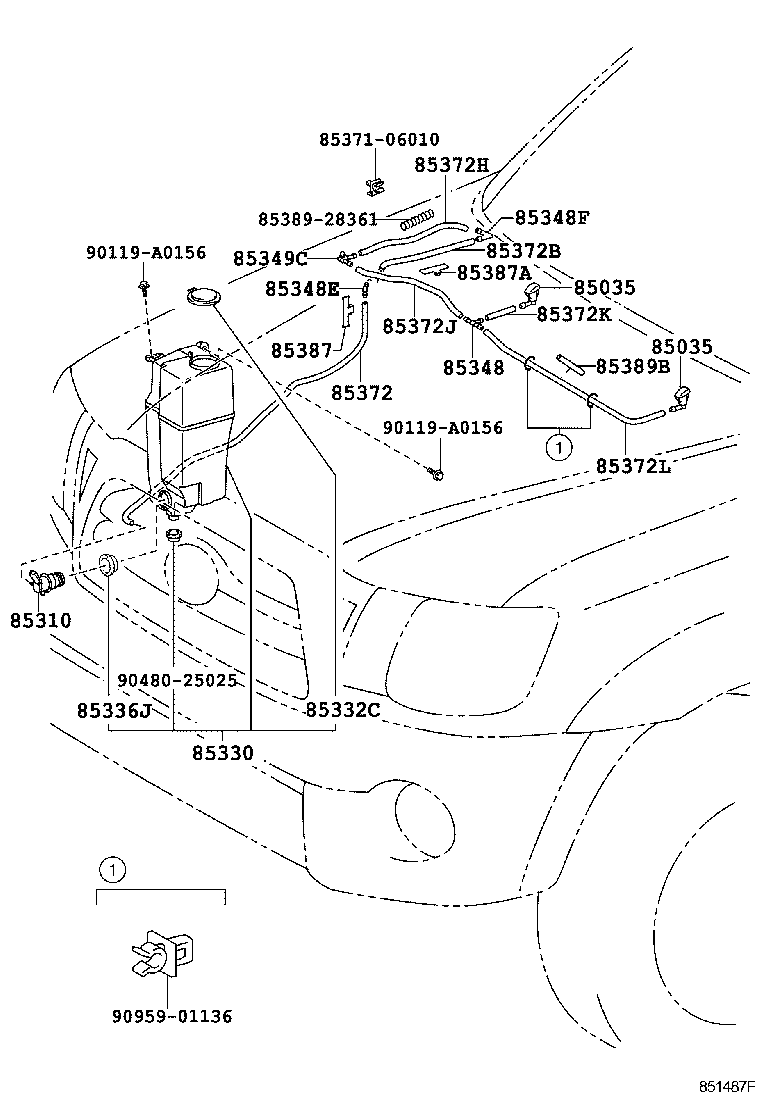

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85332C 85336J 85348 85348E 85348F 85349C 8537106010 85372 85372B 85372H 85372J 85372K 85372L 85387 85387A 8538928361 85389B 90119A0156 90119A0156 9048025025 9095901136
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-04040

GRN225,245,250,265,270,TRN22#,24#,26#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-04040

GRN225,245,250,265,270,TRN22#,24#,26#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-AE010

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-04090

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85332C - CAP, FRONT WASHER TANK
85316-0C060

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85316-20300

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-32220

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85375-02260

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-12360

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85387-14540

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85375-04080

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33041

GRN225,245,250,265,270,TRN22#,24#,26#

L=830

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33040

GRN225,245,250,265,270,TRN22#,24#,26#

L=240

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-33021

GRN225,245,250,265,270,TRN22#,24#,26#

L=280

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90068-33042

GRN225,245,250,265,270,TRN22#,24#,26#

L=420

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90068-33026

GRN225,245,250,265,270,TRN22#,24#,26#

L=50

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90068-33039

GRN225,245,250,265,270,TRN22#,24#,26#

L=640

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-1E450

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85387A - CLAMP, WASHER, NO.2
82711-3A610

GRN225,245,250,265,270,TRN22#,24#,26#

 1
85389B - PROTECTOR, WINDSHIELD WASHER
85389-04080

GRN225,245,250,265,270,TRN22#,24#,26#

 1
Common parts
85371-06010
85389-28361
90119-A0156
90480-25025
90959-01136
