Toyota Tacoma GRN245 ELECTRONIC FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
US
TACOMA
GRN245L-PRADKA (2004)
8404 - ELECTRONIC FUEL INJECTION SYSTEM

GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

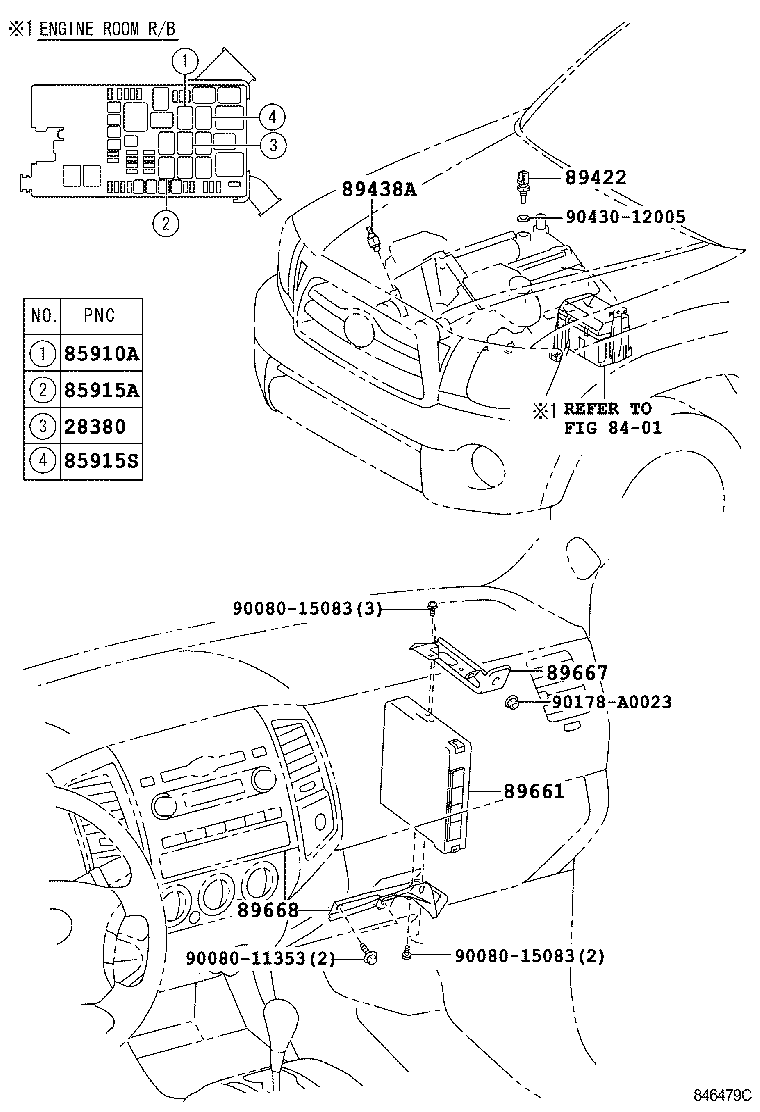

(0409-0805)GRN225,245,250,265,270

Click highlighted areas on diagram

Part #	Description	Period	Qty
28380 - RELAY ASSY, FUEL PUMP
90084-98032	1GRFE..GRN225,245,250,265,270	09/2004 - 05/2008	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87026	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
85915A - RELAY, MAIN
90080-87026	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90080-87026	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89661 - COMPUTER, ENGINE CONTROL
89661-04A30	GRN245,250,265,270..5FC	09/2004 - 12/2004	1
89661-04A31	GRN245,250,265,270..5FC	12/2004 - 08/2005	1
89661-04B80	GRN245,250,265,270..5FC	08/2005 - 09/2006	1
89661-04C40	GRN245,250,265,270..5FC	09/2006 - 12/2006	1
89661-04C41	GRN245,250,265,270..5FC	12/2006 - 05/2007	1
89661-04C42	GRN245,250,265,270..5FC	05/2007 - 08/2007	1
89661-04C70	GRN245,250,265,270..5FC	08/2007 - 03/2008	1
89661-04C71	GRN245,250,265,270..5FC	04/2008 - 05/2008	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-04010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-04010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
Common parts
90080-11353
90080-15083
90178-A0023
90430-12005
Linked diagrams
8401

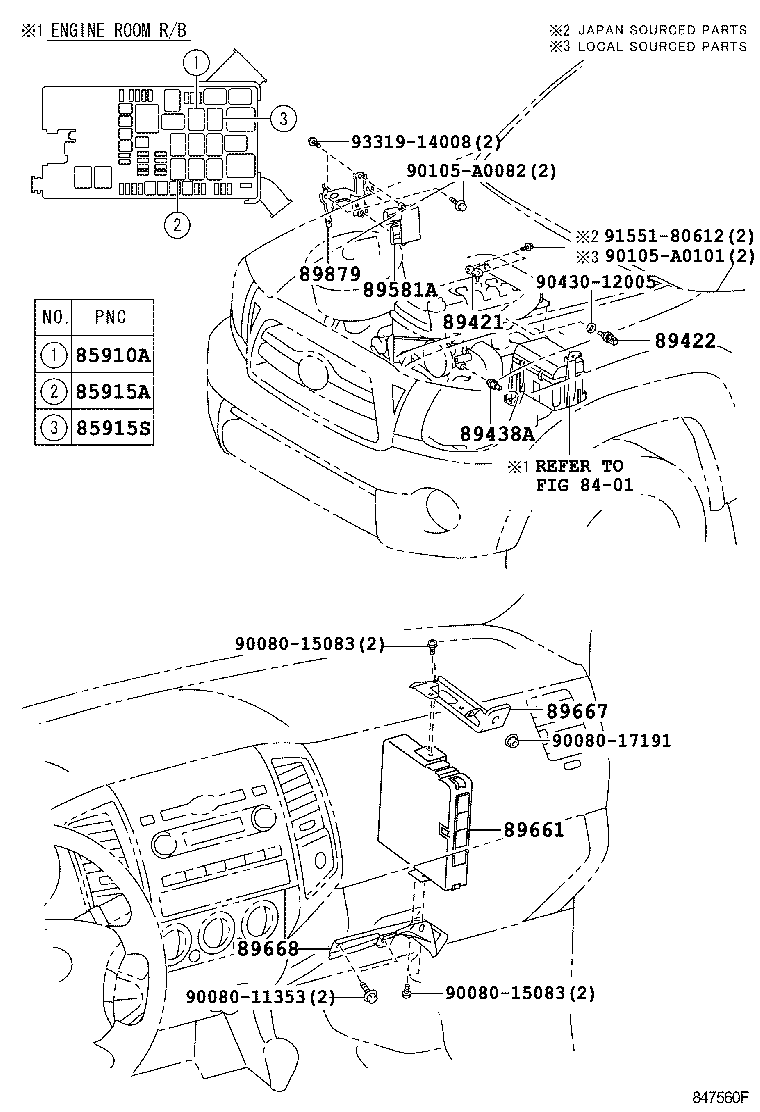

(0409-1109)TRN22#,24#,26#

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87026	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
85915A - RELAY, MAIN
90080-87026	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90080-87026	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-71010	TRN22#,24#,26#	09/2004 - 05/2008	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89581A - DRIVER, AIR INJECTION CONTROL
89581-34041	TRN22#,24#,26#	09/2007 - 05/2008	1
89581-71010	TRN22#,24#,26#	09/2004 - 03/2007	1
89581-34040	TRN22#,24#,26#	03/2007 - 08/2007	1
89661 - COMPUTER, ENGINE CONTROL
89661-04A30	GRN245,250,265,270..5FC	09/2004 - 12/2004	1
89661-04A31	GRN245,250,265,270..5FC	12/2004 - 08/2005	1
89661-04B80	GRN245,250,265,270..5FC	08/2005 - 09/2006	1
89661-04C40	GRN245,250,265,270..5FC	09/2006 - 12/2006	1
89661-04C41	GRN245,250,265,270..5FC	12/2006 - 05/2007	1
89661-04C42	GRN245,250,265,270..5FC	05/2007 - 08/2007	1
89661-04C70	GRN245,250,265,270..5FC	08/2007 - 03/2008	1
89661-04C71	GRN245,250,265,270..5FC	04/2008 - 05/2008	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-04010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-04010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
89879 - BRACKET, INJECTOR DRIVER
89589-35010	TRN22#,24#,26#	09/2004 - 02/2007	1
89589-35010	TRN22#,24#,26#	09/2007 - 05/2008	1
89589-35010	TRN22#,24#,26#	03/2007 - 08/2007	1
Common parts
90080-11353
90080-15083
90080-17191
90105-A0082
90105-A0101
90430-12005
91551-80612
93319-14008
Linked diagrams
8401
