Toyota Tacoma GRN245 WIRING & CLAMP

GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

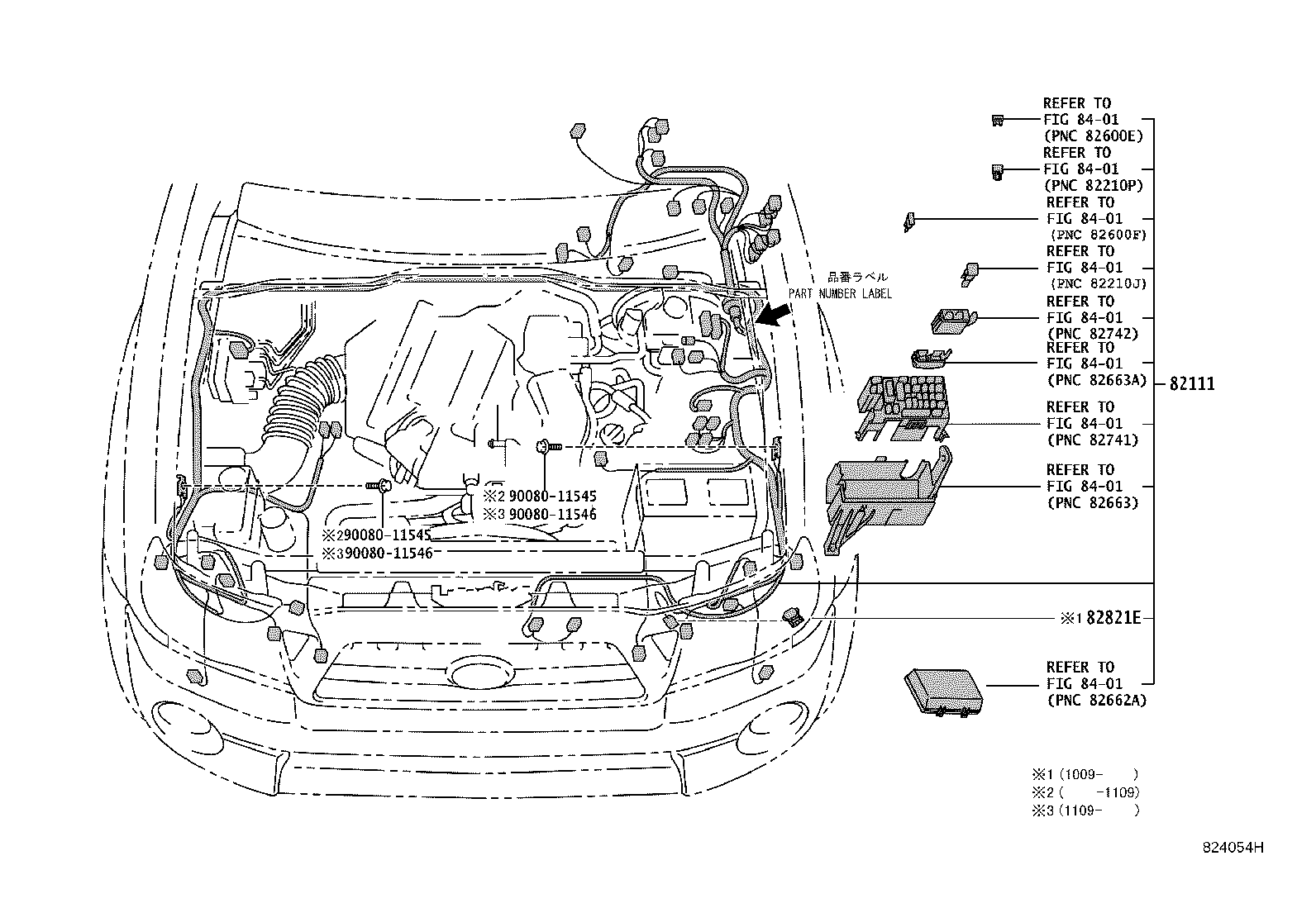

ILLUST NO. 1 OF12(0409-1508)

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-04B10	TRN220..4FC;TRN225,245,265	08/2005 - 08/2006	1
82111-04B00	GRN245,250,265,270..5FC	09/2004 - 08/2005	1
82111-04A00	TRN220..4FC;TRN225,245,265	09/2004 - 08/2005	1
82111-04A40	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)	09/2004 - 08/2005	1
82111-04A70	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&VSC-WITH(W/DOWNHILL ASSIST CONTROL)	09/2004 - 08/2005	1
82111-04A60	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&TOWING PACKAGE-WITH	09/2004 - 08/2005	1
82111-04A50	GRN245,250,265,270 QUICK ORDER PACKAGE&TOWING PACKAGE-WITH	09/2004 - 08/2005	1
82111-04A20	TRN22#,24#,26# VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82111-04A30	GRN245,250,265,270..5FC QUICK ORDER PACKAGE	09/2004 - 08/2005	1
82111-04A80	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH&VSC-WITH(W/DOWNHILL ASSIST CONTROL)	09/2004 - 08/2005	1
82111-04A70	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82111-04A60	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH	09/2004 - 08/2005	1
82111-04A80	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82111-04A70	GRN245,250,265,270 VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82111-04A70	GRN245,250,265,270..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82111-04A40	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4	09/2004 - 08/2005	1
82111-04B30	TRN22#,24#,26# VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82111-04A80	GRN245,250,265,270 QUICK ORDER PACKAGE&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82111-04B50	GRN245,250,265,270..5FC QUICK ORDER PACKAGE	08/2005 - 08/2006	1
82111-04B80	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&TOWING PACKAGE-WITH	08/2005 - 08/2006	1
82111-04B60	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)	08/2005 - 08/2006	1
82111-04B90	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&VSC-WITH(W/DOWNHILL ASSIST CONTROL)	08/2005 - 08/2006	1
82111-04B80	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH	08/2005 - 08/2006	1
82111-04B60	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4	08/2005 - 08/2006	1
82111-04C00	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH&VSC-WITH(W/DOWNHILL ASSIST CONTROL)	08/2005 - 08/2006	1
82111-04C10	GRN245,250,265,270..5FC	08/2005 - 08/2006	1
82111-04B70	GRN245,250,265,270 QUICK ORDER PACKAGE&TOWING PACKAGE-WITH	08/2005 - 08/2006	1
82111-04B90	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82111-04B90	GRN245,250,265,270 VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82111-04B90	GRN245,250,265,270..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82111-04D10	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 09/2006	1
82111-04C00	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82111-04C00	GRN245,250,265,270 QUICK ORDER PACKAGE&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82111-04C50	TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 02/2007	1
82111-04D20	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 09/2006	1
82111-04C70	GRN245,250,265,270..5FC QUICK ORDER PACKAGE	08/2006 - 05/2008	1
82111-04C30	TRN220..4FC;TRN225,245,265	08/2006 - 02/2007	1
82111-04C80	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)	08/2006 - 05/2008	1
82111-04D10	GRN245,250,265,270 VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 05/2008	1
82111-04C60	GRN245,250,265,270..5FC	08/2006 - 05/2008	1
82111-04C80	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4	08/2006 - 05/2008	1
82111-04C90	GRN245,250,265,270 QUICK ORDER PACKAGE&TOWING PACKAGE-WITH	08/2006 - 05/2008	1
82111-04D00	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&TOWING PACKAGE-WITH	08/2006 - 05/2008	1
82111-04D10	GRN245,250,265,270..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 05/2008	1
82111-04D10	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 05/2008	1
82111-04D10	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)	08/2006 - 05/2008	1
82111-04D20	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH&VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)	08/2006 - 05/2008	1
82111-04D00	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A & 51406A)&TOWING PACKAGE-WITH	08/2006 - 05/2008	1
82111-04D20	GRN245,250,265,270 QUICK ORDER PACKAGE&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 05/2008	1
82111-04D20	GRN245,250,265,270 QUICK ORDER PACKAGE&STREET PACKAGE 4X4,2X4&TOWING PACKAGE-WITH&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 05/2008	1
82111-04C51	TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW)	03/2007 - 05/2008	1
82111-04D10	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A ONLY)&VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)	08/2007 - 05/2008	1
82111-04D20	GRN245..5FC QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A ONLY)&TOWING PACKAGE-WITH&VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)	08/2007 - 05/2008	1
82111-04C31	TRN220..4FC;TRN225,245,265	03/2007 - 05/2008	1
82111-04D00	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A ONLY)&TOWING PACKAGE-WITH	08/2007 - 05/2008	1
82111-04C80	GRN245,265 QUICK ORDER PACKAGE&WITH(FTP & EUC:PNC51405A ONLY)	08/2007 - 05/2008	1
82111-04A30	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04A30	09/2004 - 08/2005	1
82111-04B30	TRN22#,24#,26# PART NUMBER LABEL=82111-04B30	08/2005 - 08/2006	1
82111-04B10	TRN220..4FC;TRN225,245,265 PART NUMBER LABEL=82111-04B10	08/2005 - 08/2006	1
82111-04B60	GRN245,250,265,270 PART NUMBER LABEL=82111-04B60	08/2005 - 08/2006	1
82111-04B60	GRN245,265 PART NUMBER LABEL=82111-04B60	08/2005 - 08/2006	1
82111-04A80	GRN245..5FC PART NUMBER LABEL=82111-04A80	09/2004 - 08/2005	1
82111-04B70	GRN245,250,265,270 PART NUMBER LABEL=82111-04B70	08/2005 - 08/2006	1
82111-04B50	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04B50	08/2005 - 08/2006	1
82111-04B90	GRN245..5FC PART NUMBER LABEL=82111-04B90	08/2005 - 08/2006	1
82111-04B90	GRN245,250,265,270 PART NUMBER LABEL=82111-04B90	08/2005 - 08/2006	1
82111-04B80	GRN245,265 PART NUMBER LABEL=82111-04B80	08/2005 - 08/2006	1
82111-04D10	GRN245,265 PART NUMBER LABEL=82111-04D10	08/2006 - 09/2006	1
82111-04C00	GRN245..5FC PART NUMBER LABEL=82111-04C00	08/2005 - 08/2006	1
82111-04C10	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04C10	08/2005 - 08/2006	1
82111-04B80	GRN245,250,265,270 PART NUMBER LABEL=82111-04B80	08/2005 - 08/2006	1
82111-04D20	GRN245,265 PART NUMBER LABEL=82111-04D20	08/2006 - 09/2006	1
82111-04A00	TRN220..4FC;TRN225,245,265 PART NUMBER LABEL=82111-04A00	09/2004 - 08/2005	1
82111-04A20	TRN22#,24#,26# PART NUMBER LABEL=82111-04A20	09/2004 - 08/2005	1
82111-04A40	GRN245,250,265,270 PART NUMBER LABEL=82111-04A40	09/2004 - 08/2005	1
82111-04A50	GRN245,250,265,270 PART NUMBER LABEL=82111-04A50	09/2004 - 08/2005	1
82111-04A70	GRN245..5FC PART NUMBER LABEL=82111-04A70	09/2004 - 08/2005	1
82111-04A60	GRN245,265 PART NUMBER LABEL=82111-04A60	09/2004 - 08/2005	1
82111-04A60	GRN245,250,265,270 PART NUMBER LABEL=82111-04A60	09/2004 - 08/2005	1
82111-04A70	GRN245,250,265,270 PART NUMBER LABEL=82111-04A70	09/2004 - 08/2005	1
82111-04A40	GRN245,265 PART NUMBER LABEL=82111-04A40	09/2004 - 08/2005	1
82111-04A70	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04A70	09/2004 - 08/2005	1
82111-04B00	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04B00	09/2004 - 08/2005	1
82111-04A80	GRN245,250,265,270 PART NUMBER LABEL=82111-04A80	09/2004 - 08/2005	1
82111-04C00	GRN245,250,265,270 PART NUMBER LABEL=82111-04C00	08/2005 - 08/2006	1
82111-04C30	TRN220..4FC;TRN225,245,265 PART NUMBER LABEL=82111-04C30	08/2006 - 02/2007	1
82111-04C50	TRN22#,24#,26# PART NUMBER LABEL=82111-04C50	08/2006 - 02/2007	1
82111-04B90	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04B90	08/2005 - 08/2006	1
82111-04C70	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04C70	08/2006 - 05/2008	1
82111-04C60	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04C60	08/2006 - 05/2008	1
82111-04C80	GRN245,250,265,270 PART NUMBER LABEL=82111-04C80	08/2006 - 05/2008	1
82111-04D00	GRN245,250,265,270 PART NUMBER LABEL=82111-04D00	08/2006 - 05/2008	1
82111-04D20	GRN245,250,265,270 PART NUMBER LABEL=82111-04D20	08/2006 - 05/2008	1
82111-04C31	TRN220..4FC;TRN225,245,265 PART NUMBER LABEL=82111-04C31	03/2007 - 05/2008	1
82111-04C80	GRN245,265 PART NUMBER LABEL=82111-04C80	08/2006 - 05/2008	1
82111-04D10	GRN245,250,265,270..5FC PART NUMBER LABEL=82111-04D10	08/2006 - 05/2008	1
82111-04C90	GRN245,250,265,270 PART NUMBER LABEL=82111-04C90	08/2006 - 05/2008	1
82111-04D10	GRN245,250,265,270 PART NUMBER LABEL=82111-04D10	08/2006 - 05/2008	1
82111-04D00	GRN245,265 PART NUMBER LABEL=82111-04D00	08/2006 - 05/2008	1
82111-04D10	GRN245..5FC PART NUMBER LABEL=82111-04D10	08/2006 - 05/2008	1
82111-04C80	GRN245,265 PART NUMBER LABEL=82111-04C80	08/2007 - 05/2008	1
82111-04D00	GRN245,265 PART NUMBER LABEL=82111-04D00	08/2007 - 05/2008	1
82111-04D20	GRN245..5FC PART NUMBER LABEL=82111-04D20	08/2006 - 05/2008	1
82111-04D20	GRN245..5FC PART NUMBER LABEL=82111-04D20	08/2007 - 05/2008	1
82111-04D10	GRN245..5FC PART NUMBER LABEL=82111-04D10	08/2007 - 05/2008	1
82111-04C51	TRN22#,24#,26# PART NUMBER LABEL=82111-04C51	03/2007 - 05/2008	1
Common parts
90080-11545
90080-11546
Linked diagrams
8401

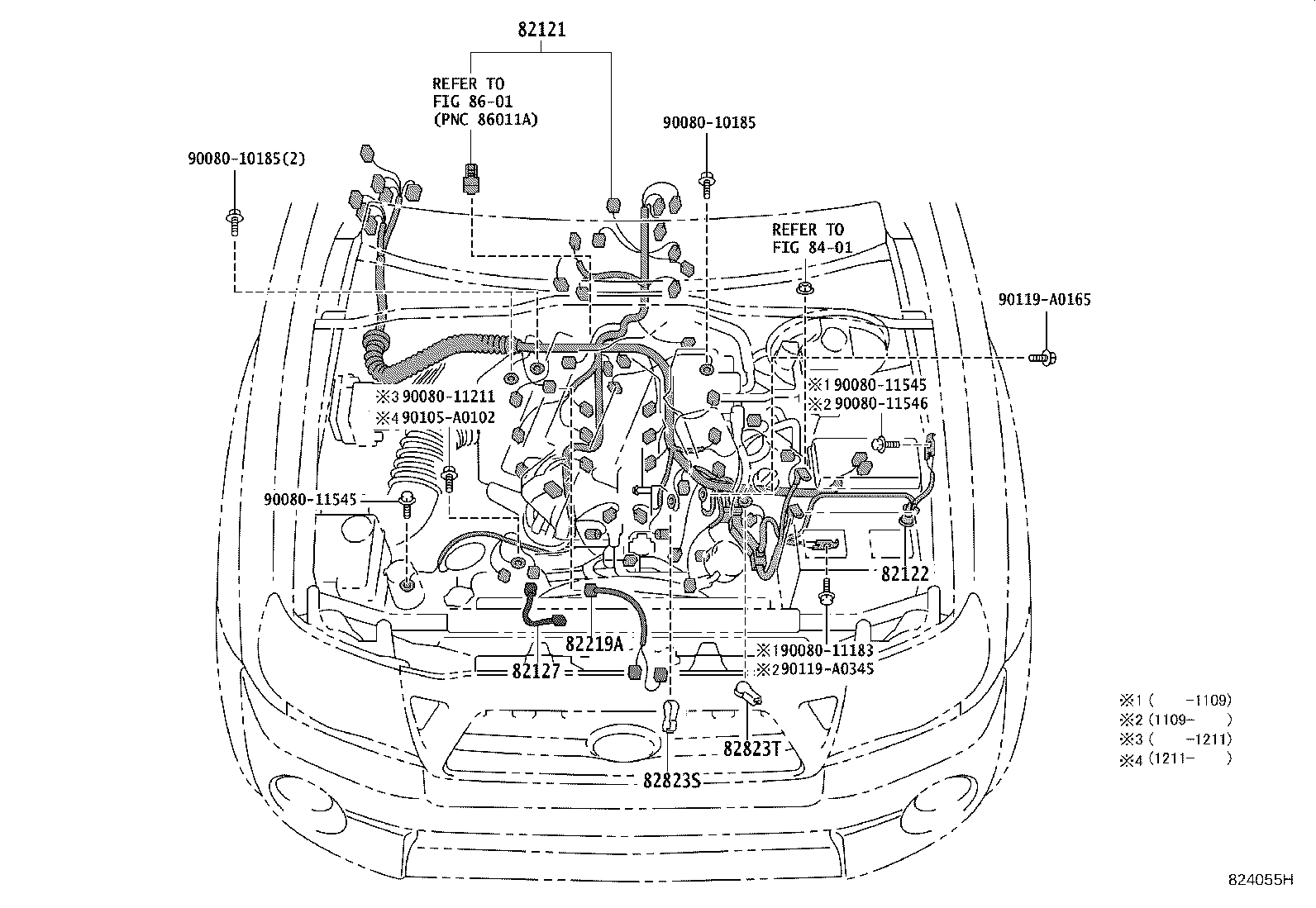

ILLUST NO. 2 OF12(0409-1508)GRN225,245,250,265,270

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-04490	GRN245,250..5FC	09/2004 - 05/2008	1
82122 - WIRE, ENGINE, NO.2
82122-04300	TRN22#,24#,26# AIR CONDITIONER-WITH	09/2004 - 05/2008	1
82122-04320	GRN225,250,270;GRN245,265..5FC	09/2004 - 05/2008	1
82122-04330	TRN22#,24#,26#	09/2004 - 05/2008	1
82127 - WIRE, DIFFERENTIAL
82127-04170	GRN245,250,TRN24#	09/2004 - 05/2008	1
82219A - WIRE, SENSOR
82219-0C010	GRN225,245,250,265,270 (L)	08/2005 - 05/2008	1
82219-35050	TRN22#,24#,26#	09/2004 - 05/2008	1
82219-35020	GRN225,245,250,265,270 (J)	08/2005 - 05/2008	1
82219-35020	GRN225,245,250,265,270	09/2004 - 08/2005	1
82823S - CAP, STARTER TERMINAL
82823-35050	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
Common parts
90080-10185
90080-11183
90080-11211
90080-11545
90080-11546
90105-A0102
90119-A0165
90119-A0345
Linked diagrams
8401
8601

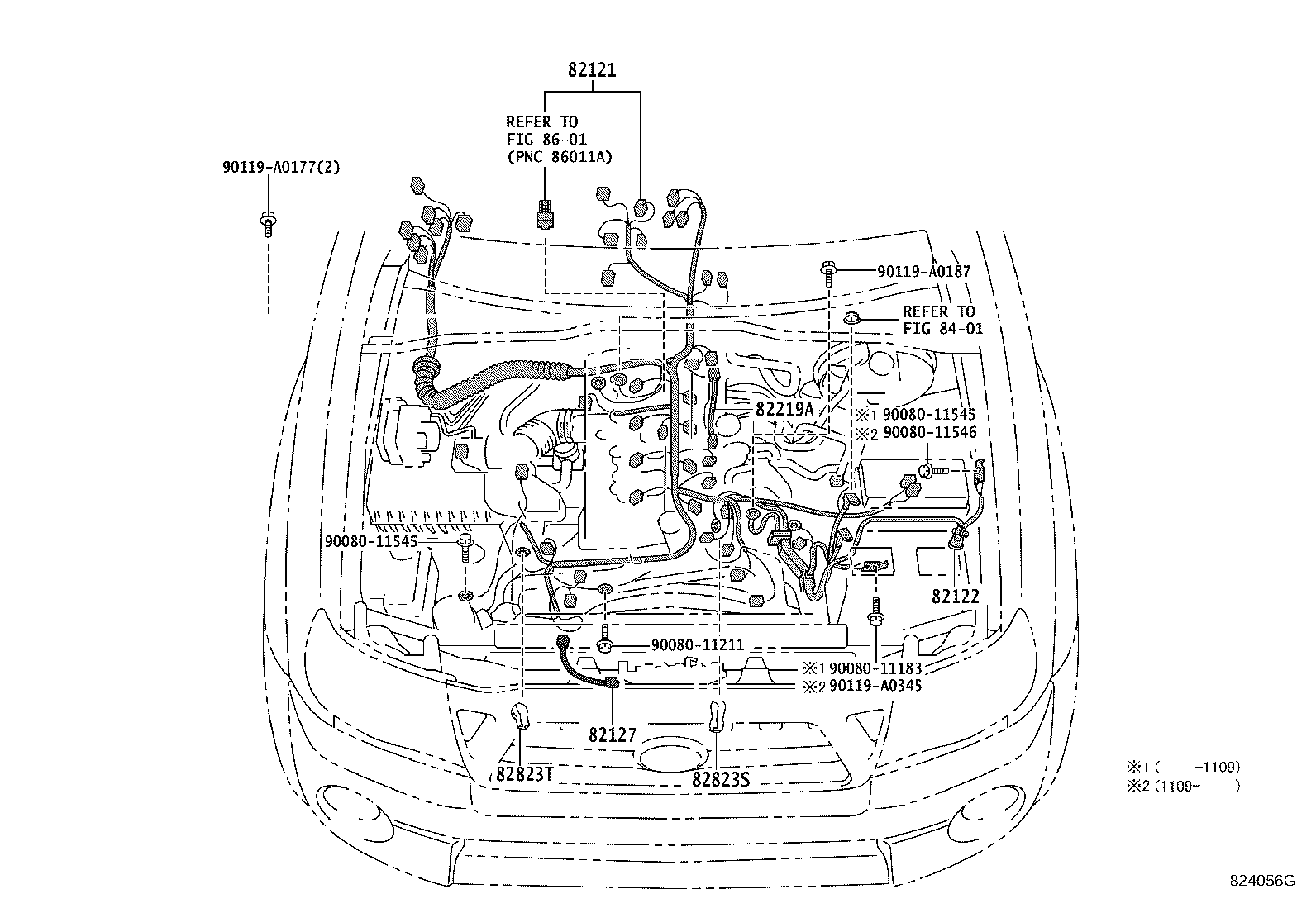

ILLUST NO. 2 OF12(0409-1508)TRN22#,24#,26#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-04490	GRN245,250..5FC	09/2004 - 05/2008	1
82122 - WIRE, ENGINE, NO.2
82122-04300	TRN22#,24#,26# AIR CONDITIONER-WITH	09/2004 - 05/2008	1
82122-04320	GRN225,250,270;GRN245,265..5FC	09/2004 - 05/2008	1
82122-04330	TRN22#,24#,26#	09/2004 - 05/2008	1
82127 - WIRE, DIFFERENTIAL
82127-04170	GRN245,250,TRN24#	09/2004 - 05/2008	1
82219A - WIRE, SENSOR
82219-0C010	GRN225,245,250,265,270 (L)	08/2005 - 05/2008	1
82219-35050	TRN22#,24#,26#	09/2004 - 05/2008	1
82219-35020	GRN225,245,250,265,270 (J)	08/2005 - 05/2008	1
82219-35020	GRN225,245,250,265,270	09/2004 - 08/2005	1
82823S - CAP, STARTER TERMINAL
82823-35050	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
Common parts
90080-11183
90080-11211
90080-11545
90080-11546
90119-A0177
90119-A0187
90119-A0345
Linked diagrams
8401
8601

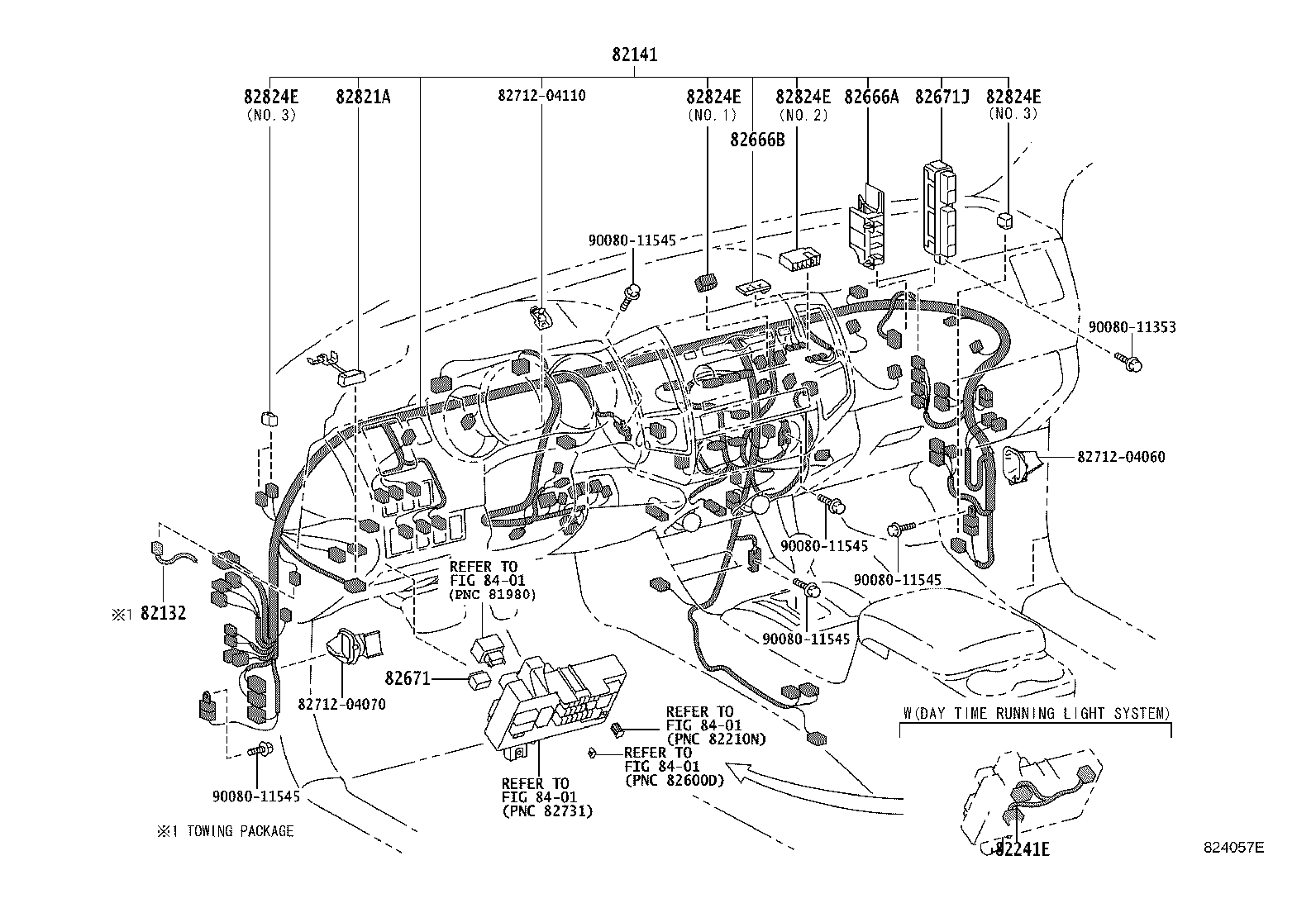

ILLUST NO. 3 OF12(0409-1109)

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-0C010	GRN245,265 TOWING PACKAGE-WITH&WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82132-0C010	GRN245,250,265,270 TOWING PACKAGE-WITH	09/2004 - 05/2008	1
82141 - WIRE, INSTRUMENT PANEL
82141-04210	GRN245,250..DCB..5FC QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 11/2004	1
82141-04210	GRN245..DCB..5FC QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 11/2004	1
82141-04210	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 11/2004	1
82141-04210	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 11/2004	1
82141-04100	GRN245..DCB..5FC	09/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD)	09/2004 - 08/2005	1
82141-04200	GRN245..5FC QUICK ORDER PACKAGE	09/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2005	1
82141-04210	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	11/2004 - 08/2005	1
82141-04210	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	11/2004 - 08/2005	1
82141-04210	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	11/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2005	1
82141-04210	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	11/2004 - 08/2005	1
82141-04530	GRN245..DCB..5FC	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2005 - 08/2006	1
82141-04630	GRN245..5FC QUICK ORDER PACKAGE	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2005 - 08/2006	1
82141-04640	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)	08/2005 - 08/2006	1
82141-04640	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2005 - 08/2006	1
82141-04640	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2005 - 08/2006	1
82141-04640	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2005 - 08/2006	1
82141-04850	GRN245..DCB..5FC	08/2006 - 08/2007	1
82141-04A00	GRN245..5FC QUICK ORDER PACKAGE	08/2006 - 08/2007	1
82141-04A00	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 08/2007	1
82141-04A10	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2006 - 08/2007	1
82141-04A00	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 08/2007	1
82141-04A10	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2006 - 08/2007	1
82141-04851	GRN245..DCB..5FC	08/2007 - 05/2008	1
82141-04A01	GRN245..5FC QUICK ORDER PACKAGE	08/2007 - 05/2008	1
82141-04A01	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)	08/2007 - 05/2008	1
82141-04A01	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD & OFF SW)	08/2007 - 05/2008	1
82141-04A11	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2007 - 05/2008	1
82141-04A11	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2007 - 05/2008	1
82141-04A01	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD & OFF SW);QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)	08/2007 - 05/2008	1
82141-04A10	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2006 - 08/2007	1
82141-04A11	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2007 - 05/2008	1
82141-04A01	GRN245..5FC QUICK ORDER PACKAGE	08/2007 - 05/2008	1
82141-04851	GRN245..DCB..5FC	08/2007 - 05/2008	1
82141-04A11	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2007 - 05/2008	1
82141-04210	GRN245,250..DCB..5FC QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 11/2004	1
82141-04210	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER;QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER;QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 11/2004	1
82141-04100	GRN245..DCB..5FC	09/2004 - 08/2005	1
82141-04200	GRN245..5FC QUICK ORDER PACKAGE	09/2004 - 08/2005	1
82141-04210	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER;SR5 PACKAGE&QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER;SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	11/2004 - 08/2005	1
82141-04200	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD);QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA);VSC-WITH(W/AUTO LSD);SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA);QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA);VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)	09/2004 - 08/2005	1
82141-04210	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	11/2004 - 08/2005	1
82141-04530	GRN245..DCB..5FC	08/2005 - 08/2006	1
82141-04640	GRN245,250..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2005 - 08/2006	1
82141-04630	GRN245..DCB..5FC QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD);QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA);VSC-WITH(W/AUTO LSD);SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA);QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA);VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)	08/2005 - 08/2006	1
82141-04630	GRN245..5FC QUICK ORDER PACKAGE	08/2005 - 08/2006	1
82141-04640	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER;SR5 PACKAGE&QUICK ORDER PACKAGE&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER;SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2005 - 08/2006	1
82141-04850	GRN245..DCB..5FC	08/2006 - 08/2007	1
82141-04A00	GRN245..DCB..5FC VSC-WITH(W/AUTO LSD & OFF SW);QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 08/2007	1
82141-04A10	GRN245..DCB..5FC SR5 PACKAGE&QUICK ORDER PACKAGE&VSC-WITH(W/AUTO LSD & OFF SW)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	08/2006 - 08/2007	1
82141-04A00	GRN245..5FC QUICK ORDER PACKAGE	08/2006 - 08/2007	1
82241E - WIRE RELAY
82241-04030	GRN245..5FC VSC-WITH(W/DOWNHILL ASSIST CONTROL)	09/2004 - 08/2006	1
82241-04030	GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD)	09/2004 - 08/2006	1
82241-04030	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 05/2008	1
82241-04030	GRN245,250,265,270..DCB VSC-WITH(W/AUTO LSD)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2006	1
82241-04030	GRN225,245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW)	08/2006 - 05/2008	1
82241-04030	GRN245..DCB..5FC VSC-WITH(W/DOWNHILL ASSIST CONTROL)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2006	1
82241-04030	GRN245..5FC VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)	08/2006 - 05/2008	1
82241-04030	GRN245..DCB..5FC VSC-WITH(W/DOWNHILL ASSIST CONTROL & OFF SW)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2006 - 05/2008	1
82241-04030	GRN245,250,265,270..DCB VSC-WITH(W/AUTO LSD & OFF SW)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2006 - 05/2008	1
82666A - HOLDER, CONNECTOR NO.2
82666-04030	GRN265..6F;GRN265..DCB;GRN225,245,250,270,TRN220,24#,26#	09/2004 - 05/2008	1
82666B - HOLDER, CONNECTOR NO.3
82666-22070	GRN225,245,250,265,270,TRN220,24#,26#	09/2004 - 05/2008	1
82671 - BLOCK, JUNCTION
82671-30360	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
82671J - BLOCK, JUNCTION, NO.2
82732-04010	GRN225,245,250,265,270,TRN220,24#,26#	09/2004 - 05/2008	1
82821A - COVER, CONNECTOR
82821-20330	GRN225,245,250,265,270,TRN220,24#,26#	09/2004 - 05/2008	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	GRN225,245,250,265,270,TRN220,24#,26# NO.1	09/2004 - 05/2008	1
82824-48110	GRN225,245,250,265,270,TRN220,24#,26# NO.2	09/2004 - 05/2008	1
82824-50110	GRN225,245,250,265,270,TRN220,24#,26# NO.3	09/2004 - 05/2008	3
82824E - CONNECTOR, WIRING HARNESS
82824-28180	GRN225,245,250,265,270,TRN220,24#,26# NO.1	09/2004 - 05/2008	1
82824-48110	GRN225,245,250,265,270,TRN220,24#,26# NO.2	09/2004 - 05/2008	1
82824-50110	GRN225,245,250,265,270,TRN220,24#,26# NO.3	09/2004 - 05/2008	3
82824E - CONNECTOR, WIRING HARNESS
82824-28180	GRN225,245,250,265,270,TRN220,24#,26# NO.1	09/2004 - 05/2008	1
82824-48110	GRN225,245,250,265,270,TRN220,24#,26# NO.2	09/2004 - 05/2008	1
82824-50110	GRN225,245,250,265,270,TRN220,24#,26# NO.3	09/2004 - 05/2008	3
82824E - CONNECTOR, WIRING HARNESS
82824-28180	GRN225,245,250,265,270,TRN220,24#,26# NO.1	09/2004 - 05/2008	1
82824-48110	GRN225,245,250,265,270,TRN220,24#,26# NO.2	09/2004 - 05/2008	1
82824-50110	GRN225,245,250,265,270,TRN220,24#,26# NO.3	09/2004 - 05/2008	3
Common parts
82712-04060
82712-04070
82712-04110
90080-11353
90080-11545
Linked diagrams
8401

ILLUST NO. 4 OF12(0409- )

Click highlighted areas on diagram

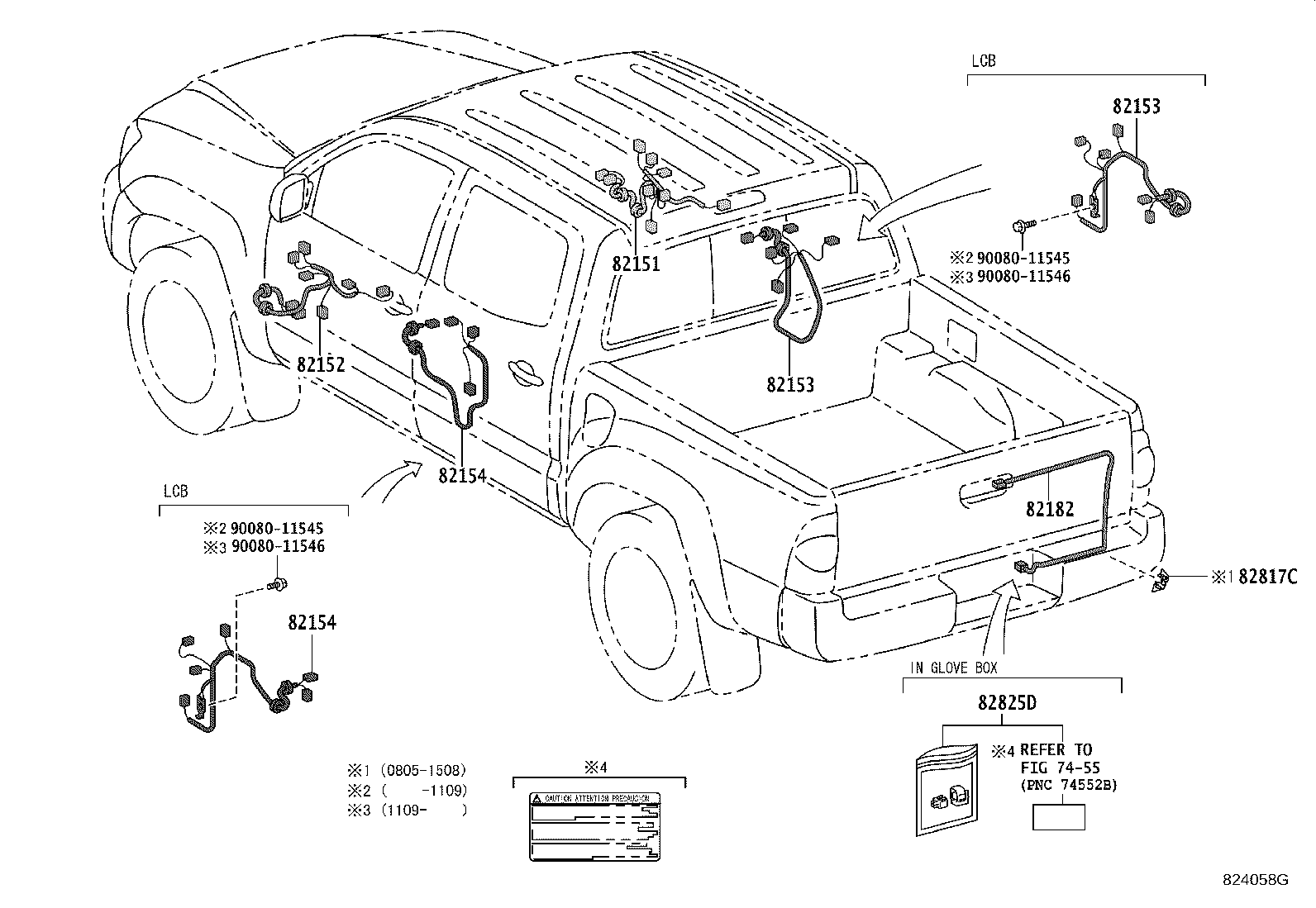

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-04280	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
82152 - WIRE, FRONT DOOR, LH
82152-04220	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82153 - WIRE, REAR DOOR, NO.1
82153-04100	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82153 - WIRE, REAR DOOR, NO.1
82153-04100	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82154 - WIRE, REAR DOOR, NO.2
82153-04100	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82154 - WIRE, REAR DOOR, NO.2
82153-04100	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
Common parts
90080-11545
90080-11546
Linked diagrams
7455

ILLUST NO. 5 OF12(0409-1006)

Click highlighted areas on diagram

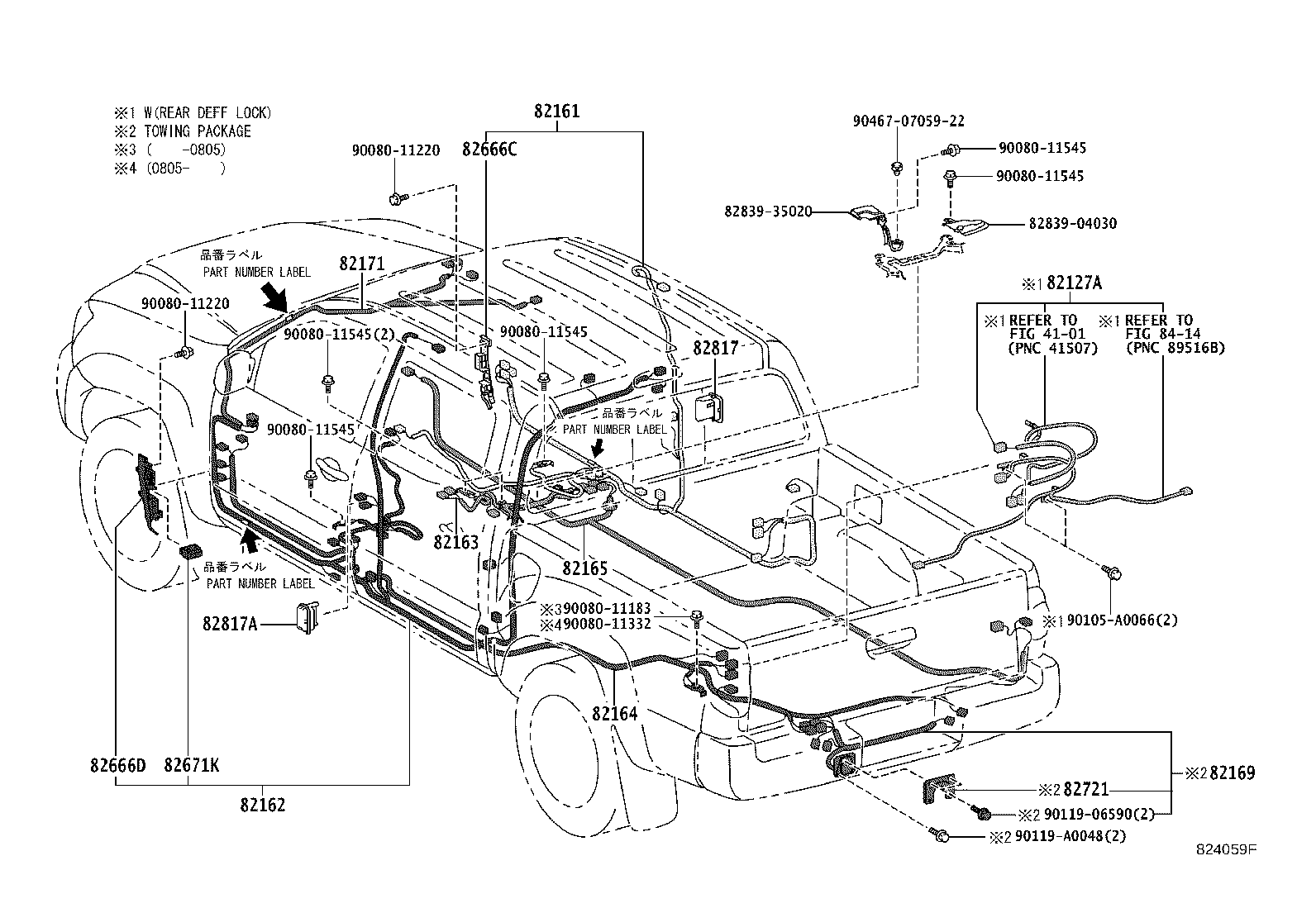

FLOOR,FRAME & ROOF

Part #	Description	Period	Qty
82127A - WIRE, DIFFERENTIAL (TO WIRE FRAME)
82127-04180	GRN245,265 WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82127-04180	GRN245,265 TOWING PACKAGE-WITH&WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82161 - WIRE, FLOOR
82161-04080	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 05/2008	1
82161-04070	GRN245,250,265,270..DCB AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 05/2008	1
82161-04090	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 05/2008	1
82161-04060	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82161-04080	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 05/2008	1
82161-04070	GRN245,250,265,270..DCB AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 05/2008	1
82161-04090	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)&AUDIO-PREMIUM 6CD DASH CHANGER 7SPEAKER	09/2004 - 05/2008	1
82161-04060	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82162 - WIRE, FLOOR, NO.2
82162-04040	GRN245,250,265,270..DCB	09/2004 - 08/2005	1
82162-04100	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2005 - 05/2008	1
82162-04090	GRN245,250,265,270..DCB	08/2005 - 05/2008	1
82162-04050	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2005	1
82162-04040	GRN245,250,265,270..DCB	09/2004 - 08/2005	1
82162-04050	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	09/2004 - 08/2005	1
82162-04090	GRN245,250,265,270..DCB	08/2005 - 05/2008	1
82162-04100	GRN245,250,265,270..DCB SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE & *CUSA)	08/2005 - 05/2008	1
82163 - WIRE, FLOOR, NO.3
82163-04080	GRN245,250,265,270 STREET PACKAGE 4X4,2X4	09/2004 - 05/2008	1
82163-04080	GRN245,265 WITH(FTP & EUC:PNC51405A & 51406A)	09/2004 - 05/2008	1
82163-04080	GRN245,265 WITH(FTP & EUC:PNC51405A ONLY)	08/2007 - 05/2008	1
82164 - WIRE, FRAME
82164-04A20	GRN245,265 TOWING PACKAGE-WITH	09/2004 - 05/2008	1
82164-04A10	GRN245,265 WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82164-04A00	GRN225,245,265,TRN225,245,265	09/2004 - 05/2008	1
82164-04A30	GRN245,265 TOWING PACKAGE-WITH&WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82165 - WIRE, FRAME, NO.2
82165-04030	GRN245,265 WITH(FTP & EUC:PNC51405A & 51406A)	09/2004 - 05/2008	1
82165-04030	GRN245,265 WITH(FTP & EUC:PNC51405A ONLY)	08/2007 - 05/2008	1
82165-04030	GRN245,265 STREET PACKAGE 4X4,2X4	09/2004 - 05/2008	1
82169 - WIRE FRAME, NO.3
82169-04010	GRN245,250,265,270 TOWING PACKAGE-WITH	09/2004 - 05/2008	1
82169-04010	GRN245,265 TOWING PACKAGE-WITH&WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82171 - WIRE, ROOF, NO.1
82171-04350	GRN245,265 WITH(FTP & EUC:PNC51405A & 51406A)&INSIDE REAR VIEW MIRROR-EC MIRROR(MOP)	09/2004 - 05/2008	1
82171-04390	GRN225,245,250,265,270,TRN225,245,265	09/2004 - 05/2008	1
82171-04350	GRN245,265 WITH(FTP & EUC:PNC51405A ONLY)&INSIDE REAR VIEW MIRROR-EC MIRROR(MOP)	08/2007 - 05/2008	1
82171-04350	GRN245,250,265,270 STREET PACKAGE 4X4,2X4&INSIDE REAR VIEW MIRROR-EC MIRROR(MOP)	09/2004 - 05/2008	1
82666C - HOLDER, CONNECTOR NO.4
82666-04050	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
82666D - HOLDER, CONNECTOR NO.5
82666-04060	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
82671K - BLOCK, JUNCTION, NO.3
82732-04020	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
82721 - BRACKET, WIRING HARNESS, NO.1
82715-04270	GRN245,250,265,270 TOWING PACKAGE-WITH	09/2004 - 05/2008	1
82715-04270	GRN245,265 TOWING PACKAGE-WITH&WITH(REAR DIFF LOCK)	09/2004 - 05/2008	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-04020	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-04030	GRN245,250,265,270..DCB	09/2004 - 05/2008	1
Common parts
82839-04030
82839-35020
90080-11183
90080-11220
90080-11332
90080-11545
90105-A0066
90119-06590
90119-A0048
90467-0705922
Linked diagrams
4101
8414

ILLUST NO. 6 OF12(0409- )

Click highlighted areas on diagram

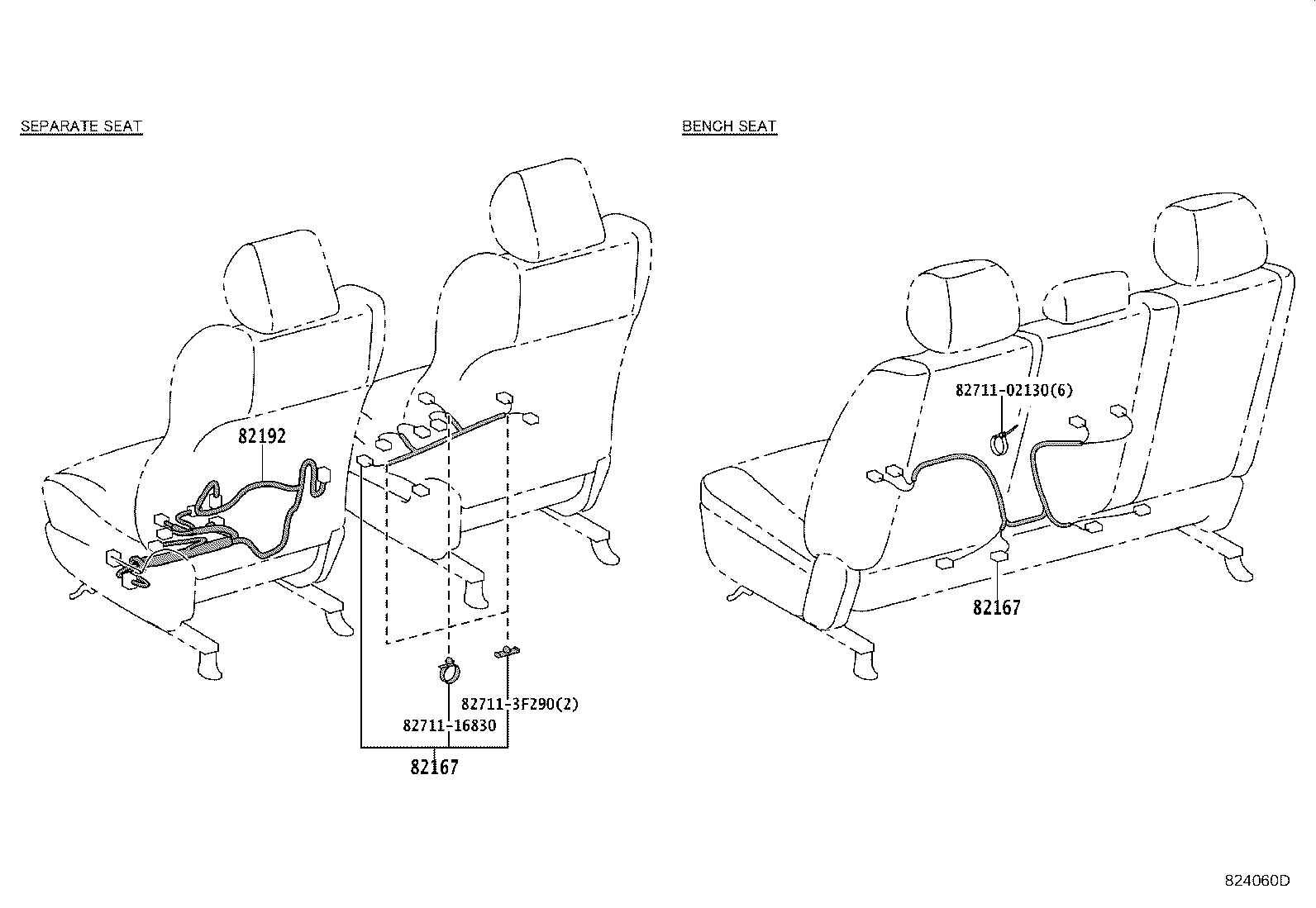

SEAT

Part #	Description	Period	Qty
82167 - WIRE, SEAT, NO.1
82167-04030	GRN225,245,250,265,270,TRN225,245,265	09/2004 - 05/2008	1
82167 - WIRE, SEAT, NO.1
82167-04030	GRN225,245,250,265,270,TRN225,245,265	09/2004 - 05/2008	1
Common parts
82711-02130
82711-16830
82711-3F290

ILLUST NO. 7 OF12(0409- )

Click highlighted areas on diagram

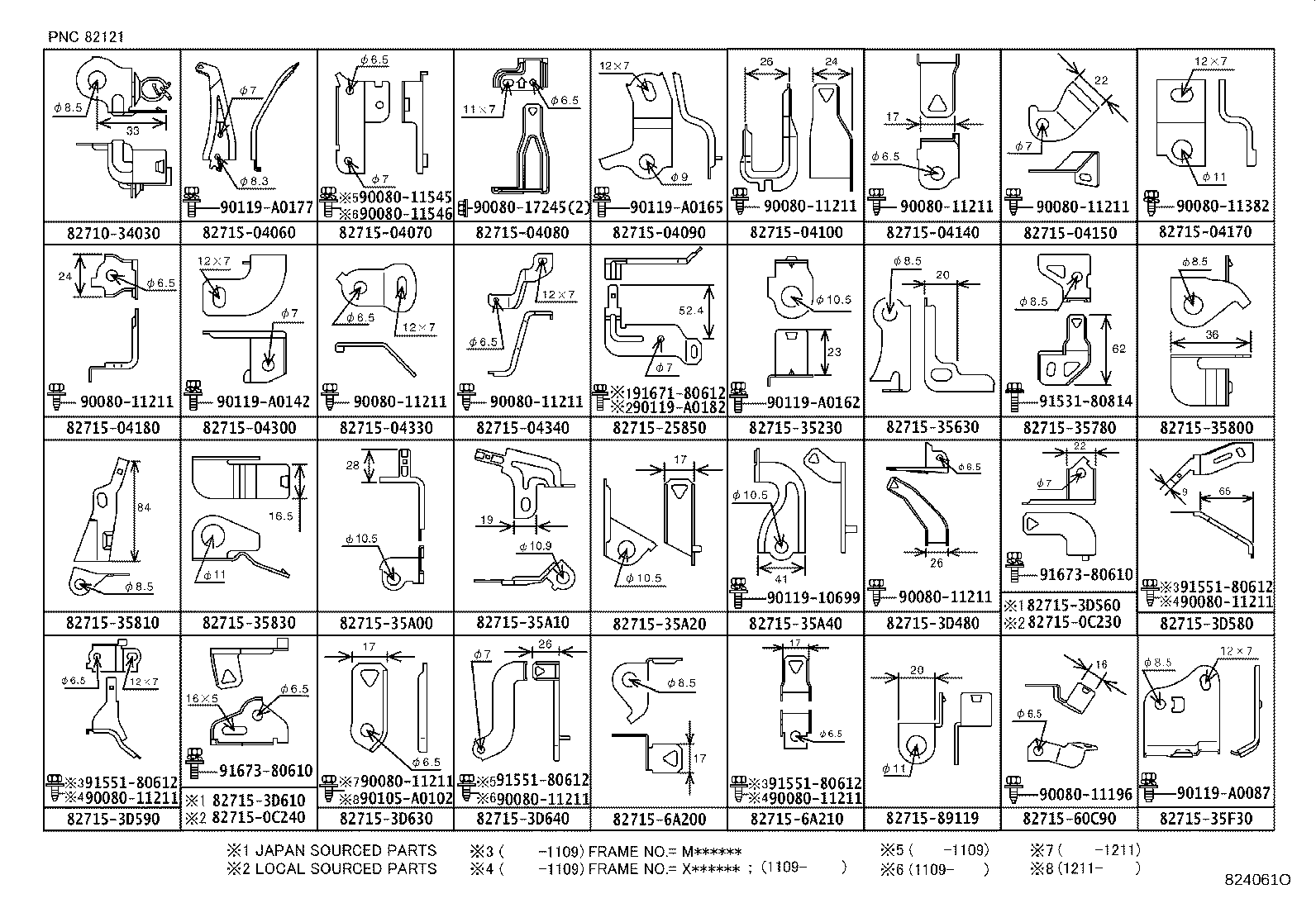

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-34030
82715-04060
82715-04070
82715-04080
82715-04090
82715-04100
82715-04140
82715-04150
82715-04170
82715-04180
82715-04300
82715-04330
82715-04340
82715-0C230
82715-0C240
82715-25850
82715-35230
82715-35630
82715-35780
82715-35800
82715-35810
82715-35830
82715-35A00
82715-35A10
82715-35A20
82715-35A40
82715-35F30
82715-3D480
82715-3D560
82715-3D580
82715-3D590
82715-3D610
82715-3D630
82715-3D640
82715-60C90
82715-6A200
82715-6A210
82715-89119
90080-11196
90080-11211
90080-11382
90080-11545
90080-11546
90080-17245
90105-A0102
90119-10699
90119-A0087
90119-A0142
90119-A0162
90119-A0165
90119-A0177
90119-A0182
91531-80814
91551-80612
91671-80612
91673-80610

ILLUST NO. 8 OF12(0409- )

Click highlighted areas on diagram

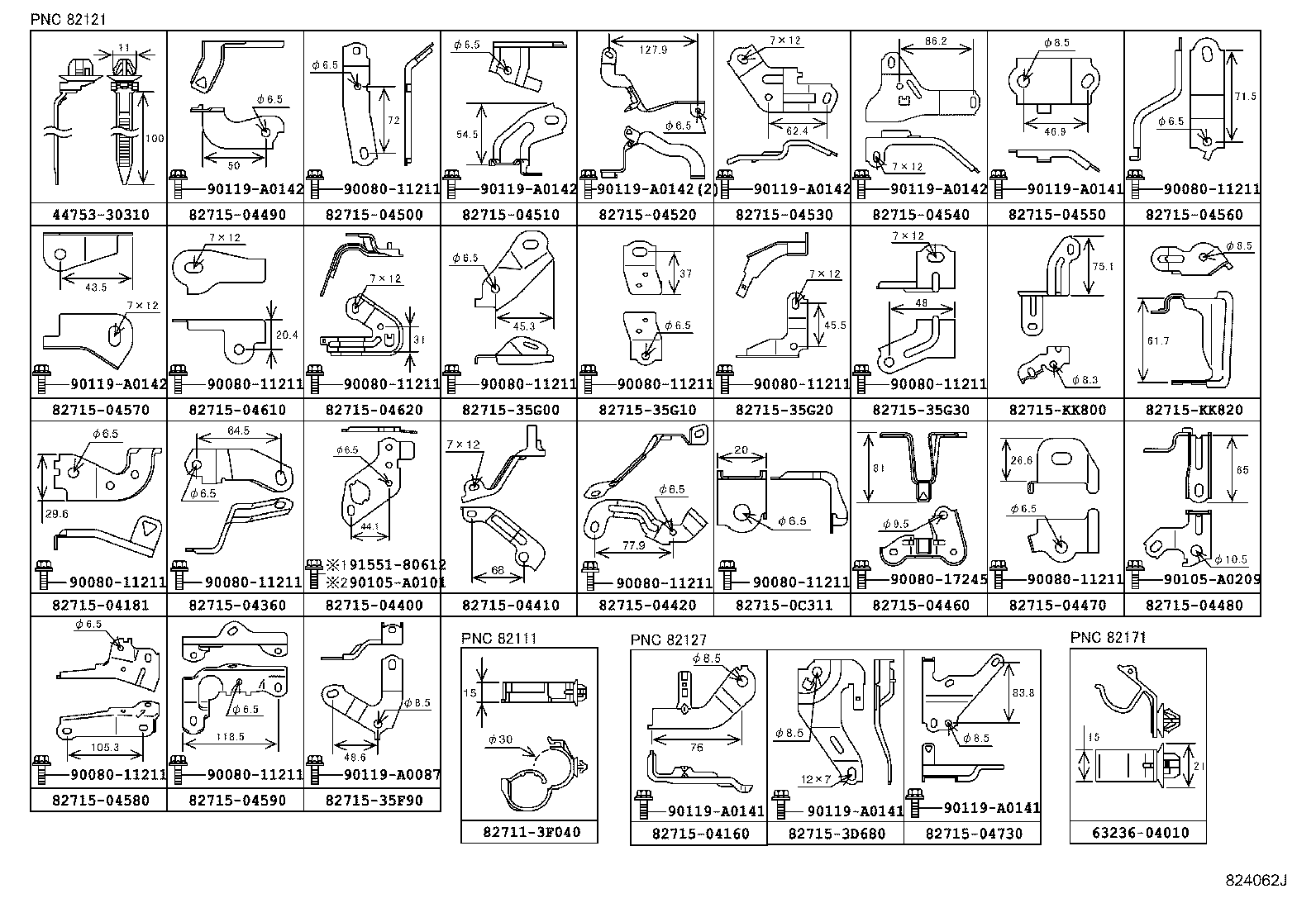

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
44753-30310
63236-04010
82711-3F040
82715-04160
82715-04181
82715-04360
82715-04400
82715-04410
82715-04420
82715-04460
82715-04470
82715-04480
82715-04490
82715-04500
82715-04510
82715-04520
82715-04530
82715-04540
82715-04550
82715-04560
82715-04570
82715-04580
82715-04590
82715-04610
82715-04620
82715-04730
82715-0C311
82715-35F90
82715-35G00
82715-35G10
82715-35G20
82715-35G30
82715-3D680
82715-KK800
82715-KK820
90080-11211
90080-17245
90105-A0101
90105-A0209
90119-A0087
90119-A0141
90119-A0142
91551-80612

ILLUST NO.10 OF12(0409- )

Click highlighted areas on diagram

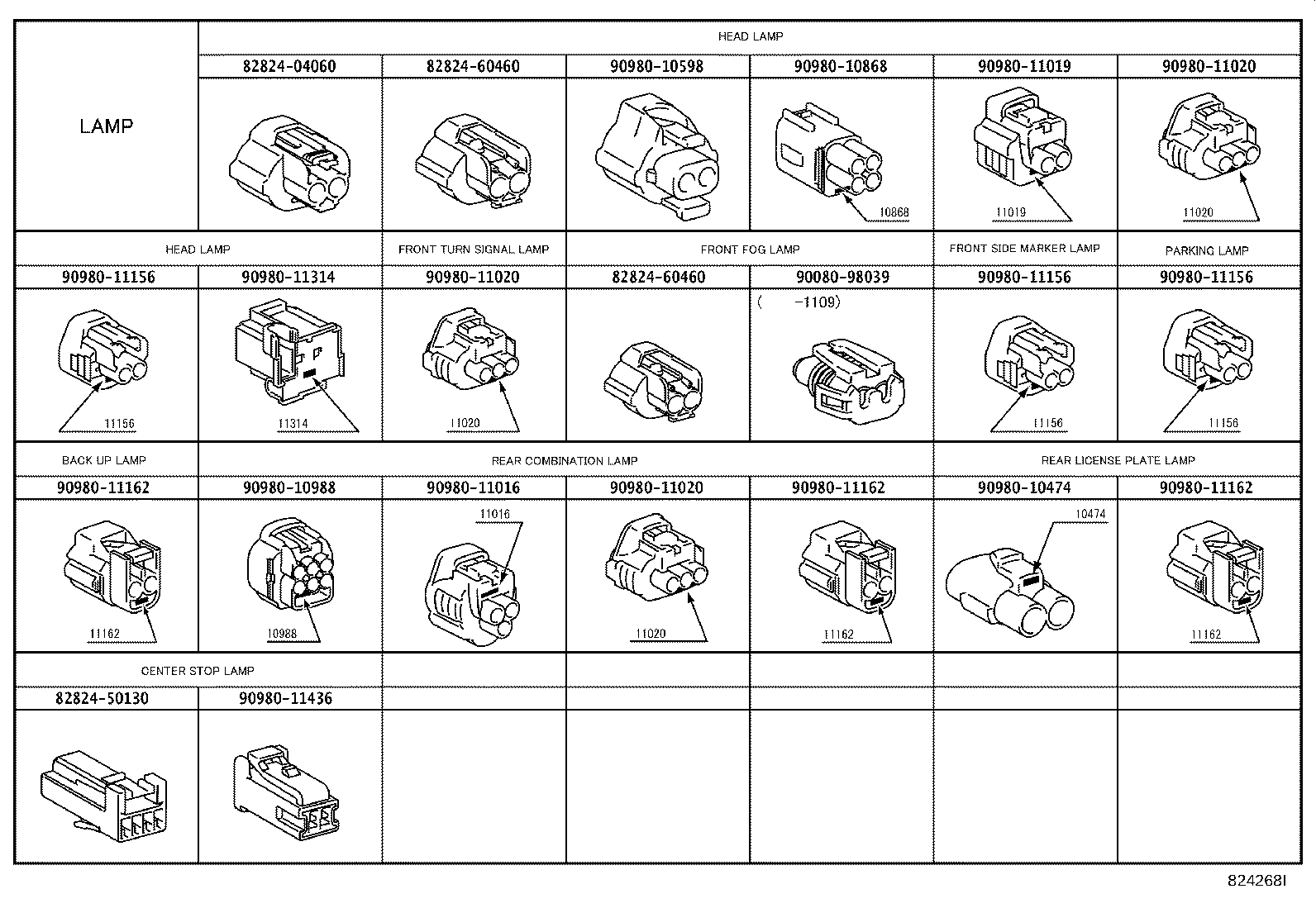

CONNECTOR 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-04060
82824-50130
82824-60460
90080-98039
90980-10474
90980-10598
90980-10868
90980-10988
90980-11016
90980-11019
90980-11020
90980-11156
90980-11162
90980-11314
90980-11436

ILLUST NO.11 OF12(0409- )

Click highlighted areas on diagram

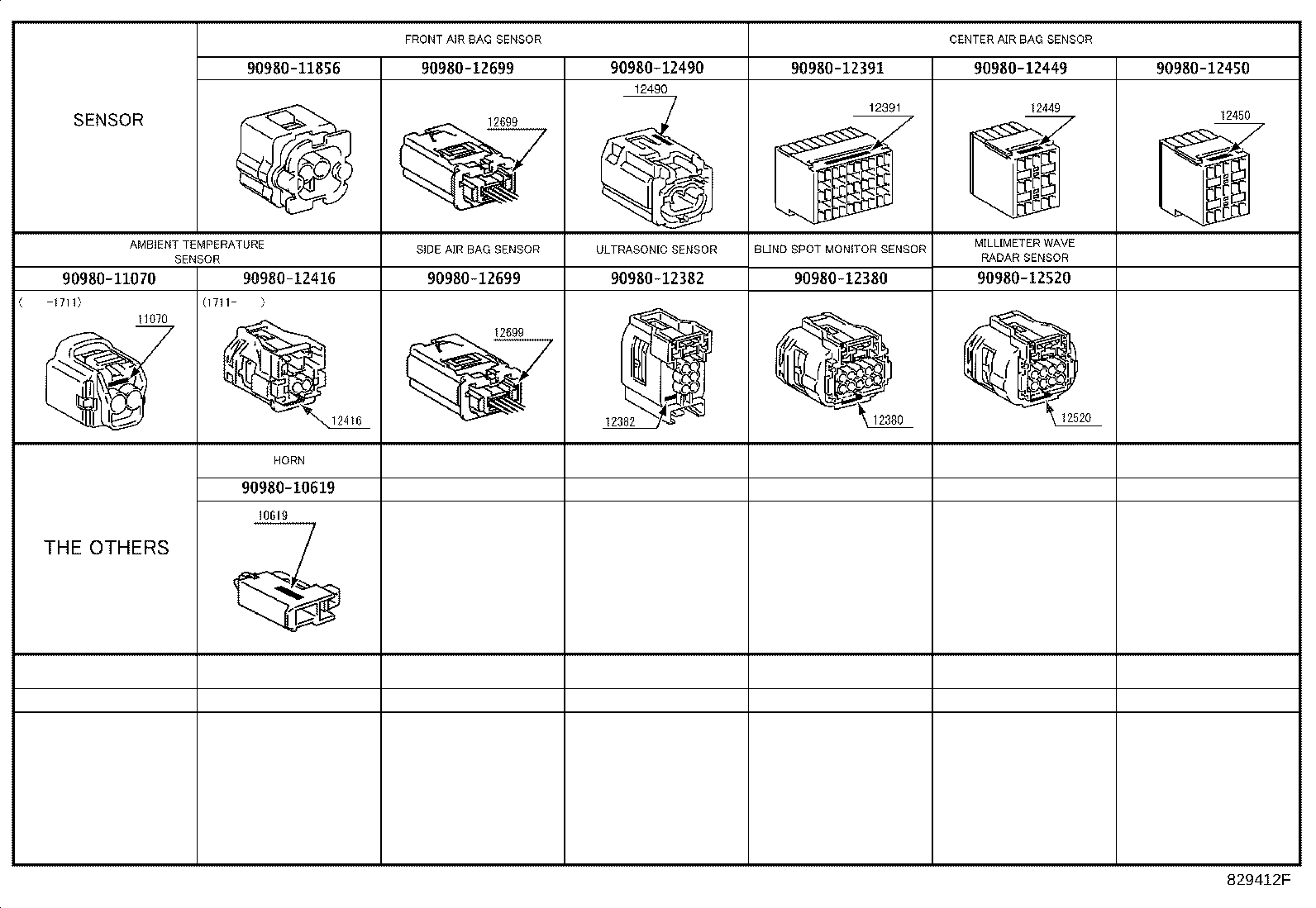

CONNECTOR 2/3

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-11070
90980-11856
90980-12380
90980-12382
90980-12391
90980-12416
90980-12449
90980-12450
90980-12490
90980-12520
90980-12699

ILLUST NO. 9 OF12(0409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-06070
82711-35690
82711-3F230
82711-3H630
82712-04081
82712-04091
82712-04140
82712-04150
82712-04220
82713-04020
82715-04110
82715-04120
82715-04130
82715-04200
82715-04220
82715-04230
82715-04240
82715-04290
82715-04320
82715-04350
82715-04370
82715-04710
82715-04720
82715-04740
82715-04750
82715-04760
82715-04770
90080-11180
90080-11220
90080-11546
90119-A0142
90119-A0169
90178-A0112

ILLUST NO.12 OF12(0409- )

Click highlighted areas on diagram

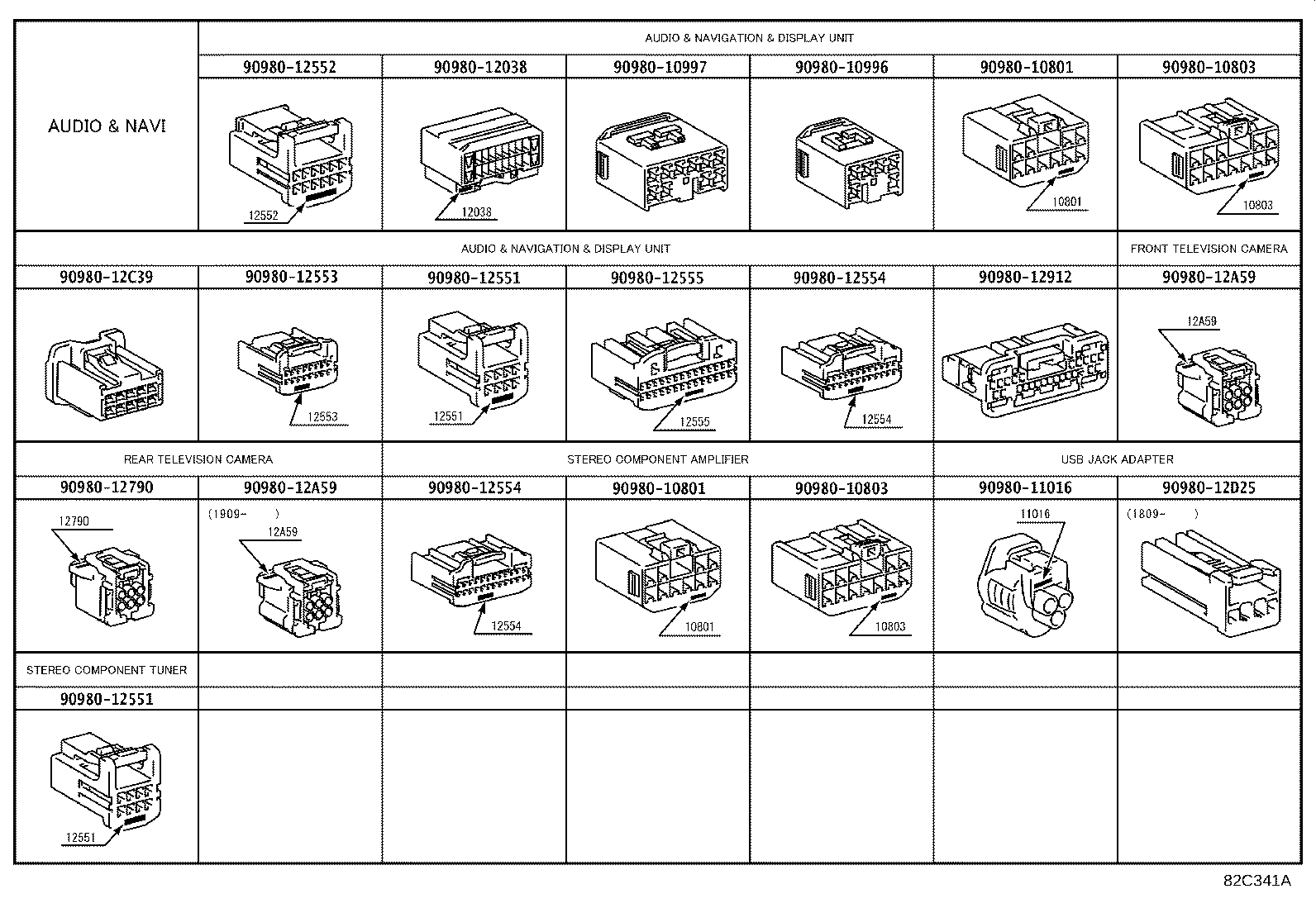

CONNECTOR 3/3

Part #	Description	Period	Qty	Price
Common parts
90980-10801
90980-10803
90980-10996
90980-10997
90980-11016
90980-12038
90980-12551
90980-12552
90980-12553
90980-12554
90980-12555
90980-12790
90980-12912
90980-12A59
90980-12C39
90980-12D25

GRN245L-PRADKA (2004)

ILLUST NO. 1 OF12(0409-1508)

ILLUST NO. 2 OF12(0409-1508)GRN225,245,250,265,270

ILLUST NO. 2 OF12(0409-1508)TRN22#,24#,26#

ILLUST NO. 3 OF12(0409-1109)

ILLUST NO. 4 OF12(0409- )

ILLUST NO. 5 OF12(0409-1006)

ILLUST NO. 6 OF12(0409- )

ILLUST NO. 7 OF12(0409- )

ILLUST NO. 8 OF12(0409- )

ILLUST NO.10 OF12(0409- )

ILLUST NO.11 OF12(0409- )

ILLUST NO. 9 OF12(0409- )

ILLUST NO.12 OF12(0409- )

Part Price Details
