Toyota Tacoma GRN245 FRONT DOOR WINDOW REGULATOR & HINGE

Manufacturers Home
Toyota
US
TACOMA
GRN245L-PRADKA (2004)
6754 - FRONT DOOR WINDOW REGULATOR & HINGE

GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0409- )

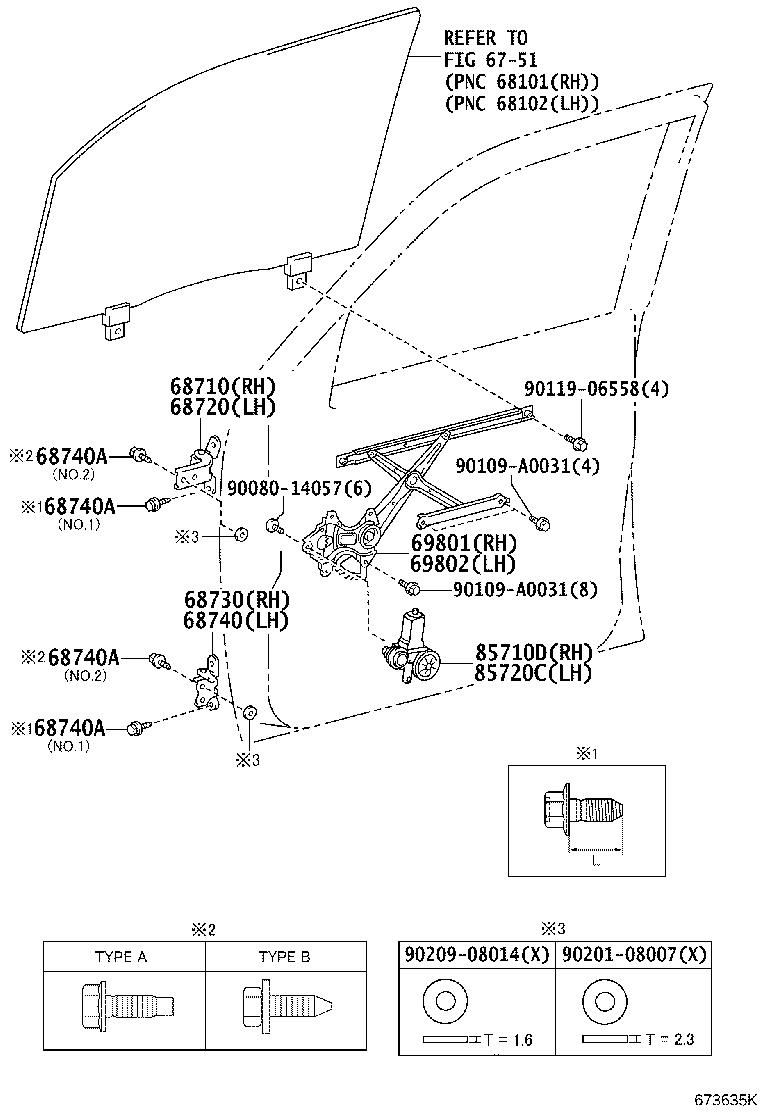

Click highlighted areas on diagram

POWER WINDOW

Part #	Description	Period	Qty
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02020	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02020	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-AC010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-AC010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-04040	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-04040	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-AE010	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-AE010	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
Common parts
90080-14057
90109-A0031
90119-06558
90201-08007
90209-08014
Linked diagrams
6751

(0409-1408)

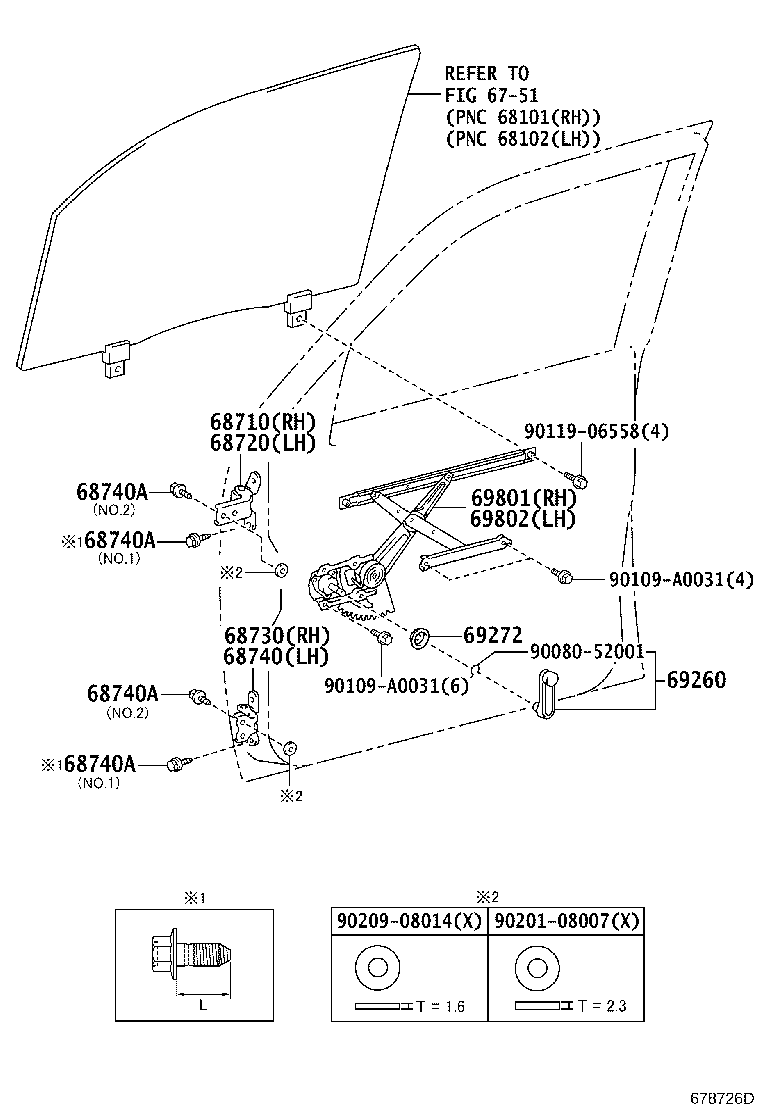

Click highlighted areas on diagram

MANUAL WINDOW

Part #	Description	Period	Qty
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02020	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02020	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-AC010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-AC010	GRN225,245,250,265,270,TRN22#,24#,26#	09/2004 - 05/2008	1
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
68740A - BOLT(FOR FRONT DOOR HINGE)
90119-A0130	GRN225,245,250,265,270,TRN22#,24#,26# NO.2	09/2004 - 05/2008	8
90080-10212	GRN225,245,250,265,270,TRN22#,24#,26# NO.1	09/2004 - 05/2008	8
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-04040	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-04040	GRN225,250,270;GRN245,265..DCB	09/2004 - 05/2008	1
Common parts
90080-52001
90109-A0031
90119-06558
90201-08007
90209-08014
Linked diagrams
6751

GRN245L-PRADKA (2004)

(0409- )

(0409-1408)
