GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1508)DCB

Click highlighted areas on diagram

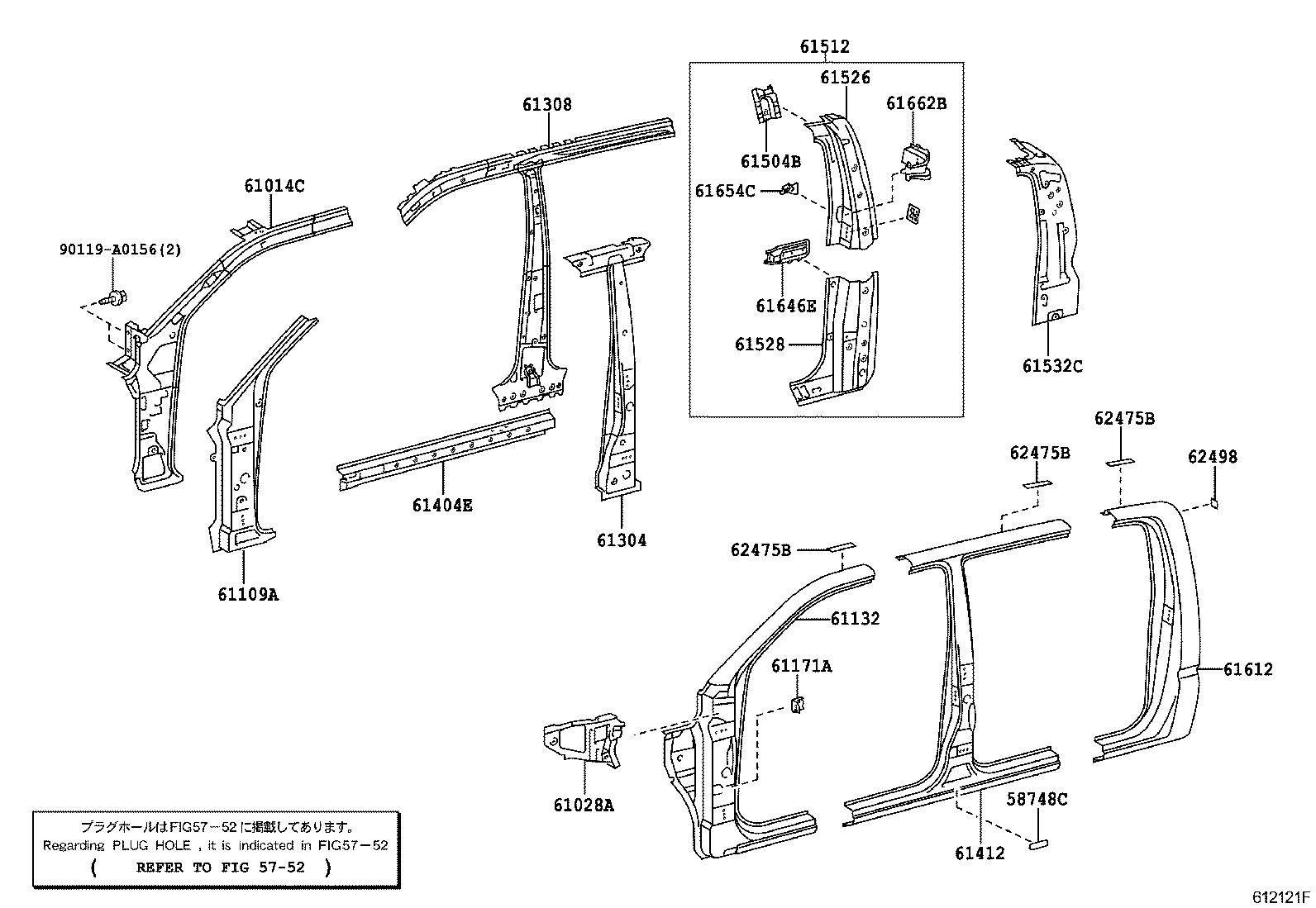

LH SIDE

diagram 5752 58748C 61014C 61028A 61109A 61132 61171A 61304 61308 61404E 61412 61504B 61512 61526 61528 61532C 61612 61646E 61654C 61662B 62475B 62475B 62475B 62498 90119A0156
Part # Description Qty Price
58748C - PROTECTOR, QUARTER PANEL, REAR LH
58748-04010

GRN225,245,250,265,270,TRN225,245,265

 1
61014C - PANEL SUB-ASSY, SIDE, INNER LH
61014-04020

GRN245,250,265,270..DCB

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-04030

GRN225,245,250,265,270,TRN22#,24#,26#

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-04020

GRN225,245,250,265,270,TRN22#,24#,26#

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-04050

GRN245,250,265,270..DCB

 1
61171A - BRACKET, ANTENNA POLE MOUNTING
61171-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 2
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-04010

GRN245,250,265,270..DCB

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-04030

GRN245,250,265,270..DCB

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-04030

GRN245,250,265,270..DCB

 1
61412 - PANEL, ROCKER, OUTER LH
61412-04050

GRN245,250,265,270..DCB

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-04060

GRN245,250,265,270..DCB

 1
61512 - PILLAR, QUARTER LOCK, LH
61502-04903

GRN245,250,265,270..DCB

 1
61526 - REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH
61526-04030

GRN245,250,265,270..DCB

 1
61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH
61528-04040

GRN245,250,265,270..DCB

 1
61532C - PANEL, CAB REAR PILLAR, INSIDE LH
61532-04080

GRN245,250,265,270..DCB

 1
61612 - PANEL, QUARTER, LH
61612-04050

GRN245,250,265,270..DCB

 1
61646E - REINFORCEMENT, REAR PILLAR, LOWER LH
61646-04020

GRN245,250,265,270..DCB

 1
61654C - BRACKET, DECK SIDE TRIM, LH
61653-04010

GRN245,250,265,270..DCB

 1
61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH
61662-04070

GRN245,250,265,270..DCB

 1
62475B - SEAL, ROOF SIDE, INNER
62475-04010

GRN245,250,265,270..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04010

GRN245,250,265,270..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04010

GRN245,250,265,270..DCB

 6
62498 - SEAL, ROOF SIDE, INNER REAR
62498-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 2
Common parts
90119-A0156
Linked diagrams
5752

(0409-1508)DCB

Click highlighted areas on diagram

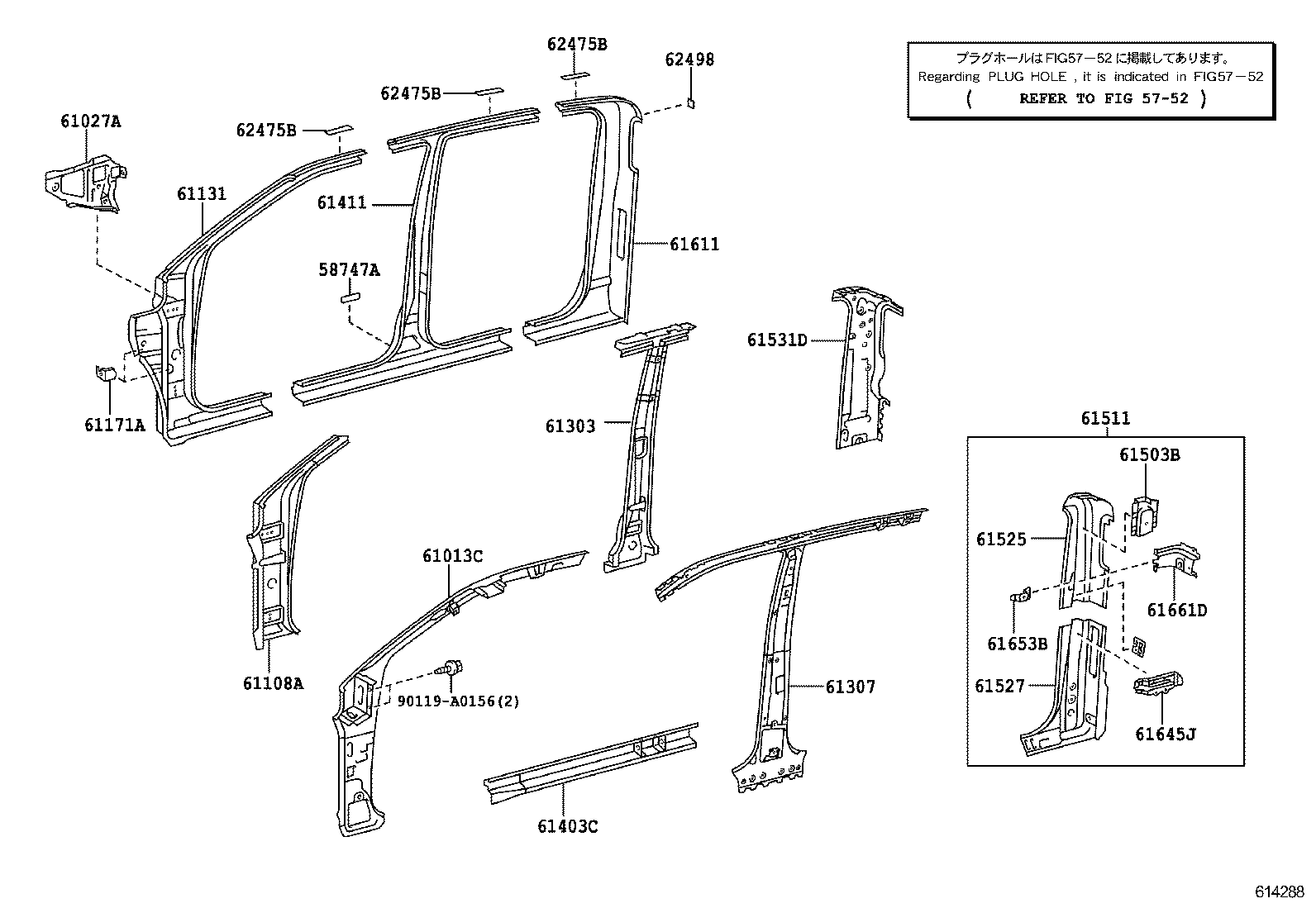

RH SIDE

diagram 5752 58747A 61013C 61027A 61108A 61131 61171A 61303 61307 61403C 61411 61503B 61511 61525 61527 61531D 61611 61645J 61653B 61661D 62475B 62475B 62475B 62498 90119A0156
Part # Description Qty Price
58747A - PROTECTOR, QUARTER PANEL, REAR RH
58748-04010

GRN225,245,250,265,270,TRN225,245,265

 1
61013C - PANEL SUB-ASSY, SIDE, INNER RH
61013-04020

GRN245,250,265,270..DCB

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-04030

GRN225,245,250,265,270,TRN22#,24#,26#

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-04020

GRN225,245,250,265,270,TRN22#,24#,26#

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-04050

GRN245,250,265,270..DCB

 1
61171A - BRACKET, ANTENNA POLE MOUNTING
61171-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 2
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-04010

GRN245,250,265,270..DCB

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-04020

GRN245,250,265,270..DCB

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-04030

GRN245,250,265,270..DCB

 1
61411 - PANEL, ROCKER, OUTER RH
61411-04050

GRN245,250,265,270..DCB

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-04060

GRN245,250,265,270..DCB

 1
61511 - PILLAR, QUARTER LOCK, RH
61501-04903

GRN245,250,265,270..DCB

 1
61525 - REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH
61525-04030

GRN245,250,265,270..DCB

 1
61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61527-04040

GRN245,250,265,270..DCB

 1
61531D - PANEL, CAB REAR PILLAR, INNER RH
61531-04080

GRN245,250,265,270..DCB

 1
61611 - PANEL, QUARTER, RH
61611-04050

GRN245,250,265,270..DCB

 1
61645J - REINFORCEMENT, REAR PILLAR, LOWER RH
61645-04020

GRN245,250,265,270..DCB

 1
61653B - BRACKET, DECK SIDE TRIM
61653-04010

GRN245,250,265,270..DCB

 1
61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH
61661-04060

GRN245,250,265,270..DCB

 1
62475B - SEAL, ROOF SIDE, INNER
62475-04010

GRN245,250,265,270..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04010

GRN245,250,265,270..DCB

 6
62475B - SEAL, ROOF SIDE, INNER
62475-04010

GRN245,250,265,270..DCB

 6
62498 - SEAL, ROOF SIDE, INNER REAR
62498-04010

GRN225,245,250,265,270,TRN22#,24#,26#

 2
Common parts
90119-A0156
Linked diagrams
5752
