GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409- )GRN245,250,265,270,305,310,325,330,TRN24#,26#

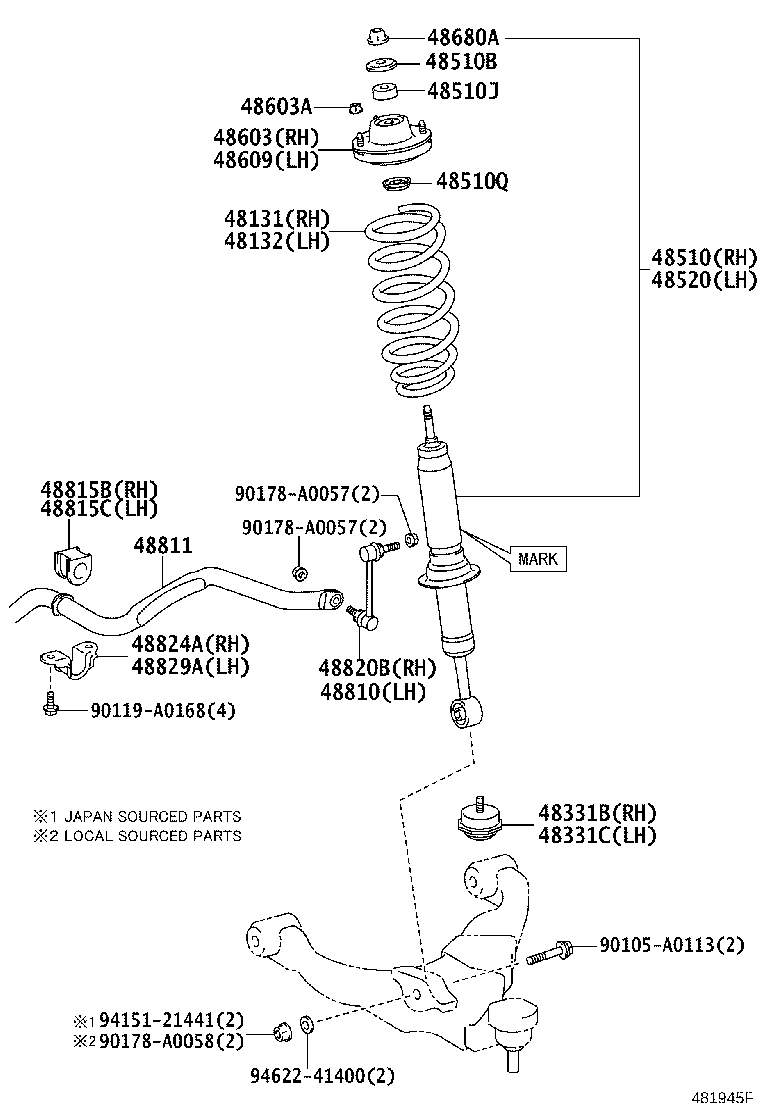

Click highlighted areas on diagram

diagram 48131 48132 48331B 48331C 48510 48510B 48510J 48510Q 48520 48603 48603A 48609 48680A 48810 48811 48815B 48815C 48820B 48824A 48829A 90105A0113 90119A0168 90178A0057 90178A0057 90178A0058 9415121441 9462241400
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-04540

GRN245

 1
48131-04540

GRN245

 1
48131-AD220

GRN245

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48131-AD220

GRN245

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48131-AD220

GRN245

WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48132 - SPRING, FRONT COIL, LH
48131-04550

GRN245

 1
48131-AD230

GRN245

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48131-04550

GRN245

 1
48131-AD230

GRN245

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48131-AD230

GRN245

WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48331B - BUMPER, FRONT SPRING, RH
48304-04100

GRN245,250,265,270,TRN24#,26#

 1
48331C - BUMPER, FRONT SPRING, LH
48304-04100

GRN245,250,265,270,TRN24#,26#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09L80

GRN245,250,TRN245

MARK 48510-04080

 1
48510-A9630

GRN245,250,265,270

MARK 48510-AD060,STREET PACKAGE 4X4,2X4

 1
48510-A9630

GRN245,265

MARK 48510-AD060,WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48510-A9630

GRN245,265

MARK 48510-AD060,WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-A2003

GRN225,245,250,265,270,TRN22#,24#,26#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90540-A0005

GRN245,265

WITH(*FTP & *EUC:PNC51405A & 51406A)

 2
90540-A0005

GRN245,250,265,270

STREET PACKAGE 4X4,2X4

 2
90540-A0005

GRN245,265

WITH(*FTP & *EUC:PNC51405A ONLY)

 2
90540-12012

GRN245,265

WITH(*FTP & *EUC:PNC51405A & 51406A),(J)

 2
90540-A0002

GRN245,250,265,270,TRN22#,24#,26#

 2
90540-12012

GRN245,250,265,270

STREET PACKAGE 4X4,2X4,(J)

 2
90540-A0002

GRN245,250,265,270,TRN22#,24#,26#

(L)

 2
90948-01056

GRN245,250,265,270,TRN22#,24#,26#

(J)

 2
90540-12012

GRN245,265

WITH(*FTP & *EUC:PNC51405A ONLY),(J)

 2
90540-A0005

GRN245,250,265,270

STREET PACKAGE 4X4,2X4,(L)

 2
90540-A0005

GRN245,265

WITH(*FTP & *EUC:PNC51405A ONLY),(L)

 2
90540-A0005

GRN245,265

WITH(*FTP & *EUC:PNC51405A & 51406A),(L)

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-A2001

GRN225,245,250,265,270,TRN22#,24#,26#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-09L80

GRN245,250,TRN245

MARK 48510-04080

 1
48510-A9630

GRN245,250,265,270

MARK 48510-AD060,STREET PACKAGE 4X4,2X4

 1
48510-A9630

GRN245,265

MARK 48510-AD060,WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48510-A9630

GRN245,265

MARK 48510-AD060,WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-04020

GRN245,250,265,270,TRN24#,26#

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90080-17215

GRN225,245,250,265,270,TRN22#,24#,26#

 6
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-04020

GRN245,250,265,270,TRN24#,26#

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
90177-A0012

GRN225,245,250,265,270,TRN22#,24#,26#

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-04010

GRN245,250,265,270,TRN24#,26#

 1
48811 - BAR, STABILIZER, FRONT
48811-04130

GRN245,250,265,270,TRN24#,26#

 1
48811-AD050

GRN245,265

WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48811-AD050

GRN245,265

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH
48815-AD030

GRN245,265

WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48815-04080

GRN245,250,265,270,TRN24#,26#

 1
48815-AD030

GRN245,265

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH
48815-AD030

GRN245,265

WITH(*FTP & *EUC:PNC51405A & 51406A)

 1
48815-04080

GRN245,250,265,270,TRN24#,26#

 1
48815-AD030

GRN245,265

WITH(*FTP & *EUC:PNC51405A ONLY)

 1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-04020

GRN245,250,265,270,TRN24#,26#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-04020

GRN245,250,265,270,TRN24#,26#

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48829-04010

GRN245,250,265,270,TRN24#,26#

 1
Common parts
90105-A0113
90119-A0168
90178-A0057
90178-A0058
94151-21441
94622-41400
