GRN245L-PRADKA (2004)
Toyota Tacoma
Production
Sep 2004
-
May 2008
Engine
1GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

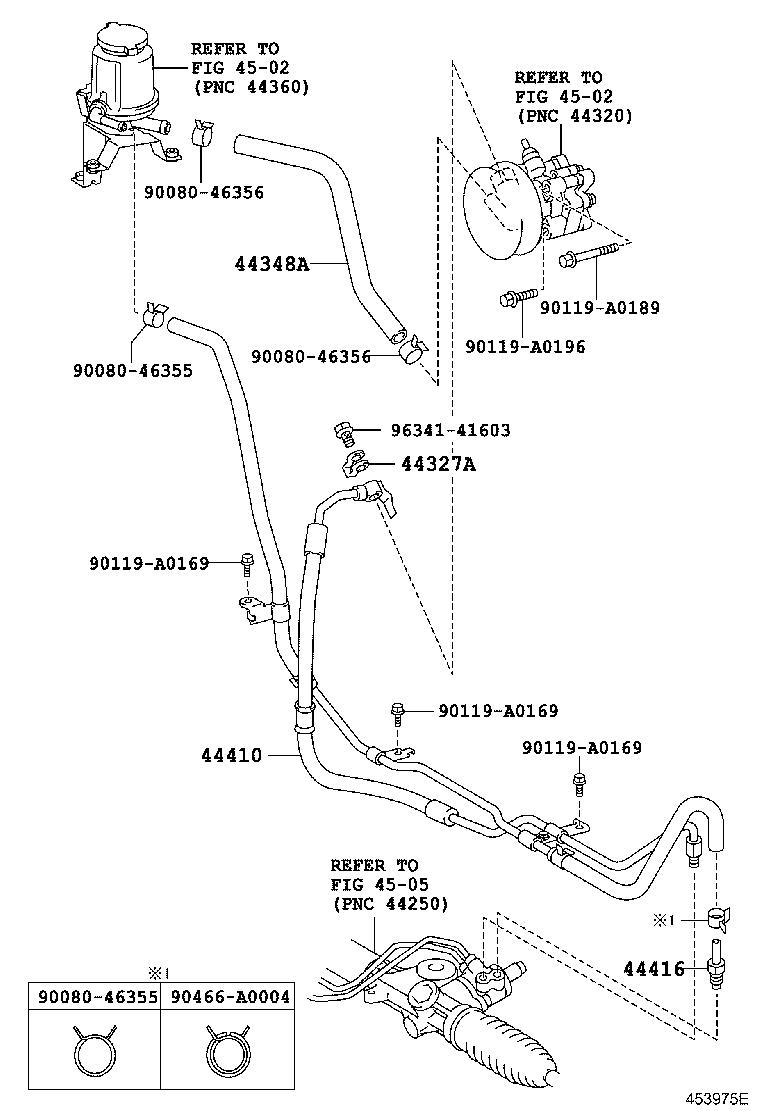

(0409-1508)GRN225,245,250,265,270
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-04030 |
GRN225,245,250,265,270 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-04220 |
GRN245,250,265,270 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-04060 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| Common parts | ||||
| 90080-46355 | ||||
| 90080-46356 | ||||
| 90119-A0169 | ||||
| 90119-A0189 | ||||
| 90119-A0196 | ||||
| 90466-A0004 | ||||
| 96341-41603 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||

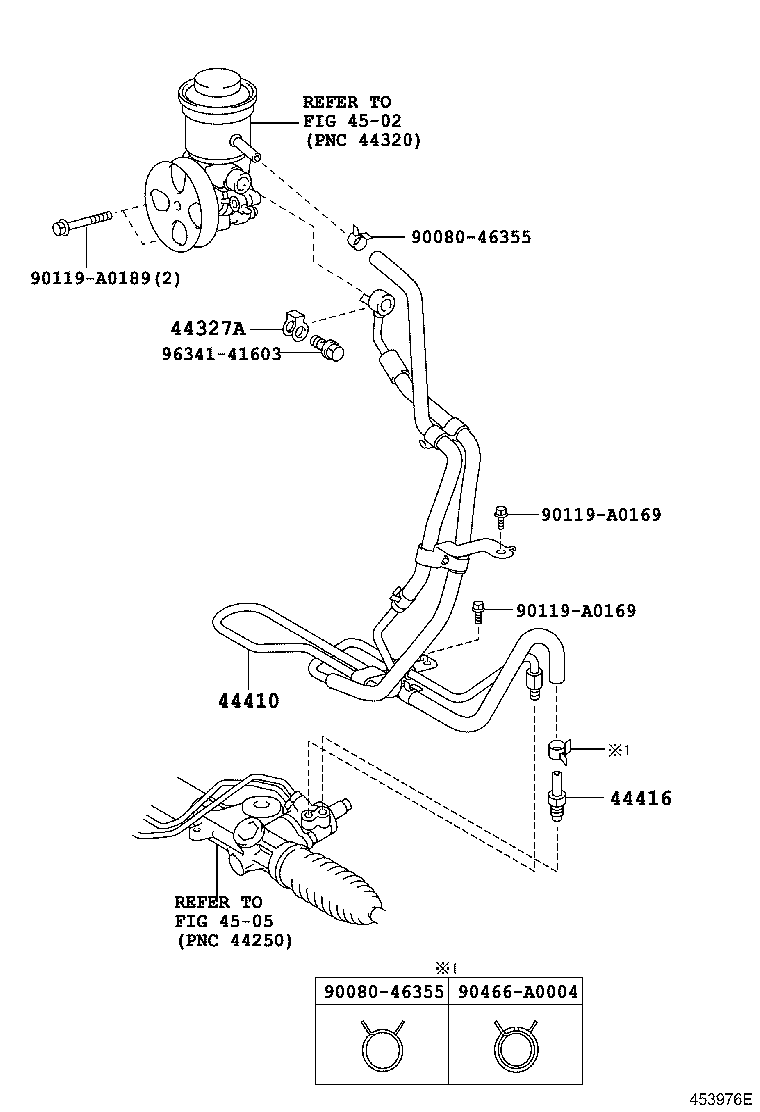

(0409- )TRN22#,24#,26#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-04220 |
GRN245,250,265,270 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-04060 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| Common parts | ||||
| 90080-46355 | ||||
| 90119-A0169 | ||||
| 90119-A0189 | ||||
| 90466-A0004 | ||||
| 96341-41603 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
